Description:

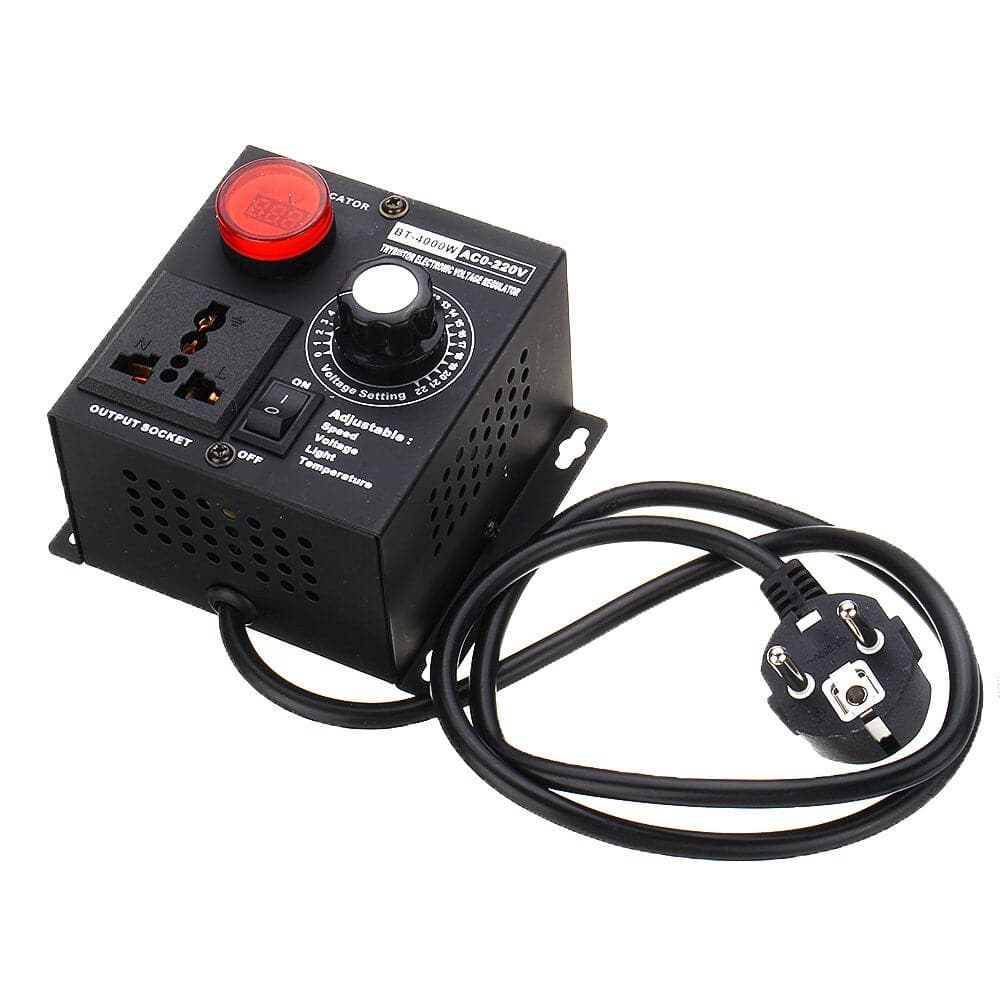

This product is the metal shell thickening of the shell material, high temperature, anti-flame, no rust, the internal chip for high-power imported SCR. Product design compact and lightweight, five-sided cooling mouth does not heat, no deformation, safe and durable. The shell is equipped with a universal multi-purpose socket and a power indicator, adjustable knob stepless voltage regulator, convenient and quick!
This is a kind of fine quality high power SCR voltage regulator, stepless regulation, help adjust speed, temperature, voltage and light. Adopt high temperature resistant FR-4 circuit board, origin imported chip SCR, full aluminum thermal fin, precisions resistance with high voltage condenser. Separate switch control, freely control the input power and cut off power. No postpone and no delay, with crest voltage absorb circuit, can protect the high power SCR effectively
Specifications:
- Input Voltage: AC220V 50/60 Hz
- Output Voltage: 10-220V adjustable (output voltage is less than the input voltage)
- Maximum Power: 4000W (220V)
- Adjustable Voltage Range: 0-220V Promise adjustable (with load conditions) step-down can be 0, boost starting 20V or so
- Rated Current: 9A
- Maximum Current: 18A
Features:
- Mini size, portable and lightweight, strong power, easy to use.
- High power SCR voltage regulator, stepless regulation, help adjust speed, temperature, voltage and light.
- Adopt high temperature resistant FR-4 circuit board, origin imported chip SCR, full aluminum thermal fin, precisions resistance with high voltage condenser.
- Separate switch control, freely control the input power and cut off power.
- No postpone and no delay, with crest voltage absorb circuit, can protect the high power SCR effectively.
- Anti surge, anti-spike, RC absorb and multiple protection.
- Flame retardant insulation outshell, high temperature resistant, rustproof, anti high pressure and with fine durability.
- Adopt multi functional industrial sockets, thicken copper part design, with fine contact and safety.
- Humanized installation hole design, keep flat place or hanging on it is decided by yourself.
- Silent work, energy saving, stable anti-noise, and with wide range of use.
Application:
Electric stove, water heater heat, dimming, small motor speed, electric iron temperature, etc., so as to achieve temperature, dimming, speed, voltage regulation effect.
Note:
- When measuring the output voltage when it is empty, it is a virtual voltage. It must be connected to a load of 20W or more to measure the correct output voltage.
- Input AC power, the output is also AC, not DC.
- The above mentioned 4000W refers to the ulti mate power when working under resistive load.
- The inductive load is 1/3 of the resistive load. The resistive load means that the inductive load such as a tungsten filament lamp or a heating wire is a series-excited motor, etc., and the circuit board electronic products are used with caution.
- This product is a metal case and must be grounded safely.
Package Included:
1 x EU Plug 220V AC 4000W SCR Electronic Voltage Regulator Temperature Motor Speed Controller Dimmer
