Description:
Espressif ESP32-WROOM-32 MCU Modules are robust and highly versatile solutions for a vast array of applications. These modules seamlessly integrate Wi-Fi, Bluetooth (BT), and Bluetooth Low Energy (BLE) capabilities, making them ideal for everything from energy-efficient sensor networks to intensive tasks like voice encoding, music streaming, and MP3 decoding.
At the heart of each ESP32-WROOM-32 module is the ESP32-D0WD chip. This powerful System-on-Chip (SoC) features two individually controllable CPU cores, with a customizable clock frequency ranging from 80MHz to 240MHz. The ESP32-D0WD also boasts a comprehensive suite of integrated peripherals, including capacitive touch sensors, Hall sensors, an SD card interface, Ethernet, high-speed SPI, UART, I2S, and I2C, providing exceptional flexibility for diverse project requirements.
Specification:
- Item Type: Bluetooth Module
- Based ON: ESP32 Based
- Processor: Xtensa 32-bit LX6
- Bluetooth Version: BLE, v4.2 BR/EDR
- Crystal Oscillator: 40MHz
- Current Consumption: 80MA
Features:
- Two low-power Xtensa 32-bit LX6 microprocessors
- ESP32-D0WD core
- Supports multiple external QSPI flash and SRAM chips
- 32 Mbits 3.3V SPI flash
- 40MHz crystal
- Onboard PCB antenna for ESP32-WROOM-32
- U.FL connector (which needs to be connected to an external IPEX antenna) for ESP32-WROOM-32U
- Advanced power-management technologies
Package Included:

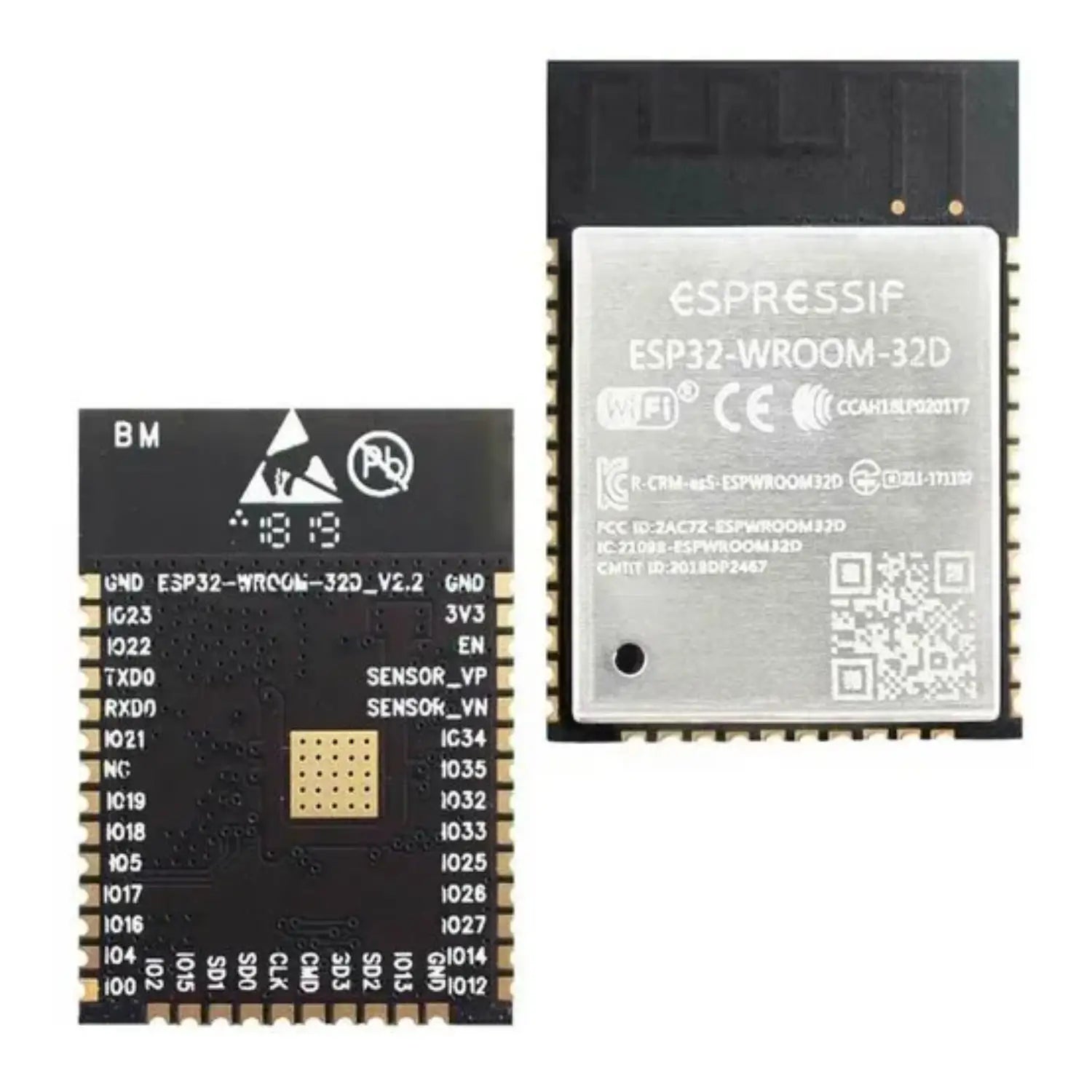

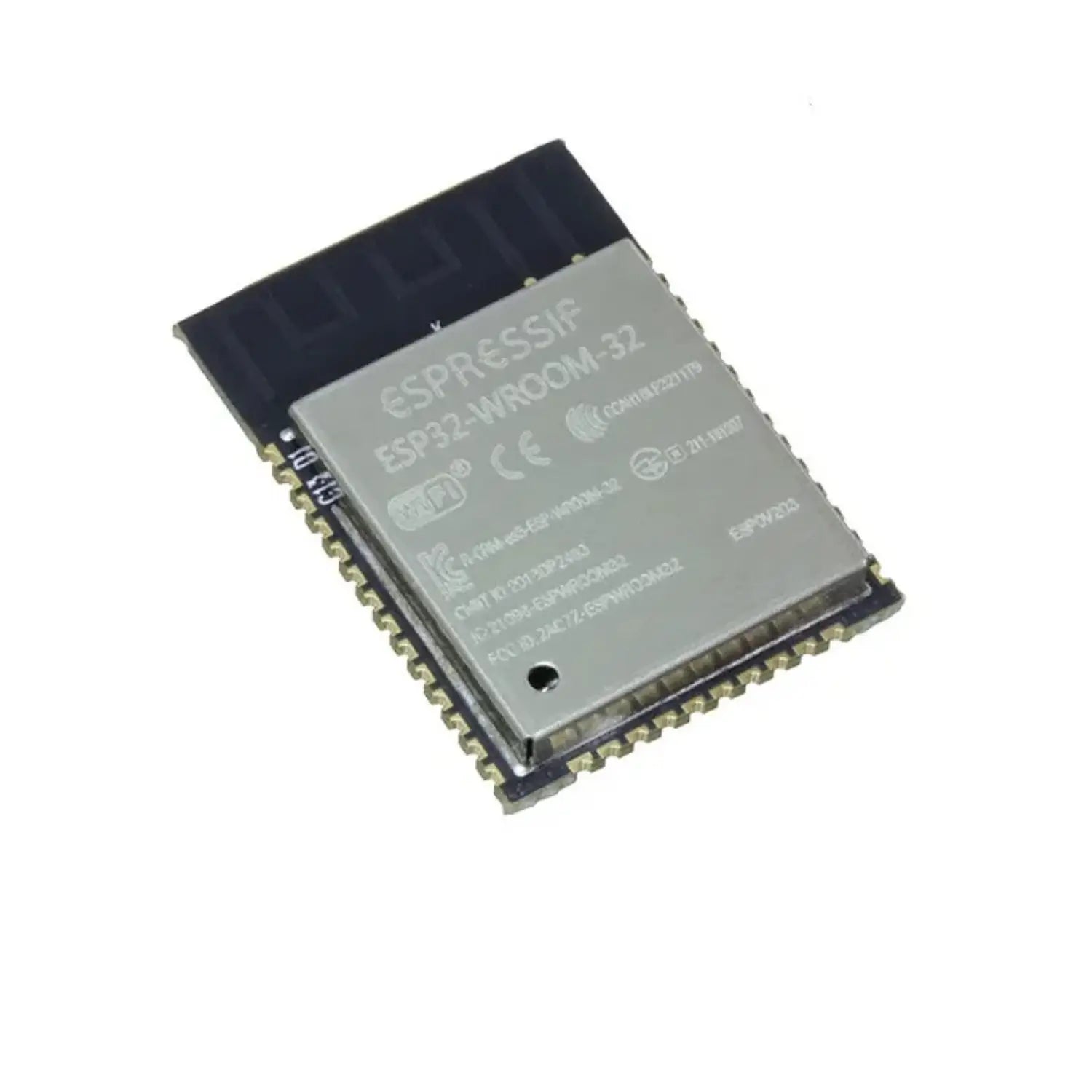

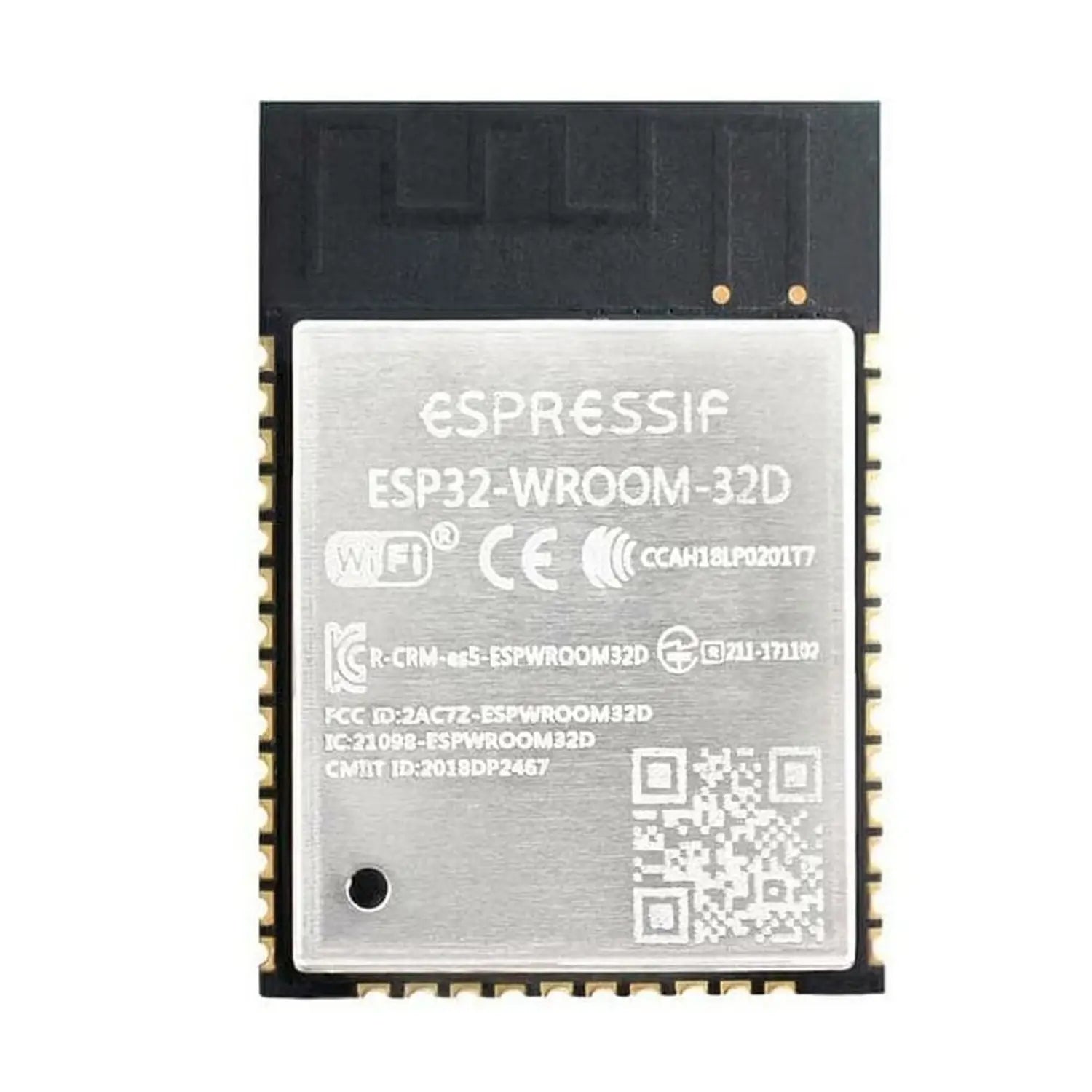

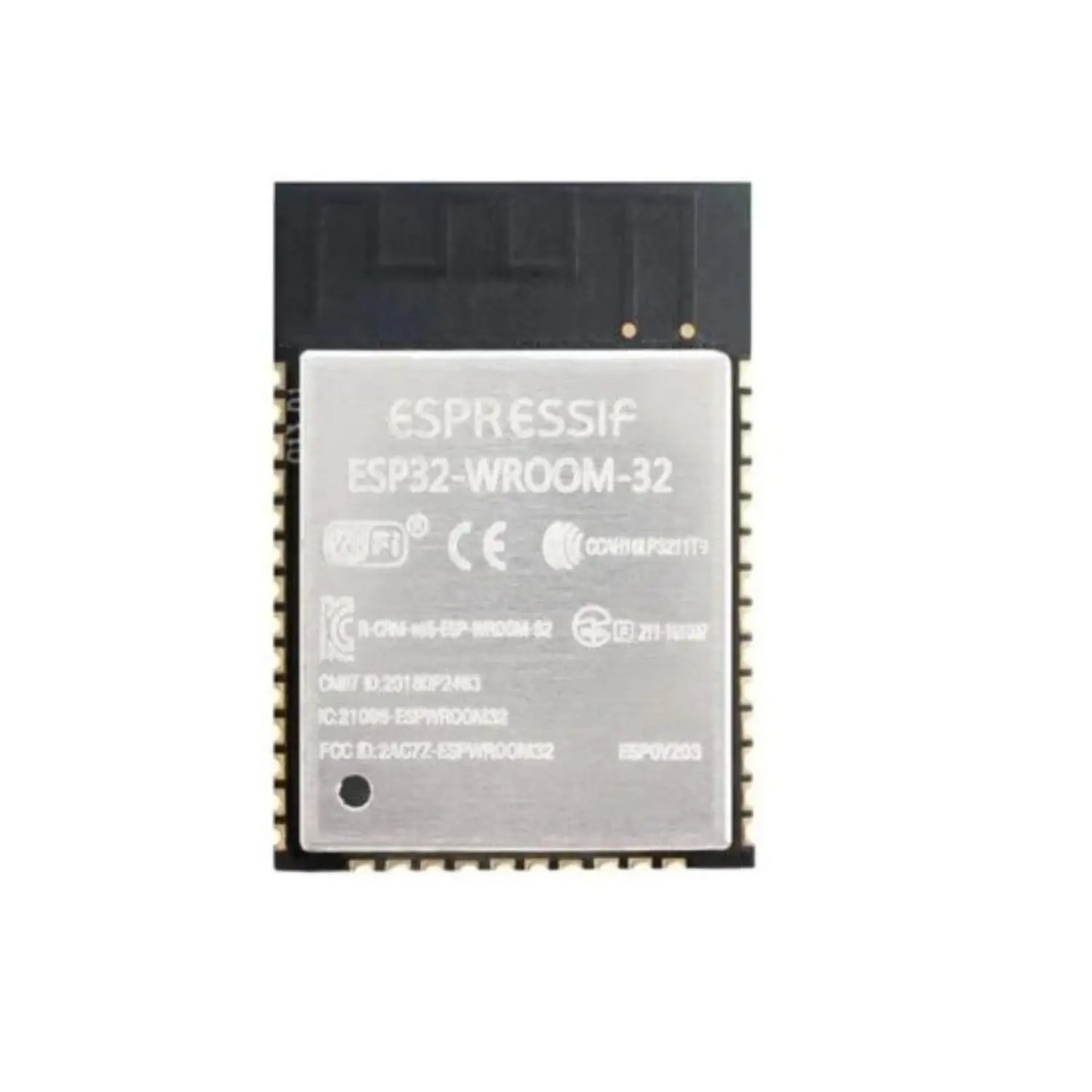

1 x ESP32-WROOM-32 4M 32Mbit Flash WiFi Bluetooth Module
