Generic

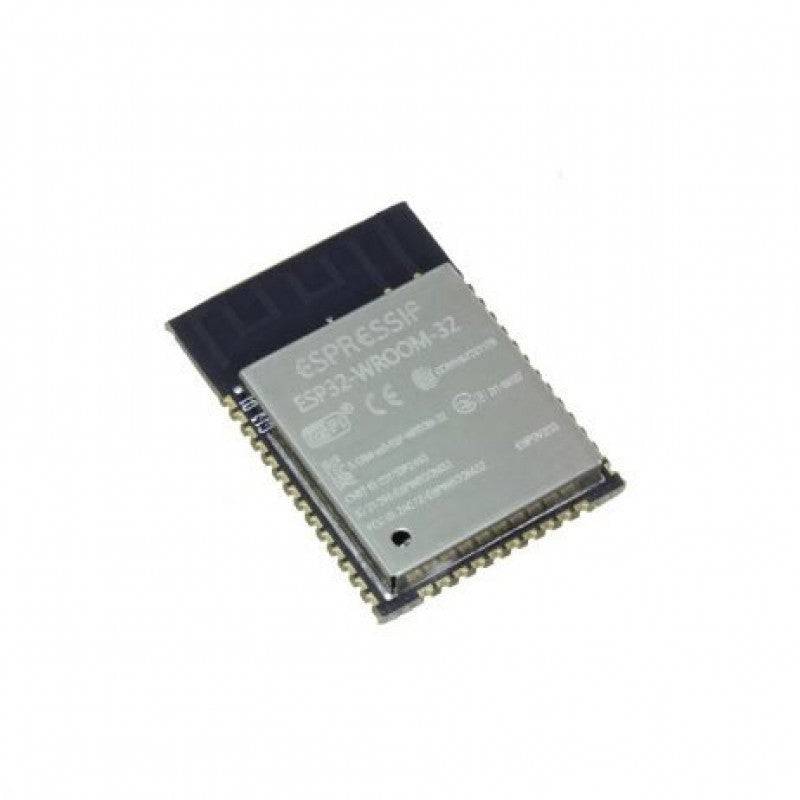

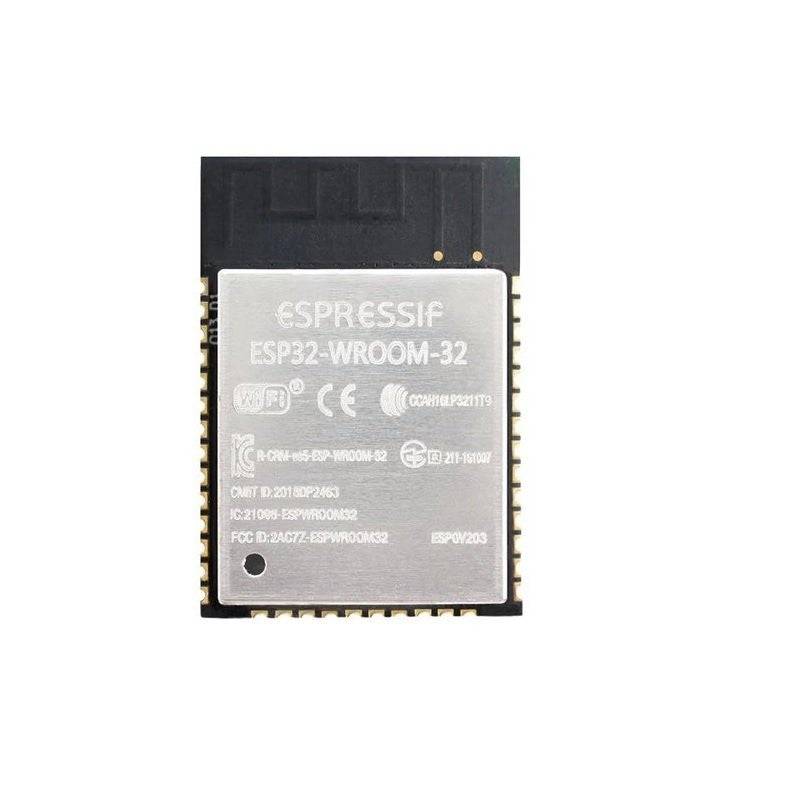

Espressif ESP32-WROOM-32 8M 64Mbit WiFi Flash Bluetooth Module - RS3339

Espressif ESP32-WROOM-32 8M 64Mbit WiFi Flash Bluetooth Module - RS3339

SKU:RS3339

15 in stock

Regular price Rs. 335.00
Regular price Sale price Rs. 335.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

Espressif Systems ESP32-WROOM-32 MCU Modules are powerful and generic Wi-Fi/BT/BLE MCU modules that target a wide variety of applications. These modules target applications ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.

TheESP32-WROOM-32 MCU Modules use theESP32-D0WDchip at its core. This SoC features two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80MHz to 240MHz. The ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I2S, and I2C.

ESP-32SWifiBluetooth combo module provides SDK Firmware for fast on-line programming and open-source toolchains based on GCC for development support. It is designed for Generic low power IoT sensor hubs, loggers, video streaming for the camera, Wi-Fi Bluetooth enabled devices, Home automation, and mesh network applications, aimed at makers, hardware engineers, software engineers and solution providers.

ESP32is a single-chip 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC ultra-low-power 40 nm technology. It is designed and optimized for the best power performance, RF performance, robustness, versatility, features, and reliability, for a wide variety of applications, and different power profiles.

ESP32 is the most integrated solution for Wi-Fi + Bluetooth applications in the industry with less than 10 external components. ESP32 integrates the antenna switch, RF balun, power amplifier, low noise receive amplifier, filters, and power management modules. As such, the entire solution occupies a minimal Printed Circuit Board (PCB)area.

ESP32 is designed for mobile, wearable electronics, and the Internet of Things (IoT) applications. It has many features of state-of-the-art low-power chips, including fine-resolution clock gating, power modes, and dynamic power scaling.

Specification:

  • 802.11 b/g/n (802.11n up to 150Mbps) Wi-Fi protocol
  • Bluetooth v4.2 BR/EDR and BLE
  • SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, and IR module interfaces
  • Hall sensor
  • 2.7V to 3.6V operating voltage supply
  • 80mA average operating current
  • -40C to 85C operating temperature rang

Feature:

  • Two low-power Xtensa 32-bit LX6 microprocessors
  • ESP32-D0WD core
  • Supports multiple external QSPI flash and SRAM chips
  • 32Mbits 3.3V SPI flash
  • 40MHz crystal
  • Onboard PCB antenna for ESP32-WROOM-32
  • U.FL connector (which needs to be connected to an external IPEX antenna) for ESP32-WROOM-32U
  • Advanced power-management technologies

    Package Included:

    1 x Espressif ESP32-WROOM-32 8M 64Mbit WiFi Flash Bluetooth Module
