Description:

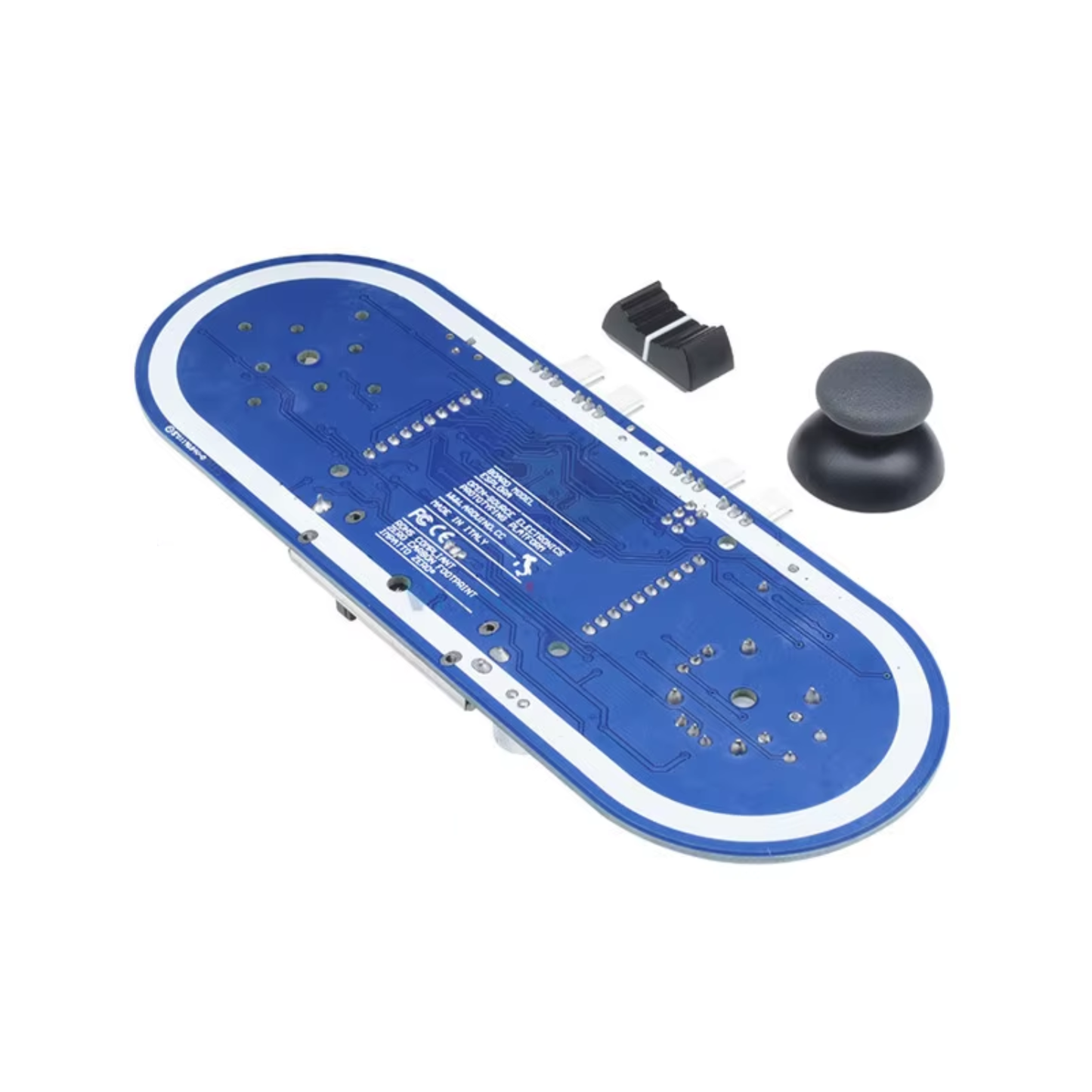

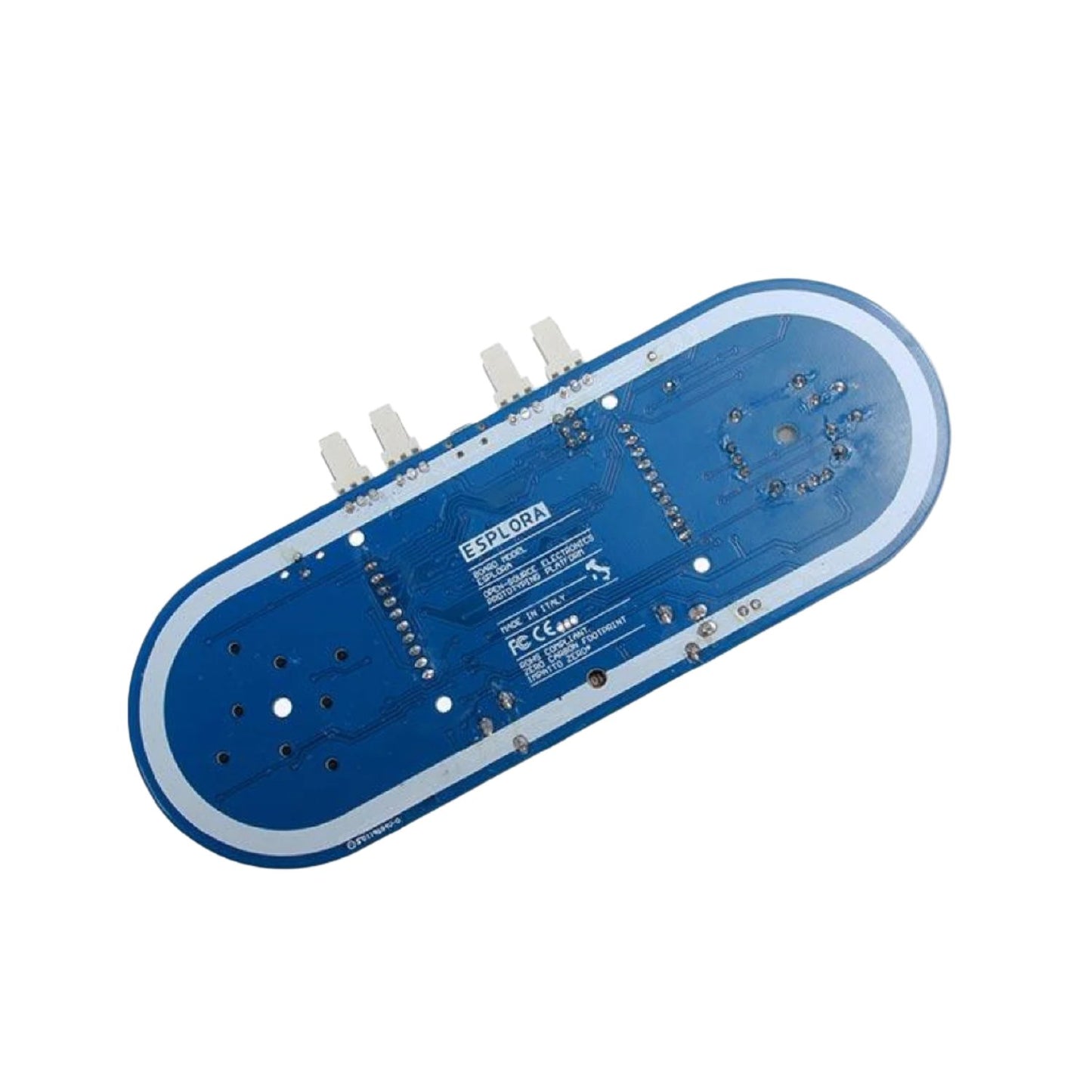

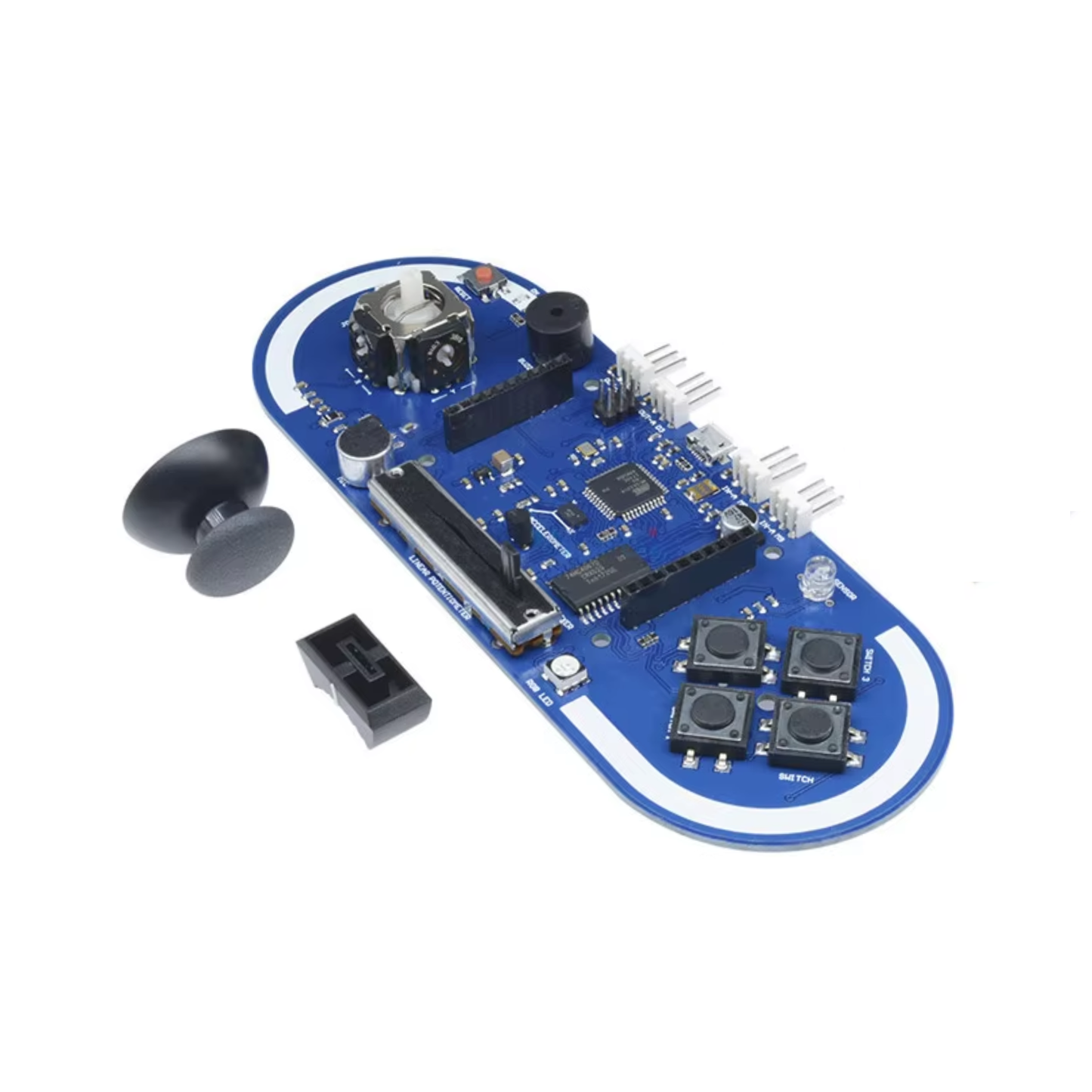

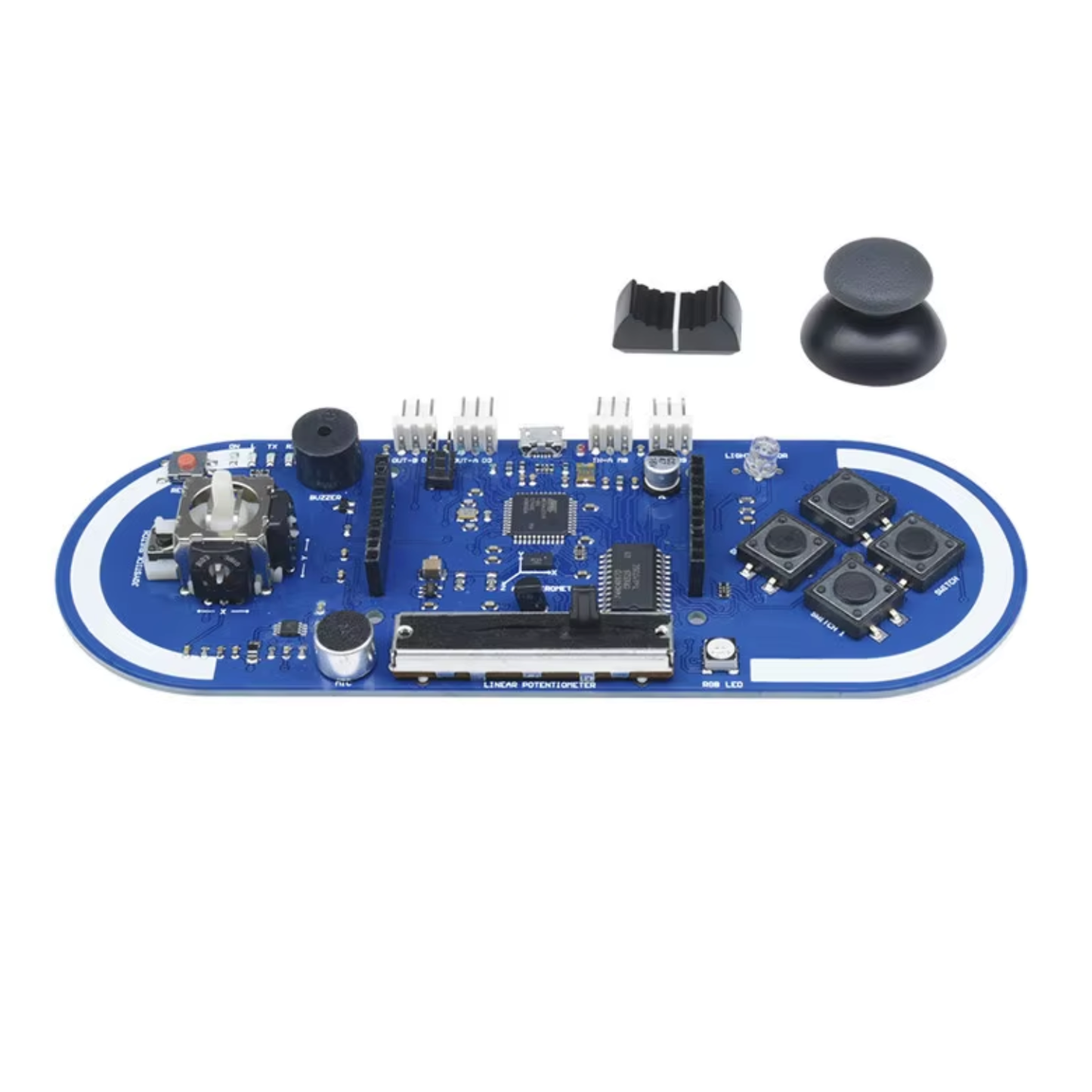

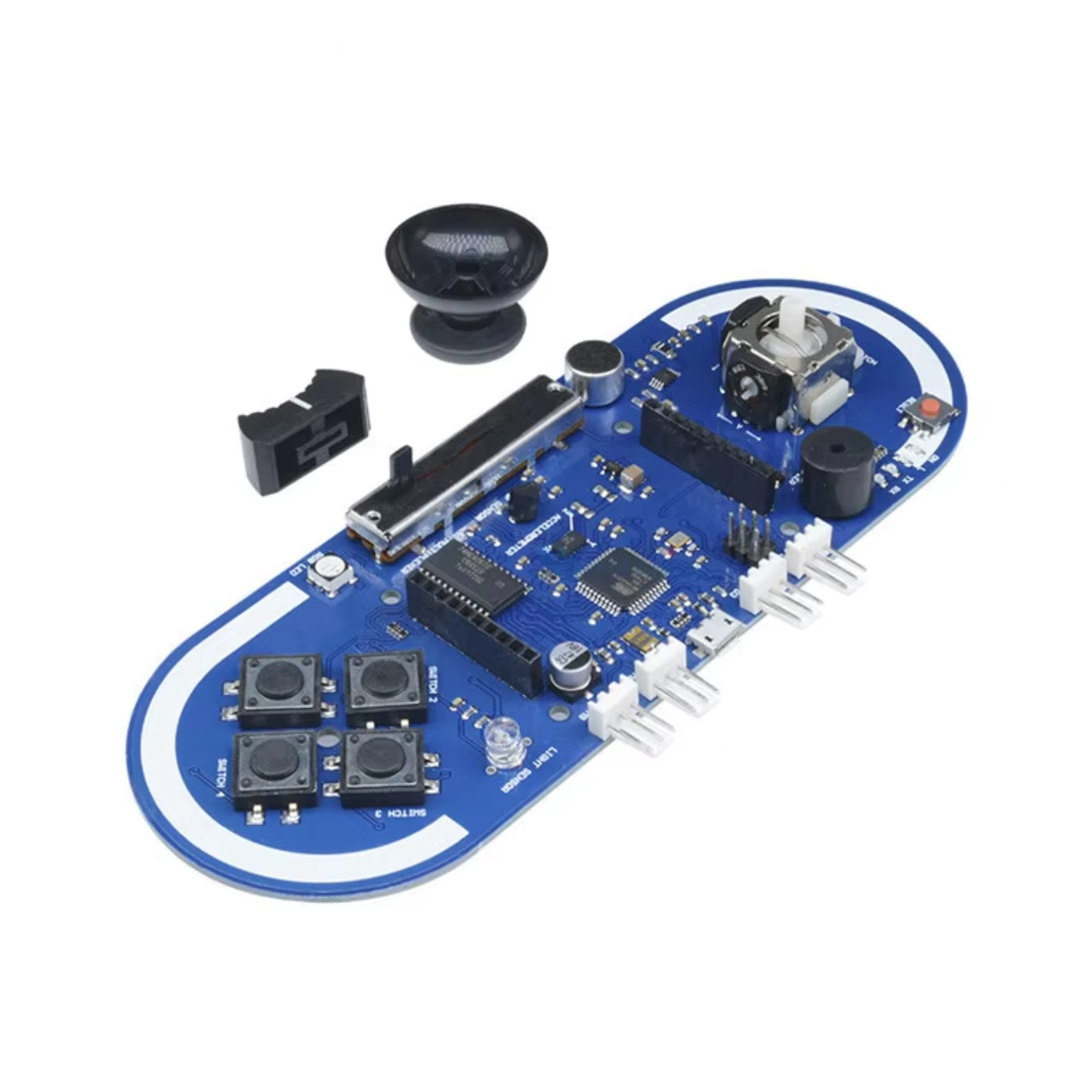

The ESPLORA Joystick Photosensitive Sensor Board is an all-in-one Arduino-compatible microcontroller board designed for easy and intuitive interaction. It integrates a diverse array of sensors, including a joystick, slider, temperature sensor, accelerometer, microphone, and light sensor, enabling immediate experimentation without the need for extensive electronics knowledge.
With onboard sound and light outputs, two Tinker-kit connectors for expansion, and a socket for a color TFT LCD screen, the ESPLORA Sensor Board provides a versatile platform for creative projects and learning.
Specifications:
- Microcontroller: ATmega32u4
- Item Type: Development Board
- Board Type: ESPLORA
- Operating voltage: 5V
- Flash memory: 32KB(of which 4KB used by bootloader)
- SRAM: 2.5KB
- EEPROM: 1KB
- Clock speed: 16MHz
Features:
- Designed for beginners with minimal electronics knowledge
- Based on the Arduino Leonardo platform
- Intuitive interface and easy-to-follow documentation
Package Included:
1 x ESPLORA Sensor Board With Joystick
