• ESP8266 WiFi Development Board with 0.91 Inch ESP8266 OLED Display CP2012 Support Arduino IDE NodeMCU LUA - RS1882 - REES52
1 1

vendor-unknown

ESP8266 WiFi Development Board with 0.91 Inch ESP8266 OLED Display CP2012 Support Arduino IDE NodeMCU LUA - RS1882

ESP8266 WiFi Development Board with 0.91 Inch ESP8266 OLED Display CP2012 Support Arduino IDE NodeMCU LUA - RS1882

RS1882

Low stock: 10 left

Rs. 1,100.00
Rs. 1,100.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Flash: 32Mbyte.
  • Master chip: ESP8266.
  • OLED: 0.91 inch /128 * 32.
  • USB adapter chip: CP2102.
  • Operating temperature: -40-90 Celsius.
  • Support mode: softAp, station, softAp + station, WIFI-Direct.

DESCRIPTION

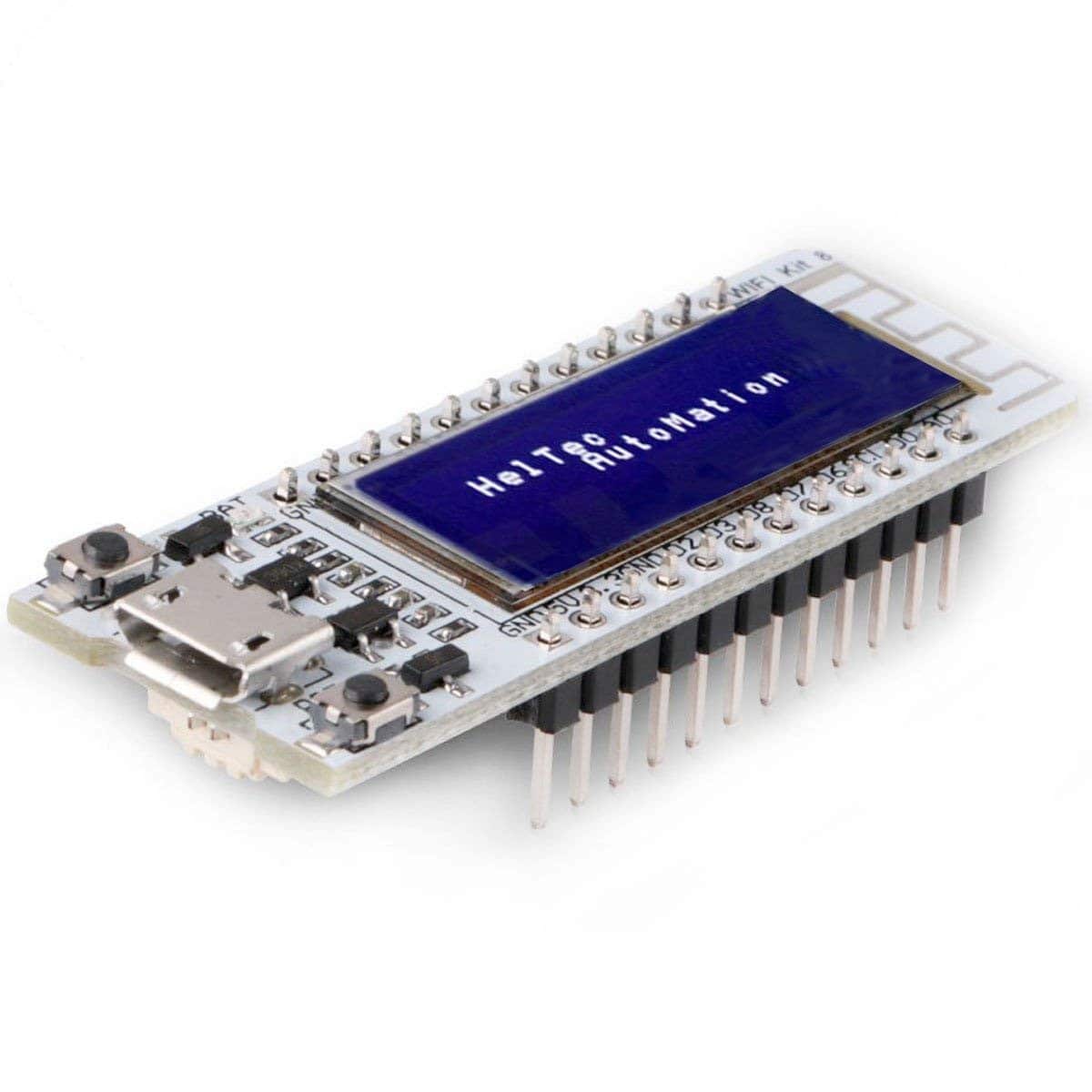

WIFI Kit 8 is a cost-effective Internet of things development program , the main chip using ESP8266, with CP2014 USB to serial chip, lithium battery interface and charge and discharge circuit, 32M Byte Flash, WIFI antenna, 0.91-inch OLED display.
It can be programmed in Arduino and NodeMCU environments.

  • Flash: 32Mbyte.
  • Master chip: ESP8266.
  • OLED: 0.91 inch /128 * 32.
  • USB adapter chip: CP2102.
  • Operating temperature: -40-90 Celsius.
  • Support mode: softAp, station, softAp + station, WIFI-Direct.
  • Output power: 19.5 dBm @ 11b,16.5 dBm @ 11g, 15.5 dBm @ 11n.

SPECIFICATION

  • Can be programmed for Arduino and NodeMCU environments. Operation is consistent with NodeMCU
  • 12 digital pins can be configured to read, write, IIC, SPI, the middle, PWM and other functions; 1 AD input, Working voltage: 3.3V 7V.
  • Integrated 0.91-inch 128 * 32 OLED
  • Note: This item comes unassembled, soldering of headers is required. Lithium battery is not included.
