- KEY button: modes configuration.
- Dual-Ports DIP switches: switching for Arduino and ESP8266.
- WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode: <200uA.
- Serial WiFi transmission rate: 110-460800bps.
Description:

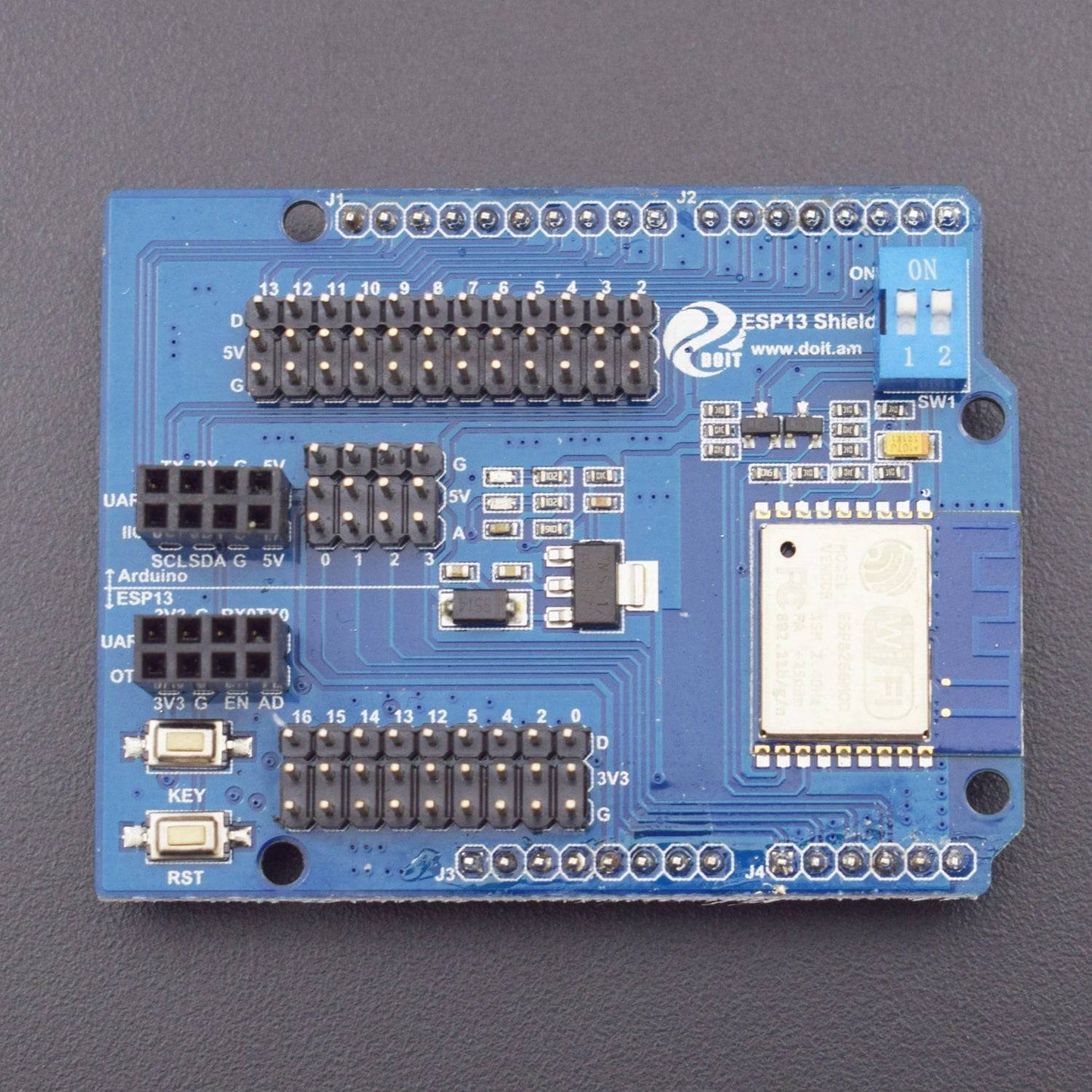

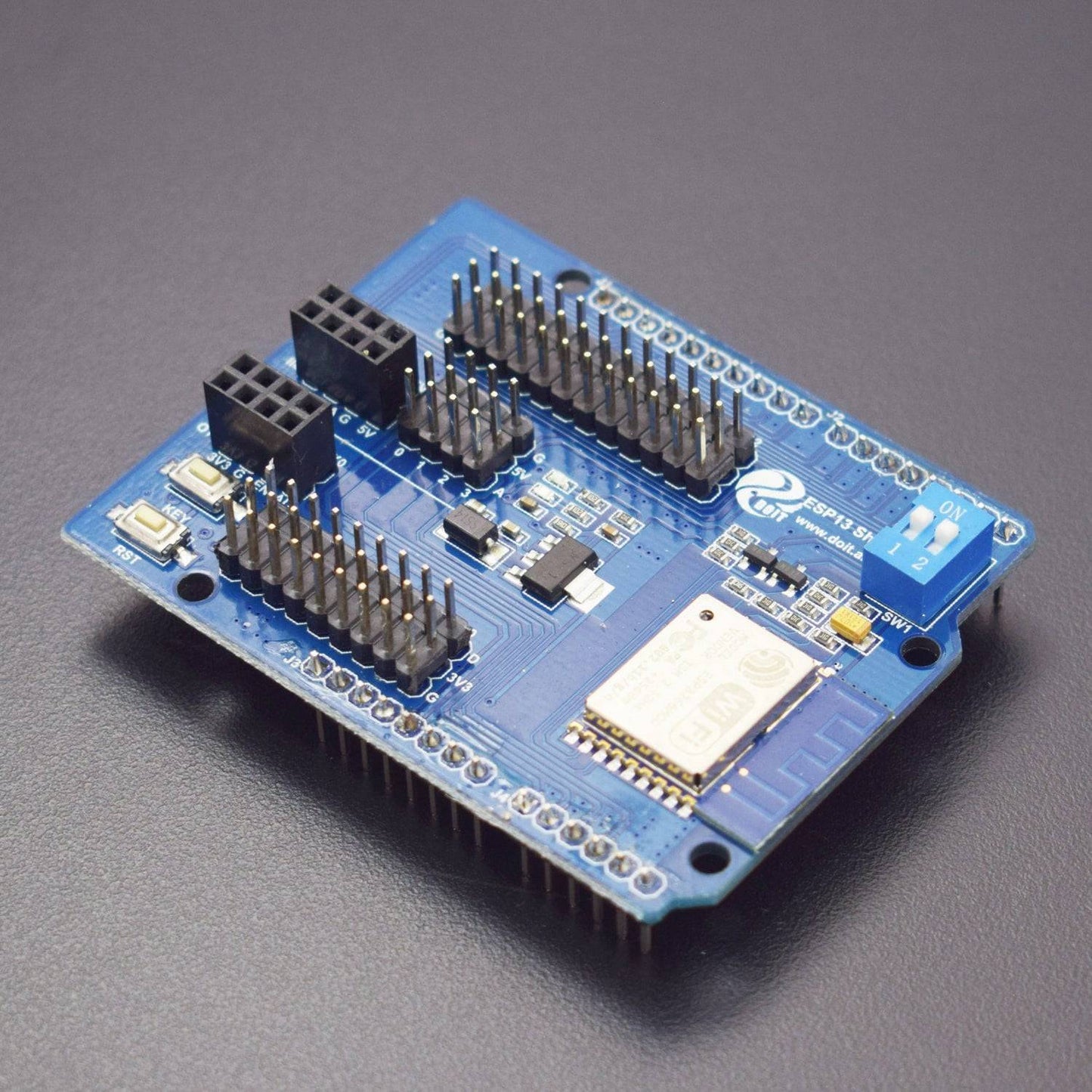

This shield is the easiest way to use Arduino and ESP8266 WiFi modules. You can connect your Arduino to the internet, create a web server and connect to cloud services. There are triple headers as 5V, GND and pin for easy connection with Arduino pins, sensors and other units.
Specification:
- KEY button: modes configuration.
- Dual-Ports DIP switches: switching for Arduino and ESP8266.
- WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode: <200uA.
- Serial WiFi transmission rate: 110-460800bps.
- Temperature: -40 degree ~ + 125 degree.
- Humidity: 10 percent-90 degree non-condensing.
Features:
- Wireless 802. 11 b / g / n standards
- Support for both STA / AP operation modes
- A built-in TCP / IP protocol stack can configure a socket
- Supports standard TCP / UDP server and client
- Serial port support rate baud: 1200 / 2400/4800/9600/19200/38400/57600/74800/115200 bps
- Serial data bits: 5/6/7/8 bits
- Parity series: None
- Serial port stop bits: 1/2 bits
- The Arduino UNO standard, Mega step
- Tracks Arduino Pin 2/3/4/5/6/7/8/9 / 10/11/12/13
- Tracks ESP8266 GPIO 0/2/4/5/9/10/12/13/14 / 15/16 / ADC / EN / UART TX / UART RX
Package Included:
1 x ESP8266 Web Server WiFi serial port Shield expansion ESP-13 Compatible for Arduino MEGA 2560 UNO Smart robot Car
