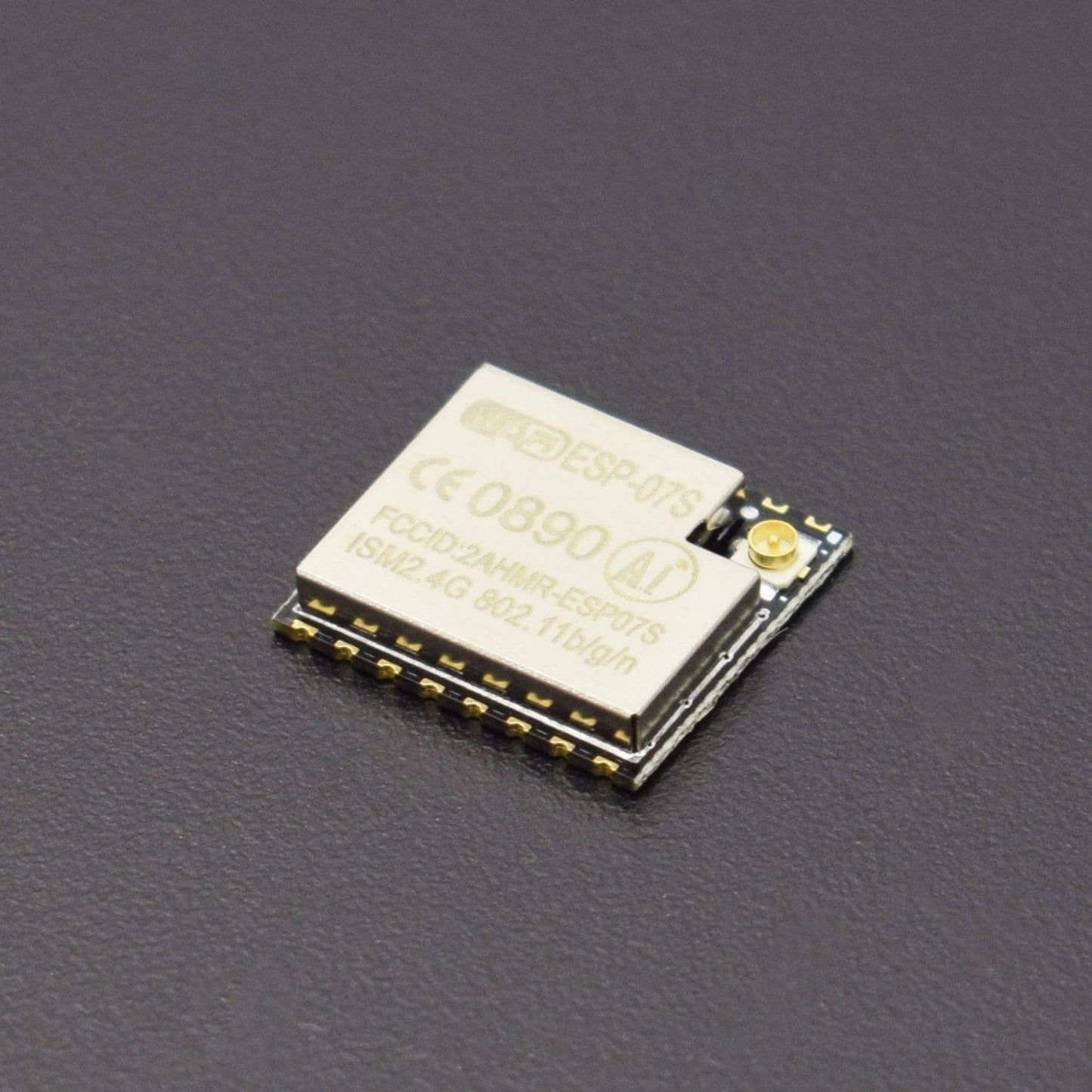

ESP8266 Serial To WIFI Module ESP-07S Industrial Grade Low Power Wireless Module - RS1071

• Wireless Standard: 802.11 b / g / n
• Frequency Range: 2.4 GHz-2.5 GHz (2400 M-2483.5 M)
• Data Interface: UART / HSPI / I2C / I2S / Go Remote Contorl
• Operating Voltage: GPIO / PWM 3.0-3.6 V
• Current Operating: 80mA (average)
• Operating Temperature: -40 ℃ ~ 125 ℃
• Support three modes: AP, STA and AP+STA coexistence mode

Description :

• Wireless Standard: 802.11 b / g / n
• Frequency Range: 2.4 GHz-2.5 GHz (2400 M-2483.5 M)
• Data Interface: UART / HSPI / I2C / I2S / Go Remote Contorl
• Operating Voltage: GPIO / PWM 3.0-3.6 V
• Current Operating: 80mA (average)
• Operating Temperature: -40 ℃ ~ 125 ℃
• Storage Temperature: normal temperature
• External Interface: N / A
• Wireless Network Mode: station / softAP / SoftAP + station
• Security Mechanism: WPA / WPA2
• Encryption Type: WEP / TKIP / AES
• Local Firmware Update: serial port download / update cloud / mainframe download
• Software Development: support custome server, provide SDK for secondary client development
• Network Protocol: IPv4, TCP / UDP / HTTP / FTP
• User Configuration: AT instruction set, cloud server, ndroid / iOS APP

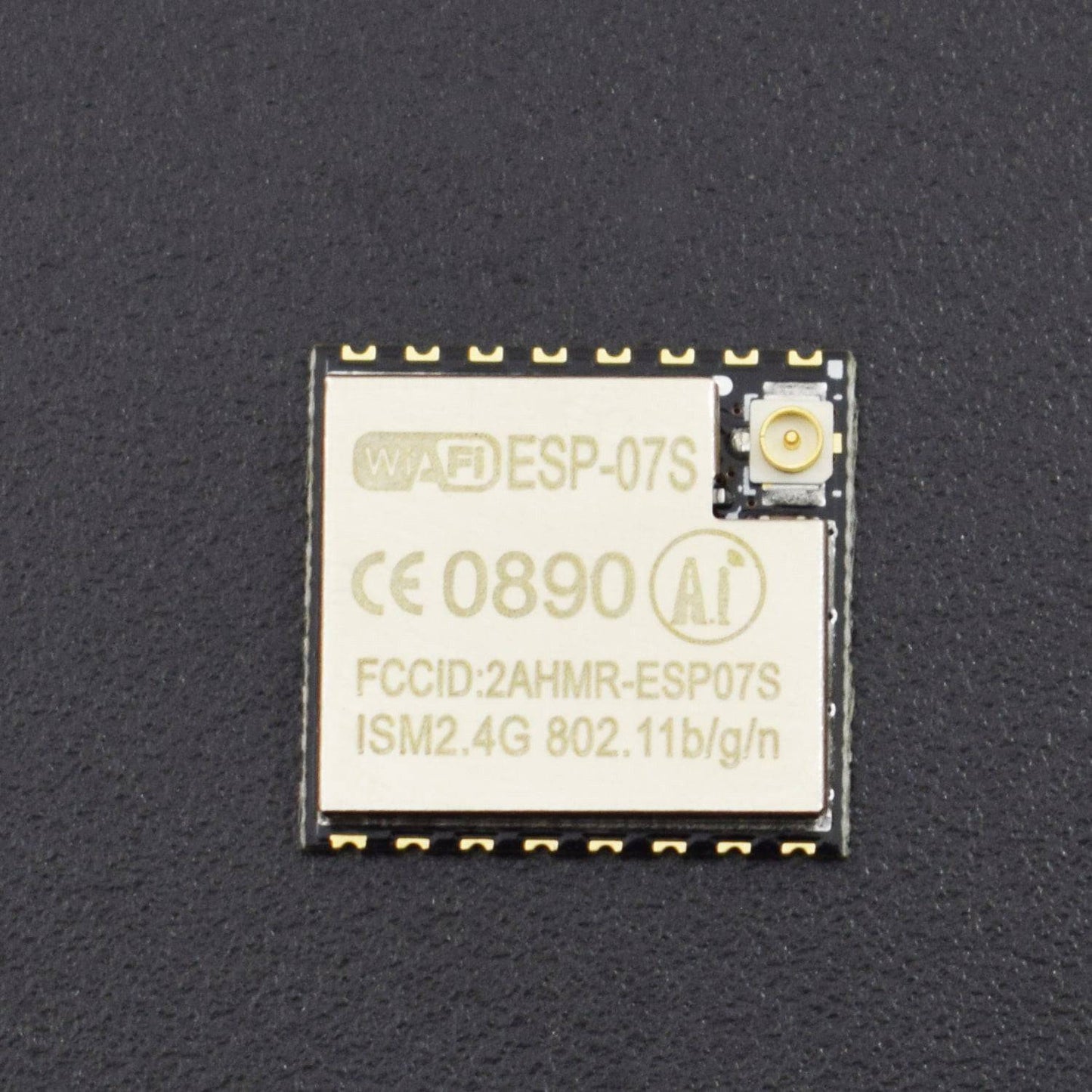

• Size: 17 * 16 * 3mm
• FFCCID:2AHMR-ESP07S
• ISM2.4G 802.11b/g/n
• Easy to embed into any product
• Powerful internal run LWIP protocol
• Supports three modes: AP, STA, AP + STA coexistence mode
• Improve the simple and efficient AT command, so you develop more simple
• 802.11 b/g/n
• Wi-Fi Direct (P2P), soft-AP
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• Integrated PLLs, regulators, DCXO and power management units
• +19.5dBm output power in 802.11b mode
• Power down leakage current of <10uA
• 1MB Flash Memory
• Integrated low power 32-bit CPU could be used as application processor
• SDIO 1.1 / 2.0, SPI, UART
• STBC, 1×1 MIMO, 2×1 MIMO
• A-MPDU & A-MSDU aggregation & 0.4ms guard interval
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)

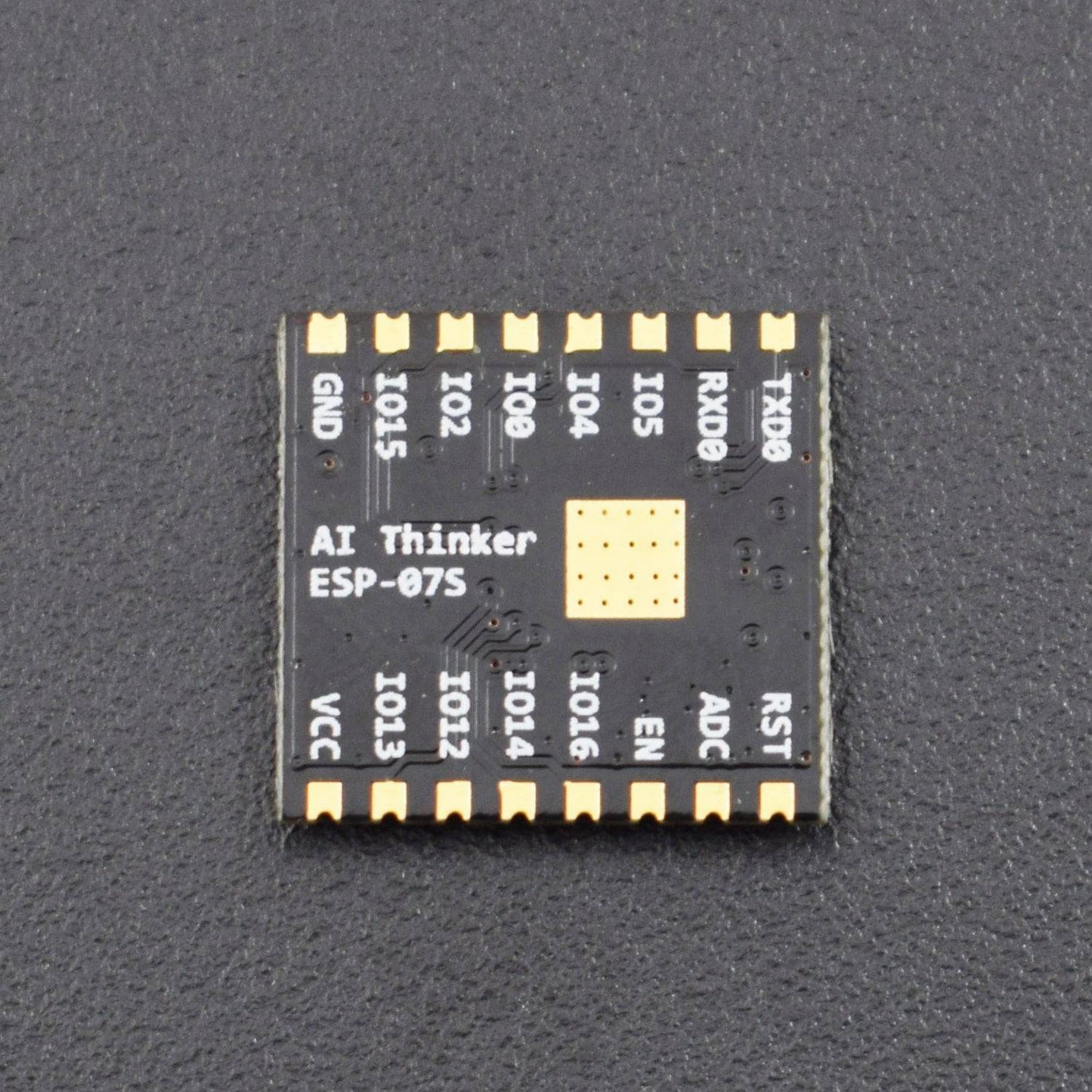

Pin Description :

• RST: reset module
• ADC: A / D conversion result, input voltage range is 0-1 V; value range :? 0 1024
• EN: high-level operation; low level module power off
• GPIO16: connect with RST pin can achieve awakening deep sleep
• GPIO14: HSPI_CLK
• GPIO12: HSPI_MISO
• GPIO13: HSPI_MOSI; UART0_CTS
• VCC: 3.3 V power supply
• GND: GND
• GPIO15: MTDO; HSPICS; UART0_RTS
• GPIO2: UART1_TXD
• GPIO0: GPIO0
• GPIO4: GPIO4
• GPIO5: GPIO5
• RXD0: UART0_RXD; GPIO3
• TXD0: UART0_TXD; GPIO1

Package Included:

1 x ESP8266 Serial To WIFI Module ESP-07S Industrial Grade Low Power Wireless Module
