ESP8266 Evaluation board for ESP-12 Wireless Module - RS1073

• Single 3.3 V power supply
• All usable pins are available on board

• Metal casing

• Three channels PWM

• Six I/O pins

• One ADC

• One high speed serial port

• low power consumption, suitable for battery-powered applications

Description:

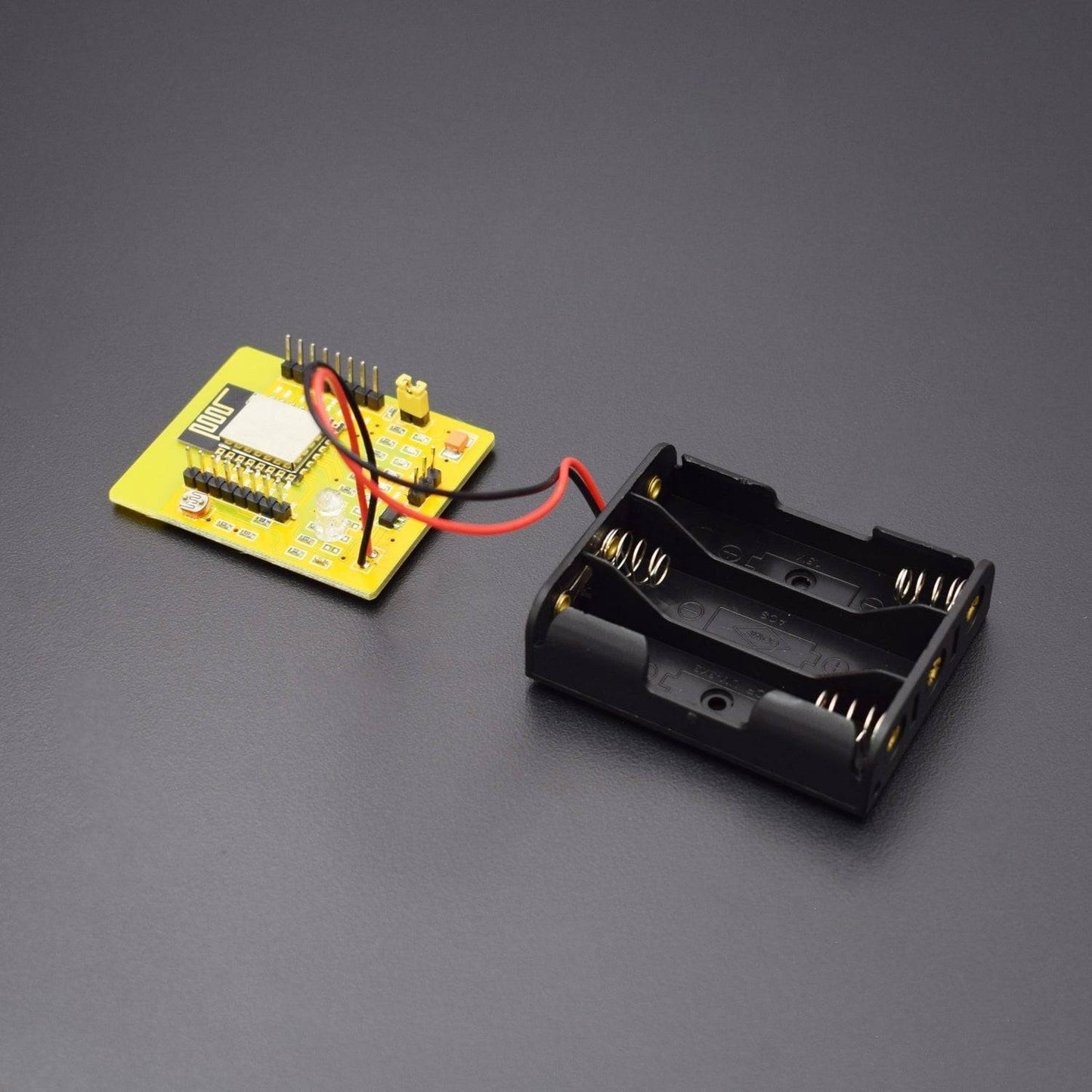

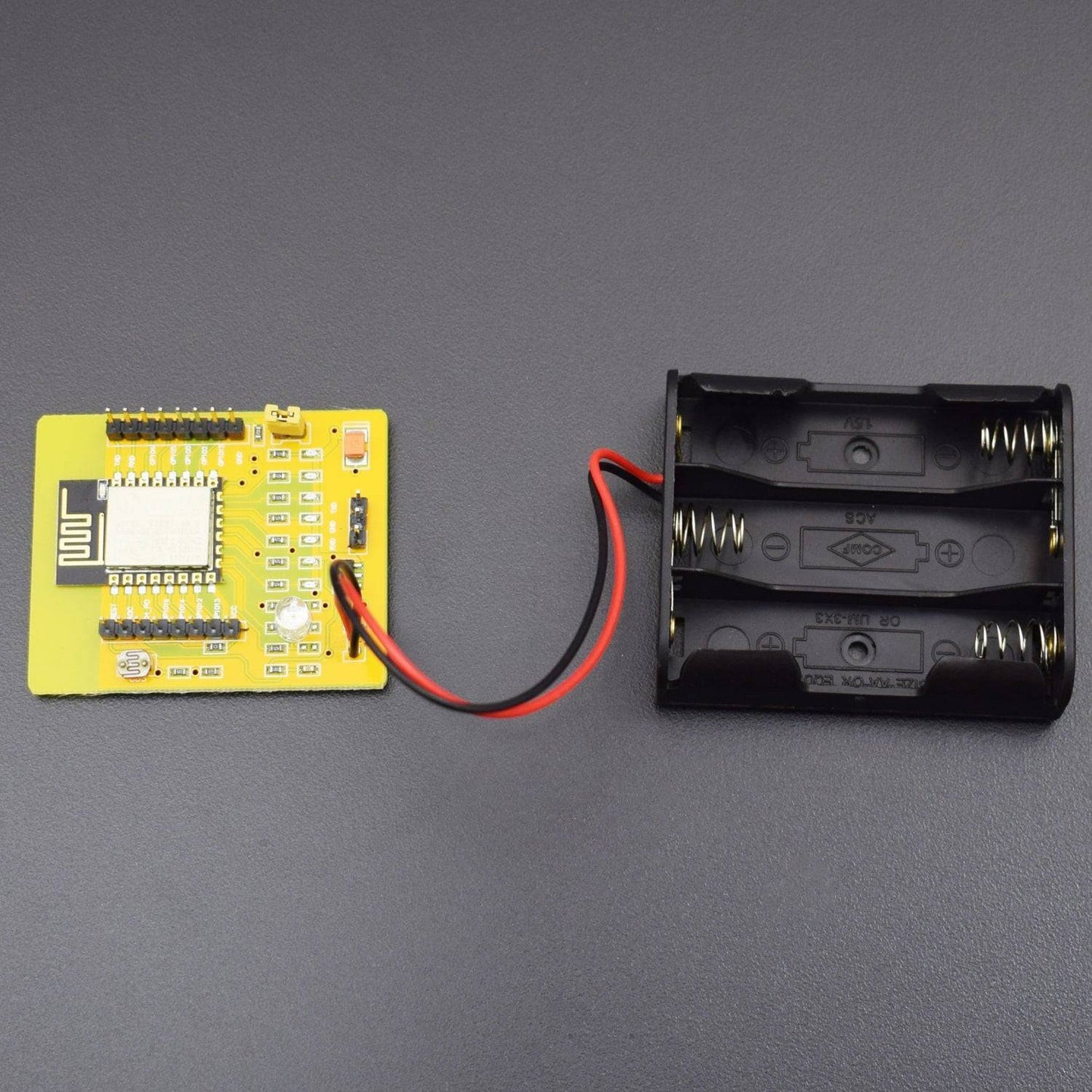

• This development board is a ESP8266 ESP-12 full evaluation board,
• The core ESP8266 module was mounted on a PCB with all the GPIO broken out.
• The board is powered by 3 x AA cells, and an onboard regulator ensures a neat 3.3V supply for the ESP8266.
• Furthermore, each GPIO has an LED connected so you can quickly test your code without connecting external hardware, and a LDR to test the ADC.

Features of ESP8266 ESP12 Test Board :

• One high speed serial port
• One ADC
• Six I/O pins
• Three channels PWM
• Support wireless 802.11 b/g/n standard
• Support the STA/AP/STA + AP three work modes
• Support rich Socket the AT command
• Support UART/GPIO data communication interface
• Support Smart Link intelligent networking
• Support STA/AP/STA + AP three work modes
• Built in 32-bit MCU and can be applied as processor
• Low power consumption, suitable for battery-powered applications

Package Included:

1 x ESP8266 Evaluation board for ESP-12 Wireless Module
