- VCC - 3.3V Power supply
- 802.11 b/g/n
- Integrated low power 32-bit MCU
- Integrated 10-bit ADC
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLL, regulators, and power management units
- Supports antenna diversity
- Wi-Fi 2.4 GHz, support WPA/WPA2
- Support STA/AP/STA+AP operation modes
Description :
- Core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading
- Ultra low power 32-bit MCU micro, with the 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA,onboard antennas
- The module supports standard IEEE802.11 b/g/n agreement, complete TCP/IP protocol stack.
- Users can use the add modules to an existing device networking or building a separate network controller.
- ESP8266 is high integration wireless SOCs, designed for space and power constrained mobile platform designers.
- It provides unsurpassed ability to embed Wi-Fi capabilities within other systems or to function as a standalone application, with the lowest cost, and minimal space requirement.
Specification :
- VCC - 3.3V Power supply
- 802.11 b/g/n
- Integrated low power 32-bit MCU
- Integrated 10-bit ADC
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLL, regulators, and power management units
- Supports antenna diversity
- Wi-Fi 2.4 GHz, support WPA/WPA2
- Support STA/AP/STA+AP operation modes
Package Included :

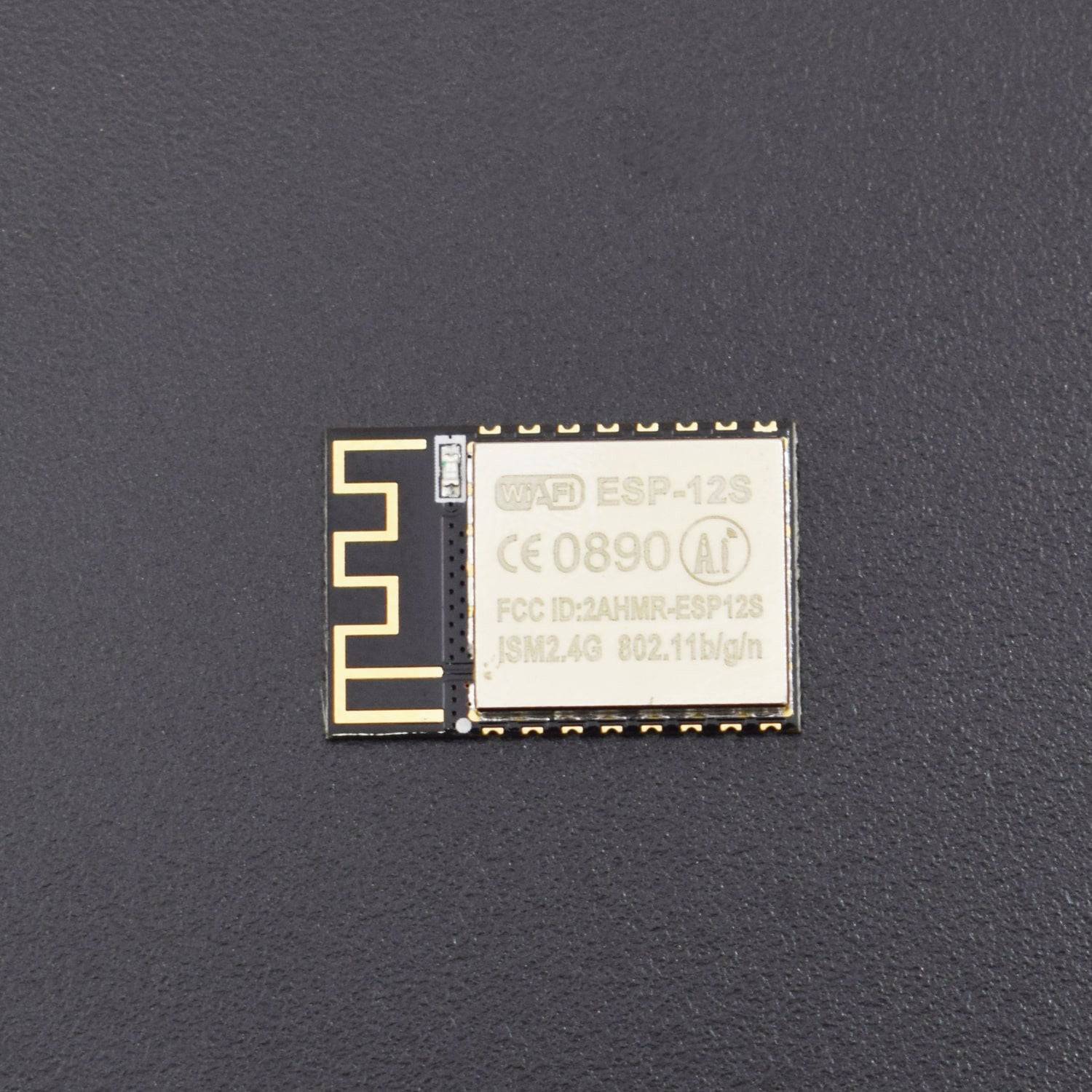

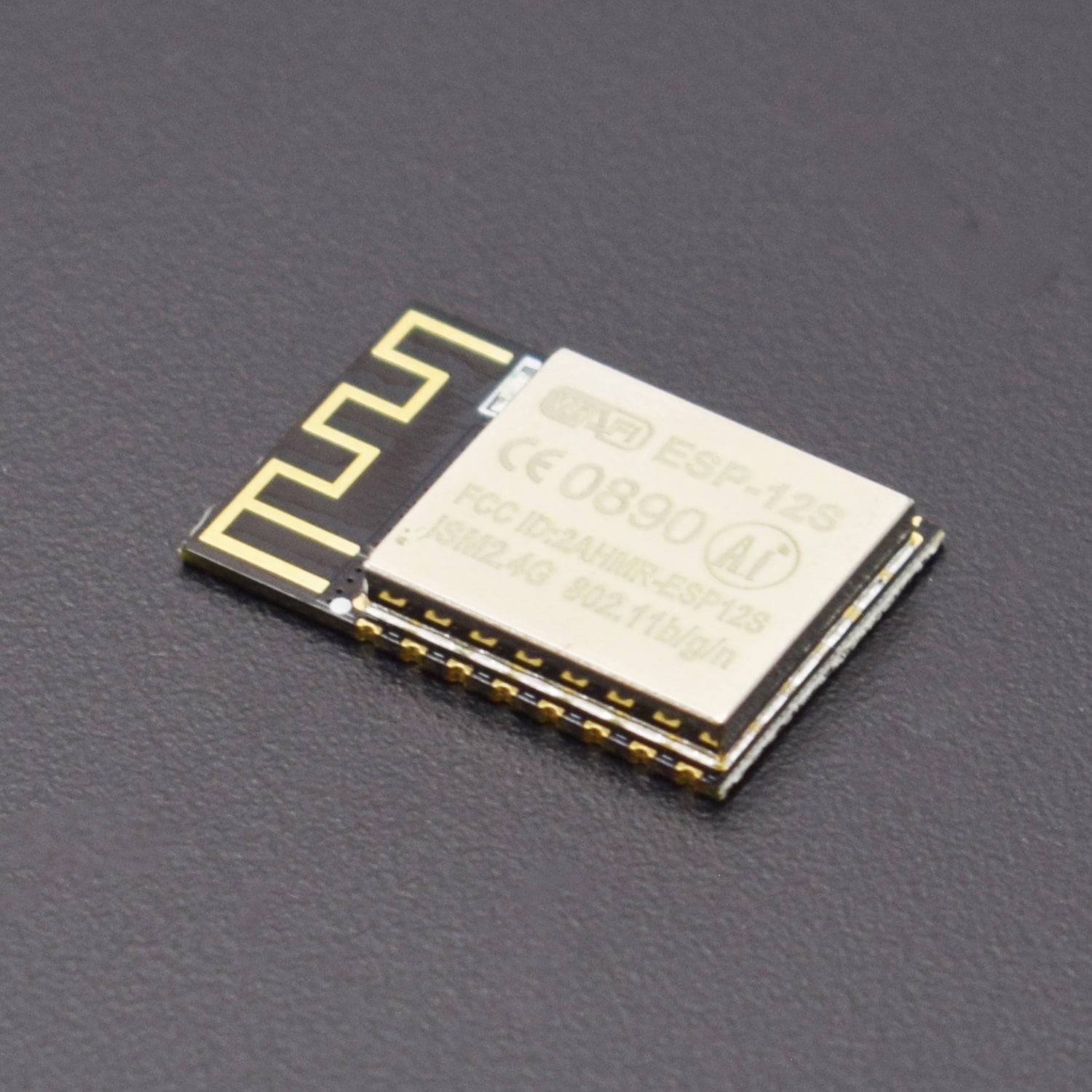

1 x ESP8266 ESP-12S ESP12S Serial WIFI
