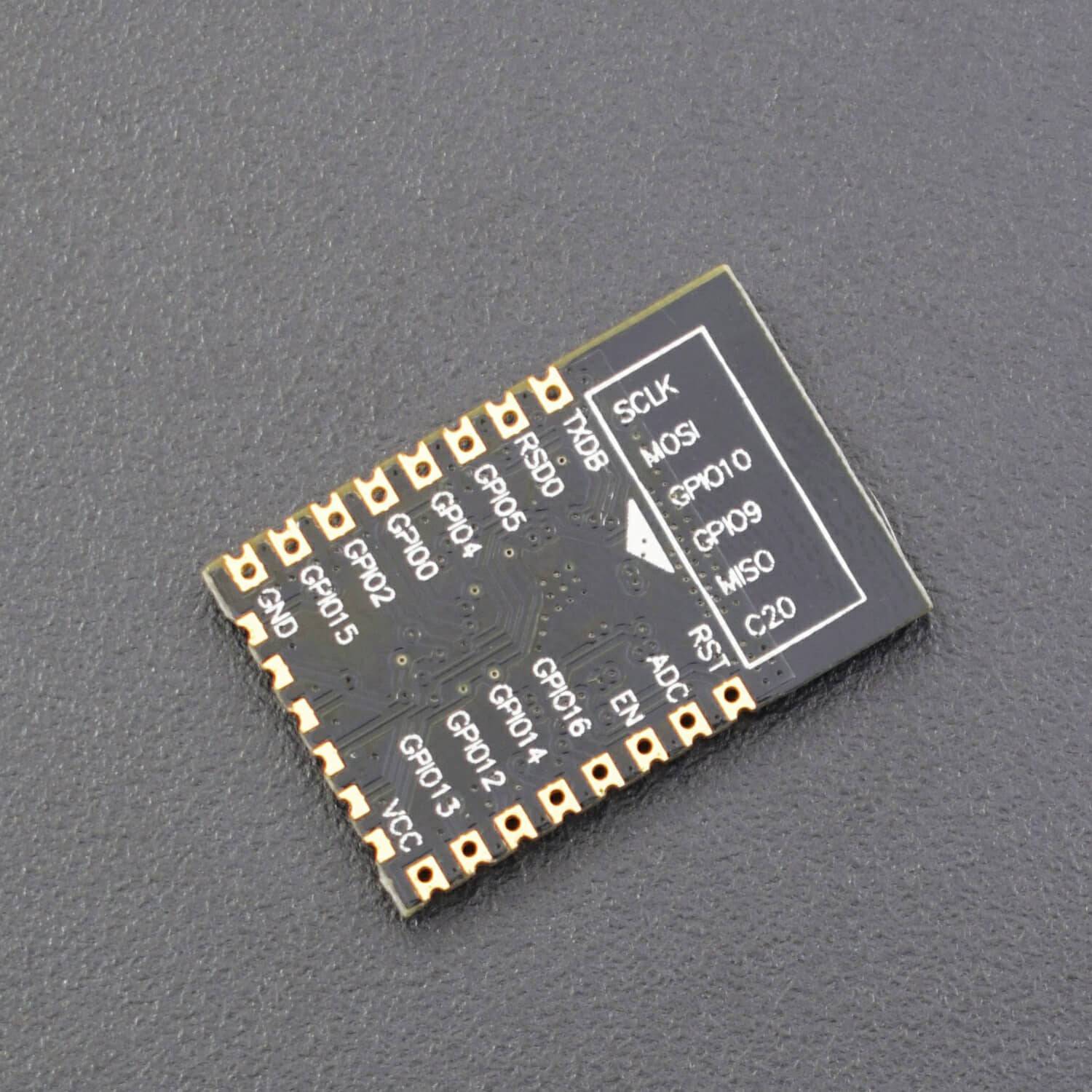

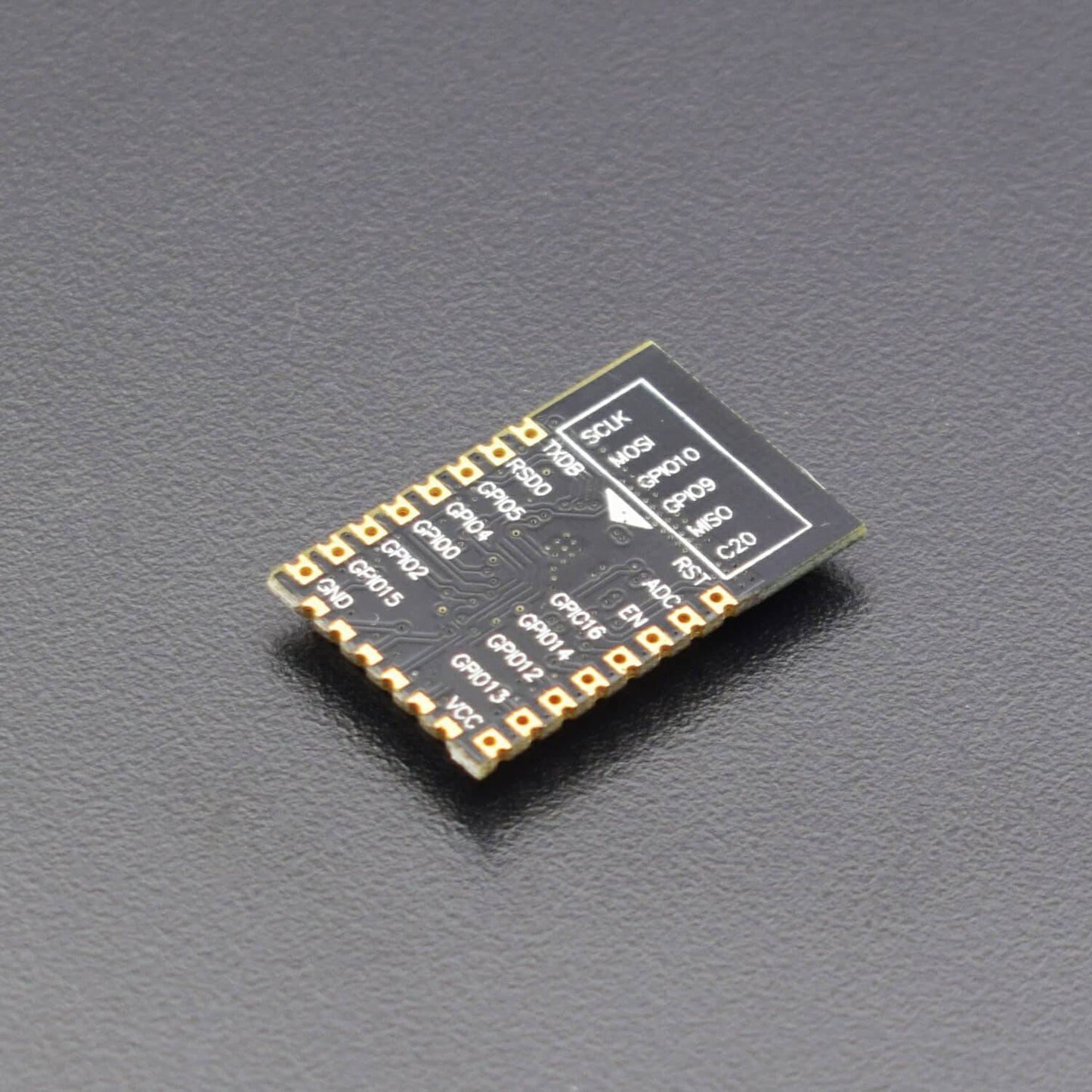

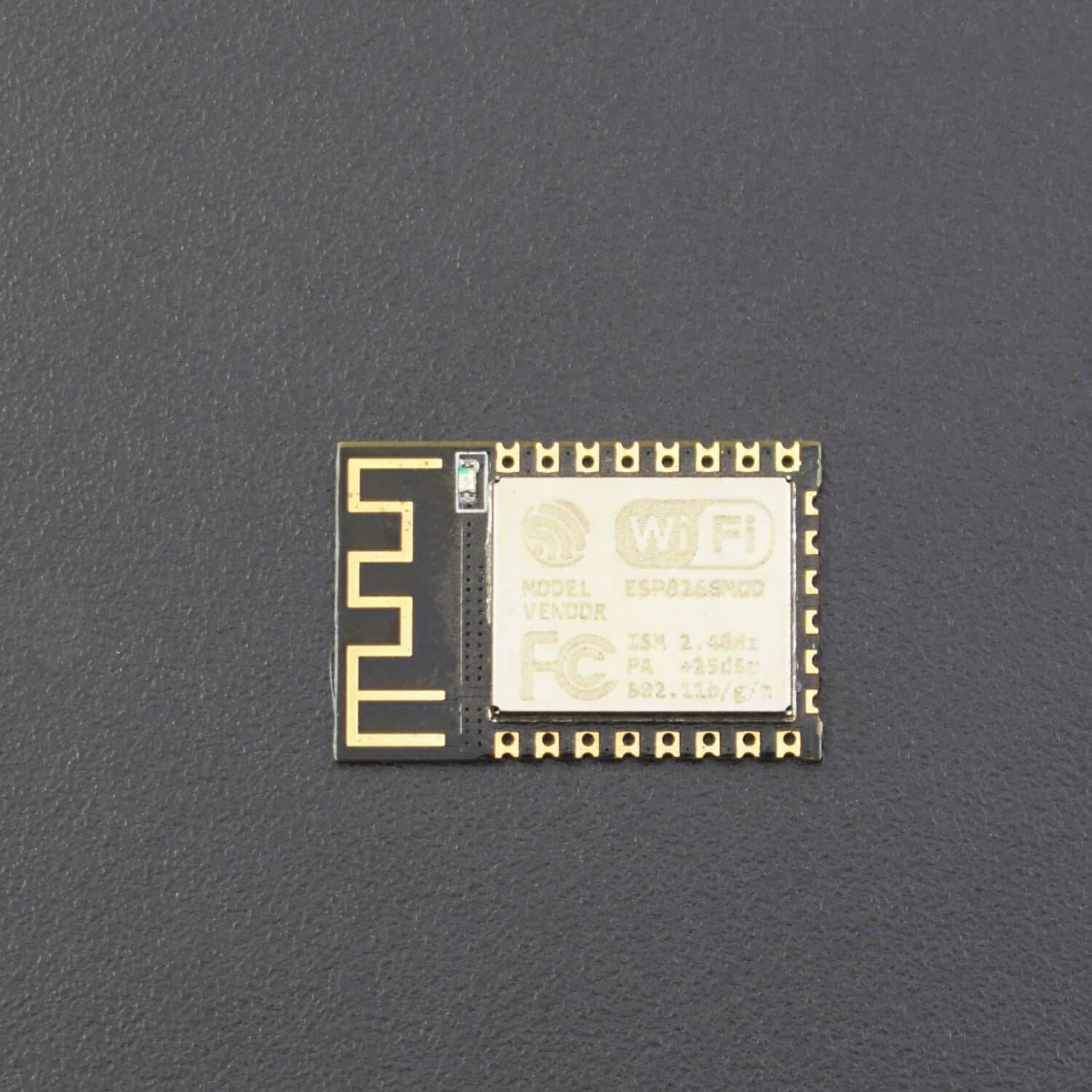

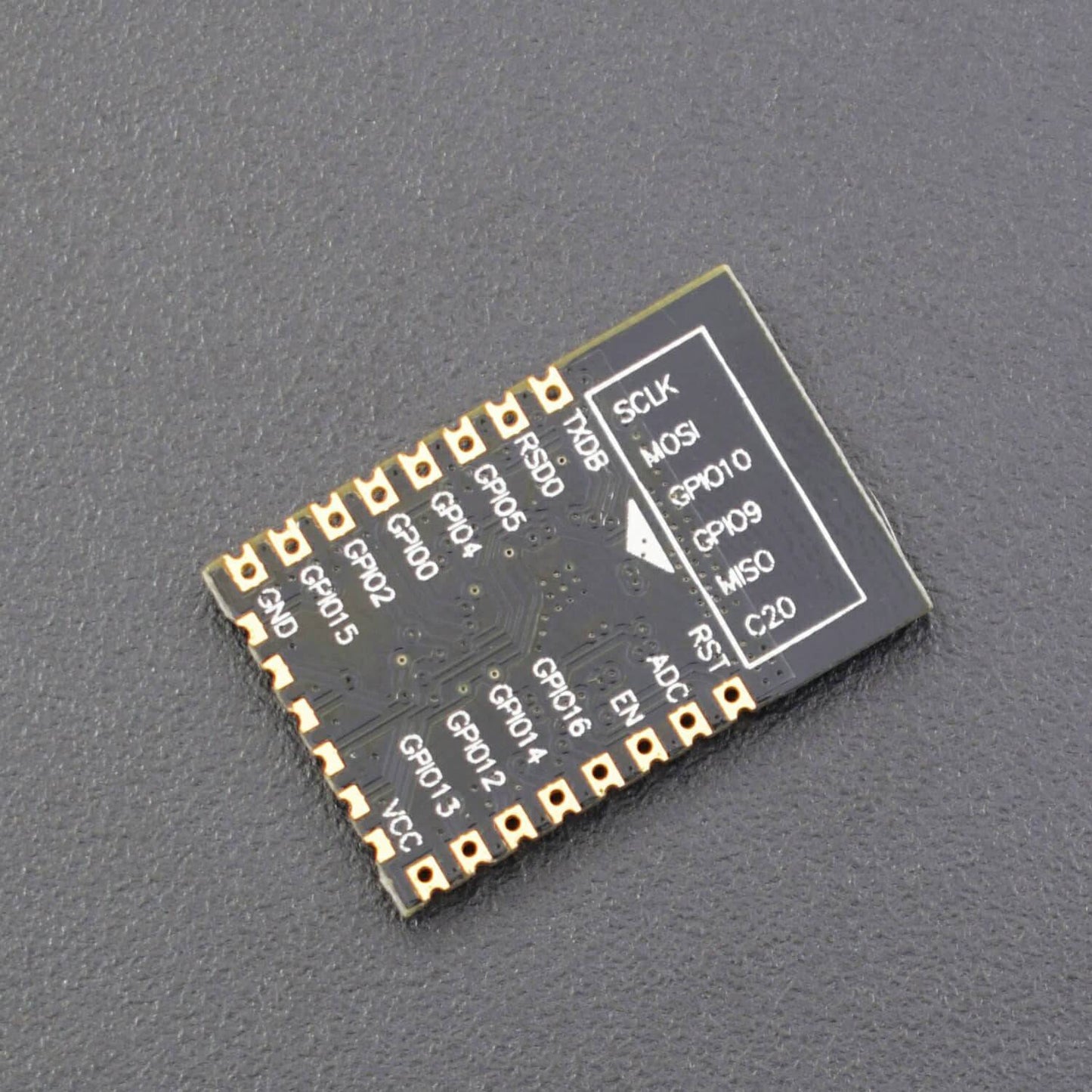

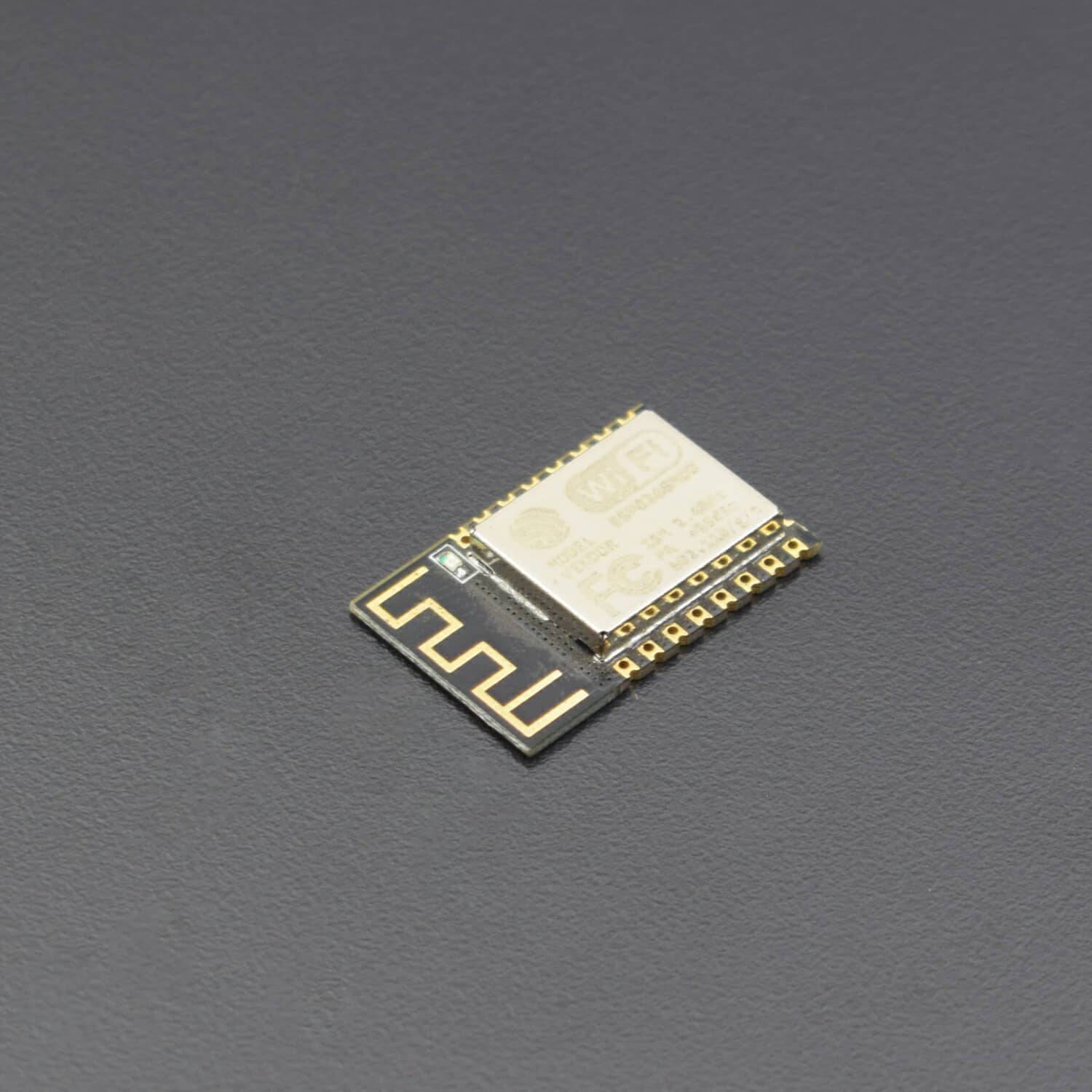

ESP8266 ESP-12F Wifi Serial Module Board for Arduino, Wireless Transceiver Remote Port Network Development Board - AB088

ESP8266 ESP-12F Wifi Serial Module Board for Arduino, Wireless Transceiver Remote Port Network Development Board - AB088

SKU:AB088

112 in stock

Regular price Rs. 104.00
Regular price Sale price Rs. 104.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Communication interface voltage: 3.3V
  • Working current: 240mA(MAX)
  • Serial communication format: 8N1
  • Wireless Network Mode: station / softAP / SoftAP + station
  • Wireless criteria: 802.11 b / g / n

Description:

The Latest ESP-12F ESP8266 Wifi Module AP & Station Remote Serial Wireless IoT Board is an integrated chip designed for the needs of a new connected world. It can handle all the necessary overhead for communicating with your network, such as TCP/IP stack and communicating with your 802.11 networks. It is completely addressable over SPI and UART protocols allowing you to connect your sensors or project directly to it through its GPIOs. ESP8266 is a low-cost Wi-Fi chip with a full TCP/IP stack and MCU (Micro Controller Unit) capability. ESP8266 Serial Wifi Wireless Transceiver Module is a self-contained SOC with an integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. ESP8266 Serial Wifi Wireless Transceiver Module is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor.

Specification:

Compatibility

ESP-12

Communication interface voltage(V)

3.3

Working current(mA)

240

Serial port baud rate

115200(can be modified)

Serial communication format

8N1

Antenna Type

Built-in PCB antenna

Wireless Network Mode

station / softAP / SoftAP + station

Wireless criteria

802.11 b / g / n

Features:

  • Compatible with ESP-12(ESP-202)
  • WIFI @ 2.4 GHz, support for WPA / WPA2 security mode
  • It is very easy to develop projects with AT commands
  • Surface Mount Package with 2mm Pitch Pads
  • Multiple GPIO for all your sensor needs
  • Wi-Fi Direct (P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLL, regulators, DCXO and power management units
  • +19.5dBm output power
  • Power down leakage current of <10uA

Package Included:

1 x ESP8266 ESP-12F Wifi Serial Module Board for Arduino, Wireless Transceiver Remote Port Network Development Board
