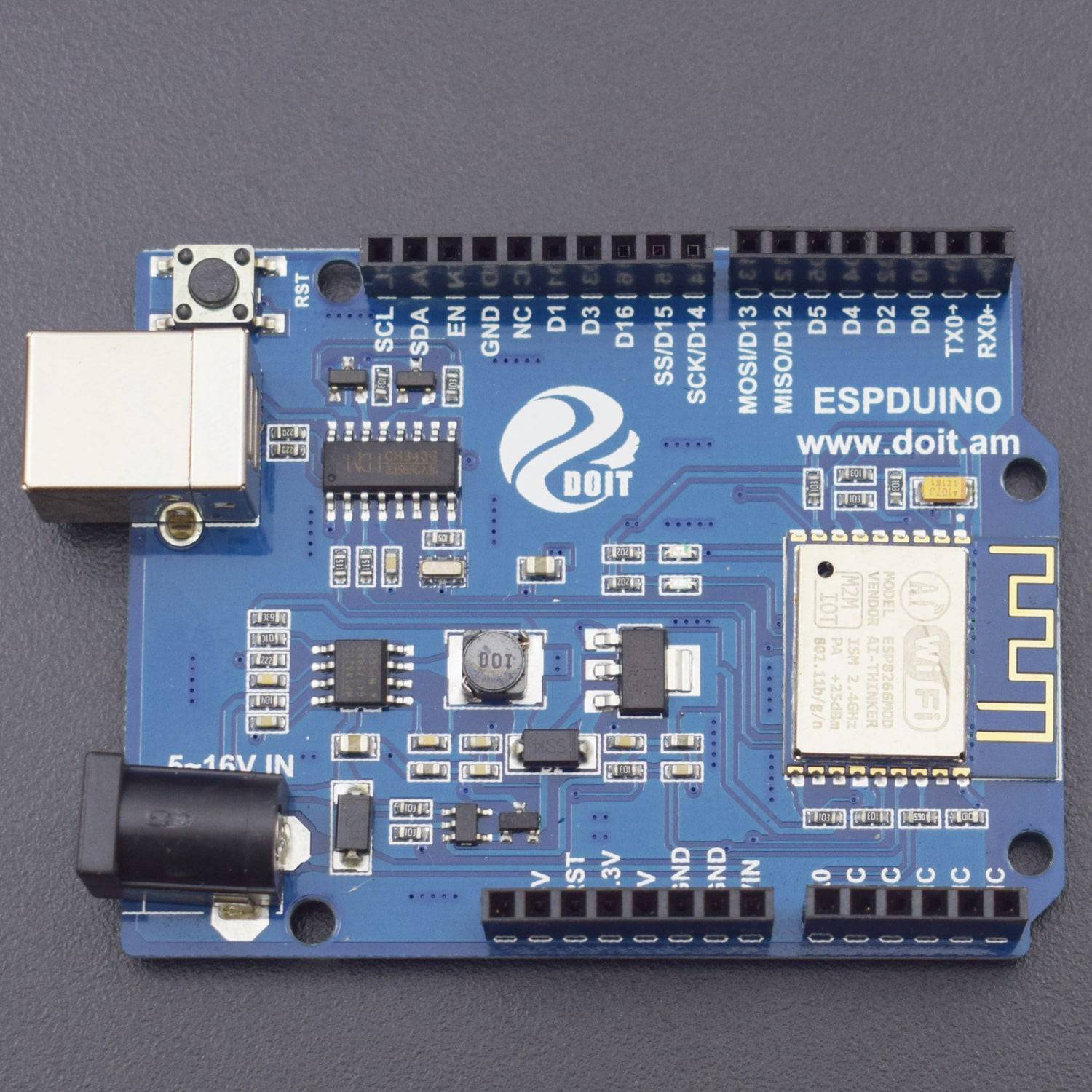

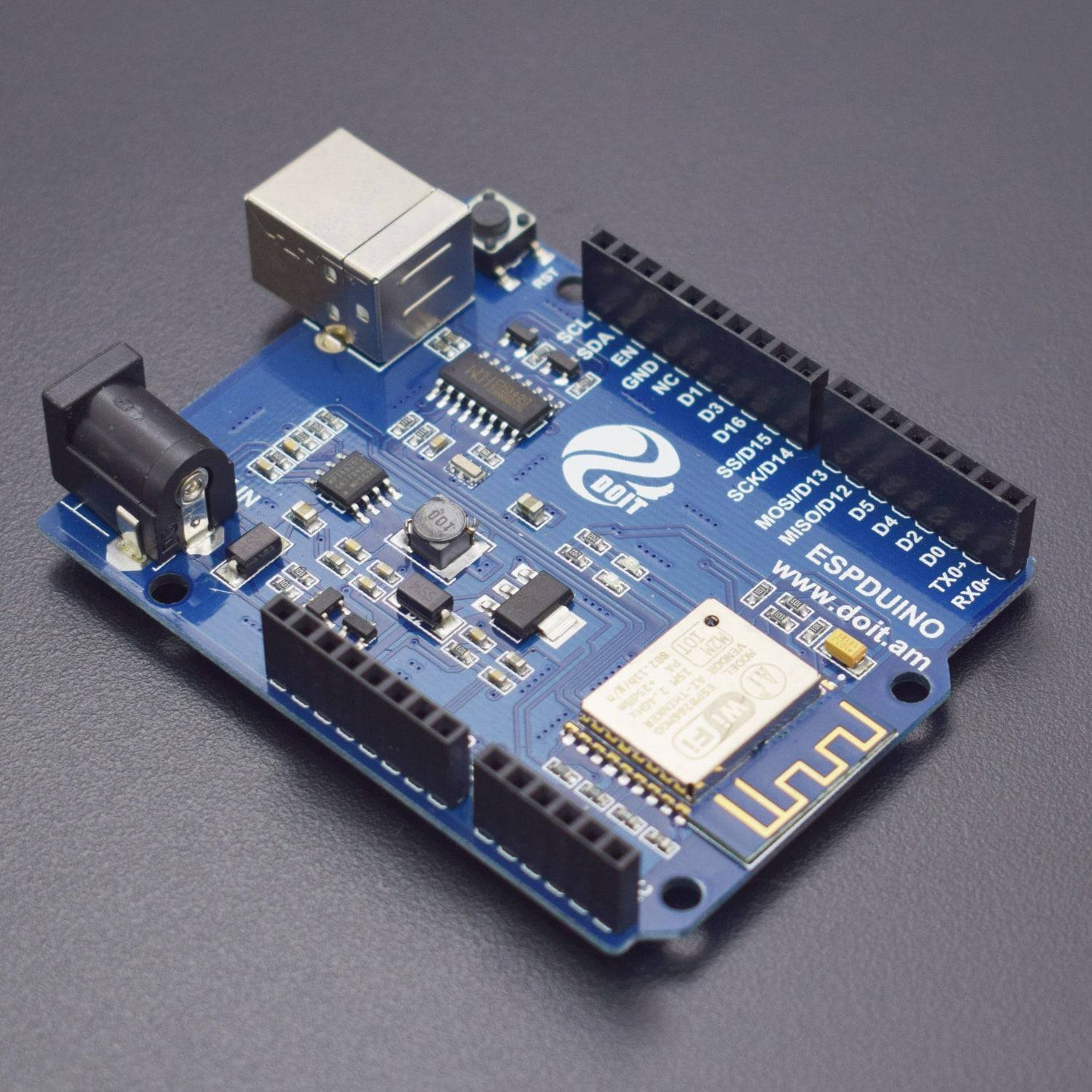

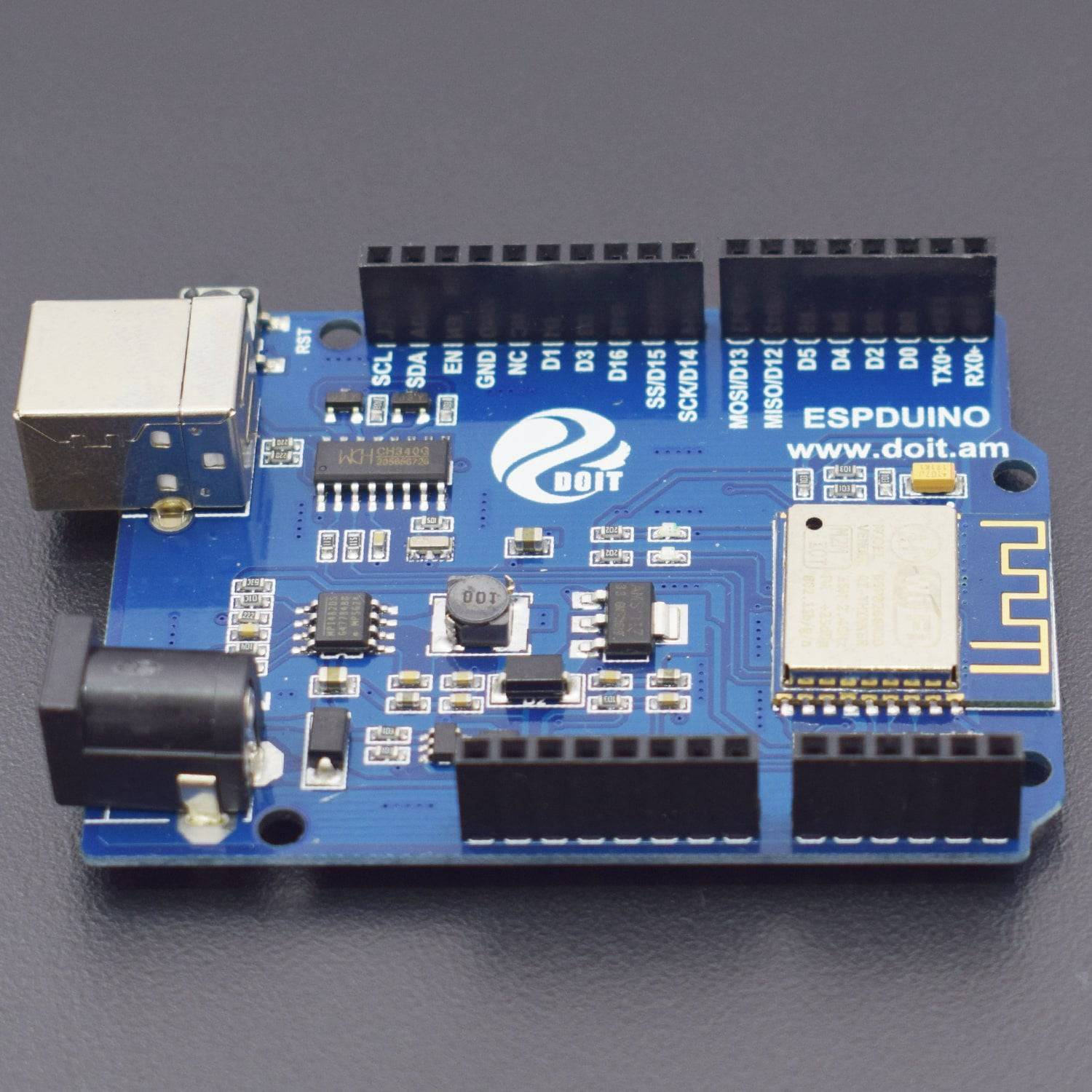

ESP8266 Development Board ESP-13 WIFI Module For ESPDuino for Arduino UNO R3 - RS1460

ESPduino is developed based on the ESP8266 ESP-13, which can be compatible with Arduino IDE, and the UNO R3 development board. By using the ESP8266 WiFi and MCU, ESPduino can work with the support of WiFi. Compared to the traditional UNO development board, users don't have to buy another WiFi development board. It is a good help for IoT projects and robot projects. The ESPduino has an ESP-13 WiFi module. The chip is also ESP8266. So, all of the ESP8266 source code and bin files can also be used on this board. Importantly, the Arduino code is also suitable for this board. The serial chip is CH340C. So, you should install the CH340 driver program before using it.

Specification:

• Microcontroller: ESP-8266EX
• Operating Voltage: 3.3V
• Digital I/O Pins: 11
• Analog Input Pins: 1
• Clock Speed: 80MHz/160MHz
• Flash: 4M bytes

Features:

• Can be programmed through the serial port, such as an Arduino Uno R3 development board or ESP8266 expansion board.
• Real serial Wi-Fi, the Arduino program can be auto-configured, based on the Web Server configuration Wi-Fi parameters and the serial port.
• Can be used as an independent ESP8266 development board, download the official firmware the AT command, NodeMCU open-source firmware, etc.
• Can be used as an independent Arduino Uno expansion board.
