Description:

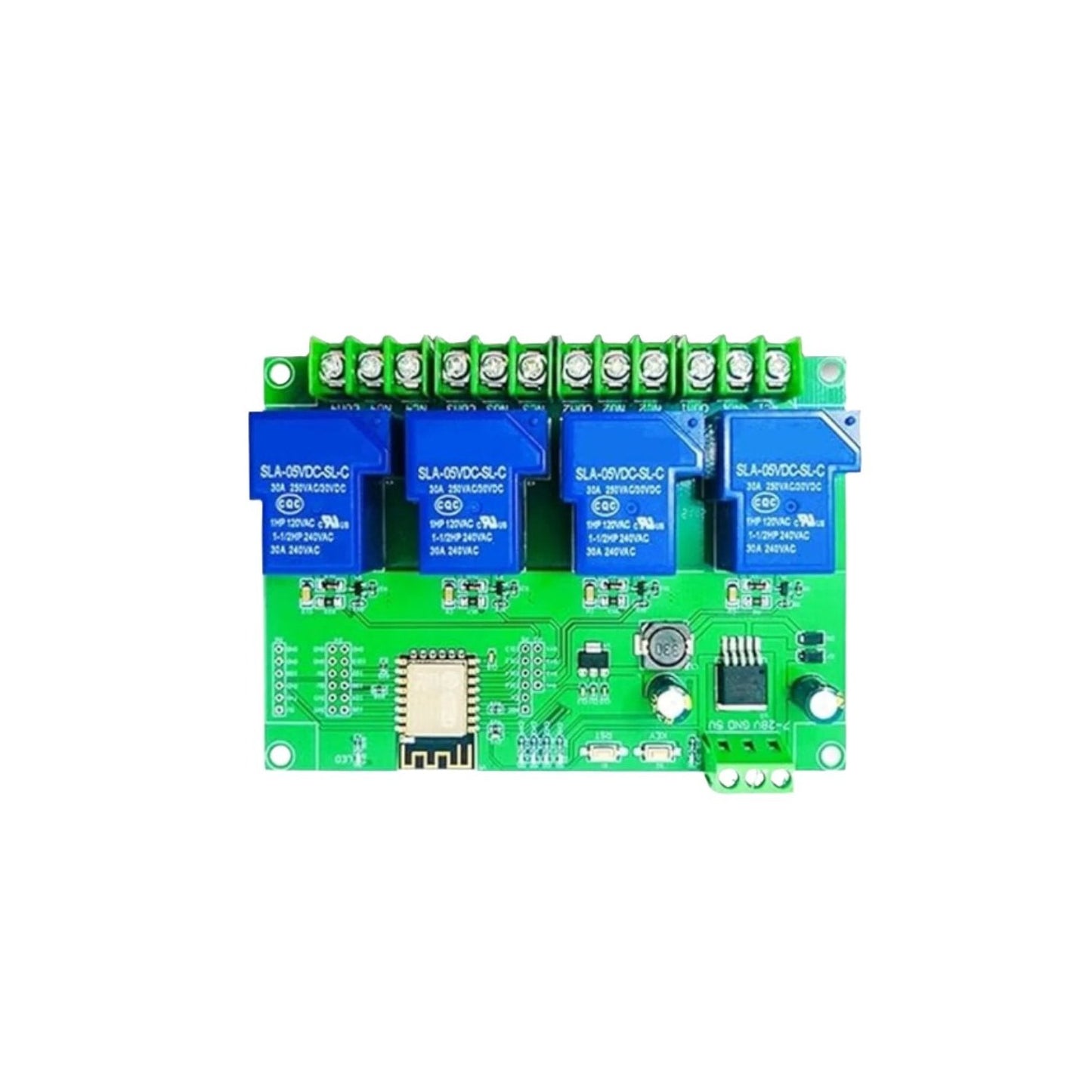

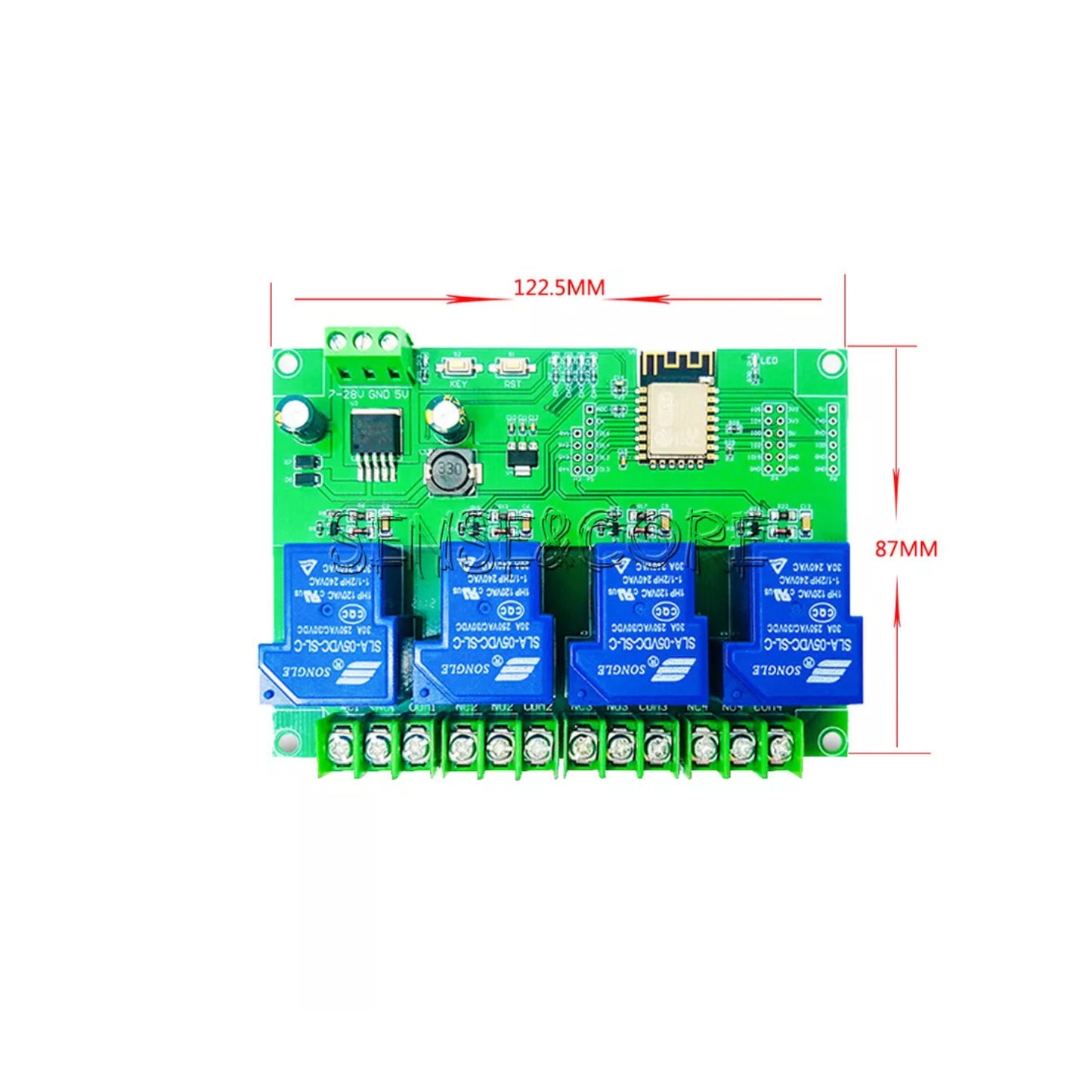

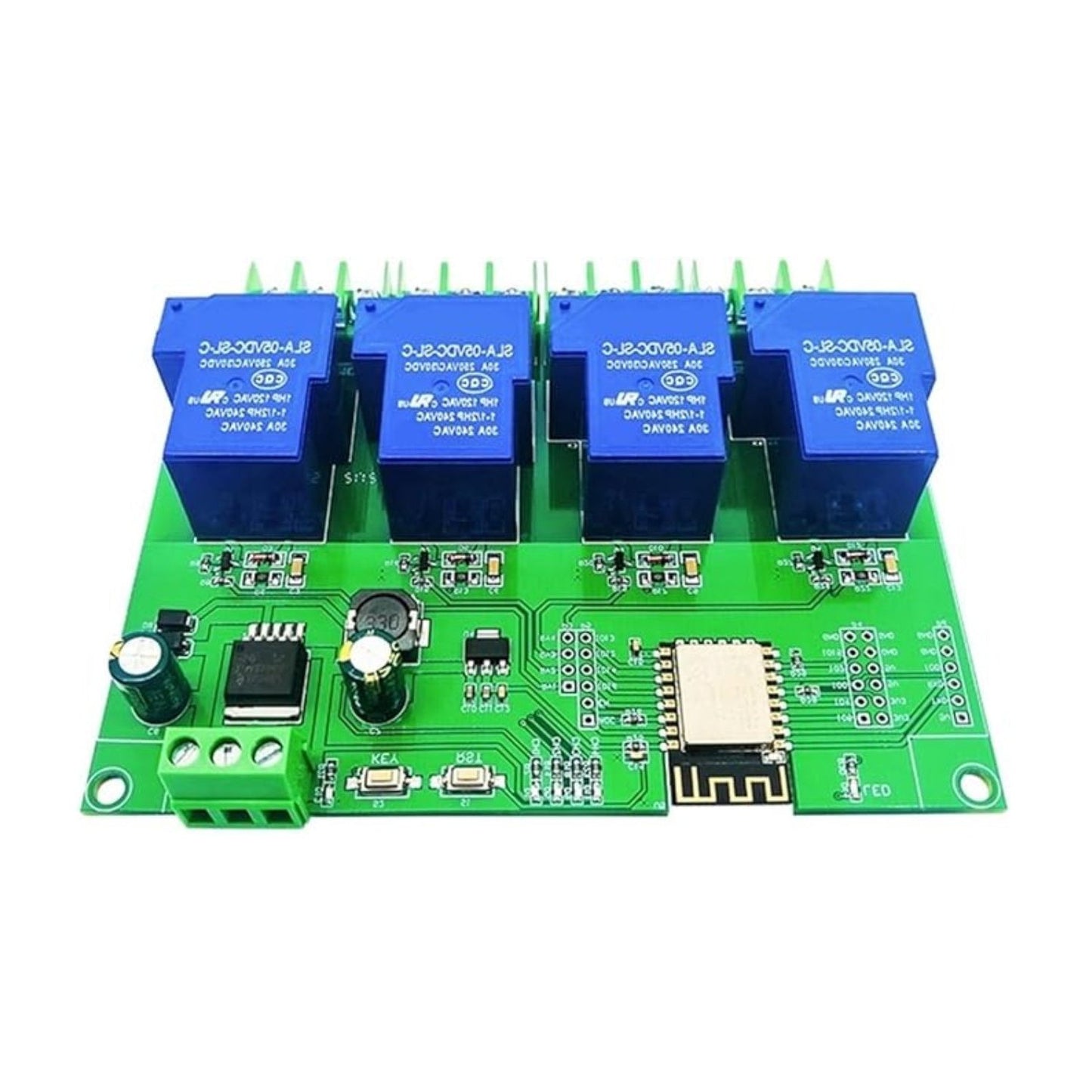

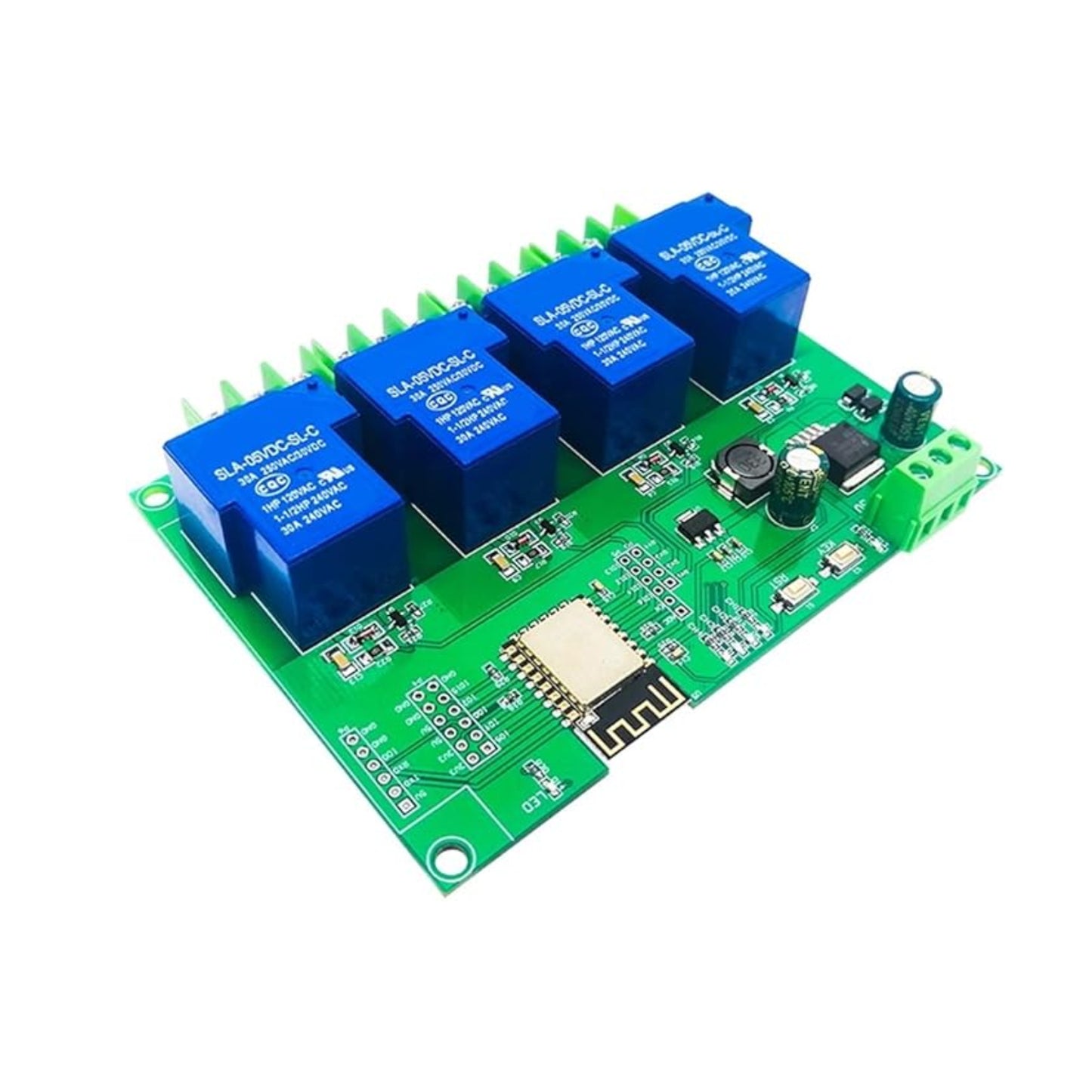

The ESP8266 WiFi Relay Module is equipped with an ESP-12F WiFi module, all I/O ports are led out, and it supports a DC7-28V/5V power supply. Provide Arduino development environment reference code, suitable for ESP8266 secondary development learning, smart home wireless control and other occasions.
Specifications:
- Type: Relay Module
- Model: ESP8266 WiFi
- Material: Printed Circuit Board
- Working Voltage: Supports DC7-28V/DC 5V.
- Relay Module: 5V/30A
- Colour: Green
Features:
- ESP8266 WiFi Relay Module is suitable for secondary development.
- Onboard 5V / 30A 4-way relay, output switch signal, suitable for control. Control the load whose working voltage is Within AC 250V / DC 30V.
- The WiFi module I / O port and UART program download port are all led.
- Mature and stable esp-12f WiFi module on board, large capacity 4m Byte Flash.
- ESP-12F Development Board supports the use of eclipse / Arduino LDE and other developers.
- Provides the reference program in the Arduino development environment.
Package Included:

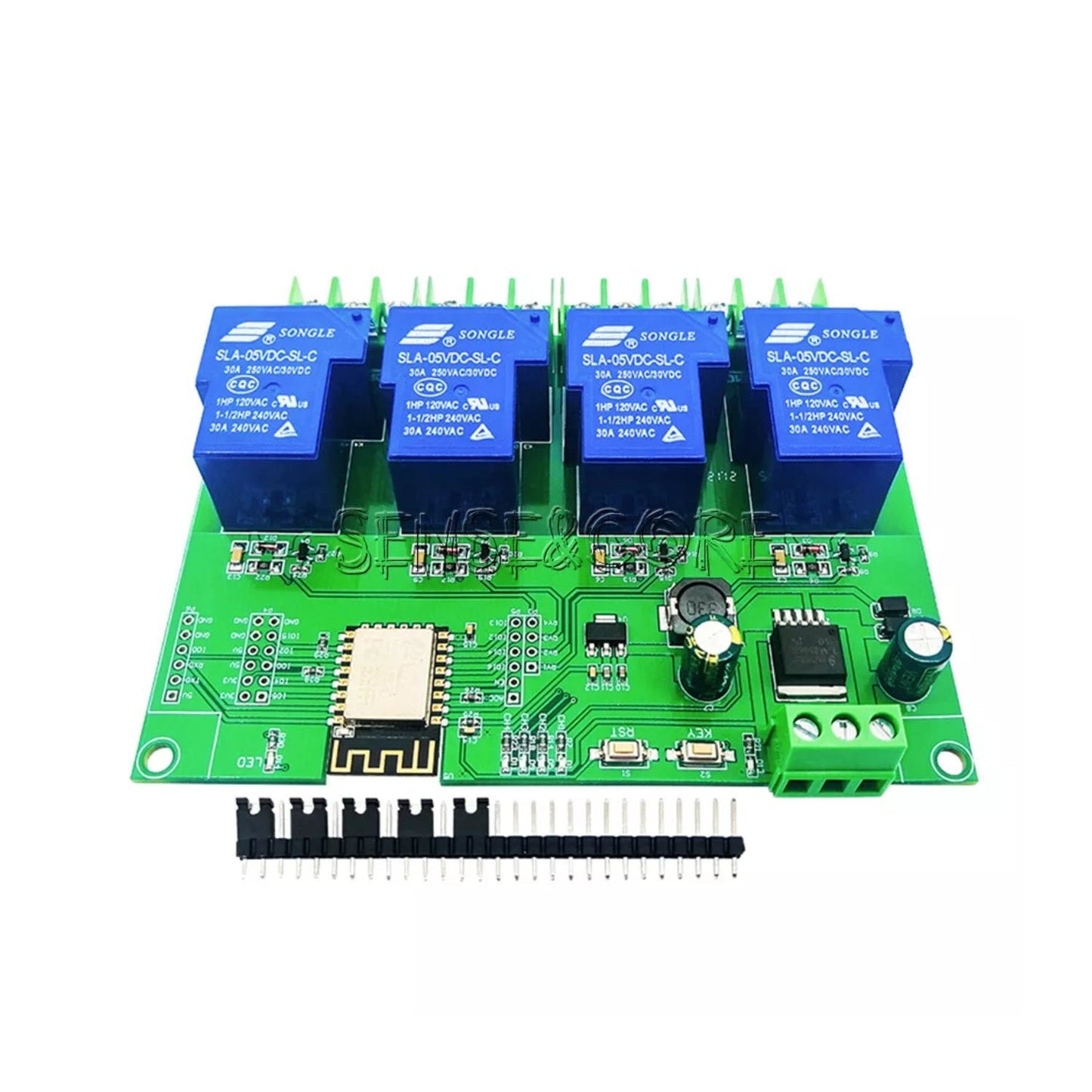

1 x ESP8266 DC7-28/5V 30A WiFi Relay Module Wireless Remote Control 4-Channel Relay Module ESP-12F Development Board With High-Power WiFi Relay Module For Industrial Applications
