Description:
These SMD ESP8266 modules have an unfriendly pin pitch. But by use of this adapter PCB, you can solder ESP-07, ESP-08 or ESP-12E modules and can use your favourite ESP8266 SMD modules on breadboards or perforated boards.
ESP8266 adapter plate compatible with the ESP07, ESP08, and ESP12. Because soldering the ESP modules is not always easy, this adapter plate is available. The WiFi module can be soldered to the PCB, wherein they are connected to connection points indicated by headers.

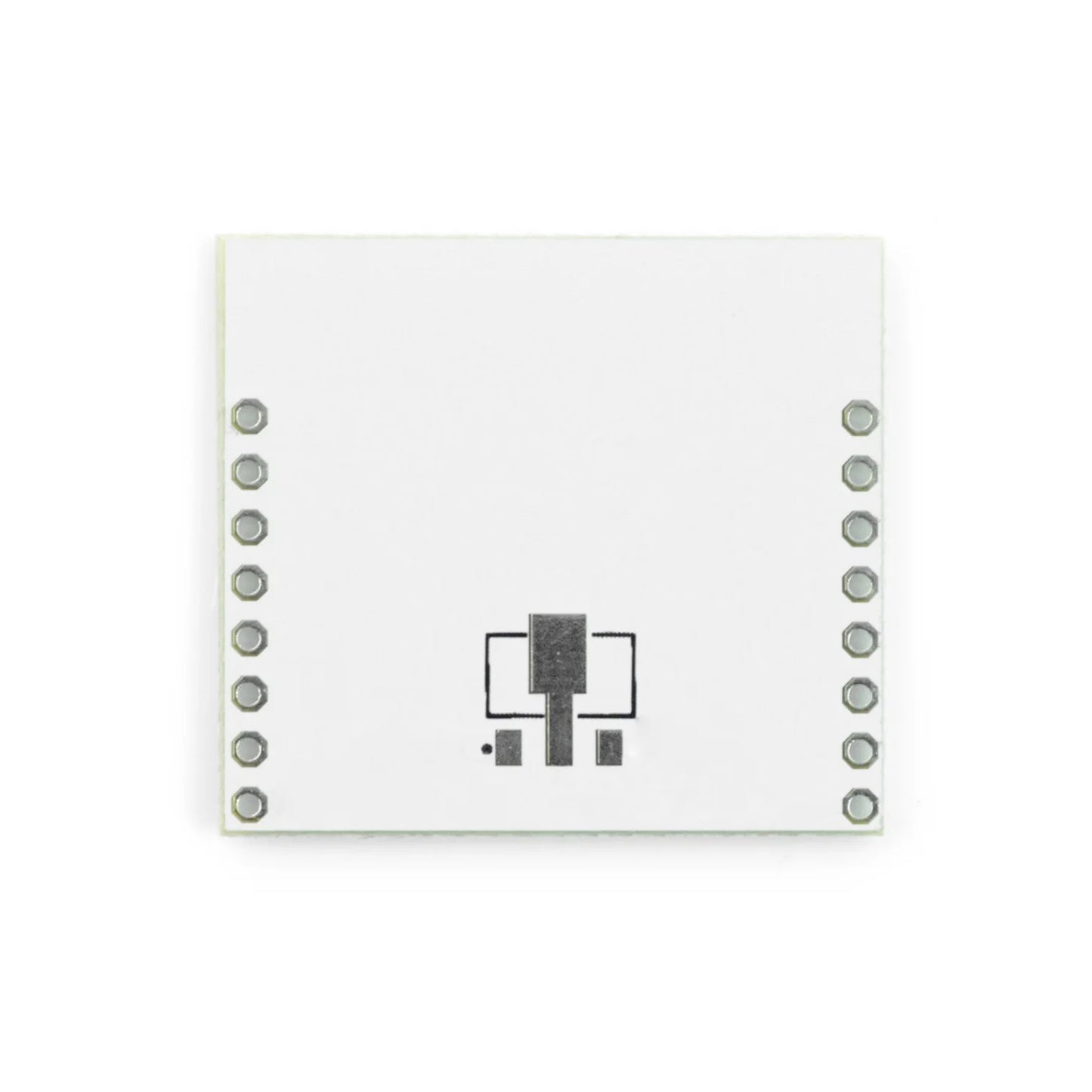

On the bottom layer, there is a land pattern for a 3.3V regulator. To use a 3.3V regulator you will need to desolder 0 Ohm jumper resistor R2.(middle resistor) The VCC pin then becomes 4.5V to the 9V power input.
Features:
- It features reserved land-pattern for the 3.3V regulator
- It has Pinouts on the top layer in black colour.
- It includes a 10K pull-up resistor populated on the PCB.
- Compatible with the Latest ESP-12F ESP8266 Wifi Module.
Package Included:
1 x ESP8266 Adapter Plate Serial Wireless Wi-Fi Module for ESP-07, ESP-12F, ESP-12E Compatible with Arduino
