Description:
In addition to the remote control of this relay has the advantage, it also has a wide input voltage range(DC7V-DC30V), and input over-voltage protection, input with TVS, as long as the input voltage exceeds 33v, it will automatically protect. Similarly, the input current exceeds a certain value, it will turn on automatic protection. The circuit board has an output status indicator and an input status indicator. It can be accessed through the TCP client-server control and can also be controlled through the HTTP protocol, control is diverse and easy to operate.
Specifications:
- Model Type: Relay Module
- Model No.: ESP8266
- Trigger Voltage (VDC): 5
- Switching Voltage (VAC): 277@10A
- Color: Green
- Overvoltage Protection: yes
- Overcurrent protection: Yes
Features:
- With ESP8266 Wifi module,4-layers board design.
- Input overvoltage protection, input with TVS, when the voltage exceeds 33V,
- automatic protection will operate.
- Input overcurrent protection.
- 220V 10A relay, one normally open, one normally closed.
- One way optocoupler isolation input, TVS input protection.
- High-current terminals.
- One output status indicator, one input status indicator.

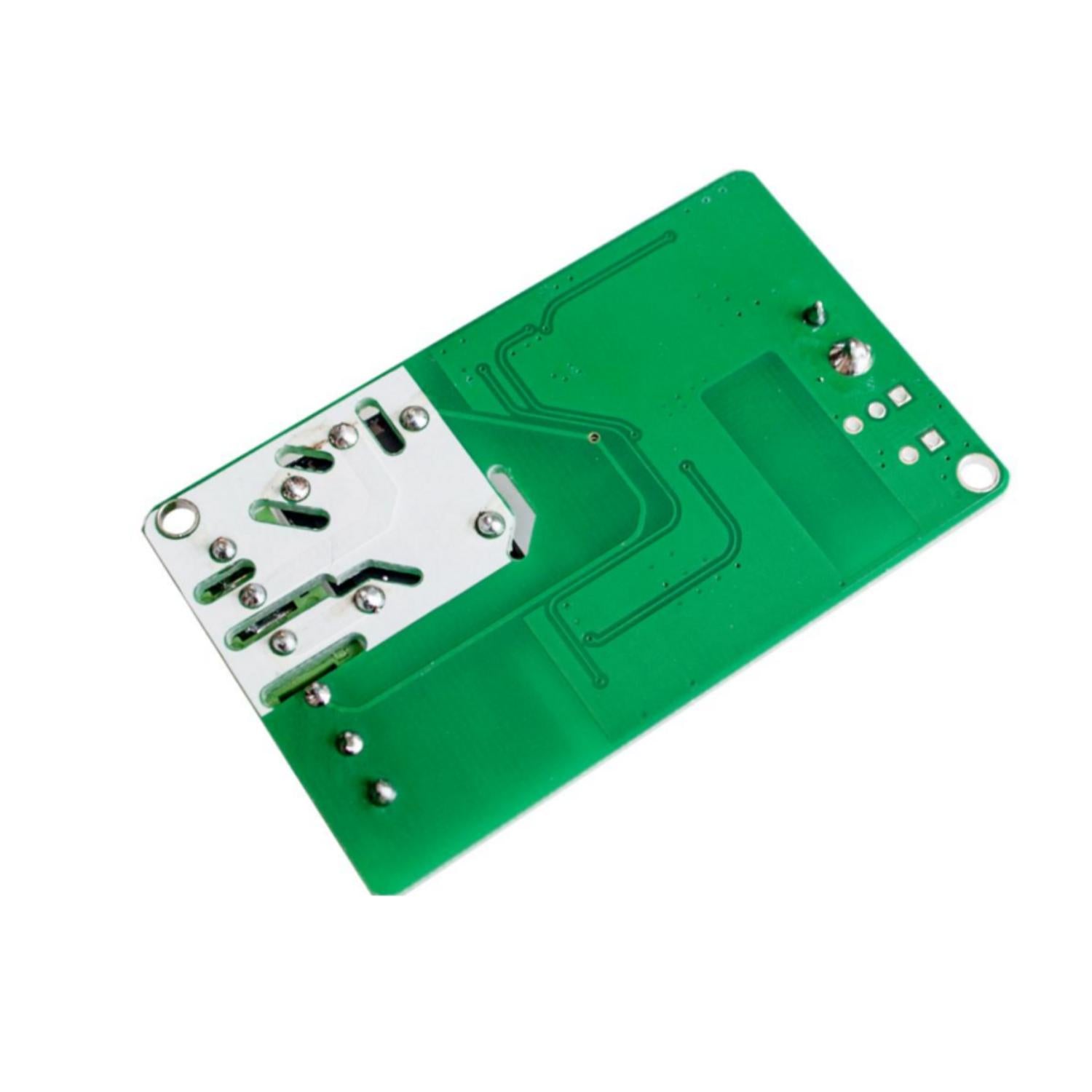

- More safe with relays PCB pin anti-climb design.
- Access control server via TCP CLIENT mode
- Via HTTP protocol control
Package included:
1 x ESP8266 10A WiFi Relay Module DC 7-30V Network Relay Module Remote Control Relay Smart Home Automation WiFi Wireless Switch Relay Module IoT WiFi Relay Module
