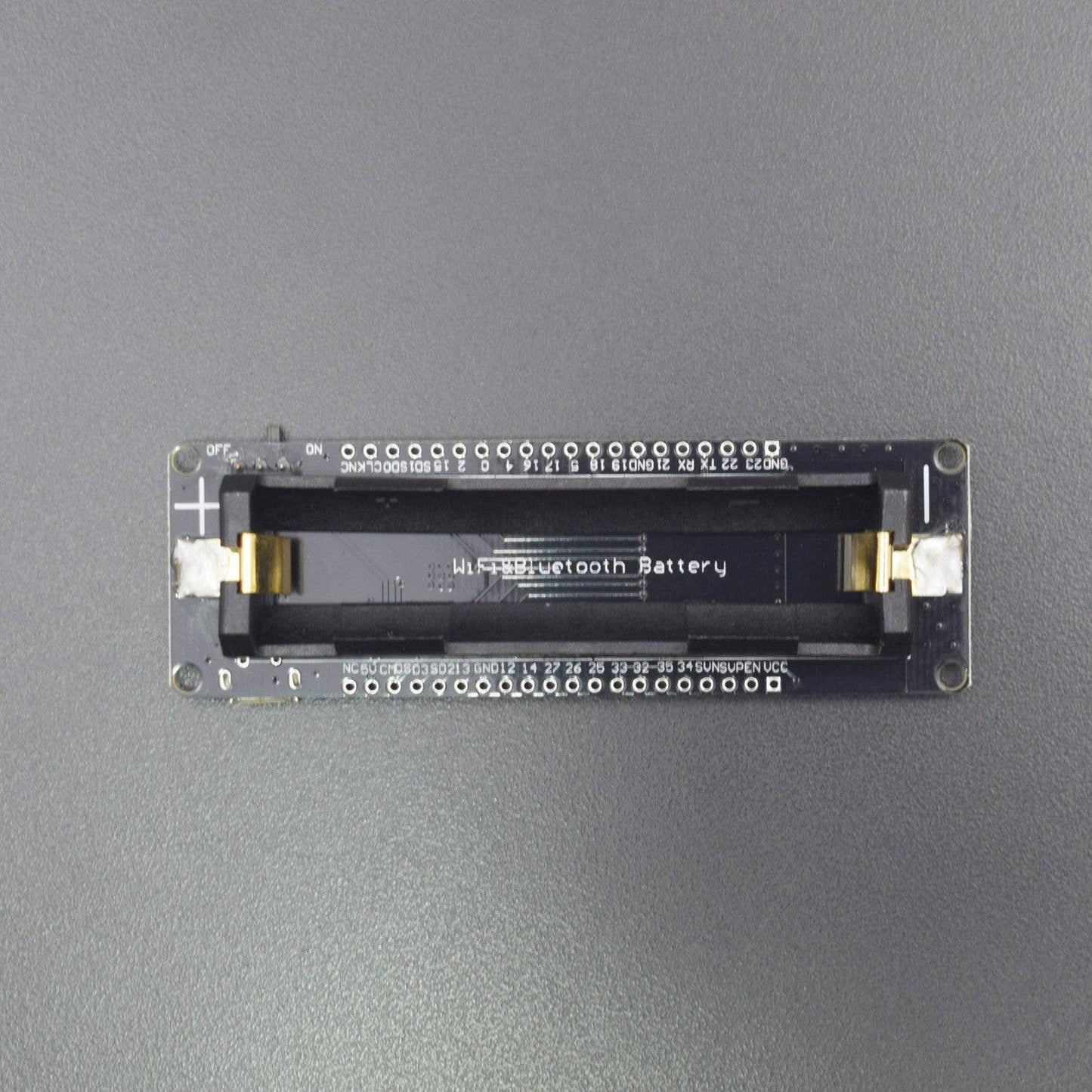

- 18650 charging system integrated
- Indicate LED inside(Green means full& Red means charging)
- Charging and working could be at the same time
- 1 Switch could control the power
Description:
ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area. This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications.
Features:
- 18650 charging system integrated
- Indicate LED inside(Green means full& Red means charging)
- Charging and working could be at the same time
- 1 Switch could control the power
- 1 extra LED could be programmed(Connected with GPIO16[D0])
- 0.5A charging current
- 1A output
- Over charge protection
- Over discharge protection
- Full ESP32 pins break out
- High performance-price ratio
- Small volume, easily embeded to other products
- Strong function with support LWIP protocol, Freertos
- Supporting three modes: AP, STA, and AP+STA
- Supporting Lua program, easily to develop
Package Included:

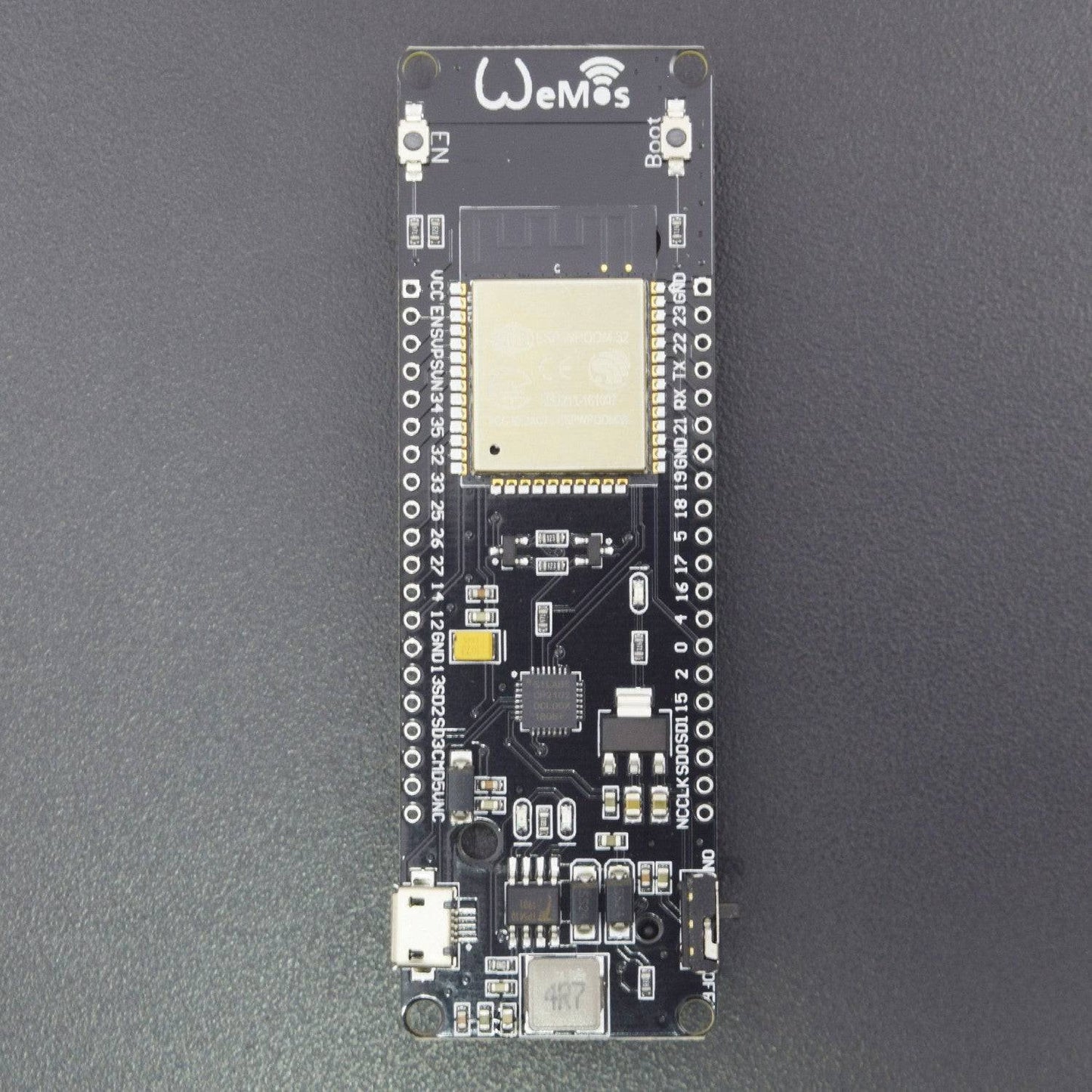

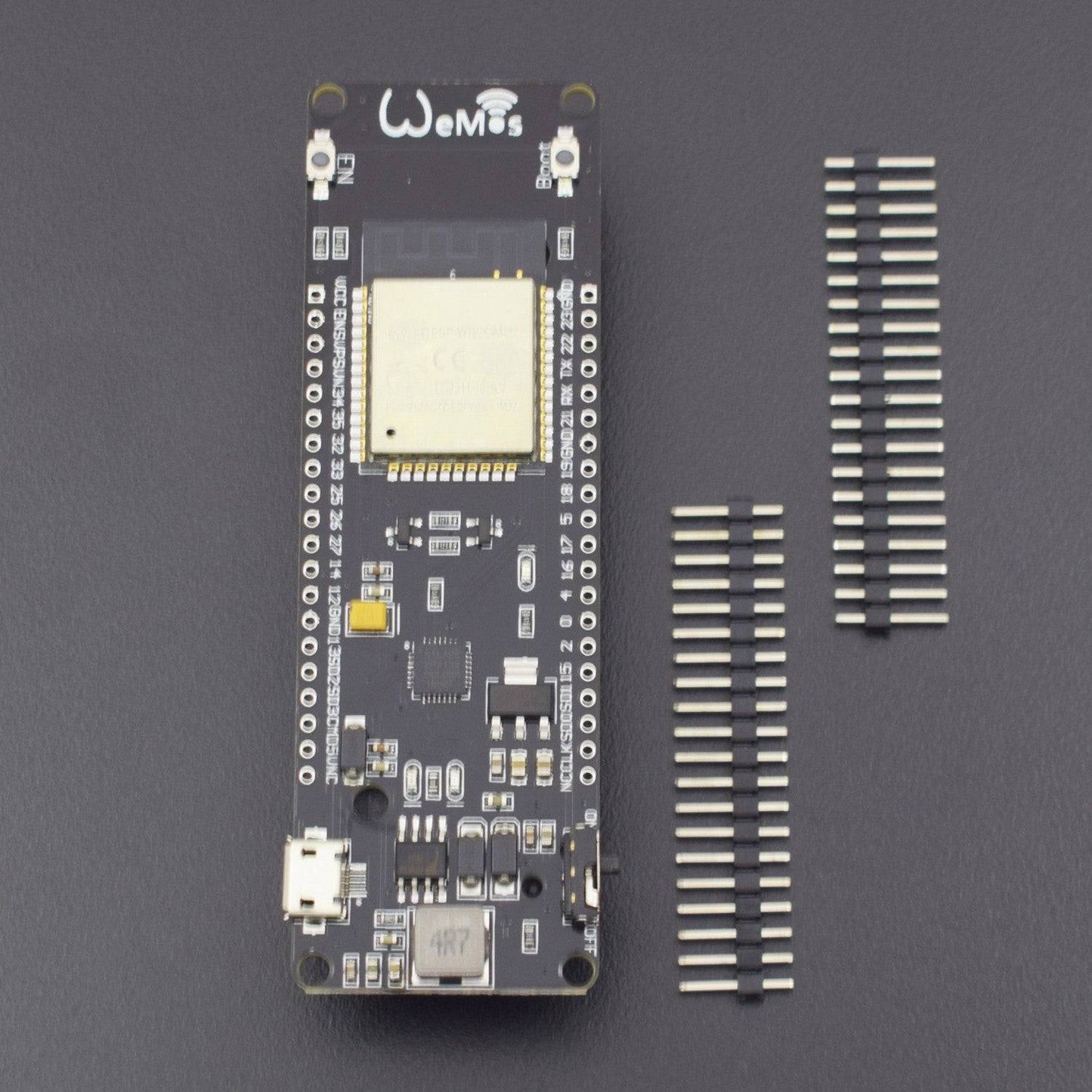

1 x ESP32 ESP-32S For WeMos WiFi Wireless Bluetooth Battery Development Board
