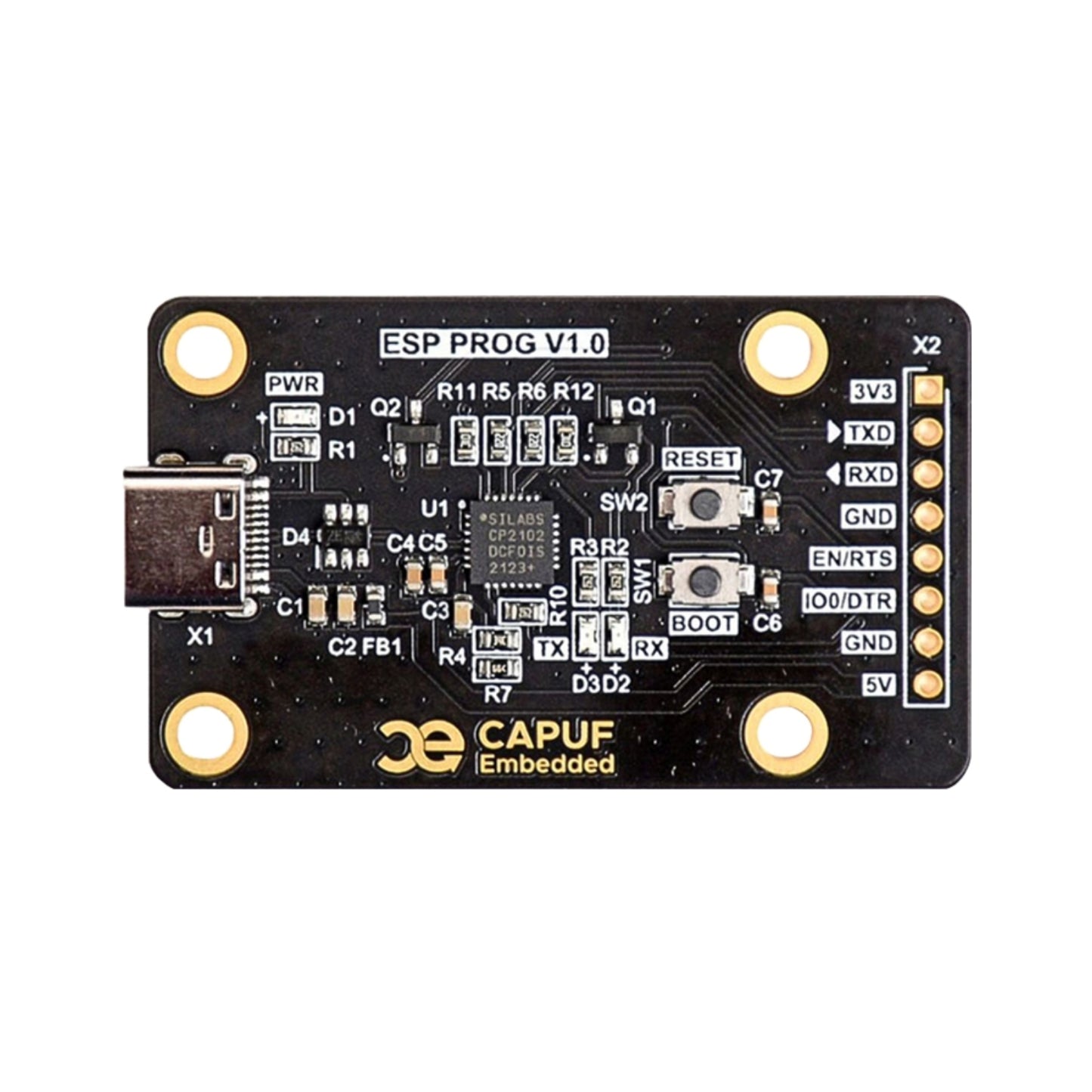

Description:
ESP32 Programmer Board V1.0 can be used in multiple ways like use it for programming ESP8266, ESP32, or any other microcontroller that needs boot Pin and Reset Pin control along with UART RX, and TX for flashing the MCU with a new program. Or, one can also use it as a USB to UART adapter.
What you should do is, have a 6-pin connector(RX, TX, 3.3V, GND, EN, IO0) on the board and buy a programmer board to do the programming in the production. For the field to have a secured OTA or secured physical interface.
Specifications:
- Type: ESP32 Programmer Board

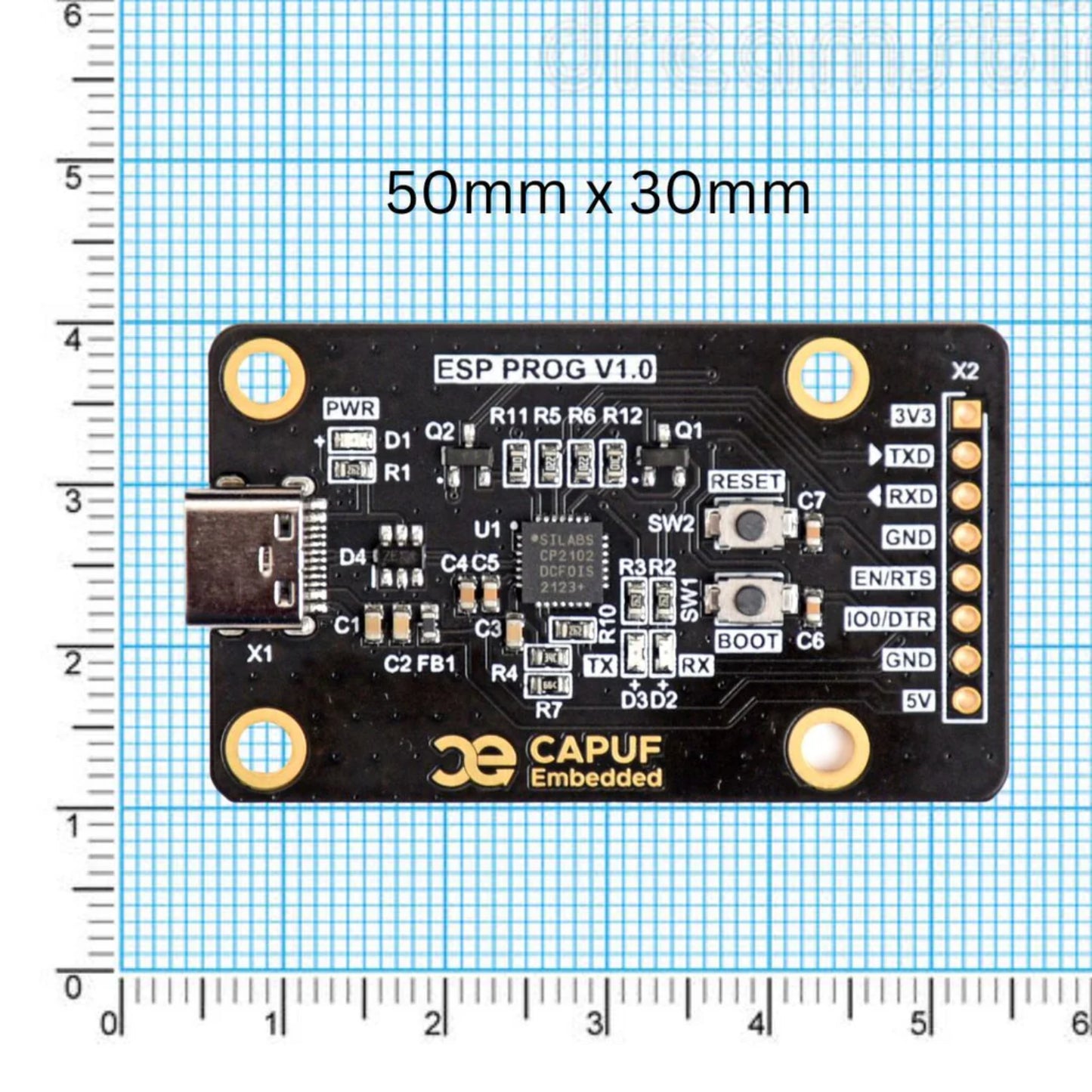

- Compact size: 50mmx30mm
- ESP PROG Connections.
Features:
- USB-C Type Interface: you can connect a USB in any direction. Use USB-A to USB-C Cable.
- LEDs for Power, RX, TX
- Both 3.3V and 5V are available on the O/P connector
- Switch for Reset and Boot
- All signals on a standard 2.54mm Pitch Header (Header will come along with the board (unsoldered))
Package Included:
1 x ESP32 Programmer Board V1.0 CP2102 Based
