Description:
Discover the ESP32 LoRa SX1278 module, a cost-effective and versatile networking solution for Arduino and other platforms. This powerful module integrates a high-performance ESP32 chip featuring a dual-core Tensilica LX6 processor (240MHz, up to 600 DMIPS), 520KB SRAM, and comprehensive connectivity including 802.11 b/g/n Wi-Fi and dual-mode Bluetooth (Classic and BLE).
Furthermore, it incorporates the SX1278 LoRa transceiver operating at 433 MHz, offering exceptional sensitivity (-148 dBm), a robust +20 dBm output power, and a remarkable open-area communication range of up to 2.6km. The onboard features include a clear 0.96-inch blue OLED display, a generous 32 Mbyte Flash memory, a dedicated Wi-Fi antenna, a convenient lithium battery charging circuit and interface, and a reliable CP2102 USB-to-serial chip. Fully compatible with the Arduino development environment, this module streamlines both rapid prototyping and efficient product development
Specifications:
- Frequency: 433MHz
- Operating voltage: 3.3V to 7V.
- Operating temperature range: -40 ° C to + 90 ° C.
- Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n.
- Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b.
Features:
- Lithium battery charging circuit and interface.
- 0.96-inch blue OLED display.
- Onboard 32 Byte Flash.
- Receiver sensitivity up to 139 dBm.
- UDP continues to throughput by 135 Mbps.
Package Included:

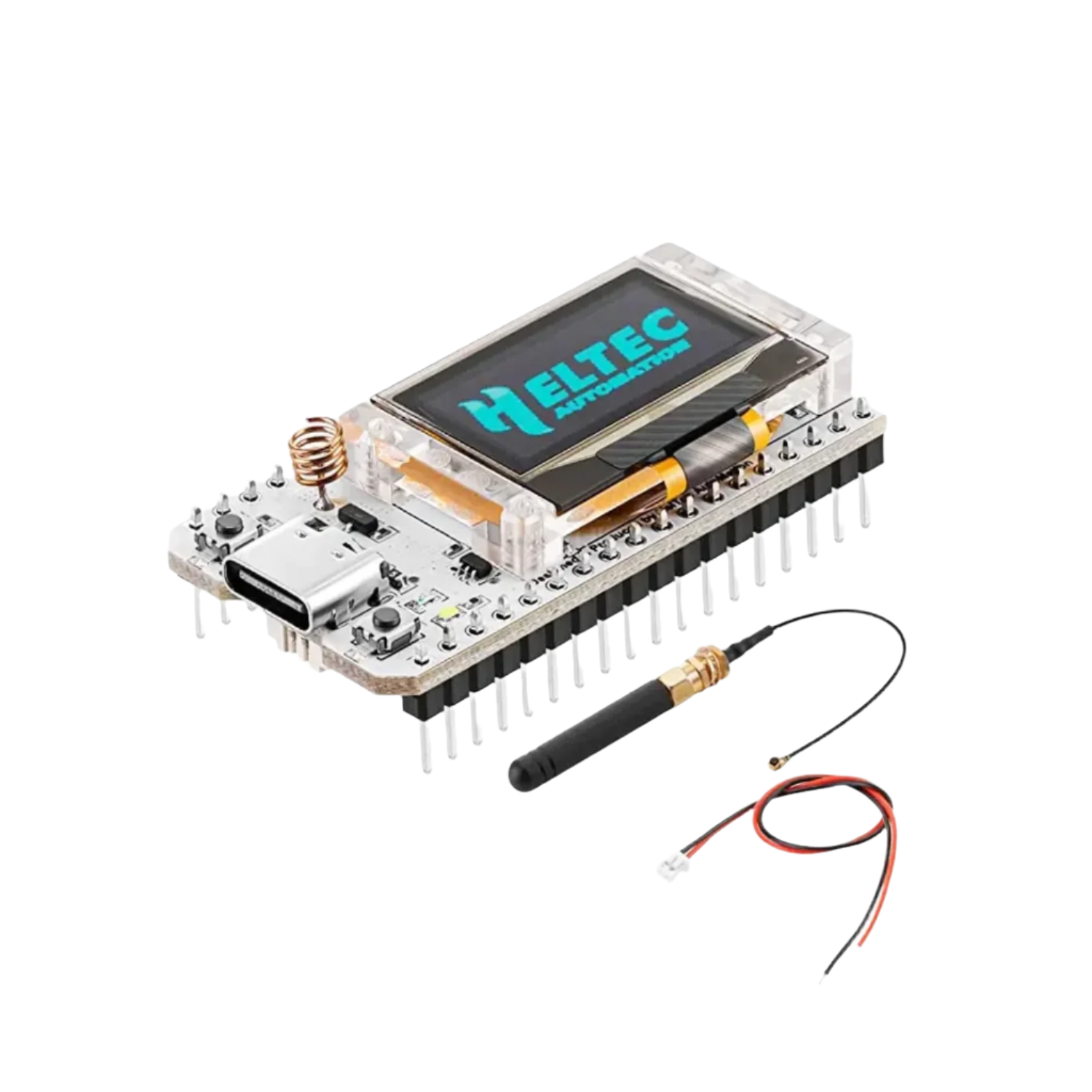

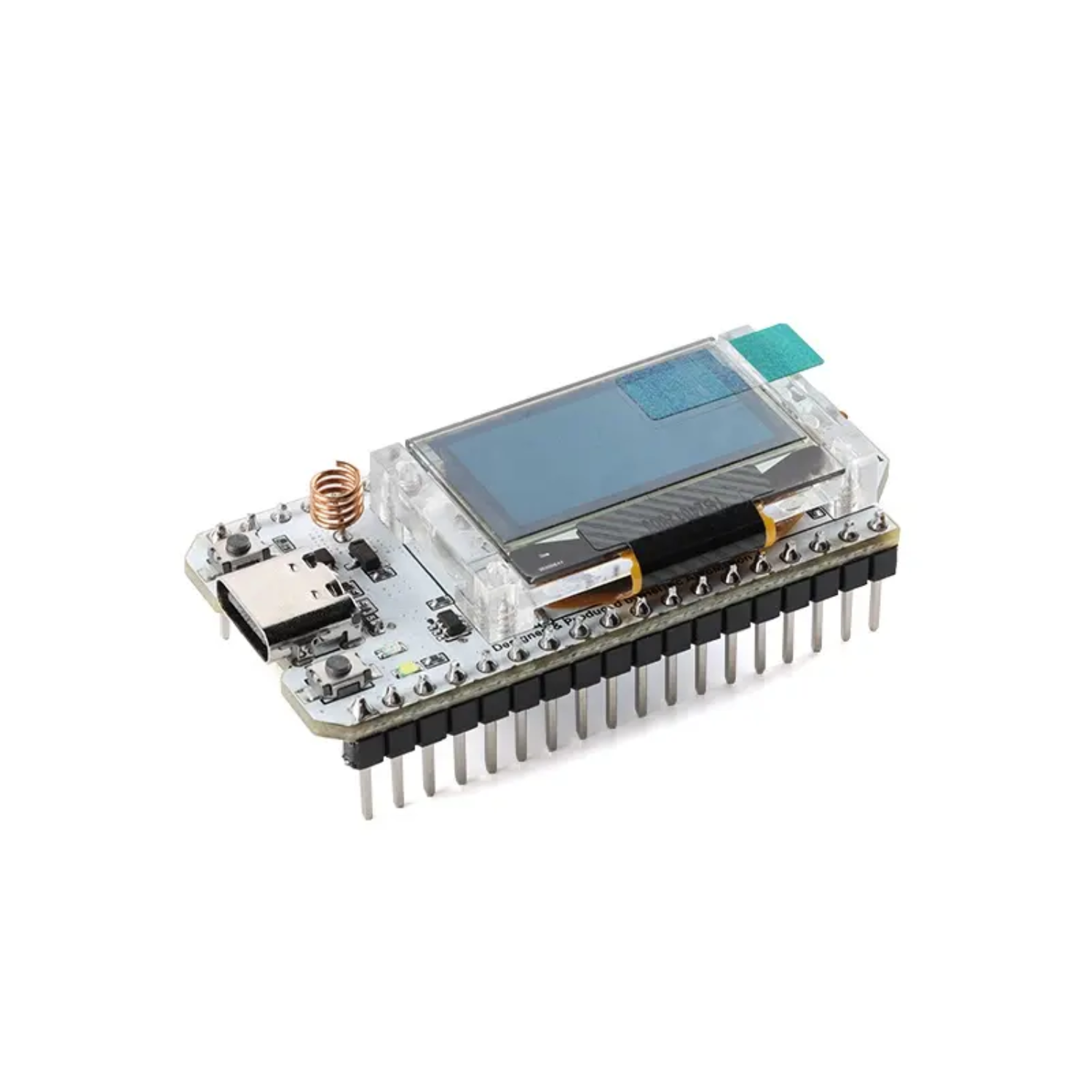

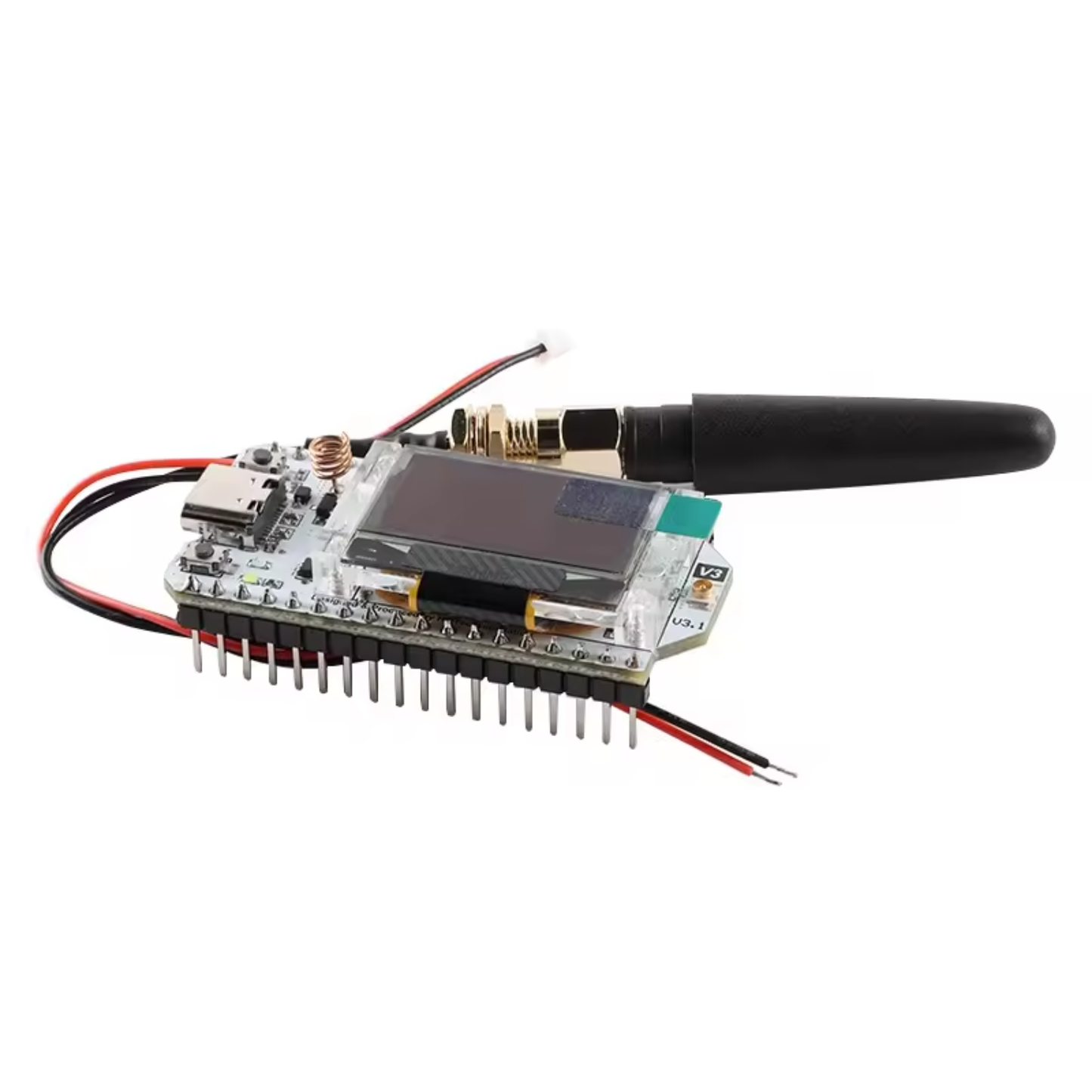

- 1 x ESP32 LoRa SX1278 0.96 inch OLED Display Development Board
- 1 x Antenna
- 1 x Connector Cable
