- SoC: ESP32-WROVER-B module
- CPU: Dual-core Xtensa@ 32-bit LX6 MCU
- Connectivity: 802.11 b/g/n 2.4GHz Wi-Fi, Bluetooth v4.2 BR/EDR and Bluetooth LE standards

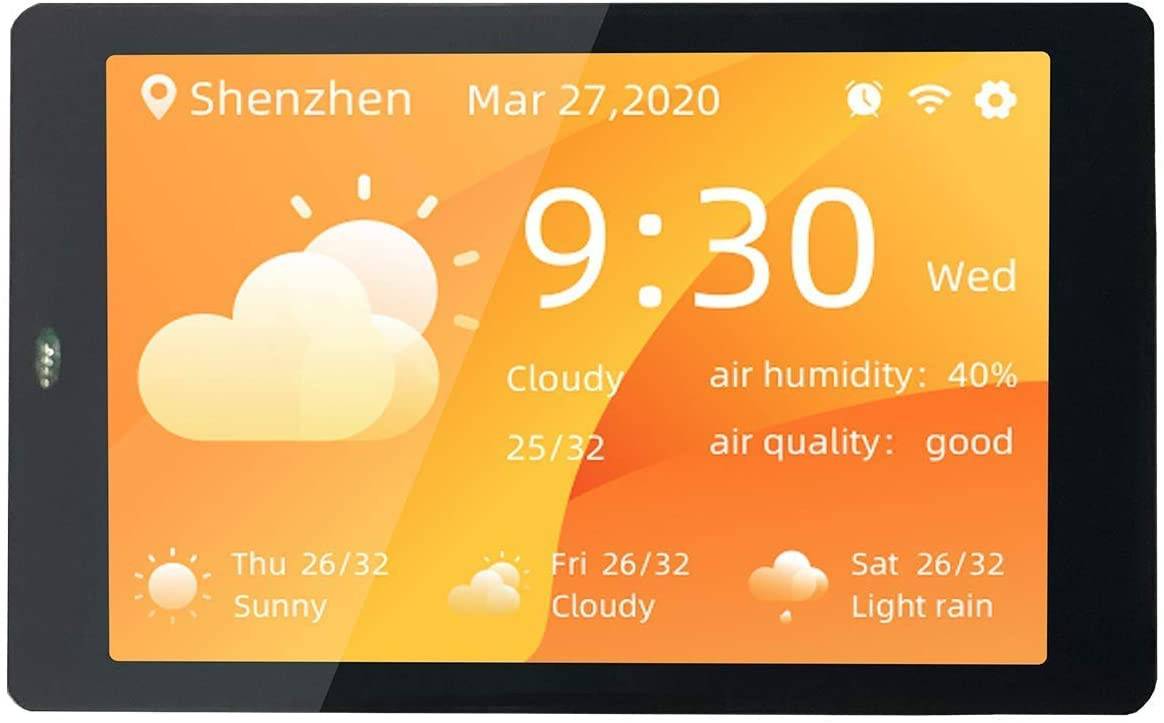

- Display: 3.5 inch, LCD @320x480, Capacitive with 2-point multitouch
Description:

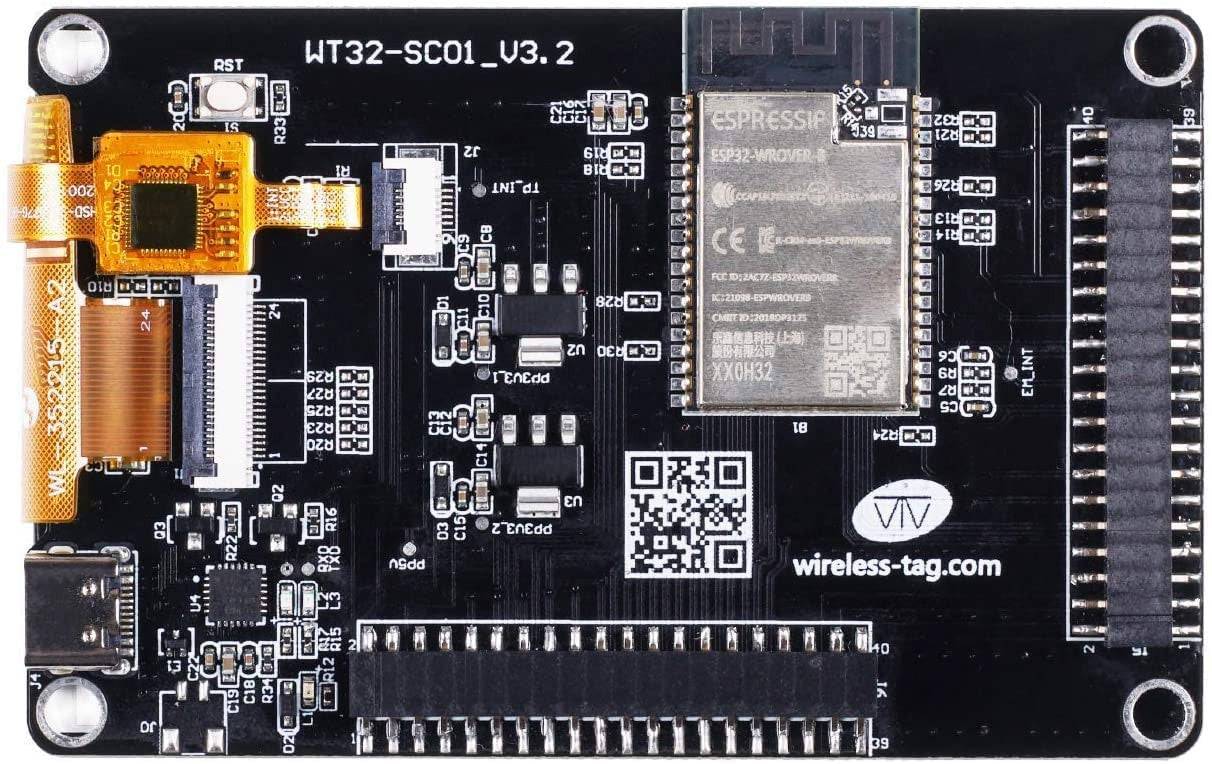

WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM.Wireless Connectivity with Wi-Fi&BLE. 3.5-inch 320x480 capacitive 2-point multi-touch screen. Now you can experience easy touch interactions with an ESP32 development board! The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform. By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the user’s development cycle.
Specification:
- SoC: ESP32-WROVER-B module
- CPU: Dual-core Xtensa@ 32-bit LX6 MCU
- Connectivity: 802.11 b/g/n 2.4GHz Wi-Fi, Bluetooth v4.2 BR/EDR and Bluetooth LE standards
- Display: 3.5 inch, LCD @320x480, Capacitive with 2-point multitouch
- Power Supply: DC 5V/2A. 5V/1A
- Operating Temperature: -20 to +85 °C
Features:
- Capacitive touchpad interface
- LCM display interface
- Power management
- Power switch
- Reset Button
- USB Type-C interface
- Expansion board interface
- Power indicator
- UART communication indicator
Package Included:
1 x ESP32 Development Board - WT32-SC01 with 3.5in 320x480 Multi-Touch LCD Screen, Built-in Bluetooth WiFi with GUI Firmware
