Description:

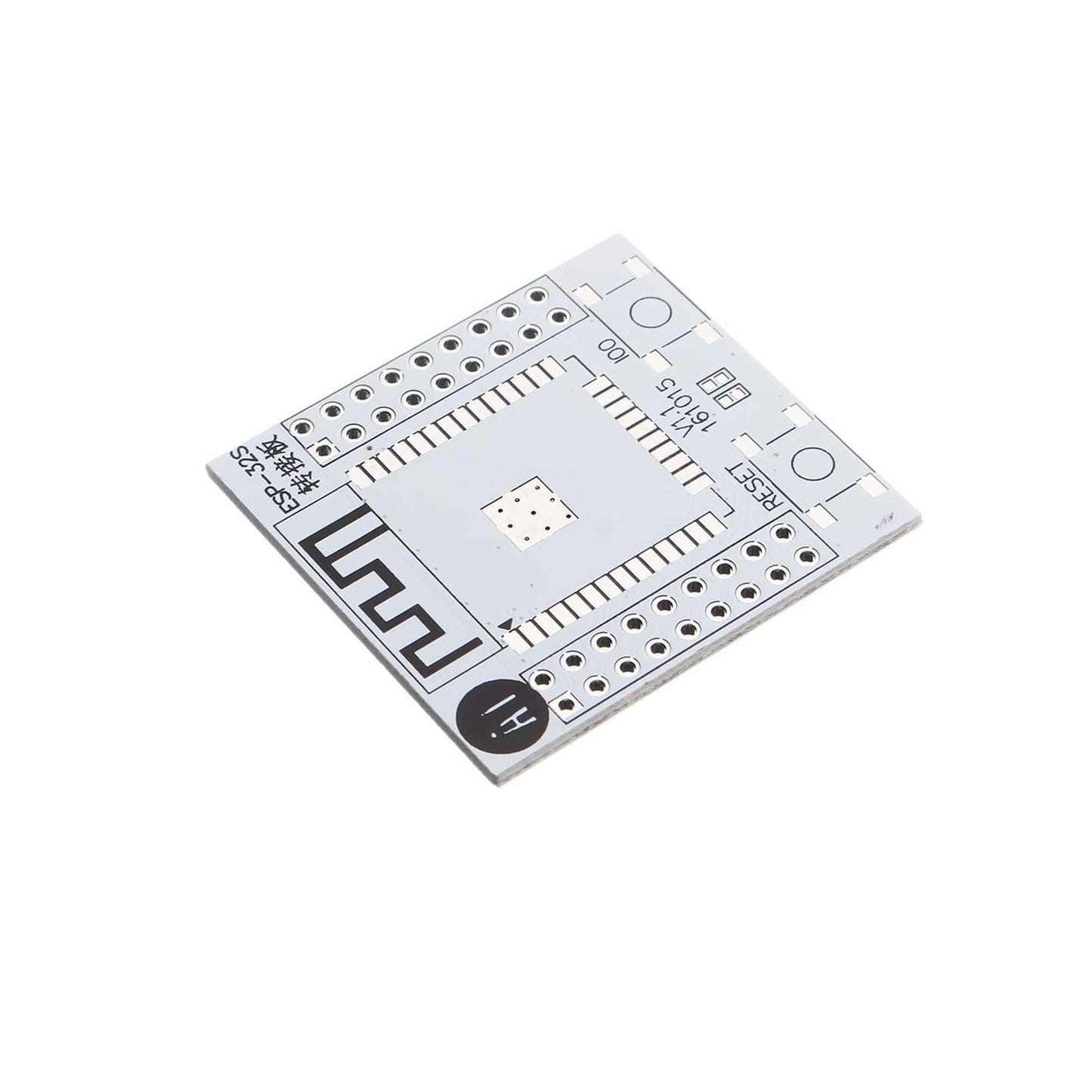

This is an ESP32 Adapter Breakout Board Module 2.54mm. This is an adapter board for the ESP-32S Wireless Module. It can be inserted into a breadboard with Dupont cable wire. Convenient to develop and debug.
This ESP32 Adapter Breakout Board is suitable for the ESP-32F module. ESP-32F Adapter Board minimum system needs only lead 4 lines to connect to the USB serial adapter, TXD should be connected to TX, and TXD should be connected to RX. Note: You must connect a 4,7K-20K pull-up resistor in the EN pin to 3.3V, we recommend 12K. According to the above description, power on after connecting the line and default operating mode, press the IO0 button to get into download mode and press the RESET button to download after you flash your code.
Specifications:
- Compatibility: ESP-32f ESP32 ESP-Wroom-32
- Board Size: 36×34mm
Features:

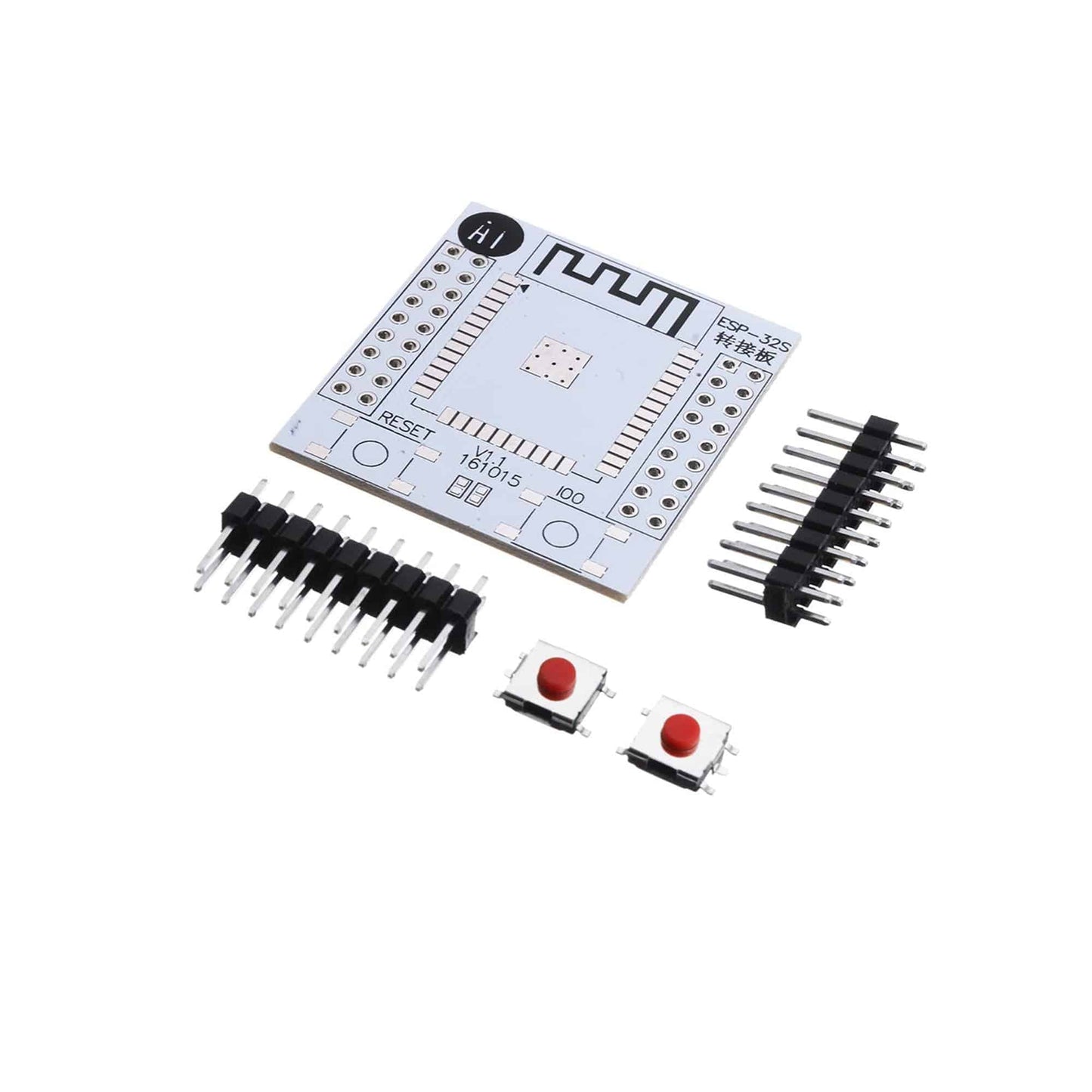

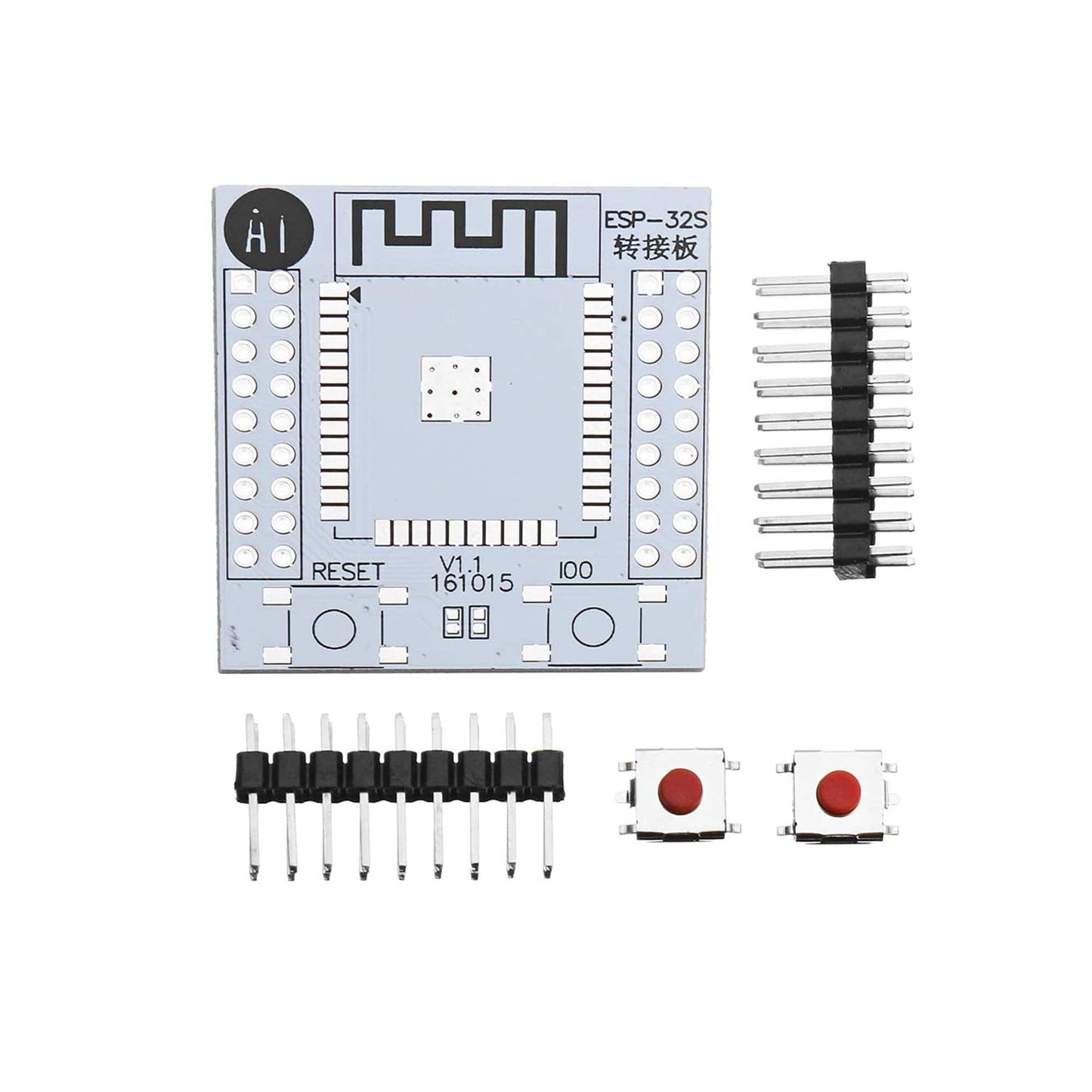

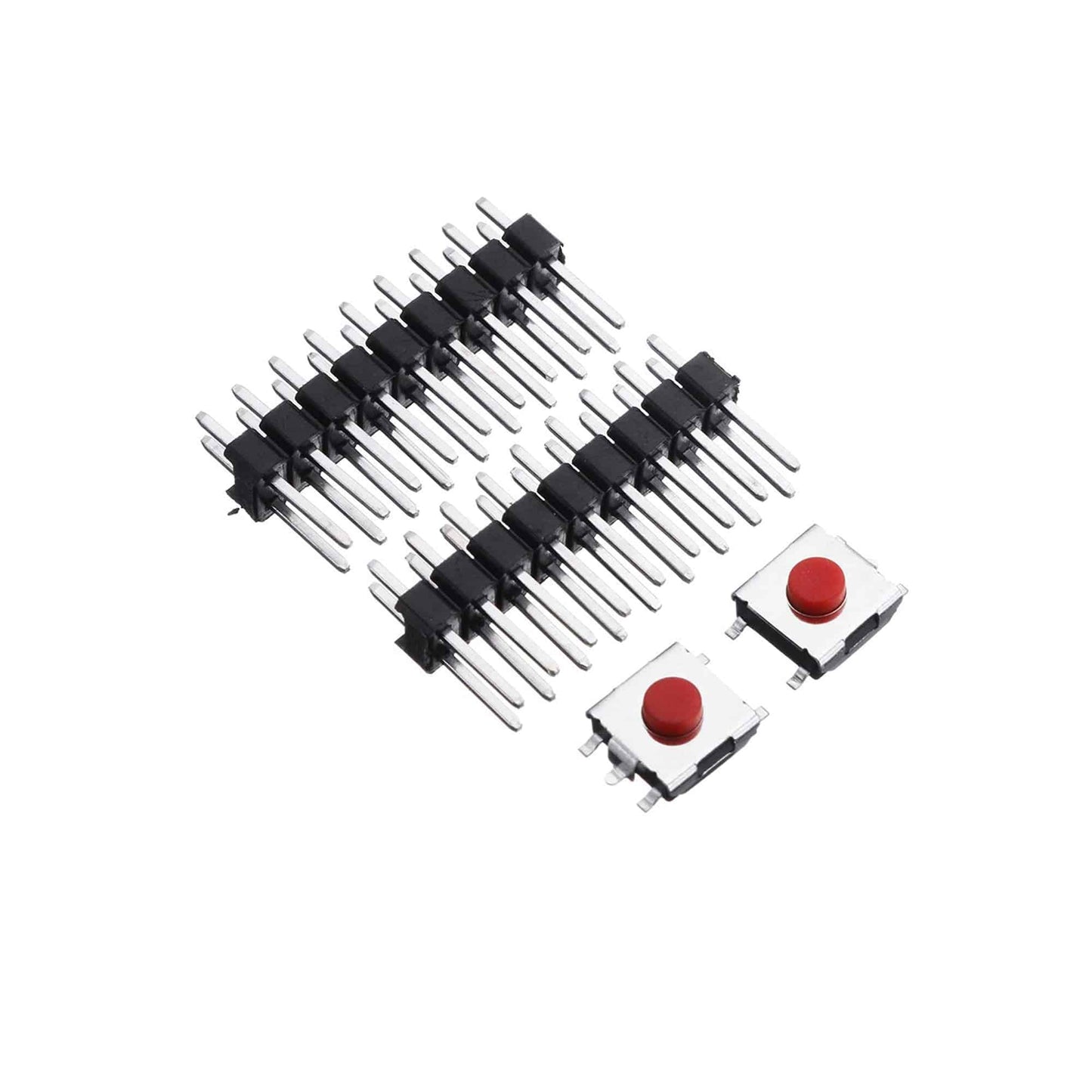

- Includes the adapter board and male double row pins connectors (not soldered)
- ESP32 Adapter Breakout Board has onboard Reset button and flashing firmware button
Package Included:
1 x ESP32 Adapter Breakout Board for ESP-32f ESP32 ESP-Wroom-32 Wireless Bluetooth Module
