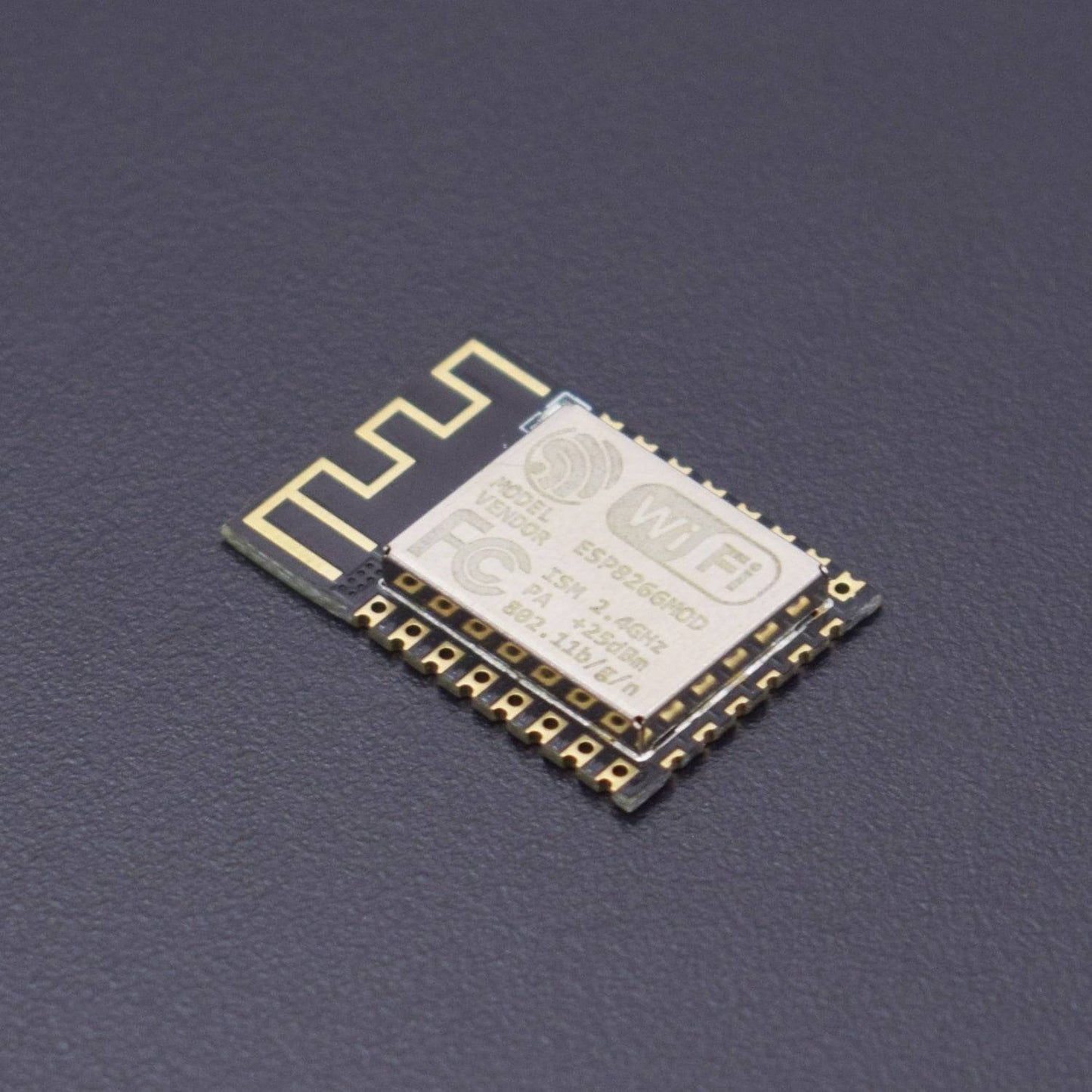

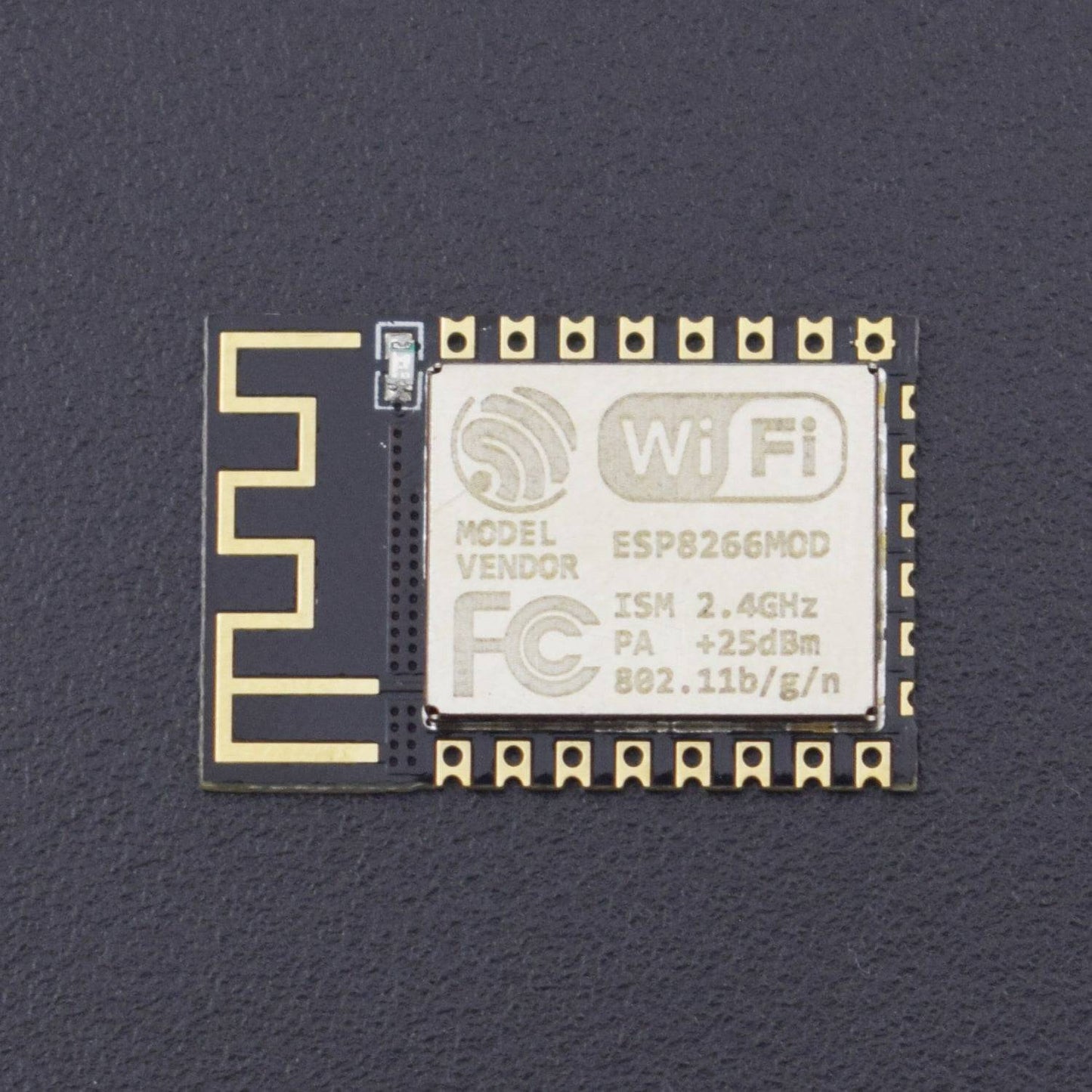

ESP 8266-12E WiFi Serial Transceiver Module(ESP12e)- IOT001

ESP 8266-12E WiFi Serial Transceiver Module(ESP12e)- IOT001

SKU:IOT001

753 in stock

Regular price Rs. 95.00
Regular price Sale price Rs. 95.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • 802.11 b/g/n
  • Wi-Fi Direct (P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)

Description:

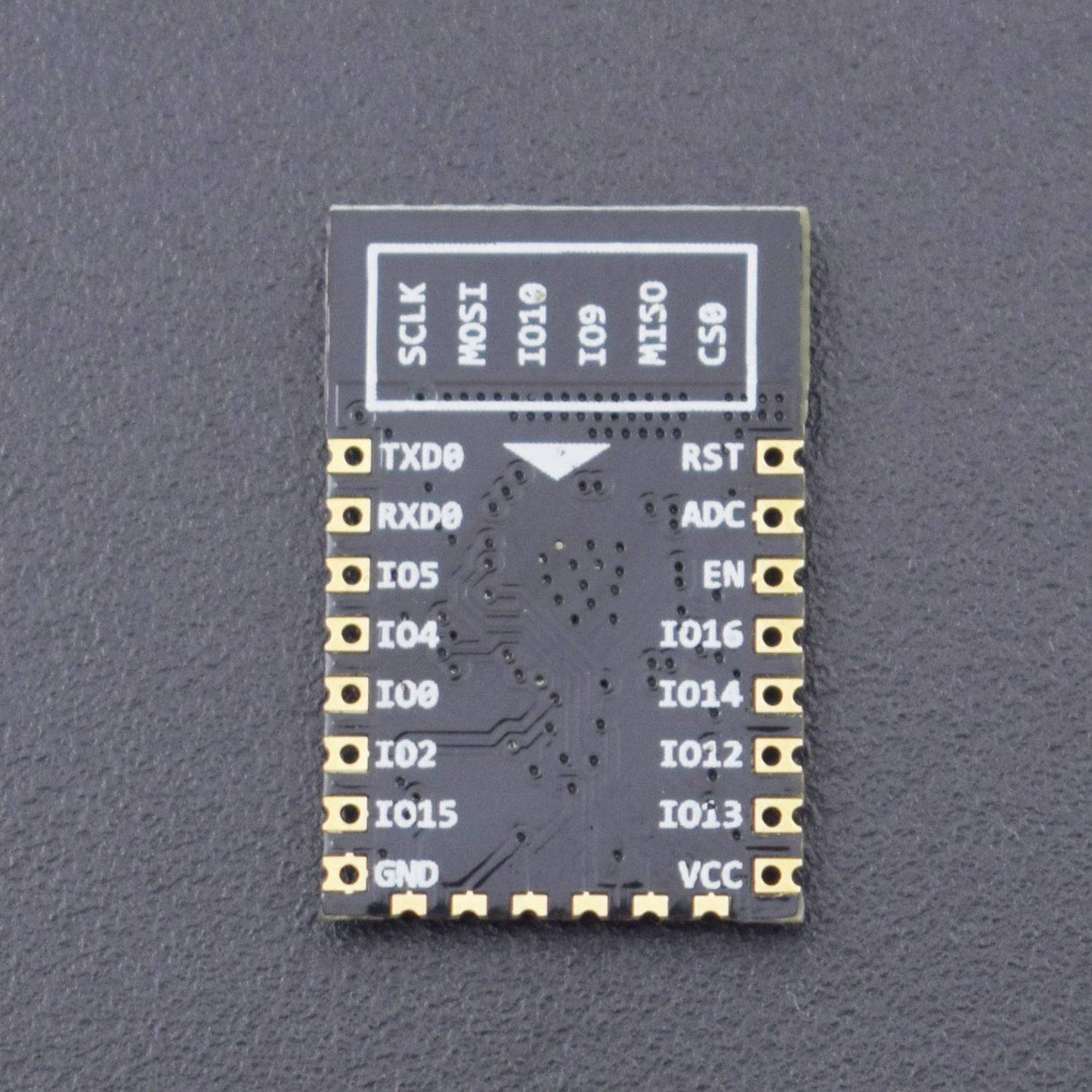

ESP8266-12E is an enhanced version of ESP8266-12, improves peripheral circuitry and increases impedance matching, the signal output is better, and whether it is stable or has the anti-jamming capability, has been greatly improved! For users before selecting the ESP-12, it does not matter even if the product has been made, the enhanced version is fully compatible with previous firmware, and the pin has added six IO ports on the basis of the ESP-12, SPI leads. ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or offload all Wi-Fi networking functions from another application processor. ESP8266 has powerful onboard processing and storage capabilities that allow it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy a minimal PCB area.

Specifications:

  • 802.11 b/g/n
  • Wi-Fi Direct (P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLLs, regulators, DCXO and power management units
  • +19.5dBm output power in 802.11b mode
  • Power down leakage current of <10uA
  • An integrated low power 32-bit CPU could be used as an application processor
  • SDIO 1.1/2.0, SPI, UART
  • STBC, 1Ã1 MIMO, 2Ã1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)

Features:

  • Supports APSD for optimal VoIP applications
  • Patented spurious noise cancellation algorithm for integration in SOC applications
  • Supports Bluetooth co-existence interface
  • Self-calibrated RF to ensure optimal performance under all operating conditions
  • Zero factory tuning
  • No external RF components

Package Included:

1 x ESP8266-12E WiFi Serial Transceiver Module
