• ESP-05 WiFi module ESP8266 serial WIFI AP and STA and AP + STA wireless coexistence module-NA149 - REES52
  • ESP-05 WiFi module ESP8266 serial WIFI AP and STA and AP + STA wireless coexistence module-NA149 - REES52
1 2

vendor-unknown

ESP-05 WiFi module ESP8266 serial WIFI AP and STA and AP + STA wireless coexistence module-NA149

ESP-05 WiFi module ESP8266 serial WIFI AP and STA and AP + STA wireless coexistence module-NA149

NA149

Low stock: 6 left

Rs. 400.00
Rs. 400.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • WIFI Direct (P2P),SOFT-AP
  • The AT command is perfect, efficient, concise
  • Support three modes: AP, STA and AP+STA coexistence mode the TCP/IP protocol suit
  • Integrated TCP/IP protocol stack

Description:

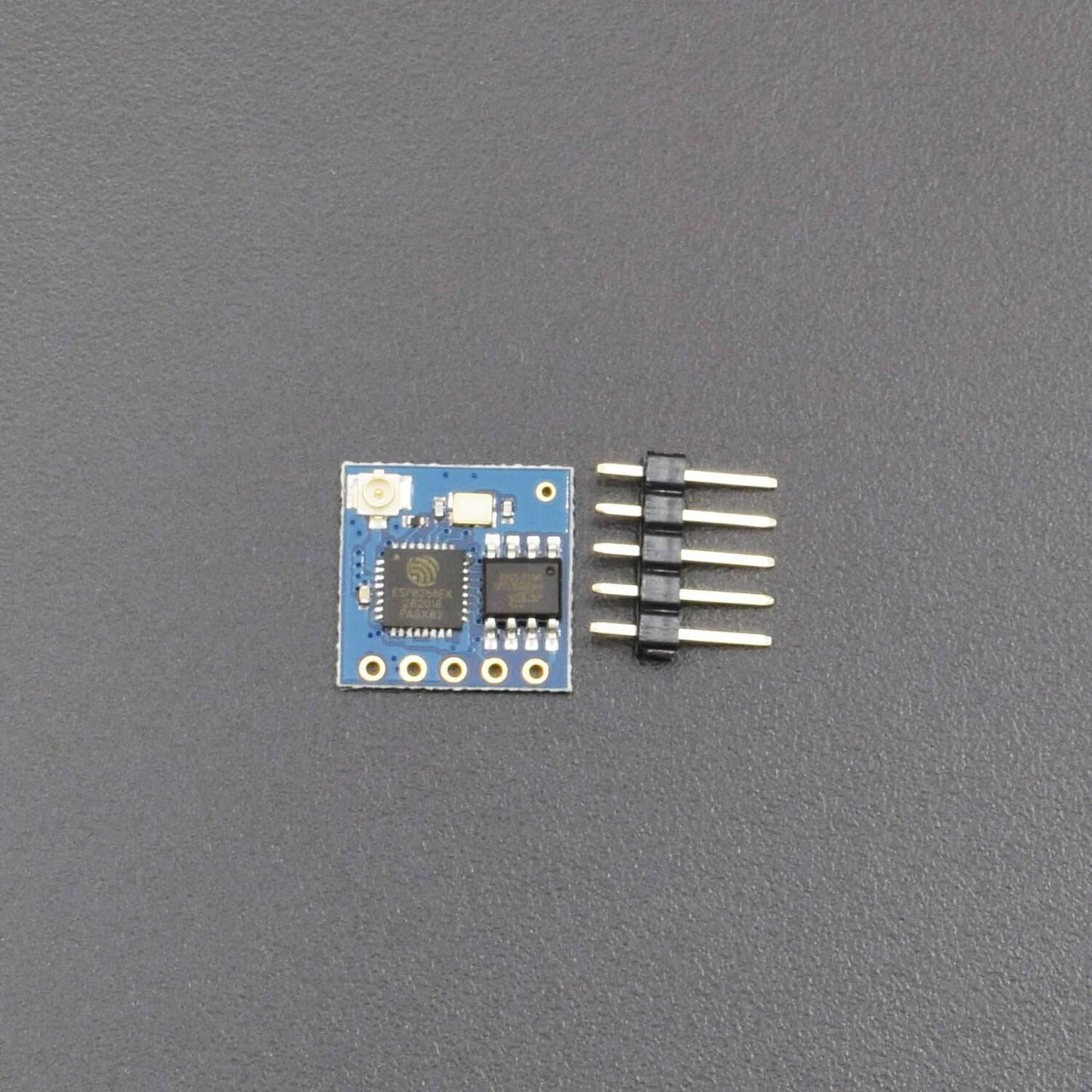

ESP8266 Serial WiFi Module (ESP-05) is a new player in this field: it’s tiny (25mm x 15mm), with simple pin connections (standard 2×4 pin headers), using serial TX/RX to send and receive Ethernet buffers, and similarly, using serial commands to query and change configurations of the WiFi module. This is quite convenient as it only requires two wires (TX/RX) to communicate between a micro controller and WiFi, but more importantly, it offloads WiFi-related tasks to the module, allowing the micro controller code to be very light-weighted.

Specifications:

  • WIFI Direct (P2P),SOFT-AP
  • The AT command is perfect, efficient, concise
  • Support three modes: AP, STA and AP+STA coexistence mode the TCP/IP protocol suit
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLLs, regulators, DCXO and power management units
  • +19.5dBm output power in 802.11b mode
  • Power down leakage current of <10uA
  • Integrated low power 32-bit CPU could be used as application processor
  • SDIO 1.1/2.0, SPI, UART
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)
  • ESP-05 SMD package, only leads to serial and RST pin, small external antenna.

Features:

  • Serial UART Interface
  • It run LWIP
  • 802.11 bgn
  • WIFI Direct (P2P),SOFT-AP
  • Built-in TCP/IP
  • The AT command is perfect,efficient,concise
  • Support three modes: AP, STA and AP+STA coexistence mode
  • UFL Antenna Connector
  • Berg strip connectable
  • Breadboard Compatible.

Package Included:

1 x ESP-05 WiFi module ESP8266 serial WIFI AP and STA and AP + STA wireless coexistence module
