ENC28J60 SPI Ethernet Module with 12-Pin Header

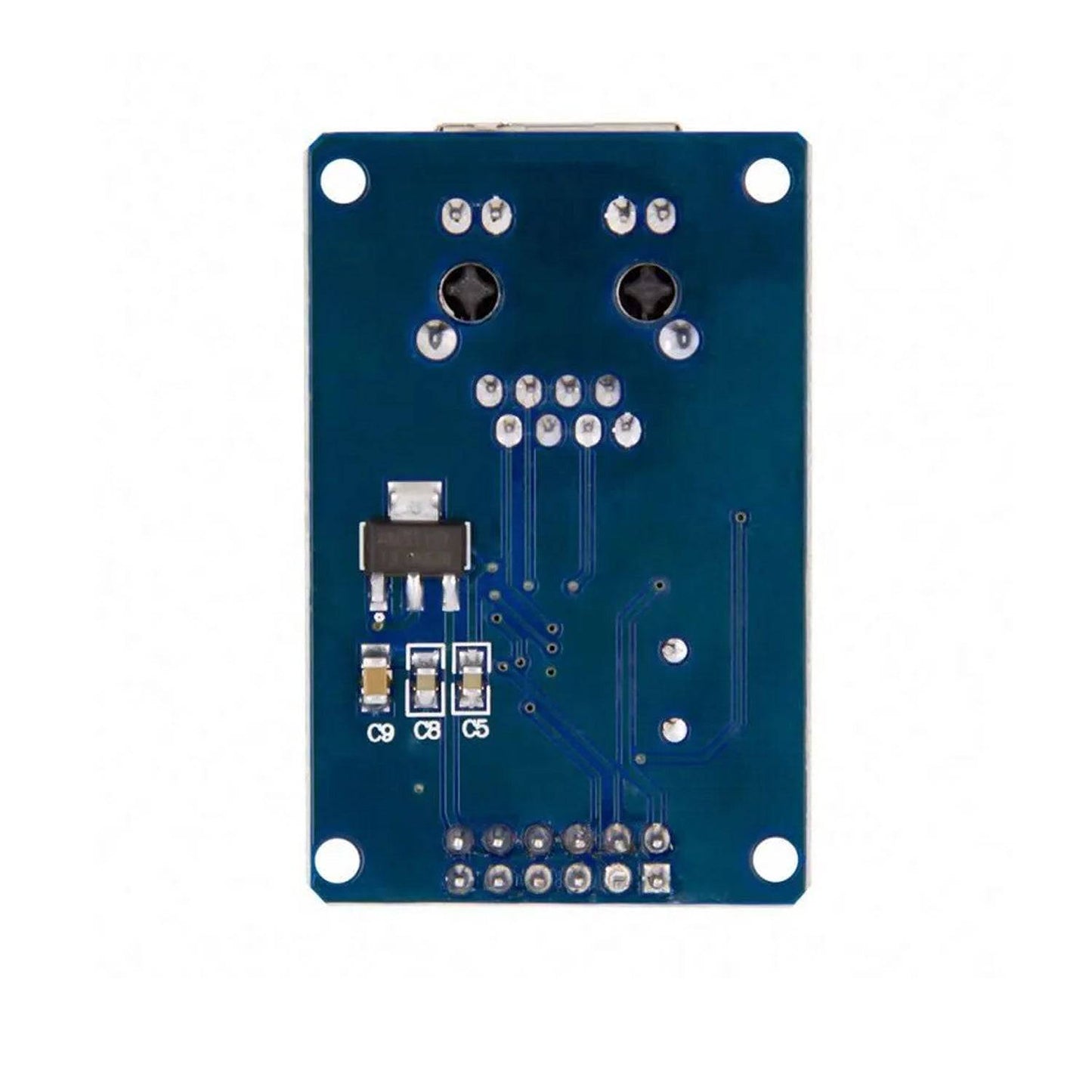

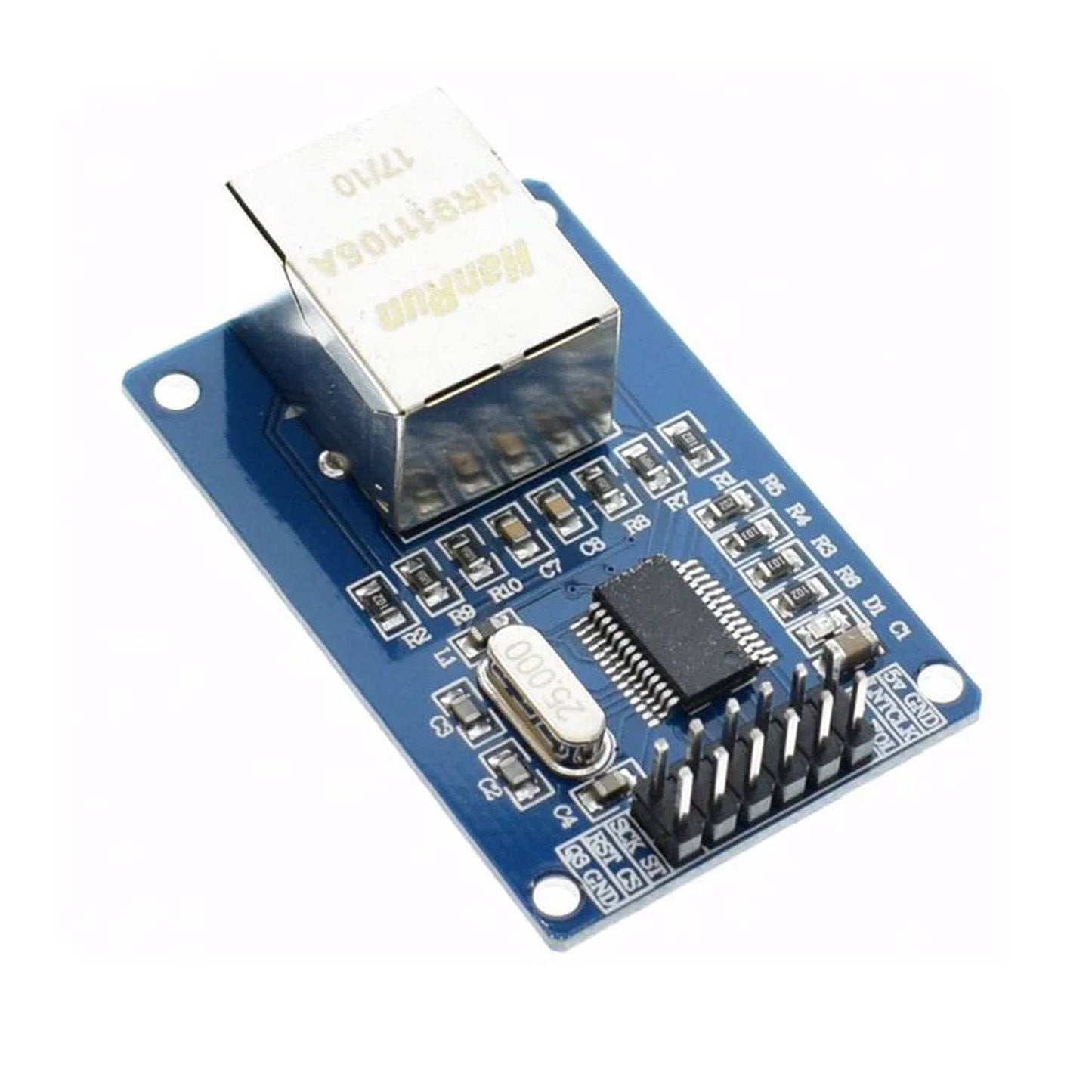

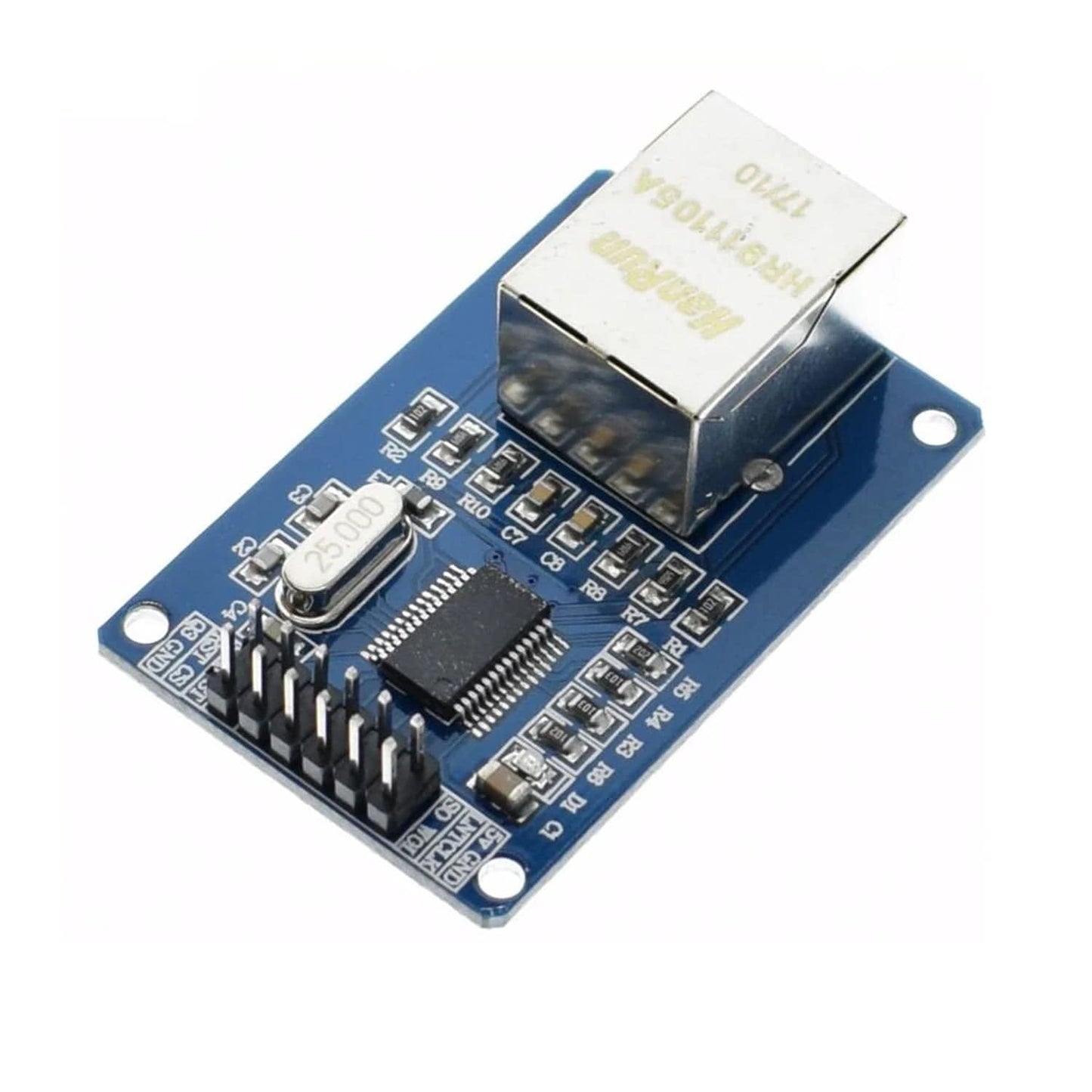

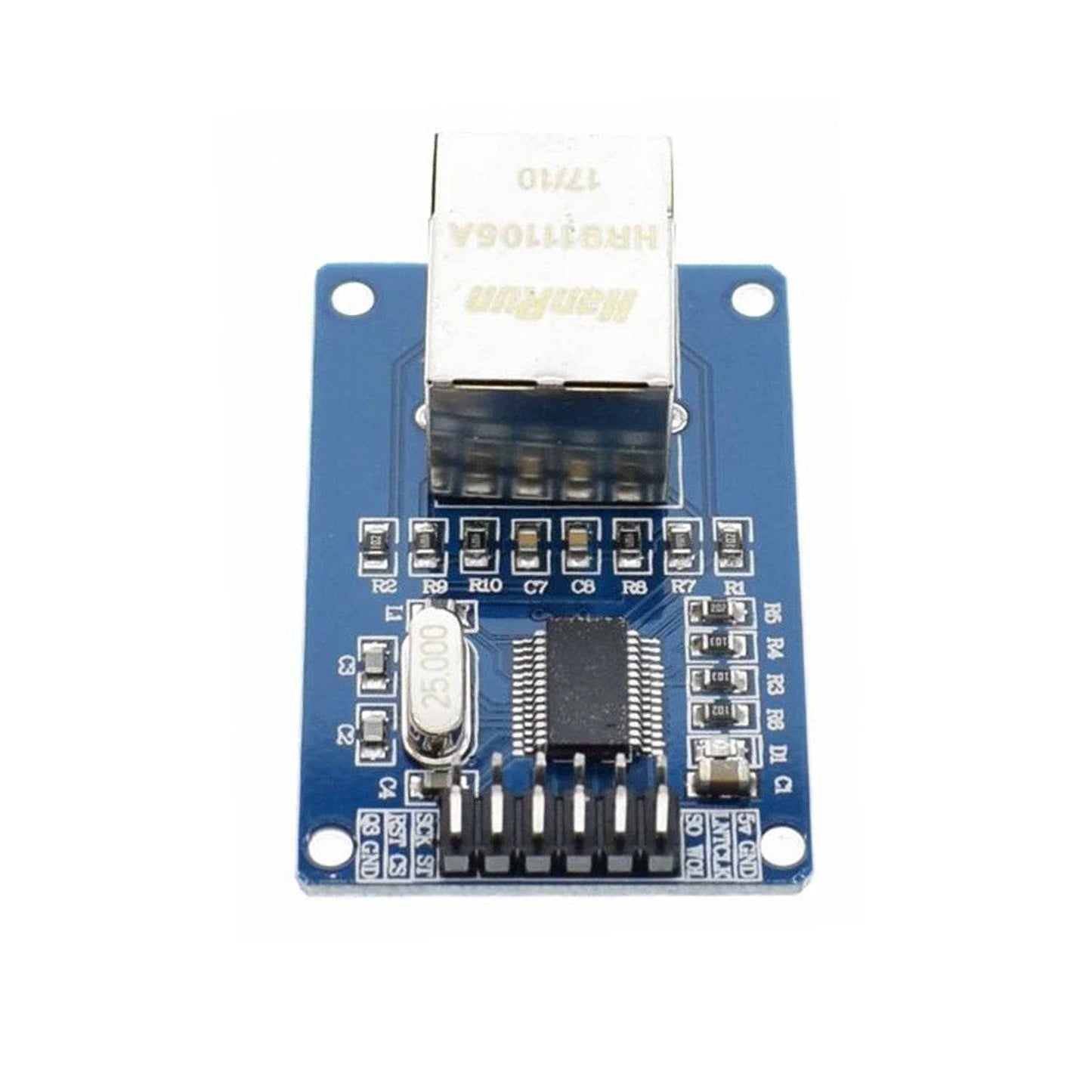

Add wired Ethernet to a suitable microcontroller project with this ENC28J60-based module. The blue board shown has an RJ45 connector, a 25MHz crystal and a two-row, six-position connection header. The 12-pin description refers to that module header, not to the Ethernet controller IC's lead count.
Controller capabilities
- Integrated Ethernet MAC and 10BASE-T PHY for 10Mbps Ethernet links.
- SPI host interface with controller clock rates up to 20MHz.
- 8KB shared transmit/receive packet buffer.
- Full- and half-duplex operation supported by the controller.
- Hardware packet filtering, CRC handling and checksum assistance.
- 25MHz crystal oscillator on the pictured board, separate from the SPI interface clock.
Wiring and software
Use a regulated supply appropriate for the actual module revision. The ENC28J60 IC operates from a nominal 3.3V supply, but module power inputs and any onboard regulation must be verified before connection. Check every header label and the board pinout; do not substitute a diagram for a different 10-pin or 12-pin module. Verify logic levels for the whole connection, including signals returned to the host.
The module needs a compatible host controller, ENC28J60 driver and networking software. It is not a USB Ethernet adapter and does not provide Wi-Fi. The 20MHz SPI figure is an interface limit, not an Ethernet link rate or a guaranteed application throughput. Confirm that the connected network port supports a 10BASE-T link.
Project uses
Suitable for learning Ethernet interfacing, local-network sensor prototypes and embedded control experiments. Keep power stable, check wiring before applying power and use an appropriate enclosure for the finished project. Controller package suffix and board-level electrical protections are not claimed from the listing photographs.
Package contents
- 1 x ENC28J60 SPI Ethernet module with 12-pin header
Reference video
Useful Links
Manufacturer reference for the controller IC, not an exact module wiring diagram. Verify the actual board revision, pin labels and power connections before use.
