- Series: Simon
- Model: 25A
- Constant current: 25A
- Burst current: 30A
Description:
These ESCs have been designed and optimised for multirotor applications. They represent a massive step forward in off-the-shelf ESC design.
They incorporate a SiLabs processor running BLHeli firmware. This firmware is based on the original SimonK firmware upgraded to incorporate several improvements and additional features such as higher update rates which give much quicker linear throttle response when compared to regular non-multi-rotor ESCs.
Specification:
- Series: Simon
- Model: 25A
- Constant current: 25A
- Burst current: 30A
- BEC Mode: Linear
- BEC Output: 5V/2A
- Battery Cell Count LiPo: 2-3S
Features:
- Based on SimonK firmware is further optimised to give the perfect performance.
- Can be flashed with BL Heli firmware
- Quick linear throttle response
- Includes low voltage protection, overheat protection, and self-check functions
- Separate power supply for MCU and BEC, helping eliminate magnetic interference
- Fully programmable by programming card or directly from your transmitter
- Customisable throttle range
- Built-in linear BEC
Programmable Parameters:
- Brake Type: There are 6 options: OFF, Low. Mid-Low, Middle, Mid-High, High. The default is OFF. (Note: This parameter is invalid in boat ESCs and 4in1 ESCs because there is no brake function in these two types of ESC).
- Timing Mode: There are 5 options: Low 0°, Mid-Low 8°, Middle 15°, Mid-High 23°, and High 30°. The default is Middle l5°.
- Start Force: There are I3 options: 0.03, 0.05, 0.06, 0.09, 0.13, 0.19, 0.25, 0.38, 0.50, 0.75, 1.00, 1.25, 1.50. The default is 0.75
- Curve Mode: There are 4 options: OFF, Low, Middle and High. The default is OFF.
- Control Frequency: There are 2 options: 8KHz and 22KHz. The default is 8KHz.
- Low-voltage Protection: There are 4 options: 2.8V/cell, 3.0V/cell, 3.2V/cell and OFF. The default is 3.0V/cell.
- Cut-Off Mode: There are two options: Soft-Cut and Cut-Off. The default is Soft-Cut. (Note: This parameter is invalid in boat ESCs because there is no Cut-off function in this type of ESC).
Package Included:

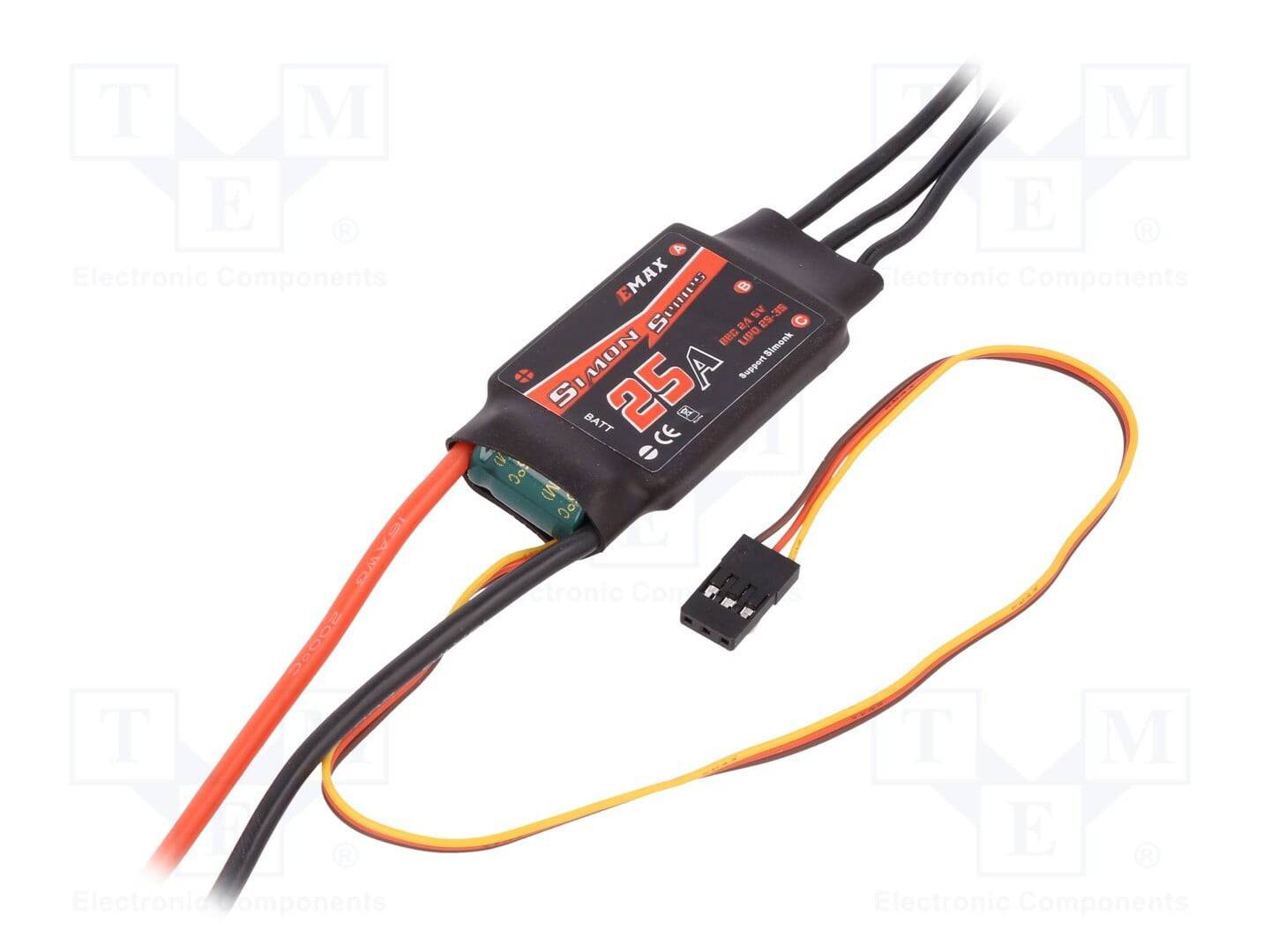

1 x EMAX Simon Series 25A ESC
