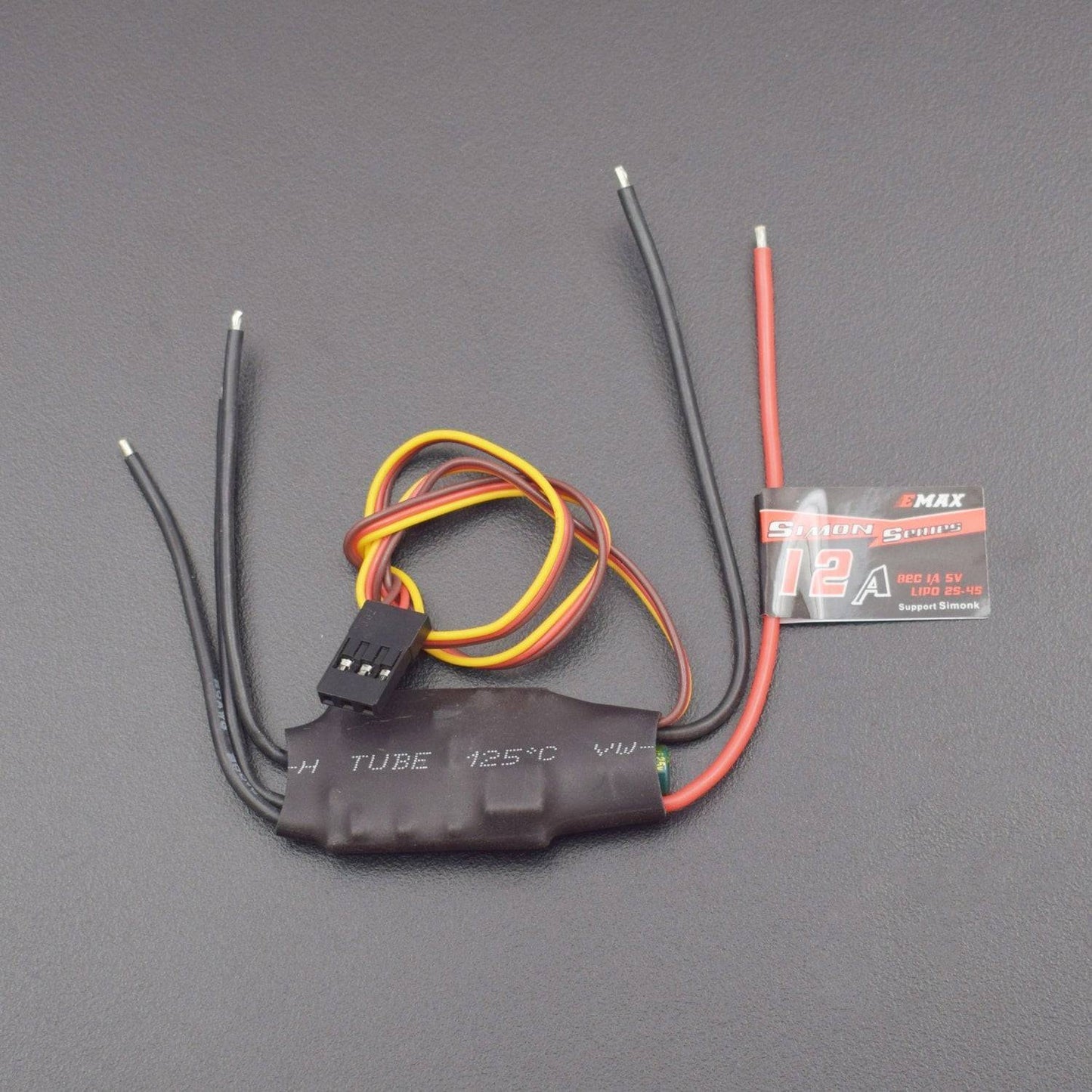

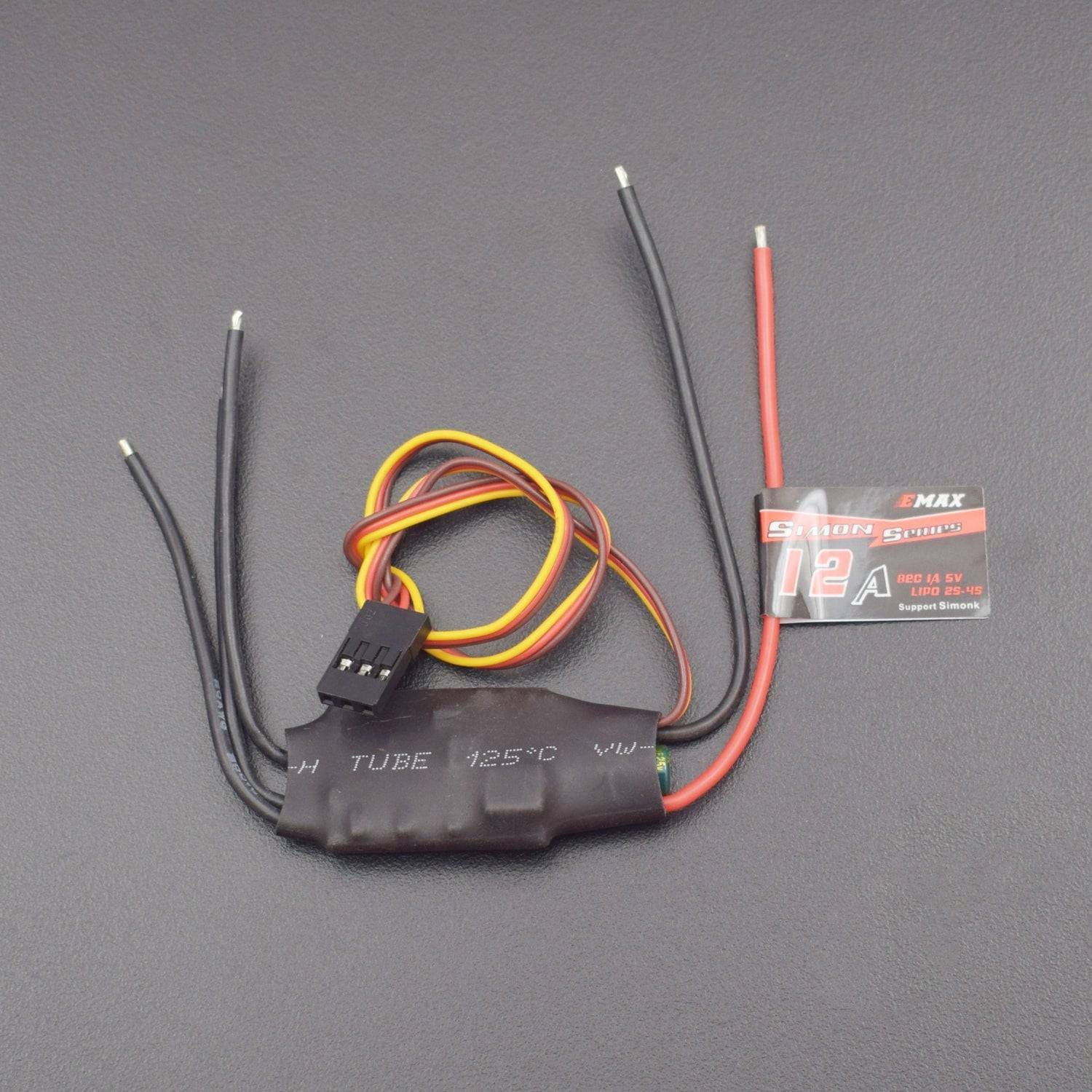

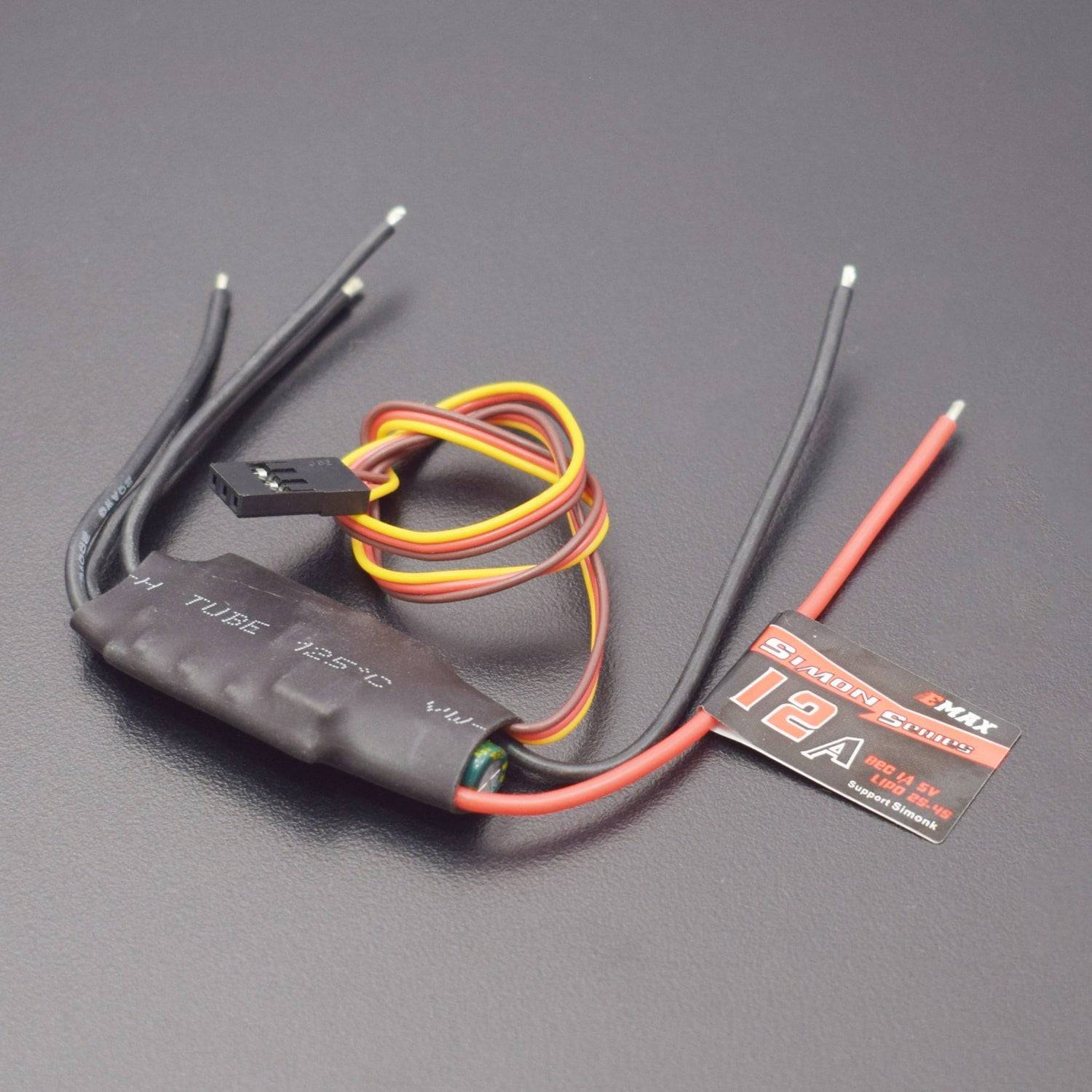

EMAX Simon Series 12A Brushless ESC Support Simonk Multirotor Parts Black - RS1314

EMAX Simon Series 12A Brushless ESC Support Simonk Multirotor Parts Black - RS1314

SKU:RS1314

15 in stock

Regular price Rs. 935.00
Regular price Sale price Rs. 935.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Item: Emax Simon-12A ESC
  • Suitable for: Remote control Aircraft
  • Continuous Current: 12A
  • Burst Current(10S): 15A
  • Weight: 9g
  • BEC Mode: Linear
  • BEC Output: 1A/5V

Description :

Emax SimonK Series Multirotor 12A Brushless ESC (Electronic Speed Controller) with 1A 5V UBEC. This 12A Brushless ESC Electronic Governor Supports 2-4S Small Axis. In the Simonk program based and optimized to achieve the perfect driving effect With low voltage protection, over-temperature protection.

Other functions on the Power On Self TestUp to speed: 210000 RPM (2 poles), 70,000 RPM (6 poles); 35000 (12 poles)MCU and BEC different regulator, independent of each other and improve the anti-jamming capability.

Multiple parameters can be obtained by the governor (programming card) or remote settings. Throttle range can be configured to be compatible with different receivers, there is a very good low-speed performance.

Feature:

  • Suitable for: Remote control Aircraft
  • Low-voltage protection, over-heat protection, and self-check functions.
  • Separate power supply for MCU and BEC.
  • Enhancing the ESCs ability to eliminate magnetic interference.
  • Parameters of the ESC can be set via a program card or transmitter.
  • Throttle range can be set to compatible with different receivers.
  • Equipped with built-in BEC.
  • Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
  • BEC Mode: Linear

Specification:

  • Model : EMAX
  • Rated Current (A) : 12
  • Burst Current (A) : 15
  • Firmware : SimonK
  • BEC Output : 1A/5V

Package Included:

1 x Emax SimonK Series Multirotor 12A Brushless ESC (Original)
