Description:

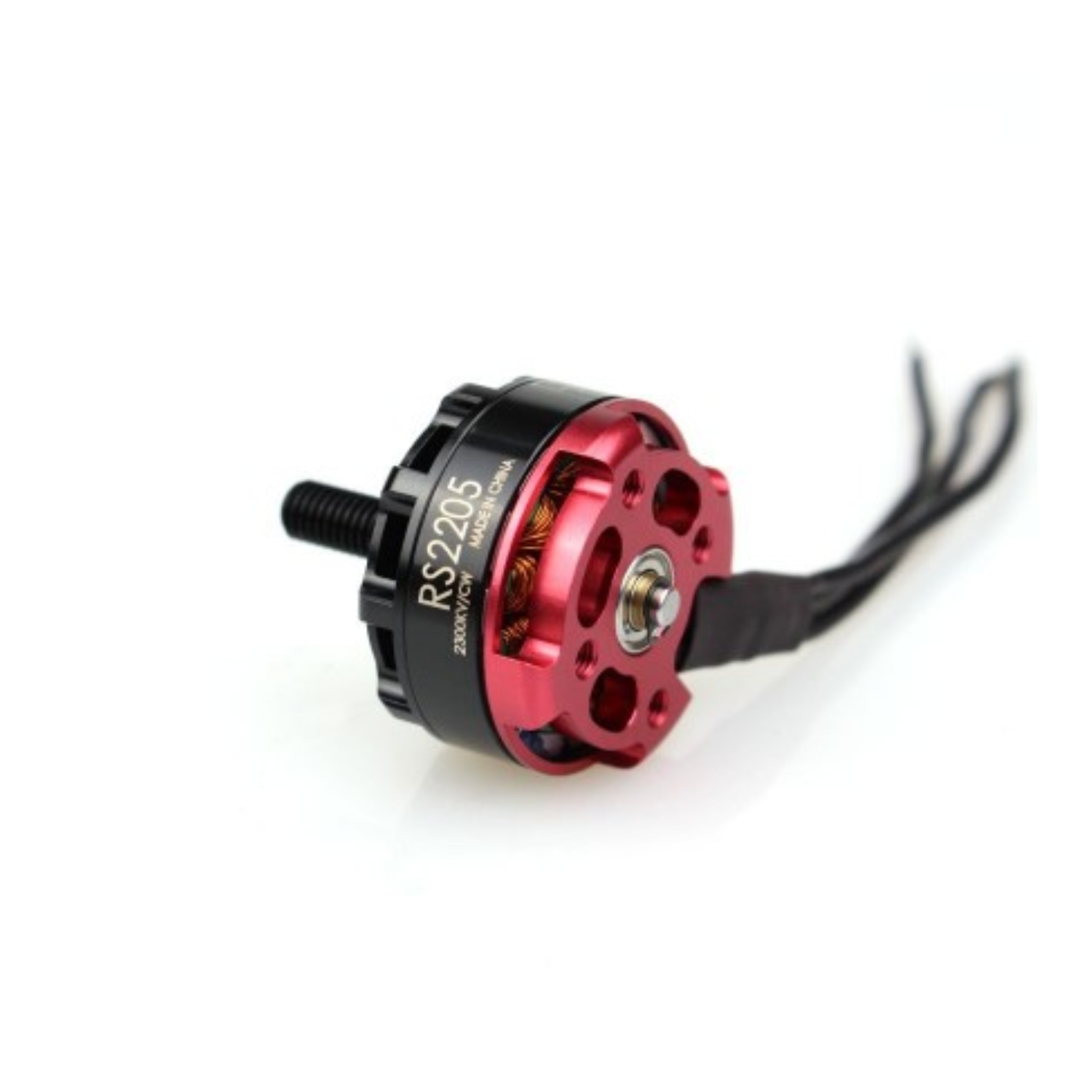

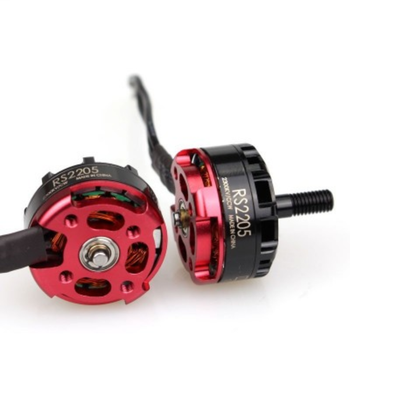

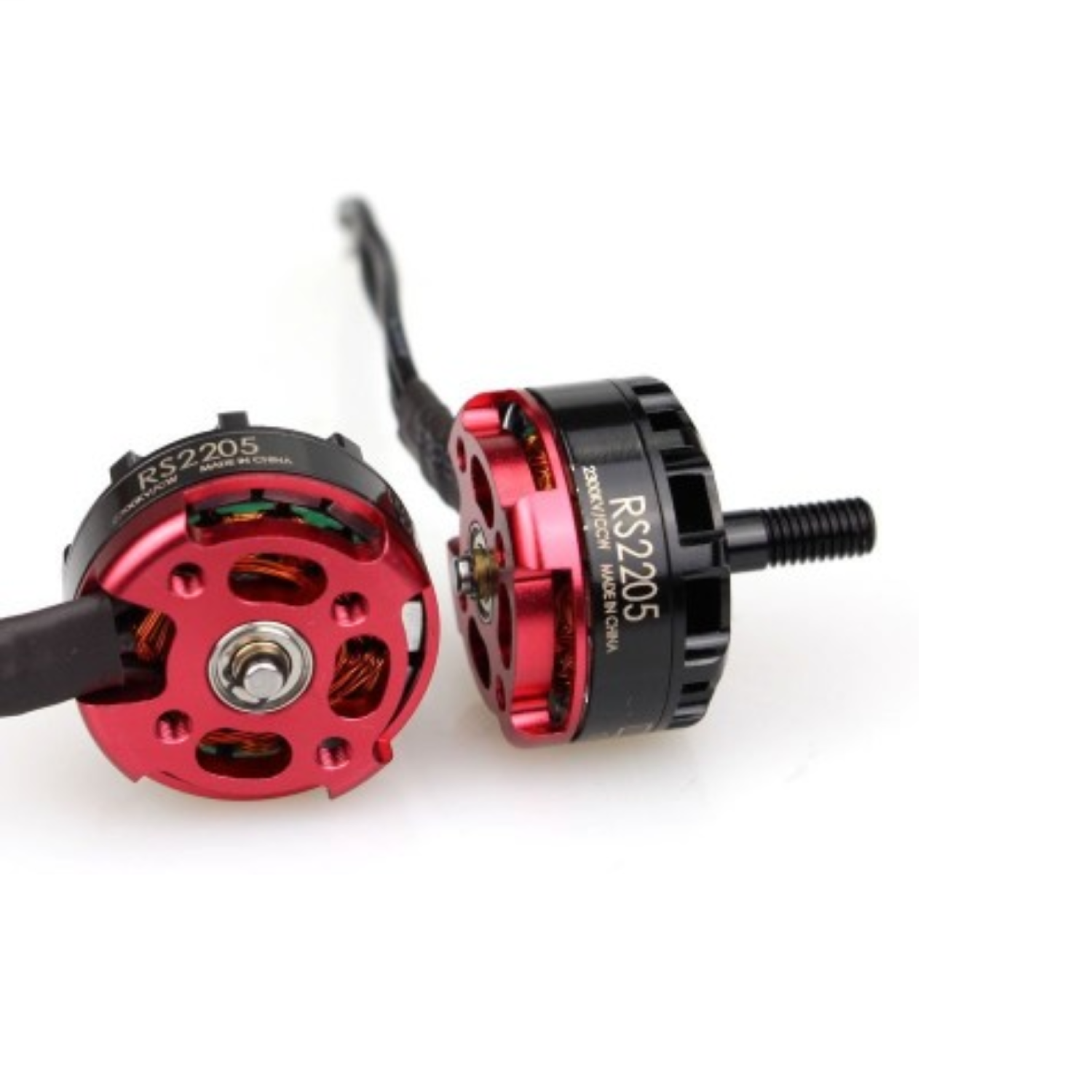

The EMAX RS2205 KV2300 Brushless DC Motor – Red Cap (CCW Rotation) is engineered for high-speed FPV racing drones and quadcopters. With a thrust capacity of up to 1024g on a 4S LiPo, this motor delivers exceptional power-to-weight performance. Featuring high-grade N52 magnets, Japanese NMB bearings, and high-purity copper windings, it ensures durability and smooth operation. Its advanced cooling design reduces heat by up to 30%, allowing longer flights without performance loss. The 15mm extended prop shaft supports a wide range of propellers, making it ideal for competitive drone racing and freestyle flying.
Specifications:
- Motor KV: 2300RPM/V
- Motor Type: Brushless Motor
- Compatible LiPO Batteries: 3S to 4S
- Model No.: RS2205
- Maximum Thrust: 1024gm
- Shaft Diameter: 3mm
- Framework: 12N14P
Features:
- Up to 1024g thrust with 4S LiPo
- Cooling design lowers motor temp by 30%
- High-grade N52 Neodymium magnets
- Japanese NMB bearings for durability
- Factory dynamically balanced
- 15mm extended prop shaft fits 5mm props
- Includes locknut + motor screws (3mm, 4mm)
- High-purity copper windings for efficiency
Package Included:
1 x EMAX RS2205 KV2300 Brushless DC Motor
