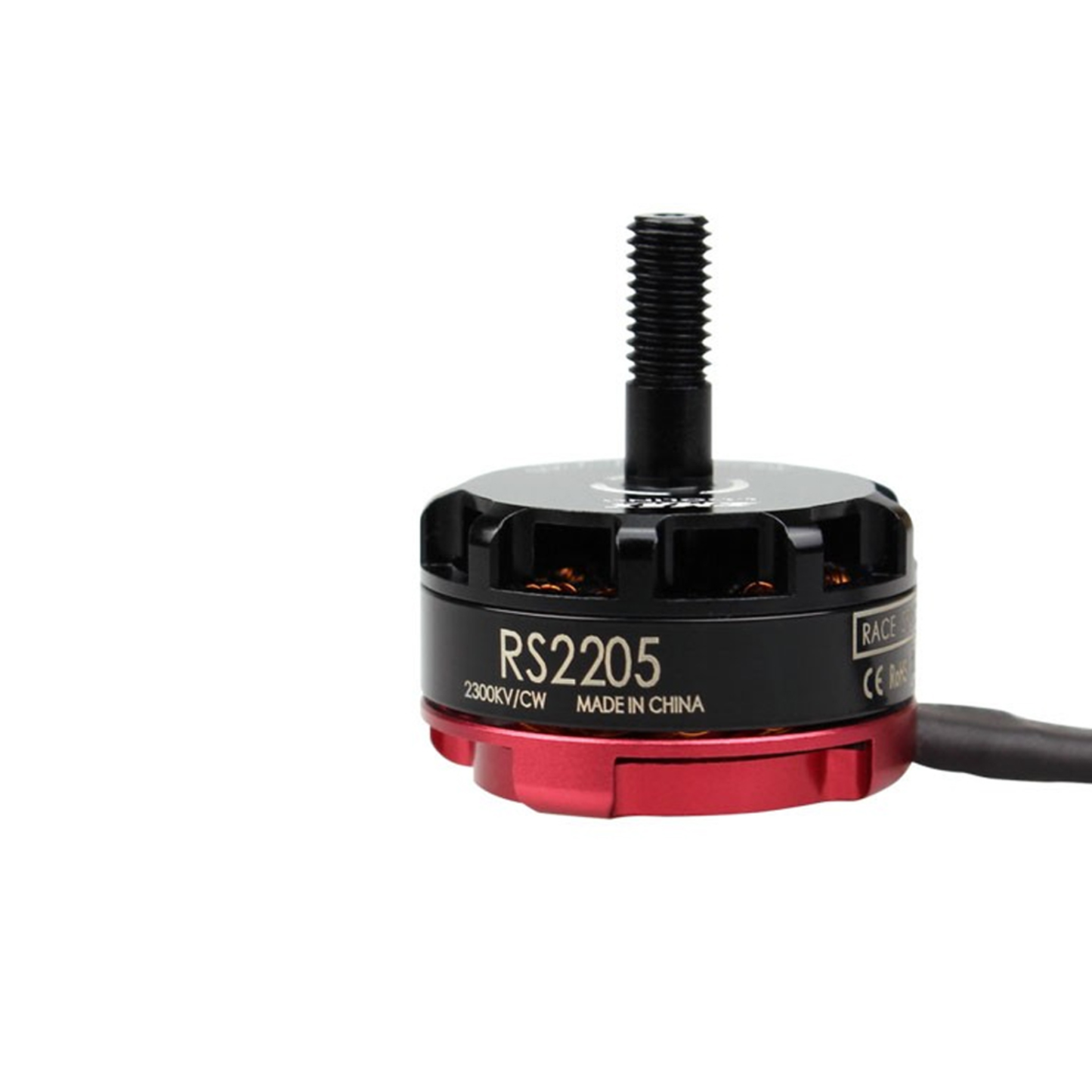

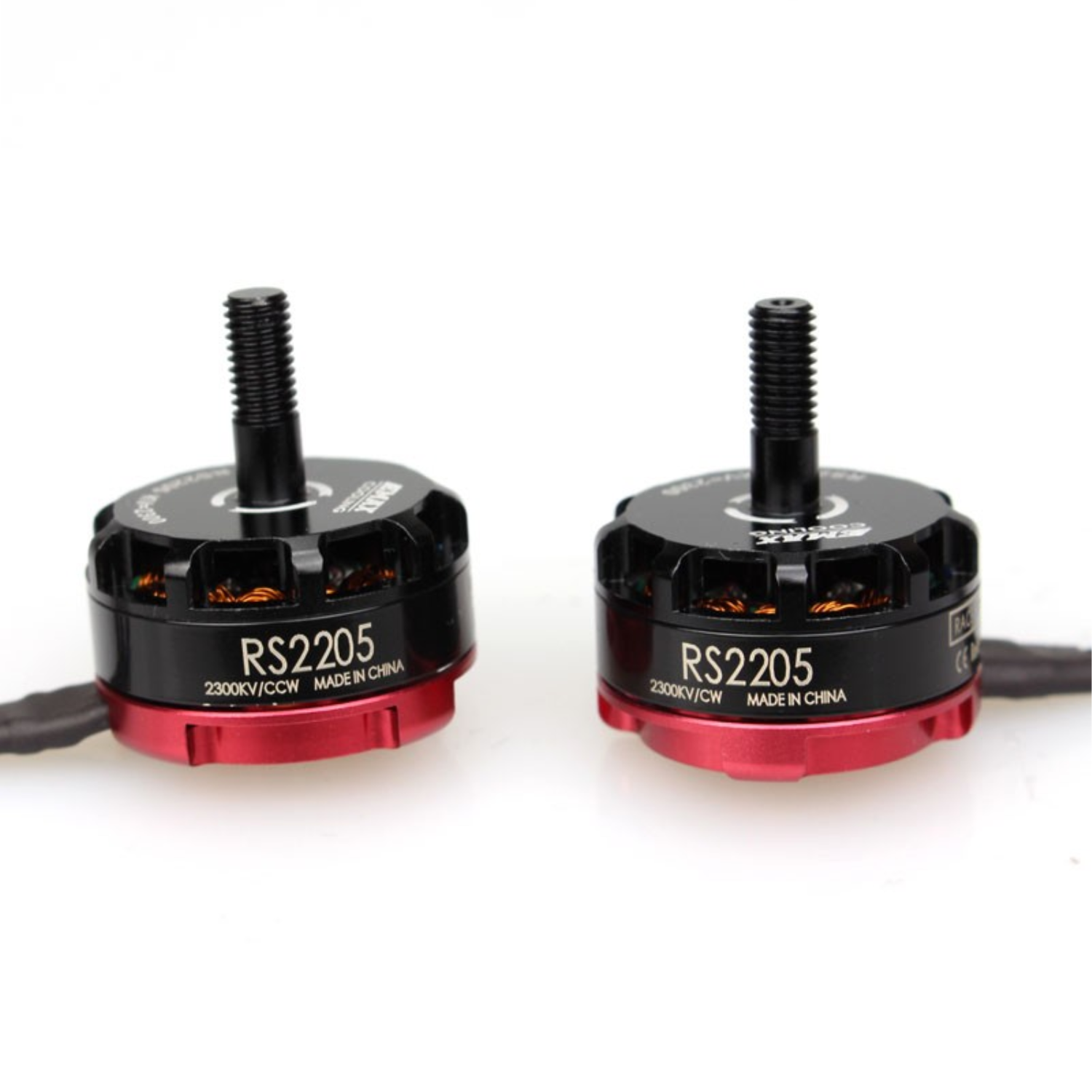

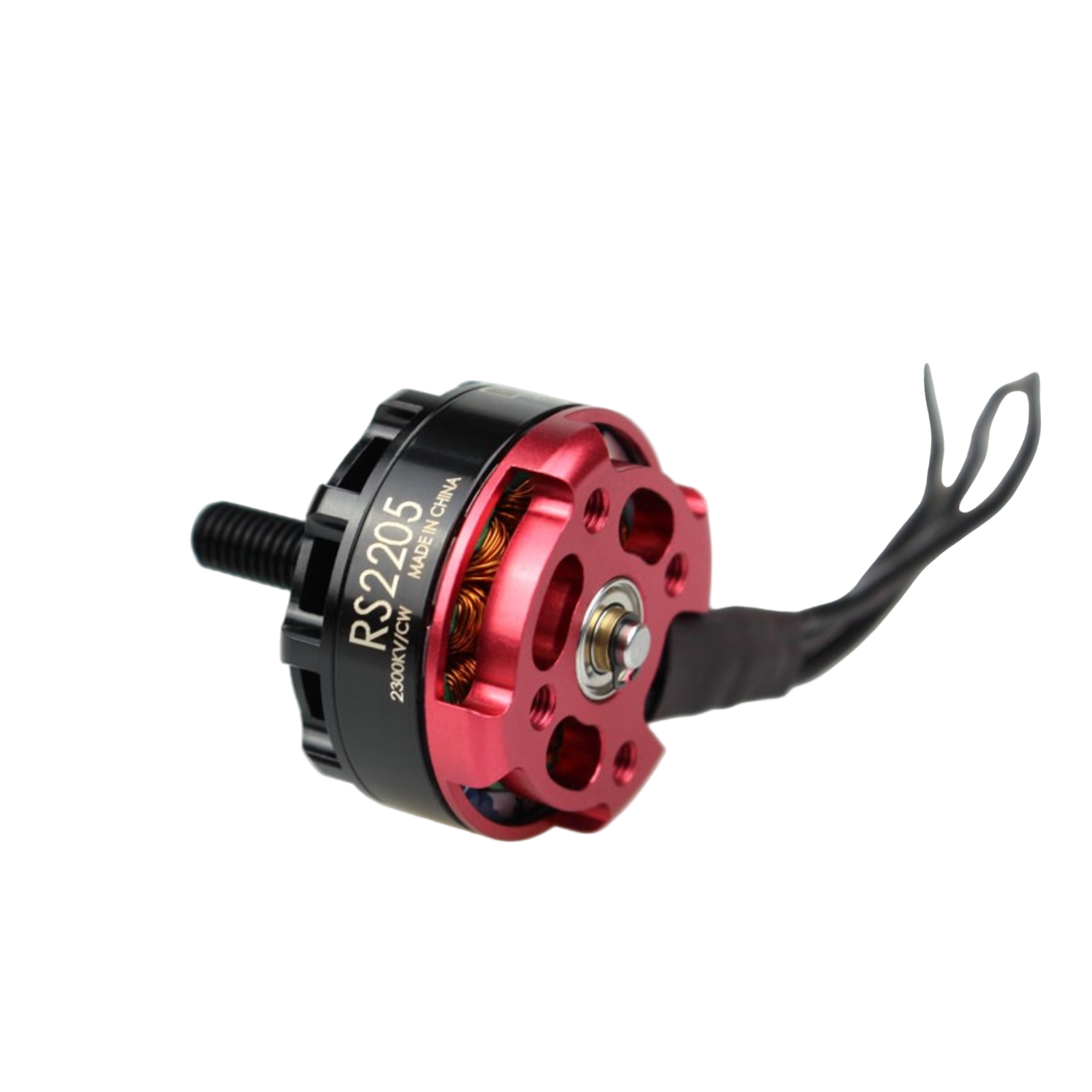

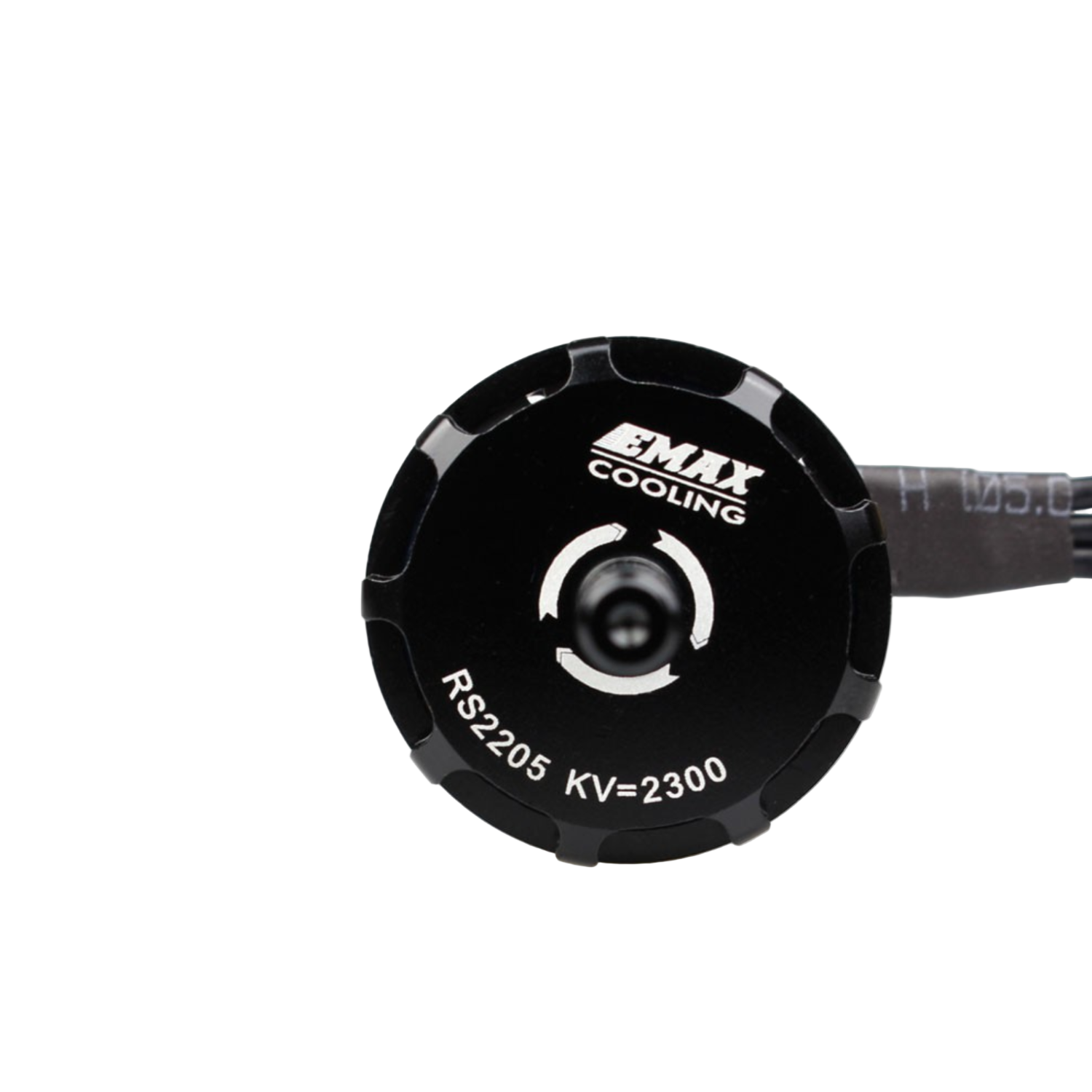

EMAX RS2205 2300KV Brushless DC Motor For FPV Racing Drone High-Performance CW Motor With Black Cap - RS2873/RS4665

Description:

The EMAX RS2205 2300KV Brushless DC Motor (CW) – Black Cap Edition is built to deliver exceptional power, speed, and reliability for FPV racing drones and multirotor builds. Featuring a high-efficiency design, this motor ensures smooth throttle response, powerful thrust, and cool operation even under intense racing conditions.

Its lightweight yet durable construction minimizes energy loss from vibration, while high-quality bearings and precision balancing guarantee ultra-smooth performance. With its compact size and easy installation, this motor is a perfect choice for FPV racers, freestyle pilots, and DIY drone enthusiasts who demand both performance and durability.

Specification:

• Motor KV: 2300RPM/V
• Motor Type: Brushless Motor
• Compatible LiPO Batteries: 3S to 4S
• Model No.: RS2205
• Framework: 12N14P
• Maximum Thrust: 1024gm

Features:

• Up to 1024g thrust with a 4S LiPo battery
• Cooling design lowers motor temperature by 30%
• Premium N52 Neodymium magnets for powerful performance
• Japanese NMB bearings for smooth operation
• Factory dynamically balanced for vibration-free flight
• 15mm extended prop shaft fits most 5mm hole props
• Includes 1 locknut + 2 sets of screws for 3mm and 4mm frames
• High-purity copper windings for efficient power delivery


Package Included:

1 x EMAX RS2205 KV2300 Brushless DC Motor
