EMAX Mini Magnum 2 F4 35A 4in1 ESC 20x20mm Flytower 2-6S LiPo, BLHeli_32, F4 Flight Controller, OSD, VTX, FPV Racing Drone, Compact ESC FC Combo

EMAX Mini Magnum 2 F4 35A 4in1 ESC 20x20mm Flytower 2-6S LiPo, BLHeli_32, F4 Flight Controller, OSD, VTX, FPV Racing Drone, Compact ESC FC Combo

In stock

Rs. 7,799.00
Rs. 7,799.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

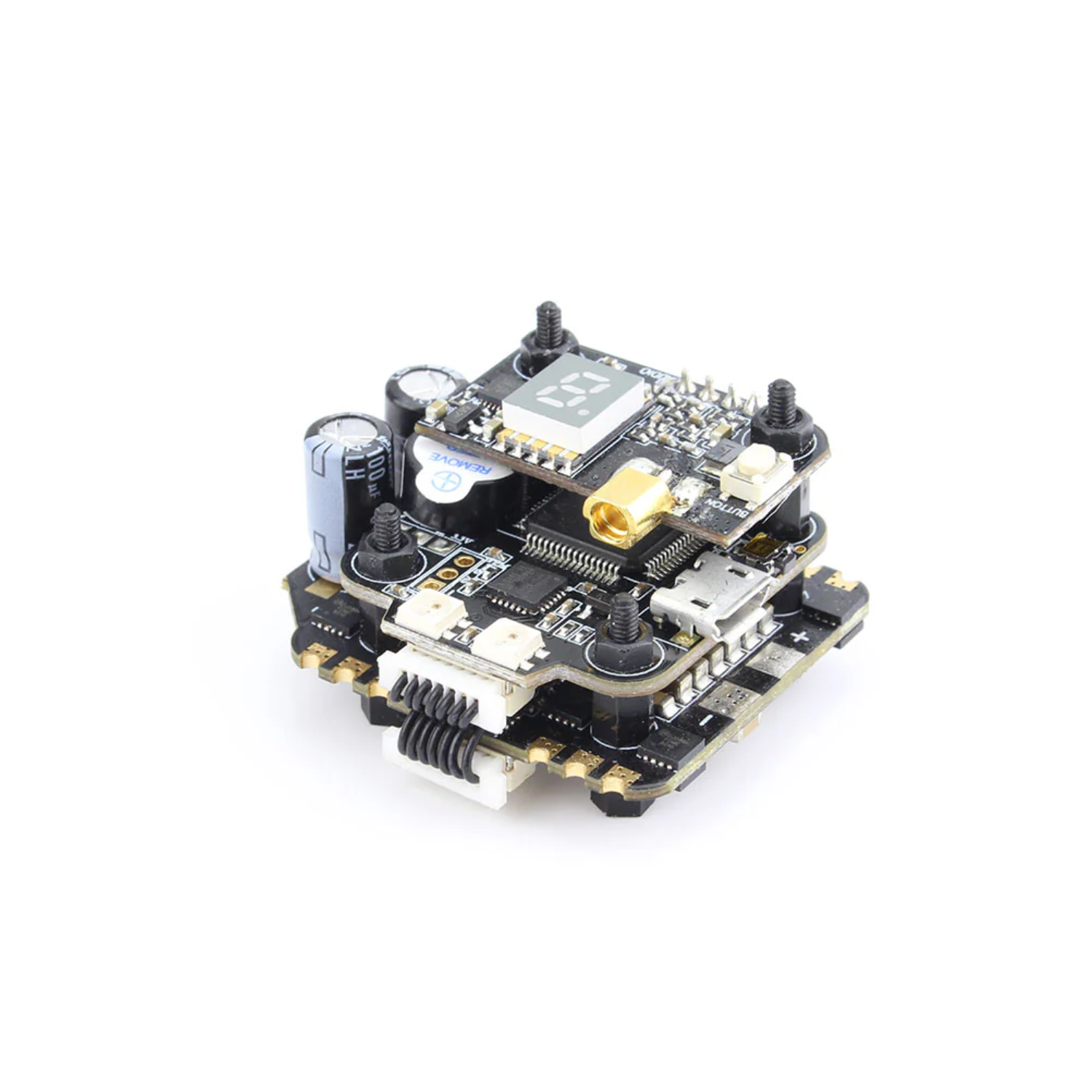

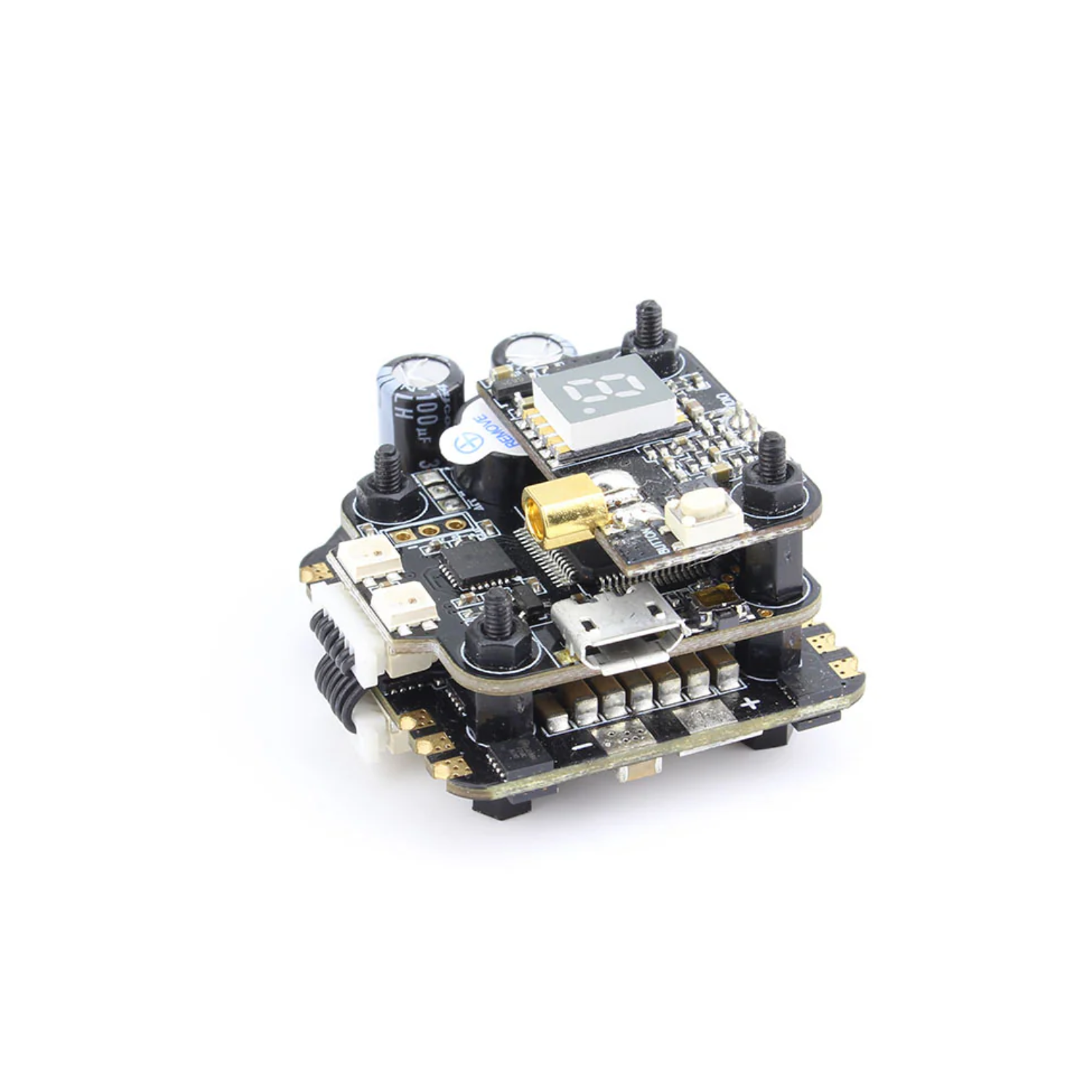

This EMAX Mini Magnum 2 Flytower is a compact 4-in-1 ESC with BLHeli_32 firmware and a 35A current rating, making it perfect for 5″ FPV racing quads. It supports 3S to 6S LiPo batteries, giving you the flexibility for both traditional and high-performance setups. The stack also features an integrated F4 flight controller and OSD, along with a VTX that supports TBS Smart Audio control. The VTX offers selectable 25mW and 200mW power levels, allowing you to adjust transmission strength according to your flying environment.

Specifications:

  • Item Type: Flight Controller
  • Model Name: Magnum Mini F4
  • Flight Controller: STM32F405 MCU (OMNIBUSF4 Firmware)
  • Required ESC:35A
  • VTX Power: 25mW/200mW
  • Compatible LiPO Batteries: 3S to 6S
  • Sensor: MPU6000 SPI Bus
  • Antenna Type: MMCX
  • Stack Mounting Holes: 20mm x 20mm

Features:

F4 Flight Controller

  • (OMNIBUSF4 Firmware)
  • STM32F405 MCU
  • MPU6000 accelerometer/gyro (connected via SPI)
  • On-board OSD
  • On-board Buzzer
  • Integrated 5V/3A BEC
  • Dedicated PPM/ Sbus receiver input
  • 30x27mm board with 20mm mounting holes

35A BLHeli_32 ESC

  • Continuous current 35A ( max burst 40A)
  • Supply voltage 2-6S Lipo( 1700kv Motor LIMIT for 6S )
  • STM32F051K6U6 MCU
  • BLHeli_32 firmware  supports DSHOT, MULTISHOT, and ONESHOT125
  • Top quality MOSFET
  • 3oz high TG PCB board
  • 32x37mm board with 20mm mounting holes.
  • Current Sensor

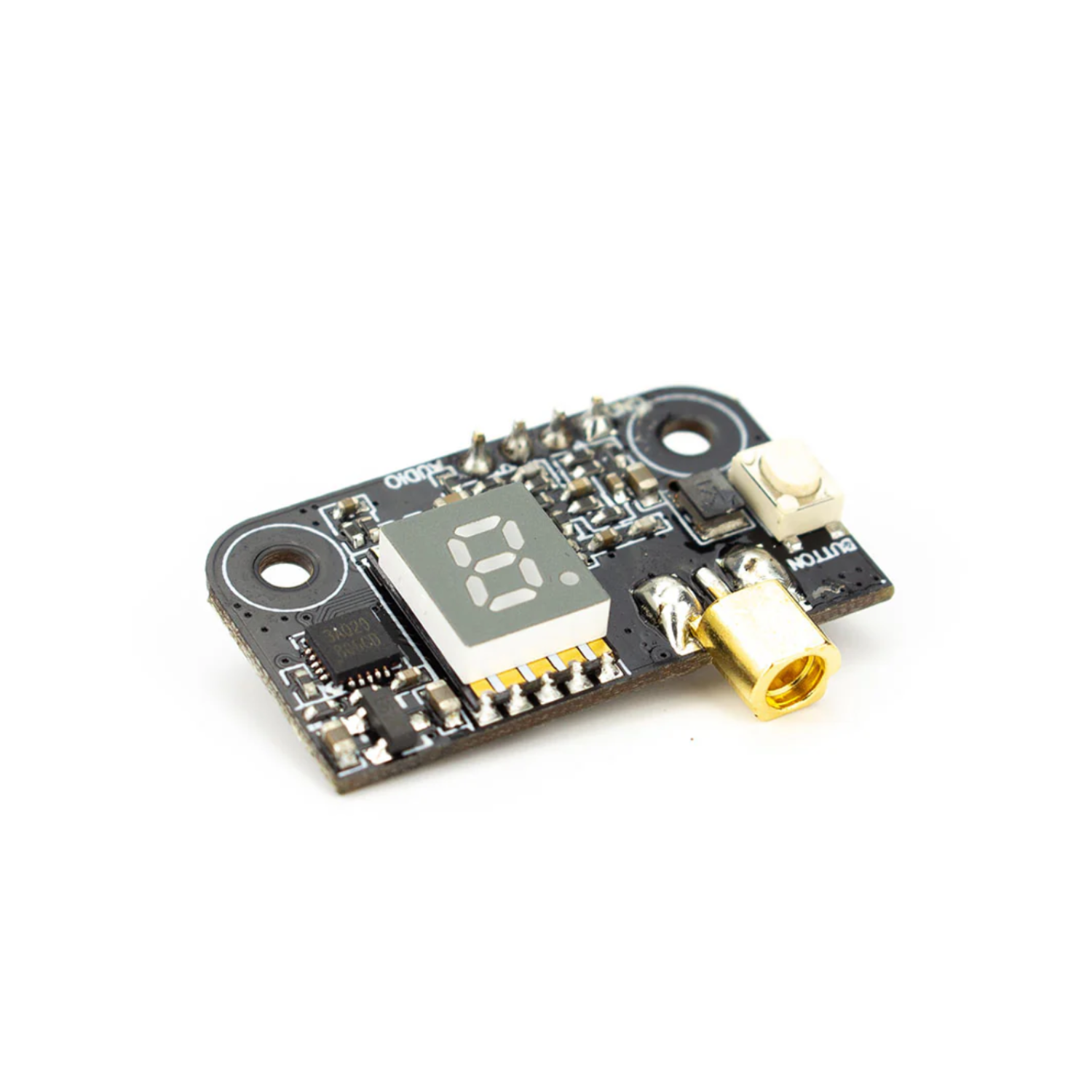

VTX

  • Frequency band: 5658-5945MHz (FCC Compliant Channels / with HAM unlock)
  • SmartAudio support
  • Channel: 37
  • Transmit power: 13dBm/23dBm(25mW/200mW)
  • Supply voltage: 4.5V-5.5V
  • Antenna port: MMCX

Package Included:

  • 1 x EMAX Magnum Mini F4 stack
  • 1 x XT60 Connector
  • 2 x Silicone Wires for battery with heat shrink
  • 4 x Mounting Screws
  • 2 x VTX Antenna
