- Model: ES3004
- Operating Voltage: 4.8 ~ 6V DC
- Operating Speed @4.8V: 0.15 sec/60° at no load
- Stall Torque @ 4.8V: 3 Kg-Cm
Description:
EMAX ES3004 20g 3.5kg 0.13sec 23T Metal Gear Analog Servo For RC Airplane ES3104 upgrade Weighing in at 20 grams, The Emax ES3004 Analog Servo is ready to perform. Its beefy, metal drive train will make short work of moving your control surfaces with its 3.5kg of output torque. The metal gear has high strength and good heat dissipation performance, which can output high torque as well.
Specification:
| Model |
ES3004 |
| Operating Voltage |
4.8 ~ 6V DC |
| Operating Speed @4.8V |
0.15 sec/60° at no load |
| Stall Torque @ 4.8V |
3 Kg-Cm |
| Operating Speed @6.0V |
0.13 sec/60° at no load |
| Stall Torque @ 6.0V |
3.5 Kg-Cm |
| Gear Type |
Metal |
| Maximum Travel |
145°±10° (700-2300μ sec) |
Features:
- It has a fast reaction, low failure rate, long service life and high precision and efficiency, which is flexible to control.
- The metal gear has high strength and good heat dissipation performance, which can output high torque as well.
- Easy to install and use.
- High Quality, Waterproof Design, an ideal choice for RC FPV Helicopter, Boat and Car, Fixed Wing.
- High-precision metal gear set.
- With bearing, masses of torque, and excellent speed, the gear set and box are super resistant.
Package Included:

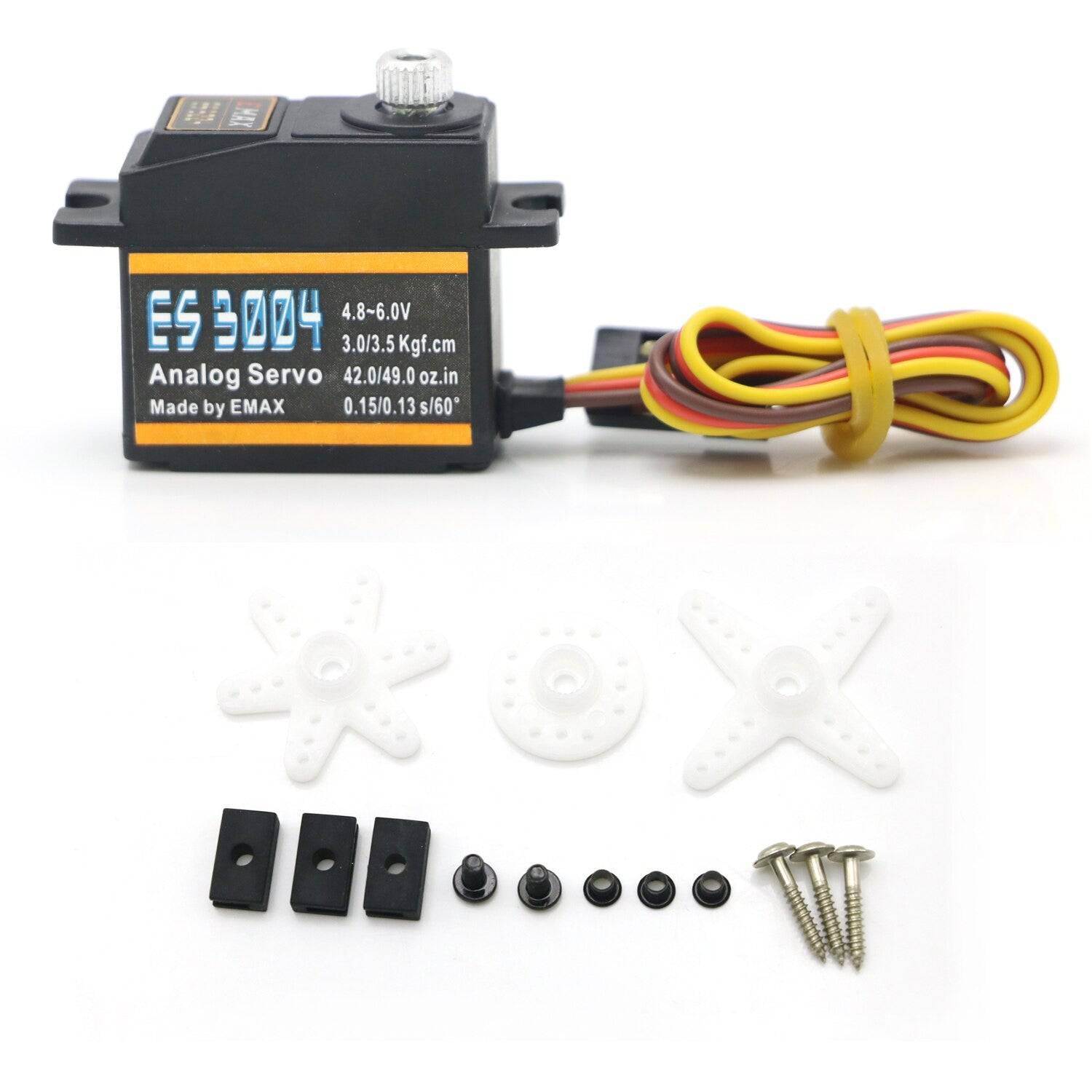

- 1 x EMAX ES3004 20g 3.5kg 0.13sec 23T Metal Gear Analog Servo
- 1 x Servo horns and Accessories Set
