- Model: ES3003
- Operating Voltage: 4.8 ~ 6V DC
- Operating Speed @4.8V: 0.15 sec/60° at no load
- Stall Torque @ 4.8V: 3 Kg-Cm
Description:
This is EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo for RC Airplanes It is Small in size but powerful enough for up to 3kgcm Applications.
Specification:
| Model | ES3003 |
| Operating Voltage | 4.8 ~ 6V DC |
| Operating Speed @4.8V | 0.15 sec/60° at no load |
| Stall Torque @ 4.8V | 3 Kg-Cm |
| Operating Speed @6.0V | 0.13 sec/60° at no load |
| Stall Torque @ 6.0V | 3.5 kg.cm Max |
| Gear Type | Plastic |
| Maximum Travel | 145°±10° (700-2300μ sec) |
| Servo Plug | FUT;JR |
Wire Description:
- Red- VCC (Positive)
- Brown- GND (Negative)
- Orange- PWM (Signal)

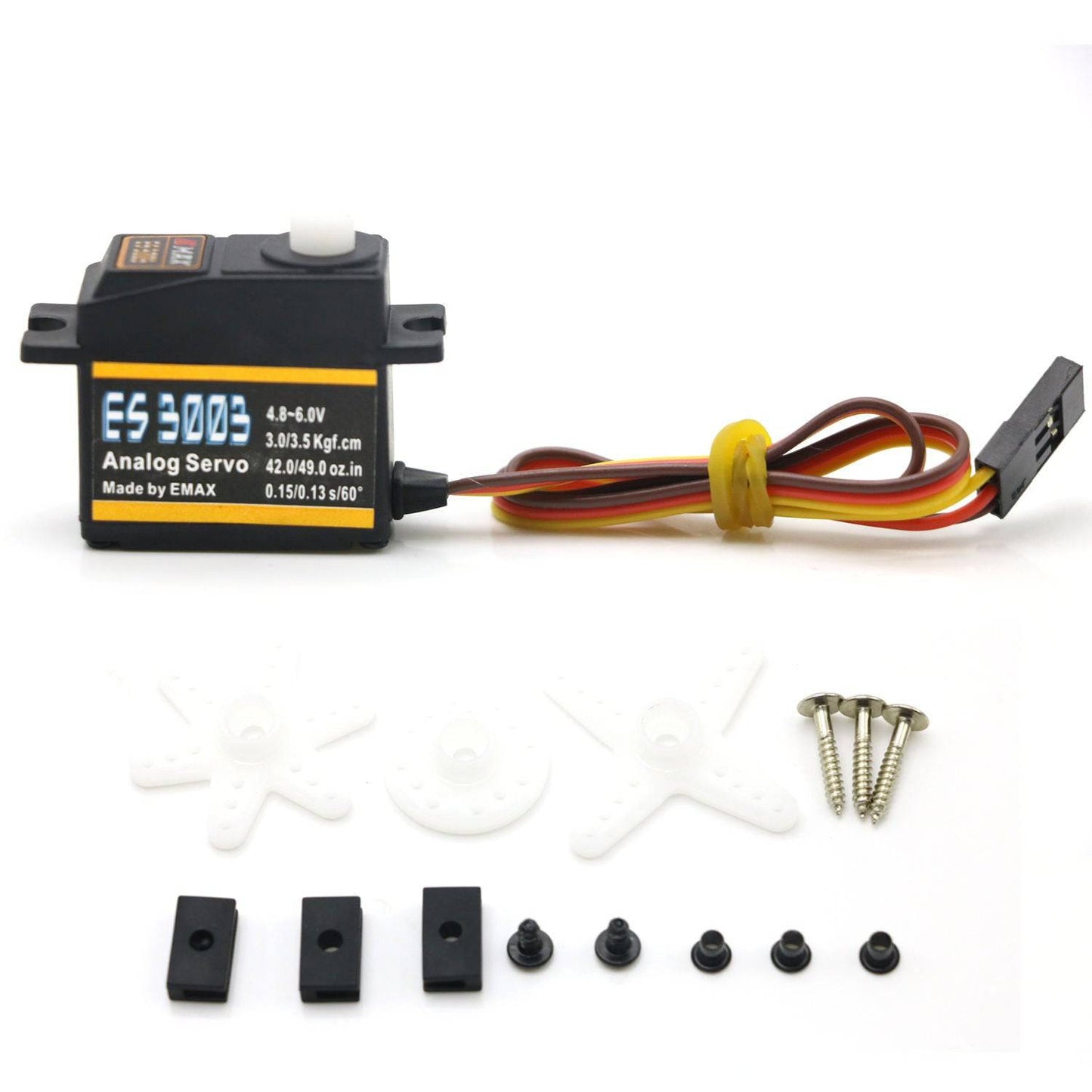

Package Included:
- 1 x EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo
- 1 x Servo horns and Accessories Set
