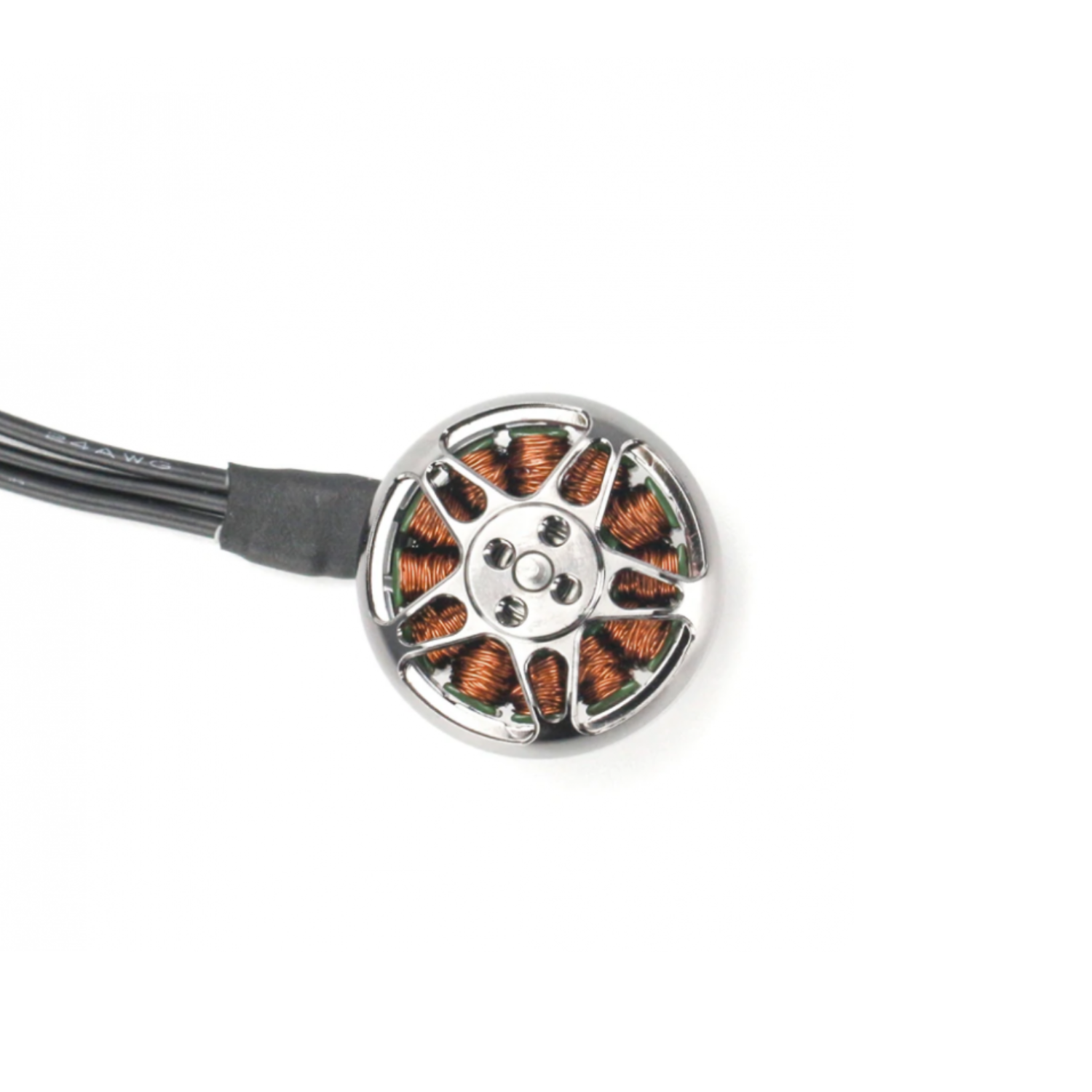

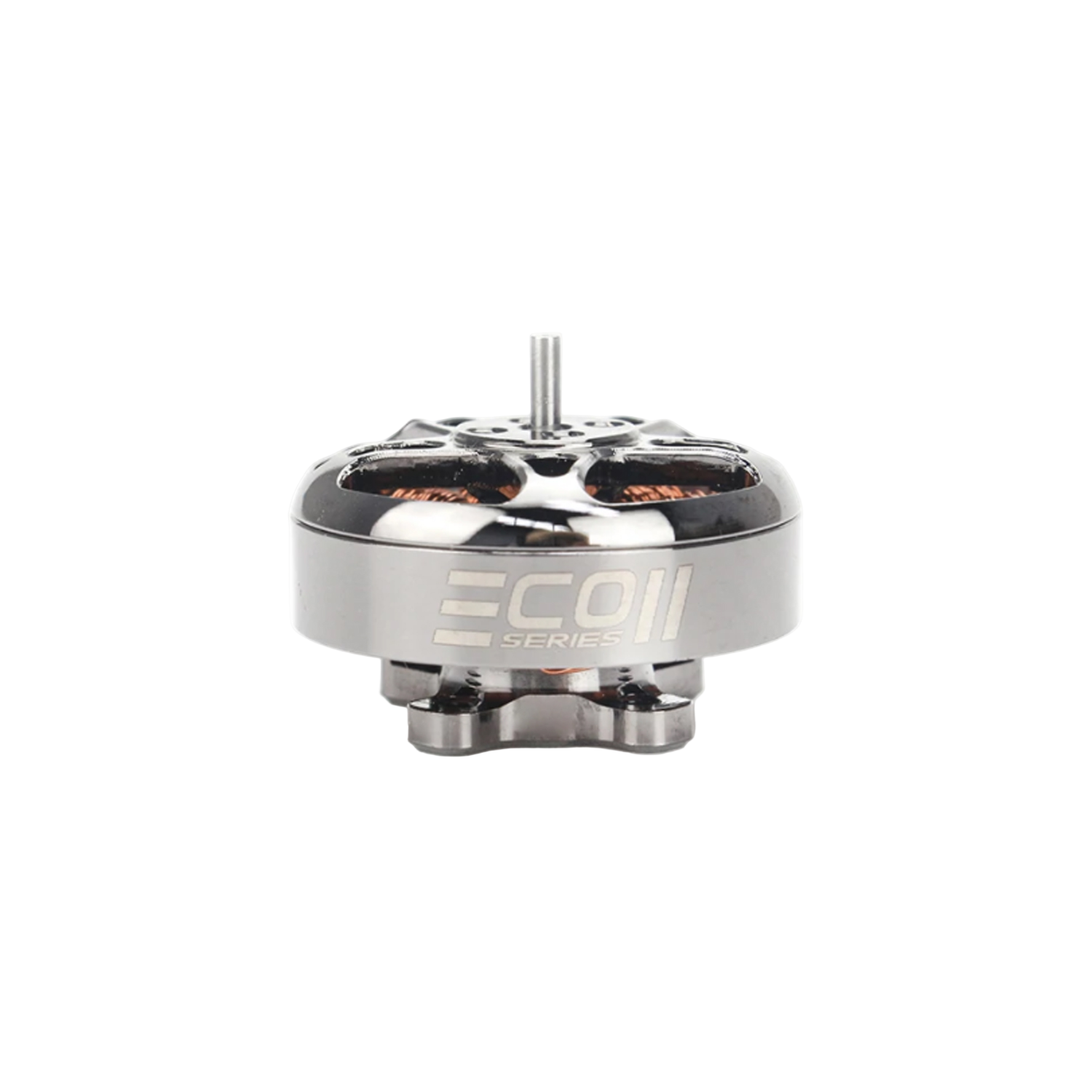

EMAX ECOII 2004 3000KV Brushless Motor For Mini FPV Drones High RPM Lightweight & Efficient - RS5005
EMAX ECOII 2004 3000KV Brushless Motor For Mini FPV Drones High RPM Lightweight & Efficient - RS5005
SKU:RS5005
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The EMAX ECOII-2004-3000KV Brushless Motor is a high-performance motor designed for mini FPV drones and racing quads. Built from the ground up, the ECO II series features a new, rounded architecture with thicker reinforcements for maximum durability. Its reflective, mirror-polished finish gives it a sleek, modern look while ensuring long-lasting strength in demanding flight conditions.
Upgraded with N52SH arc magnets, the ECO II delivers stronger throttle response, higher RPMs, and increased torque compared to its predecessor. This allows pilots to enjoy precise control, powerful thrust, and smooth performance for freestyle, cinematic, or mini FPV racing applications. Combining innovation, reliability, and affordability, the Emax ECOII-2004-3000KV motor represents the next evolution in compact brushless motor technology.
Specifications:
- Motor KV: 3000RPM/V
- Motor Type: Brushless Motor
- Compatible LiPO Batteries: 4S to 6S
- Framework: 12N14P
- Maximum Thrust: 1170g(on4s)
- Peak Current: 32A
- Compatible Prop: 4"-5" inch
- Bearing Shaft: 3mm
- Additional Specs.: Bolt Pattern: M2 (12x12mm)
- Prop Adapter Shaft Thread: 1.5mm
Features:
- NSK precision bearing for smooth, reliable rotation
- Base casing made from durable Al 7075
- Rotor with upgraded N52SH arc magnets for high performance
- Strong steel shaft for stability and durability
- Standard 12×12 mm motor mounting hole pattern
- Multi-strand winding for efficient power delivery
- 120 mm 24 AWG silicone wire for flexible, reliable connections

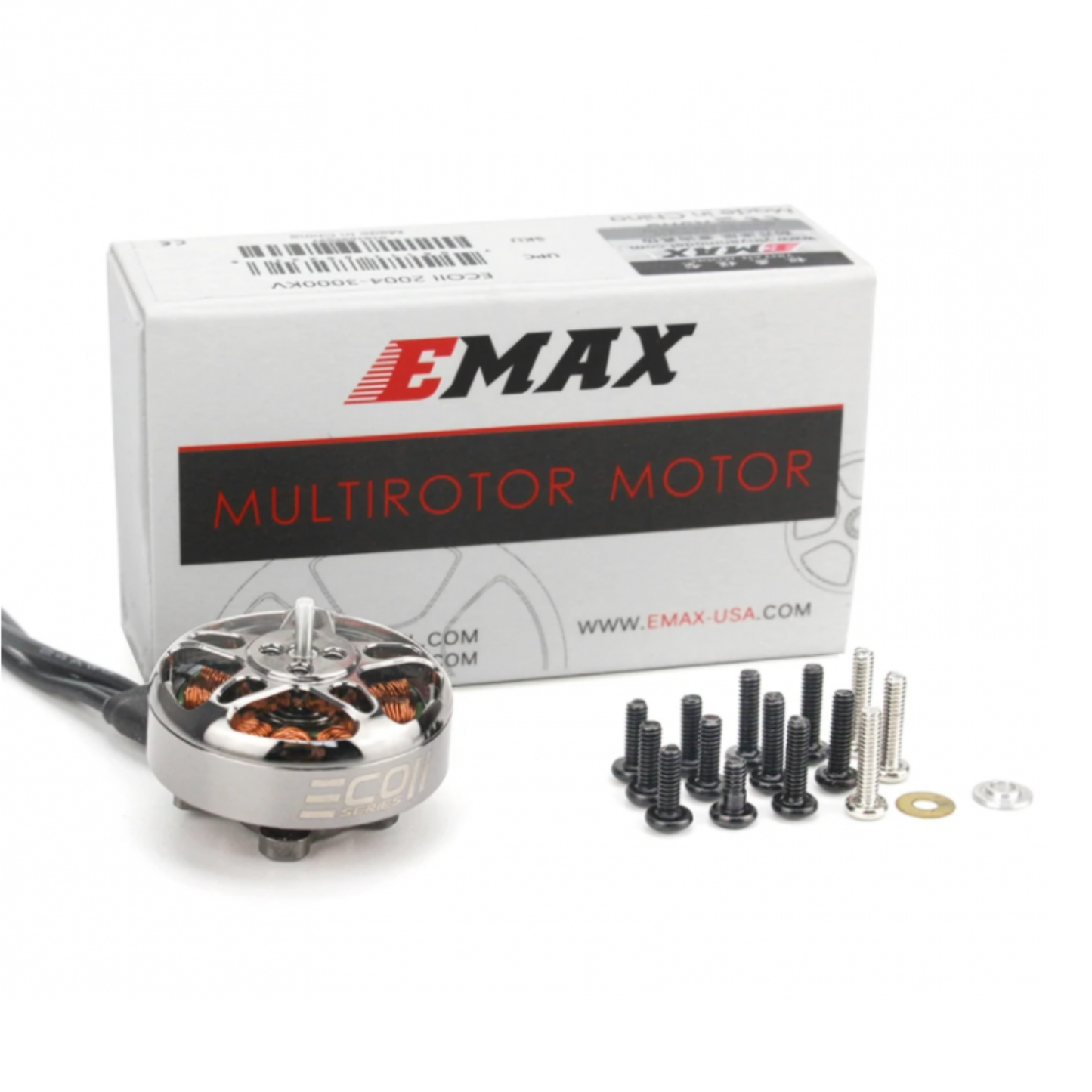

Package Included:
- 5 X M2 x 6mm Screw
- 5 X M2 x 7.5mm Screw
- 3 X M2 x 8.5mm Screw
- 1 X Washer and screw for the shaft
