- Model: Emax BLHeli Series
- Burst Current: 15A
- Constant Current: 12A
- BEC: Yes (5V/1A)
Description:

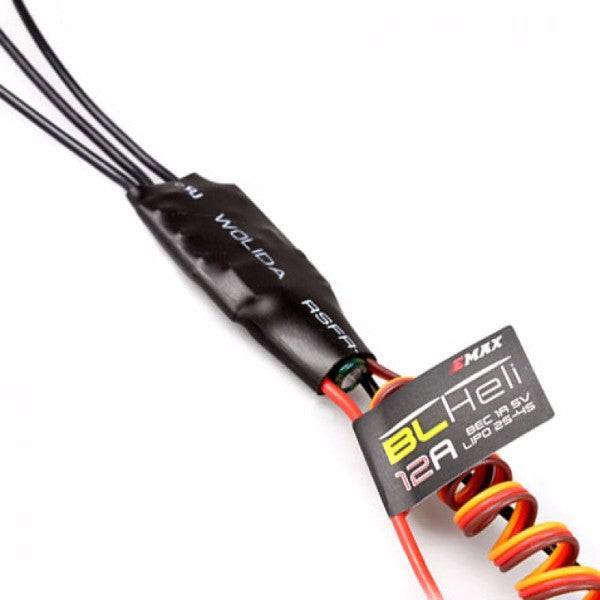

Emax BLHeli Series 12A ESC with Oneshot Based on BLHeli firmware further optimized to the perfect drive performance. It has Low-voltage protection, over-heat protection, and throttle signal loss protection.
The ESC comes with a Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference. The Parameter of this ESC can be set via a program card or transmitter. The throttle range can be set to be compatible with different receivers. Equipped with built-in linear BEC or switch BEC. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Specification:
| Model | Emax BLHeli Series |
| Burst Current | 15A |
| Constant Current | 12A |
| BEC | Yes (5V/1A) |
| Suitable Lipo Batteries | 2 ~ 4S |
| Colour | Black |
| Application | Multi-roter, Rc Plane etc. |
Features:
- Uses authentic Electronic components to ensure high quality and enhance the current endurance ability of the ESC.
- Based on BLHeli firmware, Optimized for high performance with great linearity and much quicker throttle response.
- Specially designed for multi-rotors and compatible with fixed-wing aircraft and helicopters.
- The rotational direction of the motor is Programmable i.e. Normal, reverse or bi-directional.
- All parameters can be programmed via using a programming card or a transmitter
- Multiple protection features including Low-voltage cut-off protection/ over-heat protection.
- Alarm to help you find the device: keep the throttle on FULL OFF position for a while, the ESC will beep
- Throttle range can be configured and fully compatible with all receivers, providing smooth; linear and precise throttle response.
- One-Shot Available.
Package Included:
1 x Emax BLHeli Series 12A ESC with Oneshot (Original)
