Description:

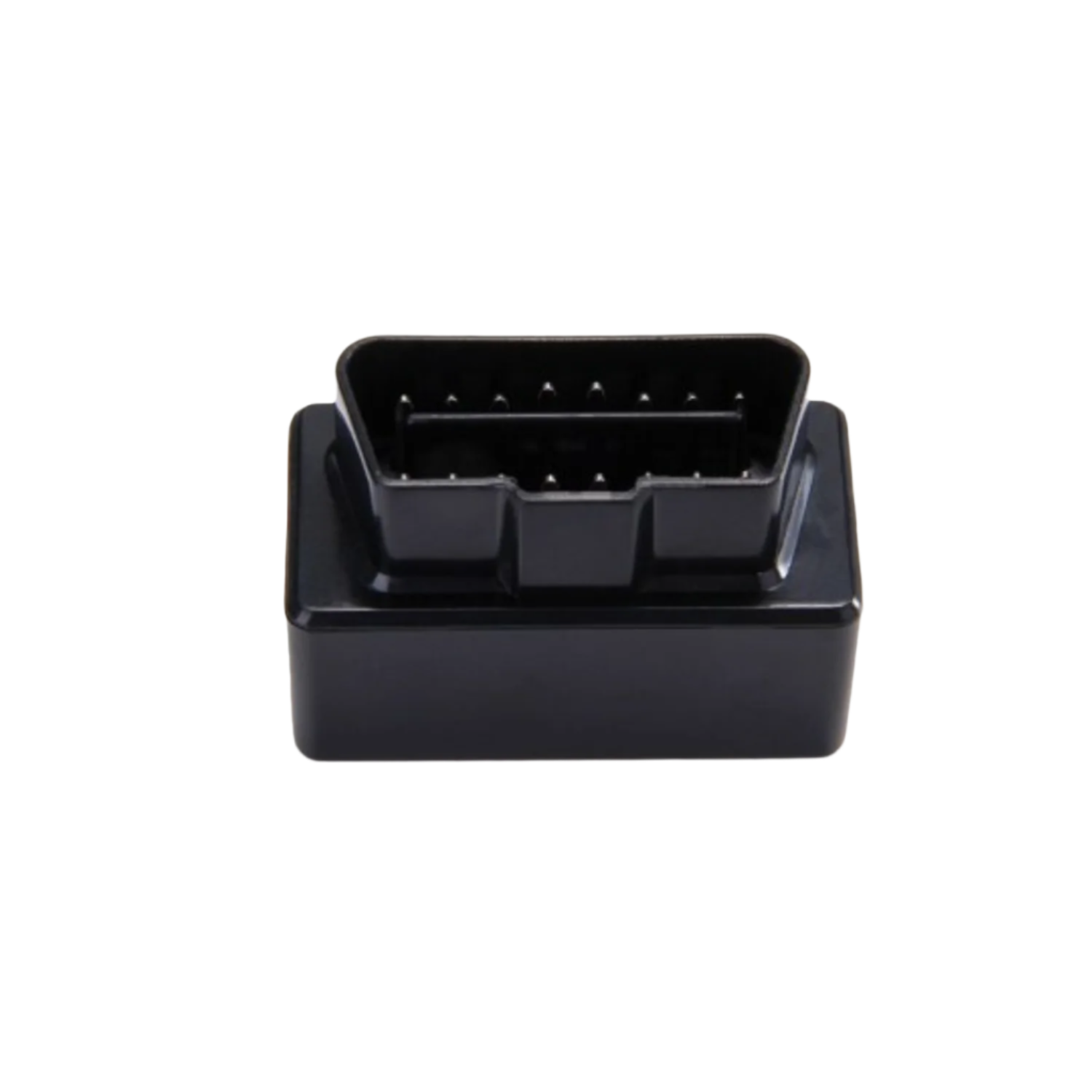

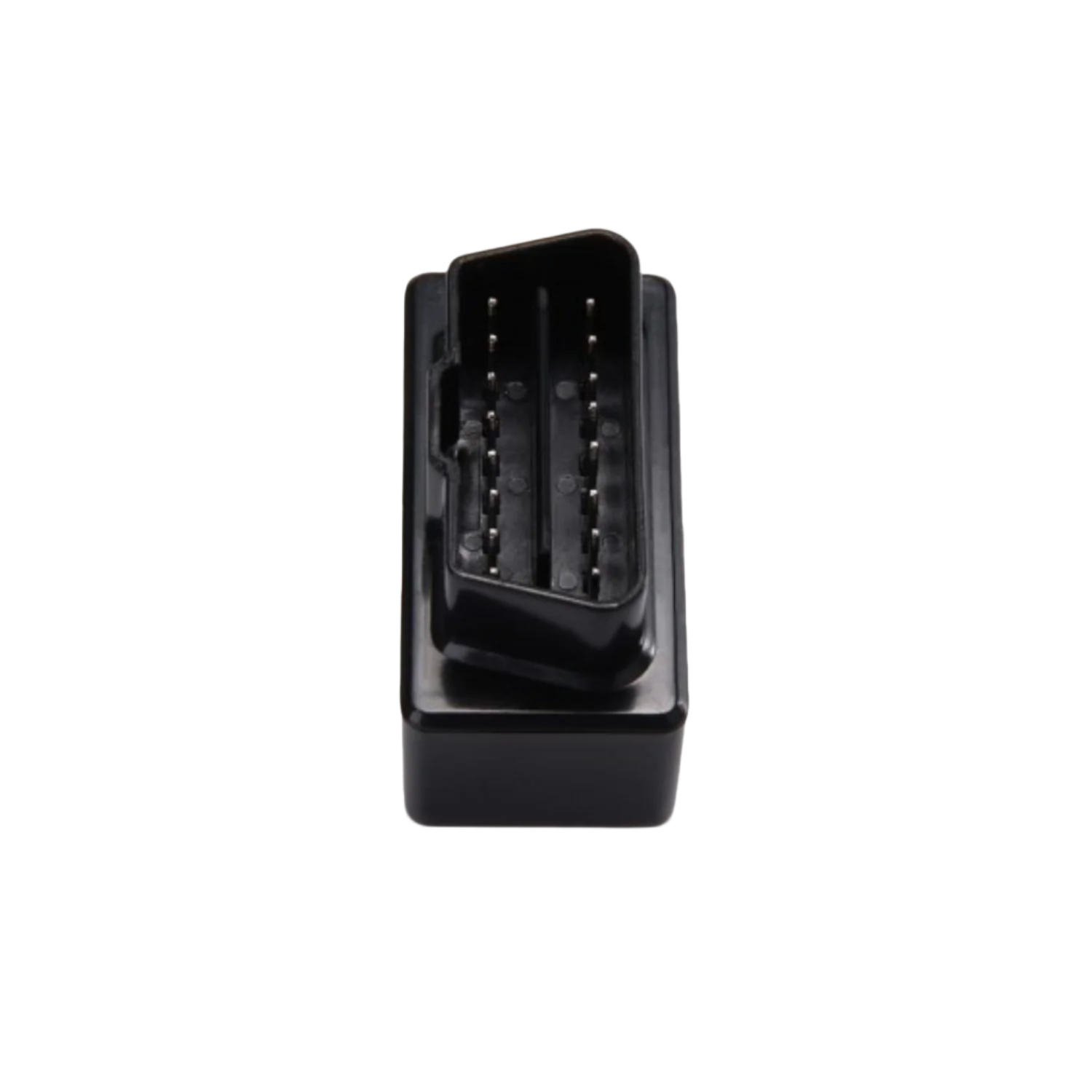

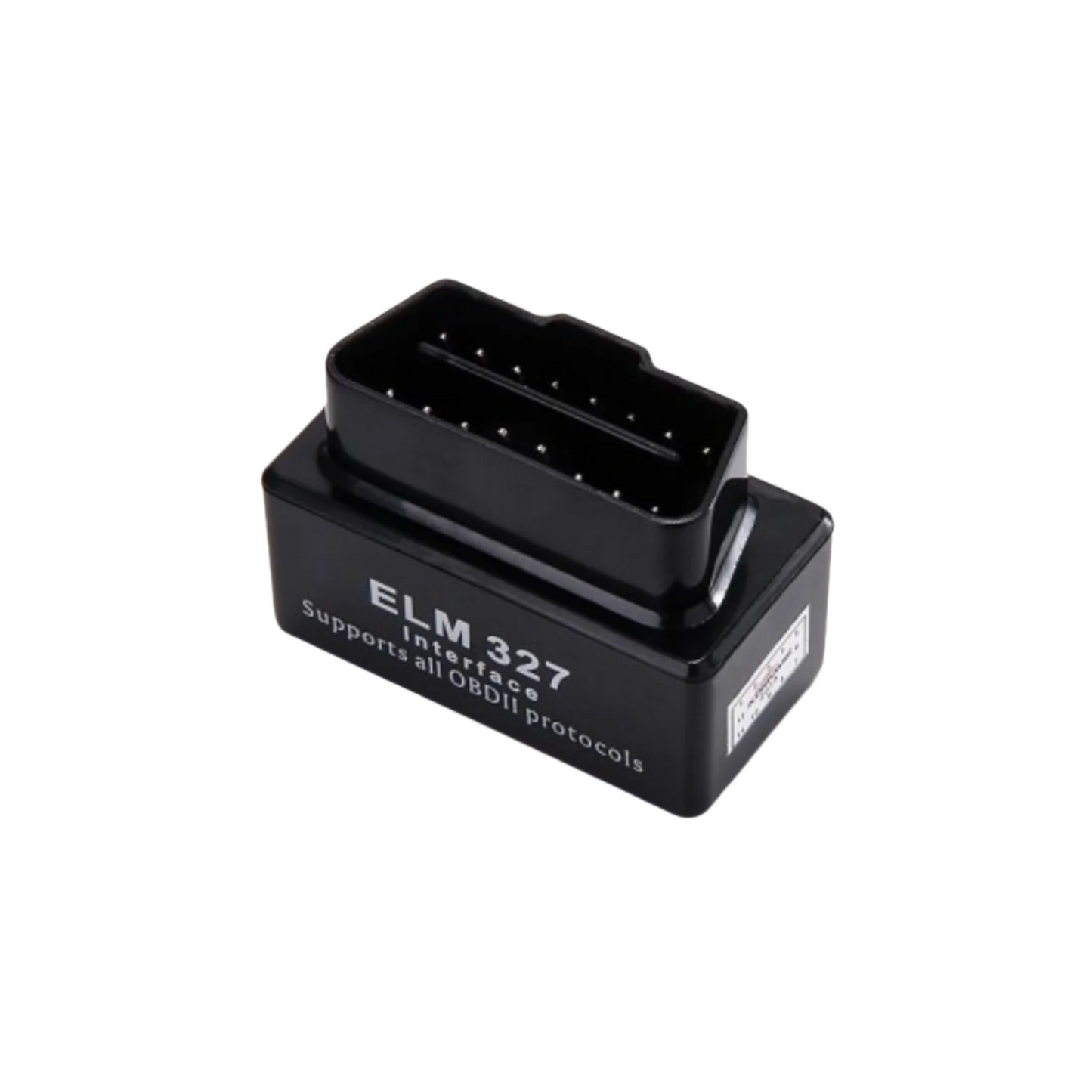

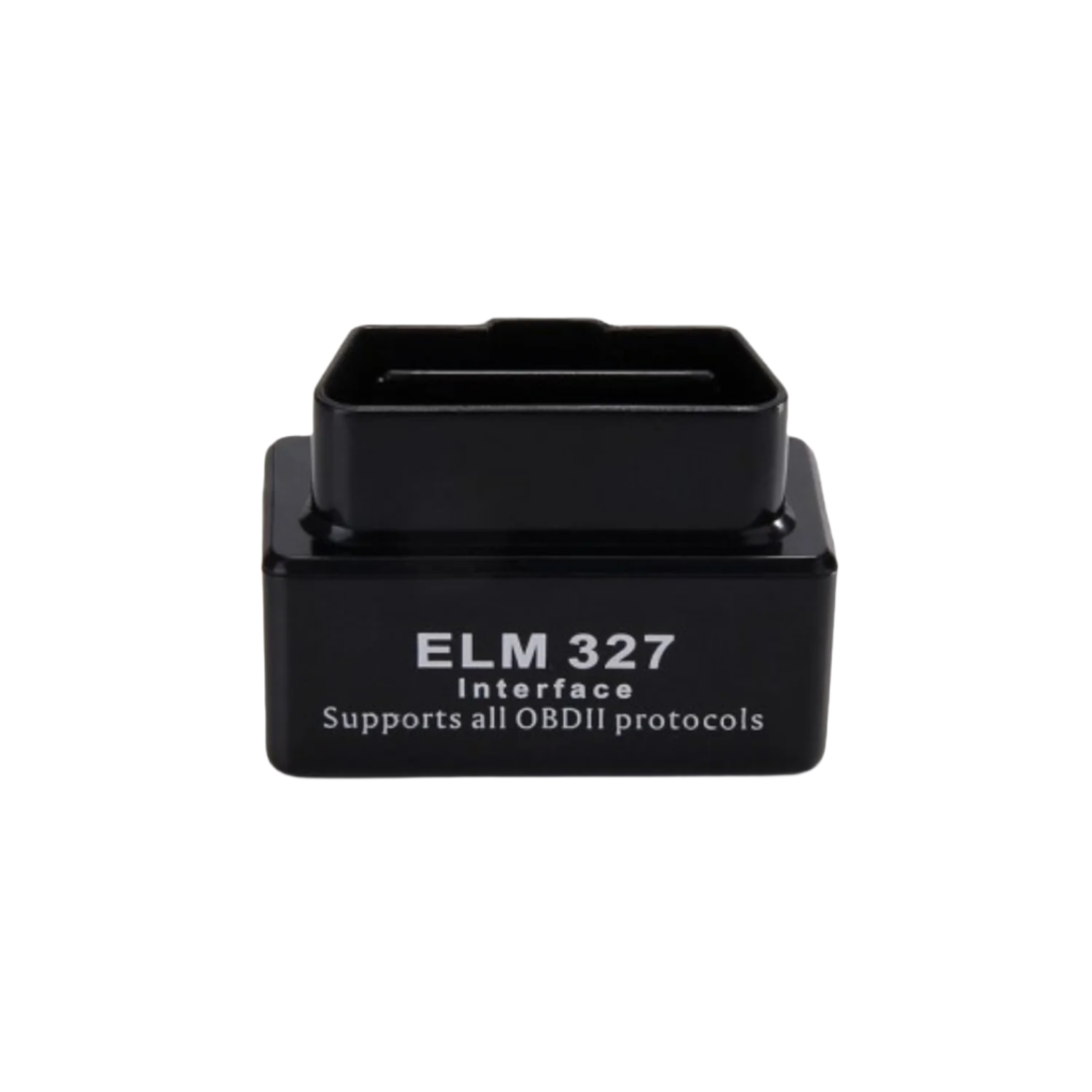

The MINI V2.1 ELM327 OBD2 Bluetooth Interface is a compact, wireless automotive diagnostic scanner designed for real-time vehicle monitoring and troubleshooting. Compatible with all OBD-II protocols, this device connects via Bluetooth to your smartphone, tablet, or PC, allowing you to easily read both generic and manufacturer-specific diagnostic trouble codes. With access to a built-in database of over 3000 code definitions, it provides detailed explanations to help you understand and resolve vehicle issues. Additionally, it allows you to clear trouble codes and reset the MIL (Check Engine Light), making it an essential tool for any car owner or mechanic.
Specifications:
- Operating Voltage: 9 ~ 16VDC
- Max. Operating Current: 35mA
- Operating Temperature: -40 to 85 °C
- Bluetooth Version: 2.0
- Working Humidity Range: less than 60%
- Working Bluetooth Range(m): 1 ~ 100
Features:
- Supports most OBD-II protocols
- Wireless Bluetooth connectivity (5–100 meters)
- No batteries, cables, or switches required
- Reads & clears DTCs and Check Engine Light
- Displays real-time sensor data
- Stores unique identifier in EEPROM
- Configures CAN mask, filter, and message length
- Supports ISO 9141, KWP2000, SAE J1850, and CAN
- Compatible with Windows, Palm, PDA, and smartphones
- Optimized for fast data transmission from ECU
Functions:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL (Check Engine light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short-term fuel trims
- Fuel System status
- Fuel Pressure
-
Many others
Package Included:
1 x ELM327 V2.1 Mini Bluetooth
