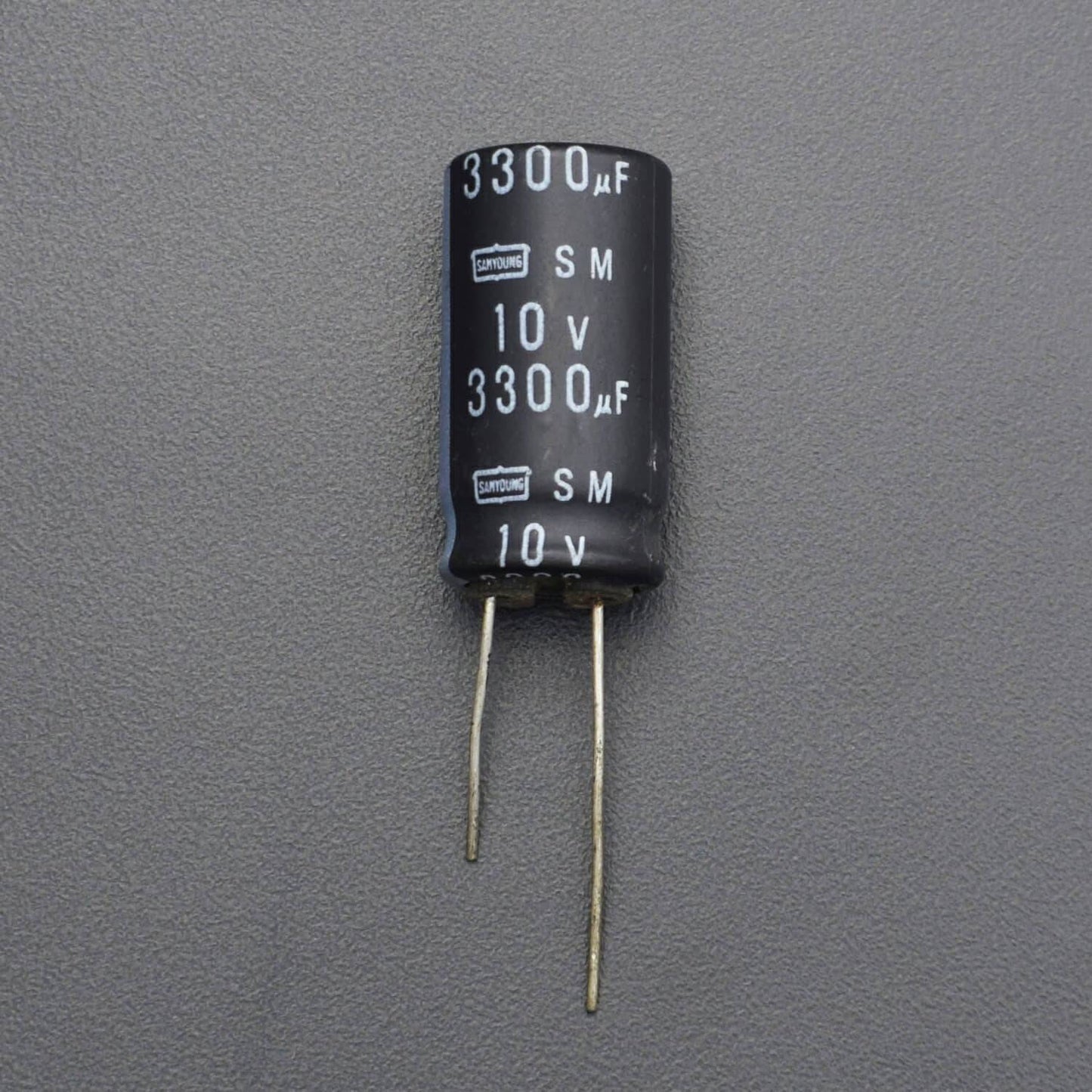

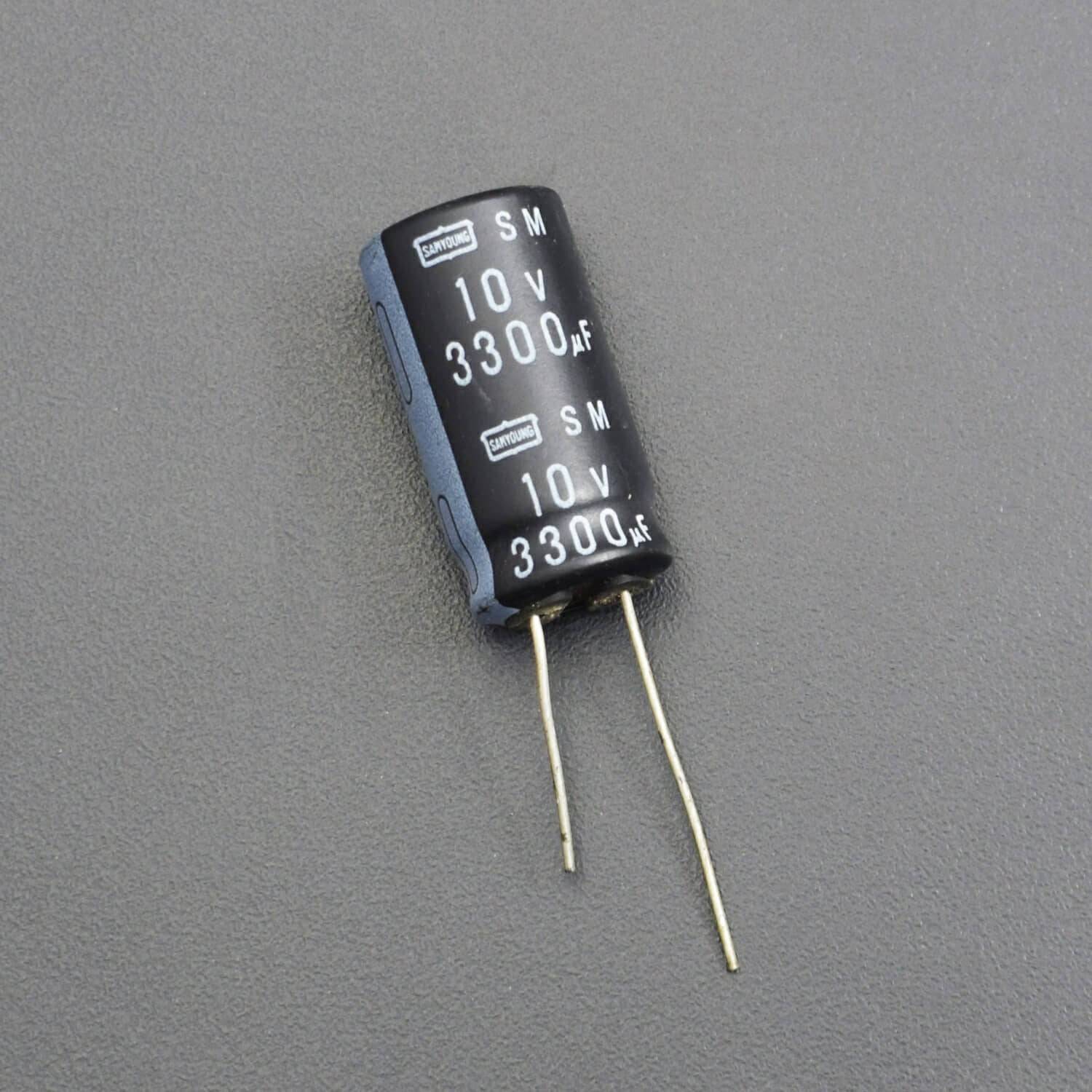

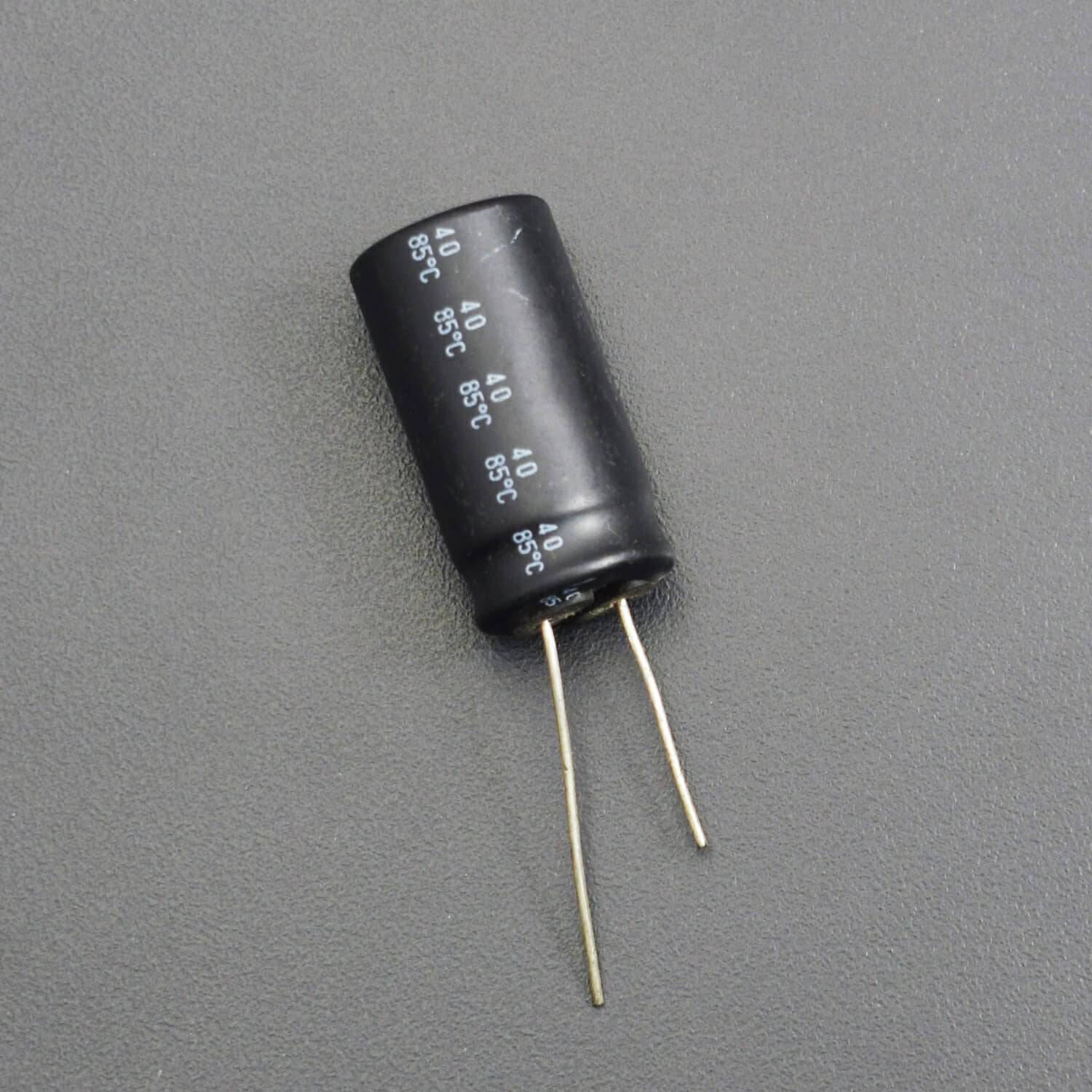

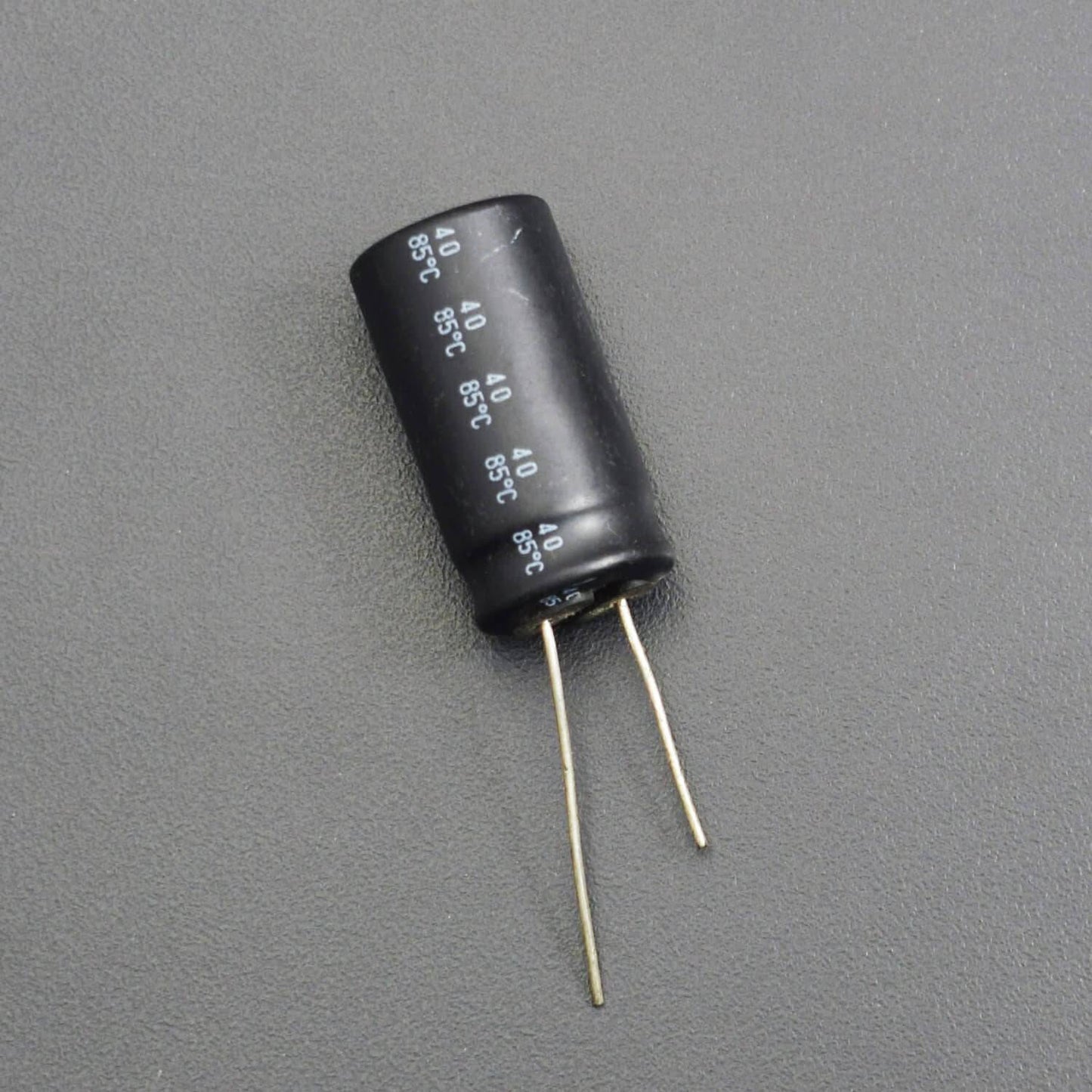

- Capacitor type: Electrolytic
- Design: Radial
- Capacitance: 3300uF
- Voltage: 10V
- Pitch: 5mm
- Size: 13x21mm
- Max. Temperature: 85°C
Description:
This electrolytic aluminum capacitor from Panasonic has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 20 mm tall with a diameter of 10 mm.
Its leakage current is 160@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm.
The aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1000uF. It has a tolerance of 20%.
Specification:
- Capacitance:3300 μF
- Case Size:0.492 In. Dia. x 0.984 In. L (12.5 mm Dia. x 25 mm L)
- Configuration:Radial, Can
- Current, Ripple:3.19 A
- Diameter, Lead:0.6 mm
- Dimensions:0.492" x 0.984" (12.5 x 25mm) Dia. x L
- ESR:0.015 Ohm
- Lead Spacing:0.197 In. (5.00 mm) mm
- Life:7000 Hours
- Material, Element:Aluminum Electrolytic
- Mounting Type:PCB
- Packaging:Bulk
- Temperature, Operating, Maximum:105 Deg. C
- Temperature, Operating, Minimum:-40 Deg. C
- Termination:Through-hole
- Tolerance:-20, +20 %
- Voltage Rating:10 VDC
Package Included:

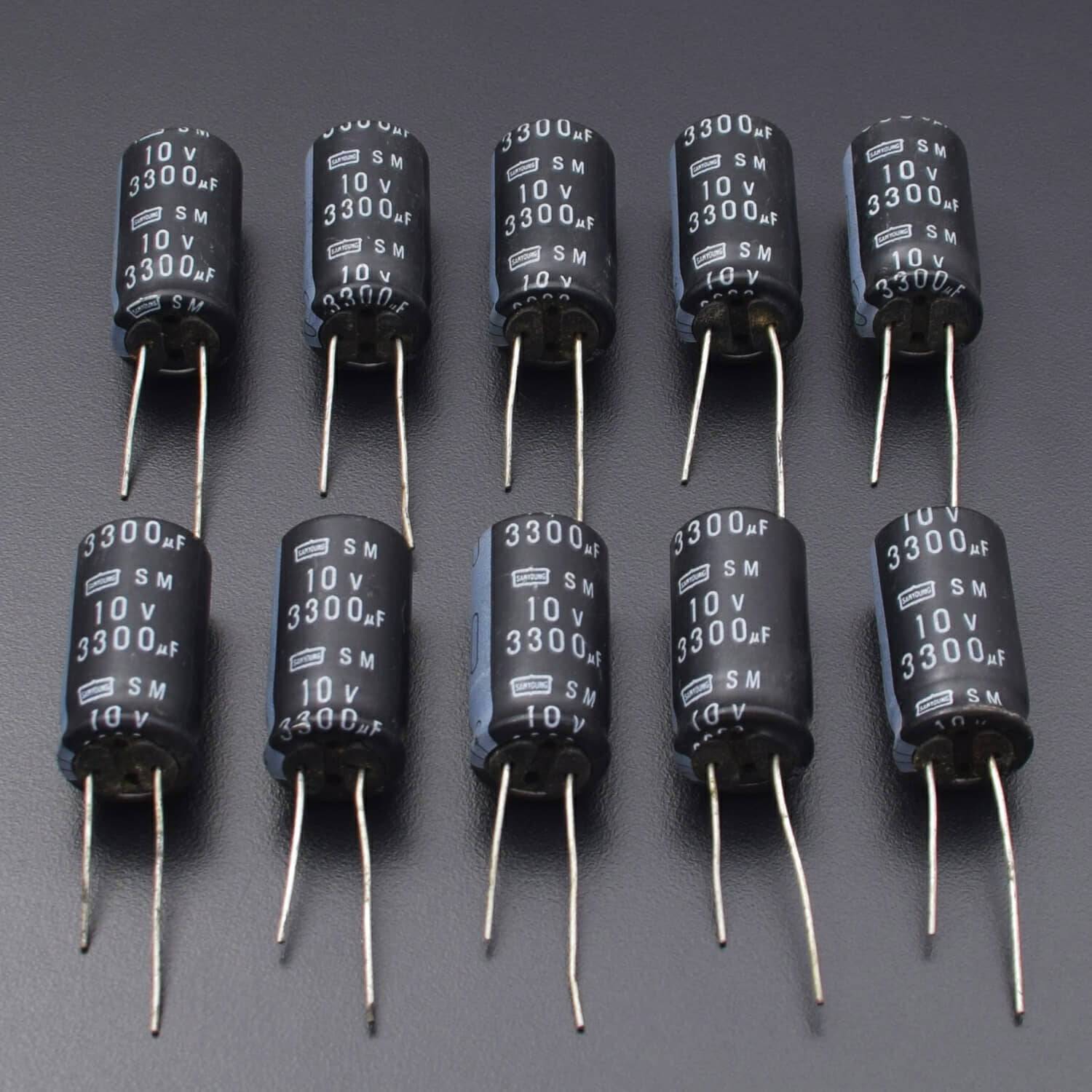

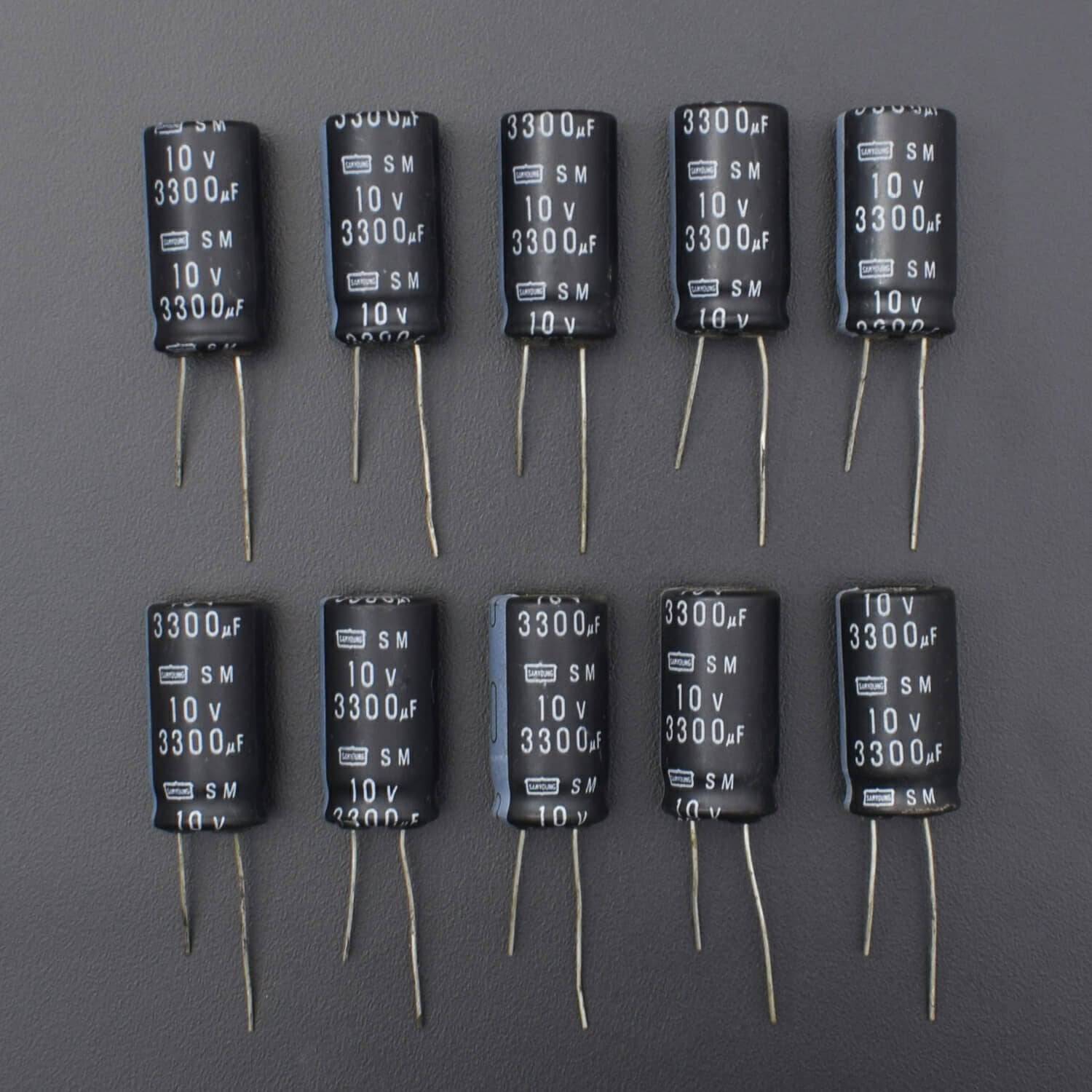

5 x Electrolytic Radial Capacitor 3300uF/10V
