ELECROW Voltage Converter Module for Grove/Qwiic (3.3V - 5V) Expand Your Project Possibilities With Grove/Qwiic Converter And Compatible Voltage Converter - RS7046

ELECROW Voltage Converter Module for Grove/Qwiic (3.3V - 5V) Expand Your Project Possibilities With Grove/Qwiic Converter And Compatible Voltage Converter - RS7046

RS7046

Low stock: 1 left

Rs. 2,649.00
Rs. 2,649.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

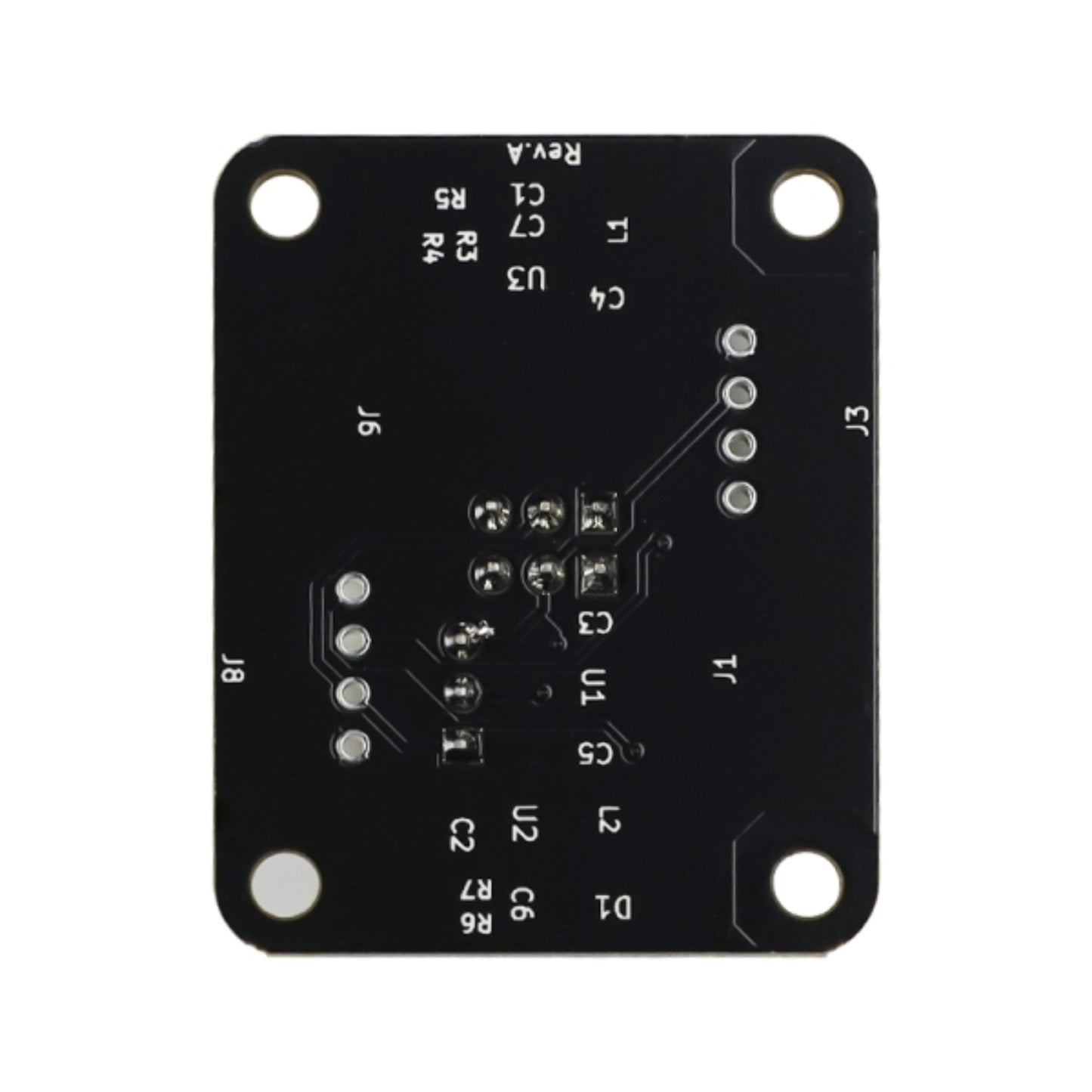

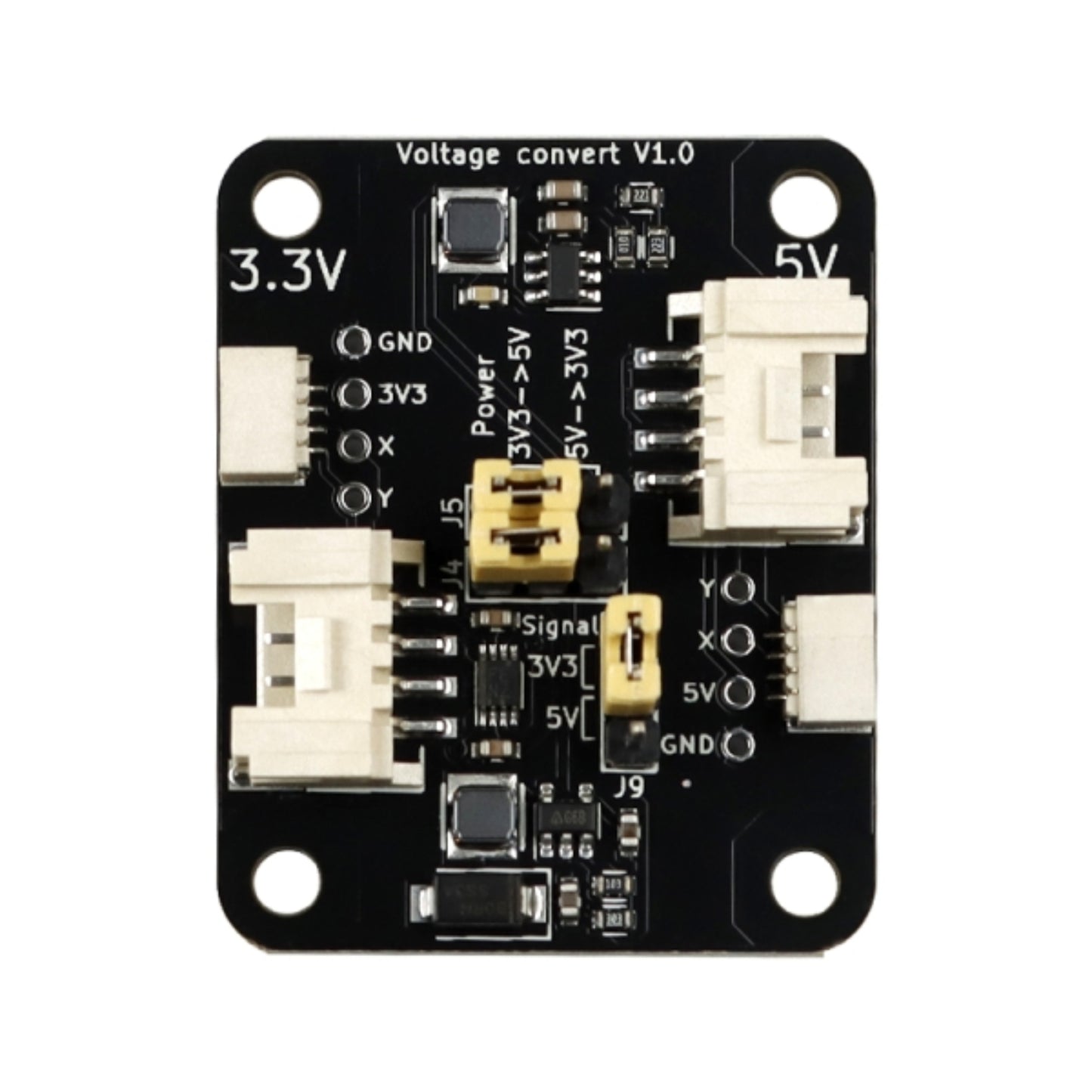

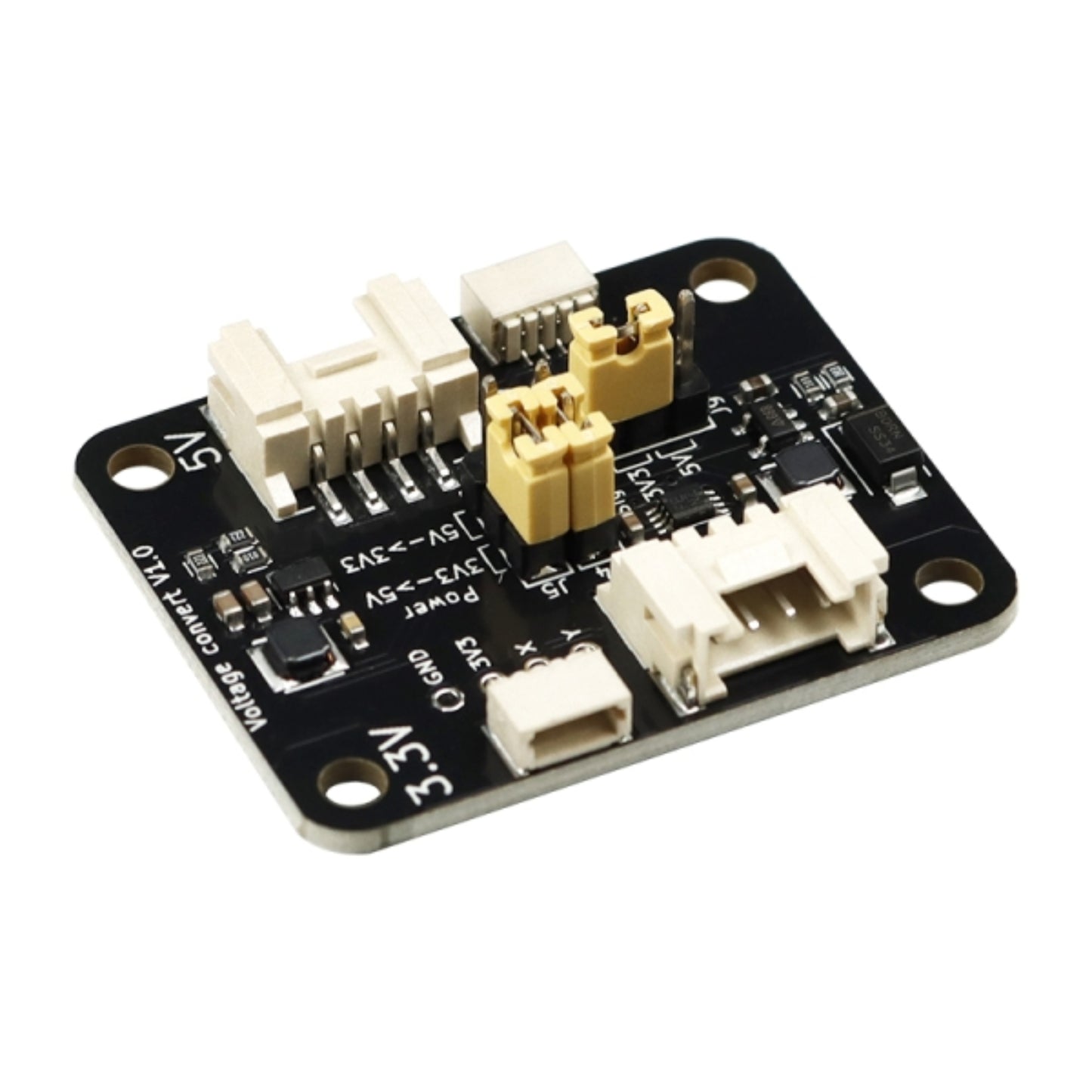

This module converts power supply voltage and signal voltage such as I2C, UART, etc. It has Grove-compatible and Qwiic-compatible connectors. It allows bidirectional connection of 3.3V system and 5V system. It supports the following 4 voltage conversion patterns.

Specifications:

    • Maximum data rate
      • Open drain (ex. I2C): 2 Mbps)
      • Push-pull (ex. UART): 24 Mbps
    • Maximum output current
      • 5V → 3.3V: 1.0 A
      • 3.3V → 5V: 250 mA
    • Dimensions: W32 x D40 x H11.5 mm

    How to Connect:

    Connect the master and slave devices by setting jumper caps for each pattern of power supply and signal voltages on the master and slave sides as shown below.

    1) Power: 5V, Signal: 5V → Power: 3.3V, Signal: 3.3V

    • Power supply voltage conversion direction selection jumper (J4・J5): 5V-3V3
    • Signal voltage selection jumper of 5V system side (J9): 5v

    2) Power:5V, Signal:3.3V→Power:3.3V, Signal:3.3V

    • Power supply voltage conversion direction selection jumper (J4・J5): 5V-3V3
    • Signal voltage selection jumper of 5V system side (J9): 3V3

    3) Power:3.3V, Signal:3.3V→Power:5V, Signal:3.3V

    • Power supply voltage conversion direction selection jumper (J4・J5): 3V3-5V
    • Signal voltage selection jumper of 5V system side (J9): 3V3

    4) Power:3.3V, Signal:3.3V→Power:5V, Signal:5V

    • Power supply voltage conversion direction selection jumper (J4・J5): 3V3-5V
    • Signal voltage selection jumper of 5V system side (J9): 5v

    Pin Description:

    Useful Links:

    Package Included:

    1 x ELECROW Voltage Converter Module for Grove/Qwiic (3.3V - 5V) Expand Your Project Possibilities With Grove/Qwiic Converter And Compatible Voltage Converter
