Description:
This Raspberry Pi Pico advanced kit is designed for people who already have some electronics knowledge and programming skills and are interested in the Raspberry Pi. If you want to continue to strengthen your thinking, hands-on ability, and innovation ability, the Raspberry Pi Pico advanced kit will take you to create different scenarios and explore more applications.

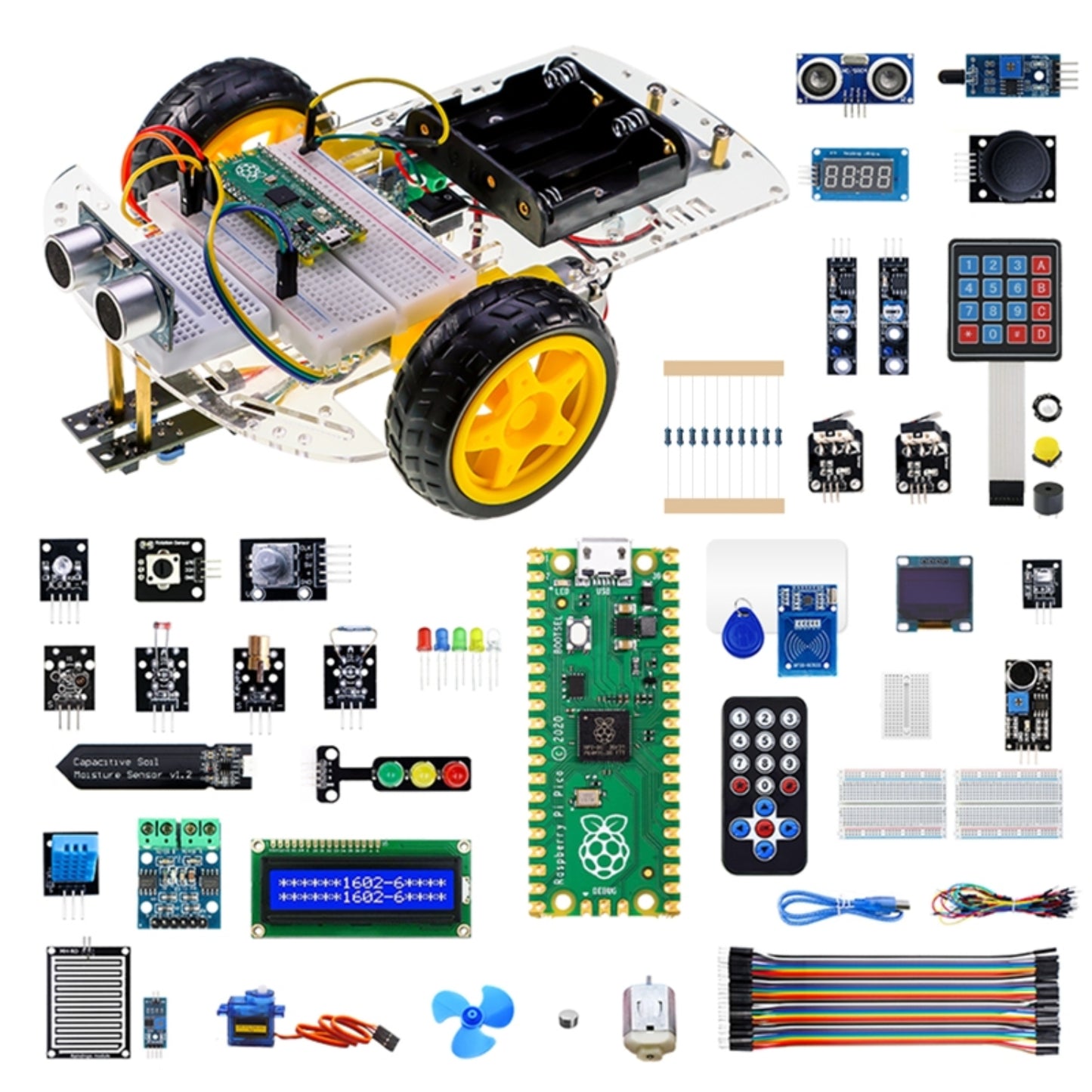

The Ultimate Raspberry Pi Pico Kit includes a Pi Pico based on the official RP2040 chip, 32 sensor modules, 1 smart car kit, and 32 Raspberry Pi Pico projects. With this kit, you can complete several interesting and practical projects. In the process, the learners' thinking ability and creativity are continuously stimulated. In short, whether you are a student, teacher or hardware enthusiast, let's follow the smart car into a new stage of programming.
Specifications:
- 21 mm × 51 mm form factor
- RP2040 microcontroller chip designed by Raspberry Pi in the UK
- 26 multifunction GPIO pins, including 3 analog inputs
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
- 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
- 1 × USB 1.1 controller and PHY, with host and device support
- Accelerated integer and floating-point libraries on-chip
- Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
- 264KB on-chip SRAM
- 2MB on-board QSPI Flash
- Supported input power 1.8–5.5V DC
- Operating temperature -20°C to +85°C
- The castellated module allows soldering directly to carrier boards
- Support drag-and-drop programming using mass storage over USB.
- Low-power sleep and dormant modes
- Accurate on-chip clock
- Temperature sensor
- 26 Multi-functional GPIO Pins
- Components of a Raspberry Pi Pico
Features:
- Suitable for all users, from beginners to advanced programmers.
- Raspberry Pi Pico is a lightweight, compact, high-performance microcontroller multifunction board using a dual-core ARM Cortex-M0+ processor
- 32 kinds of sensor modules and the smart cart can also be customized for interesting functions.
- 32 detailed lessons to lead your experiment
- More powerful functions.

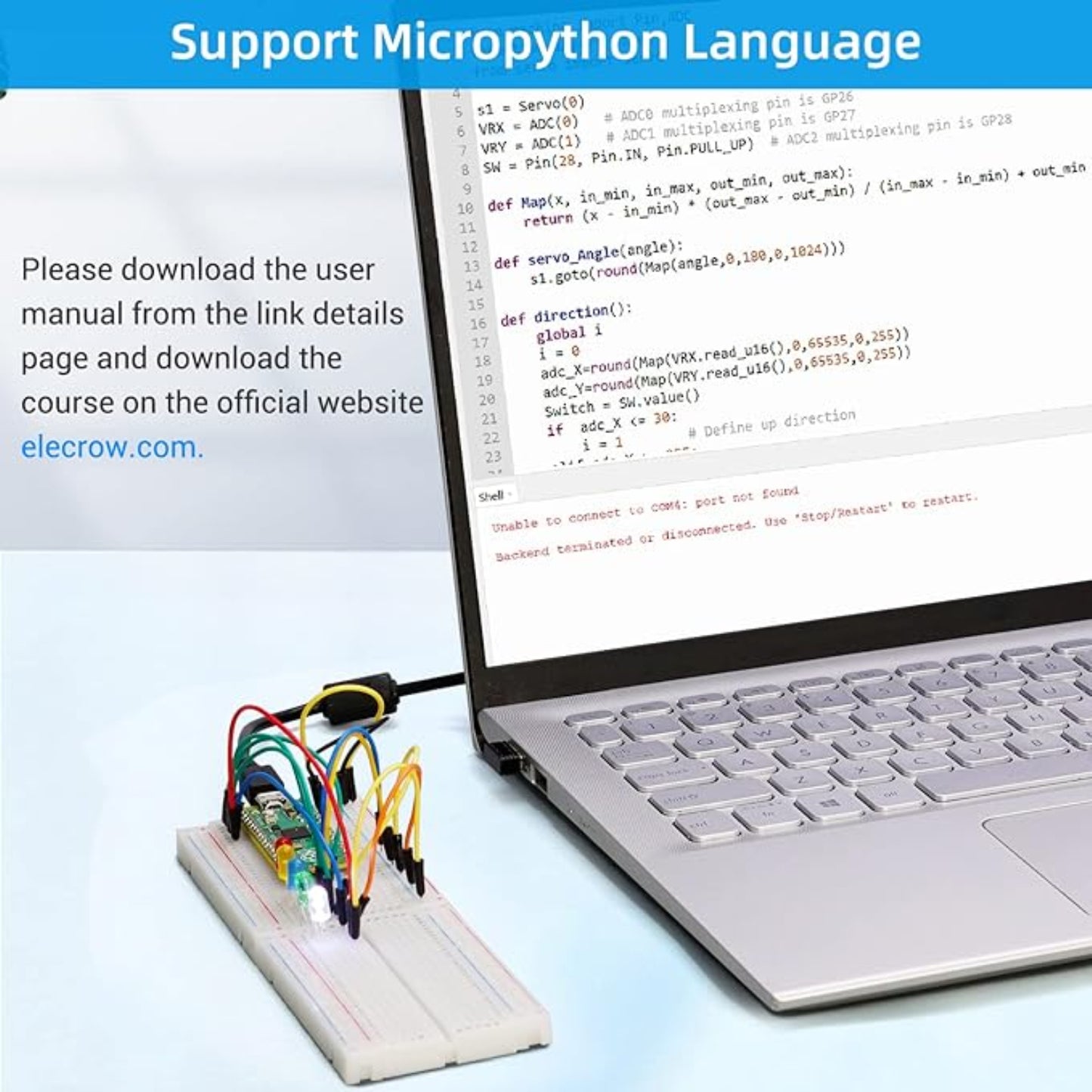

- Support 3 Language.

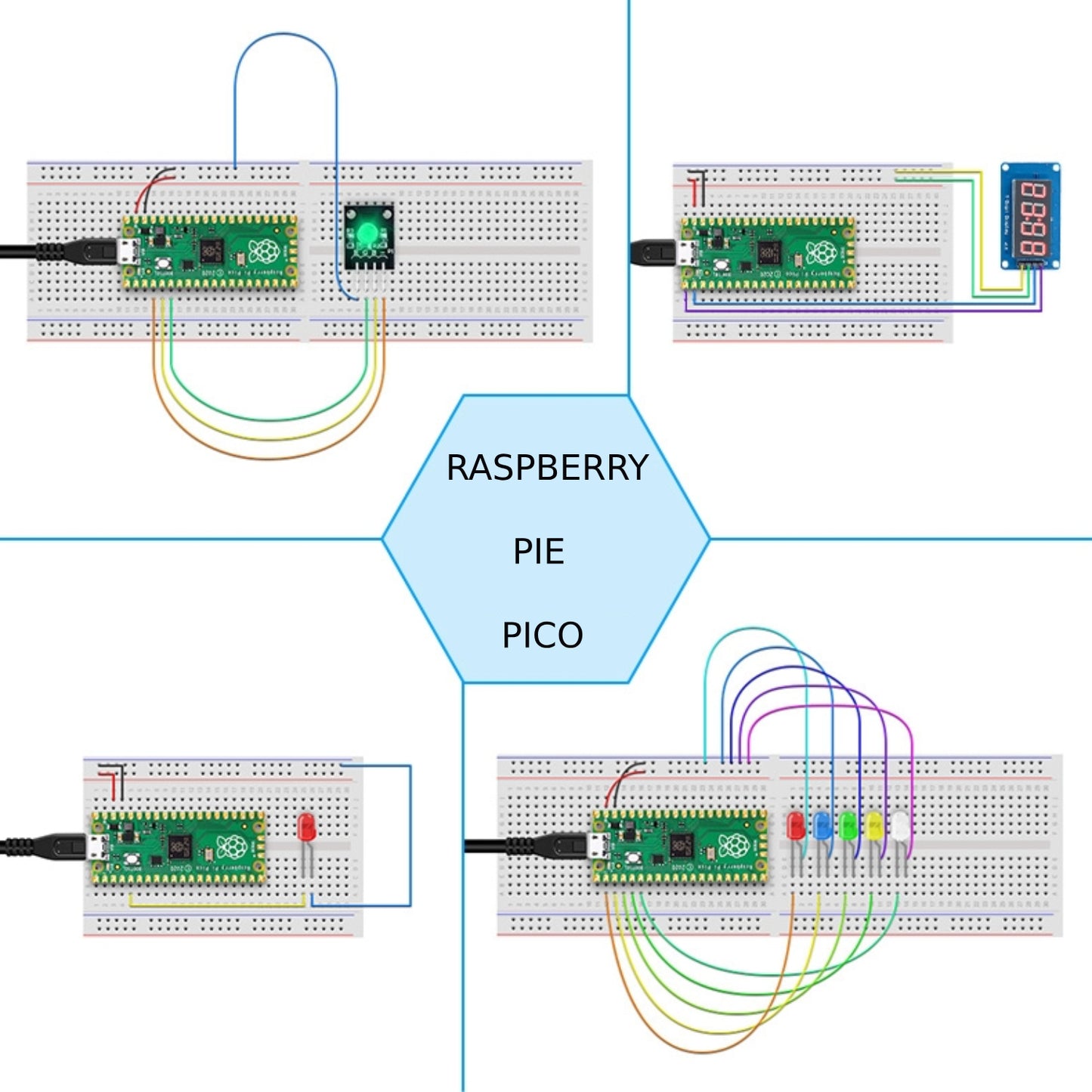

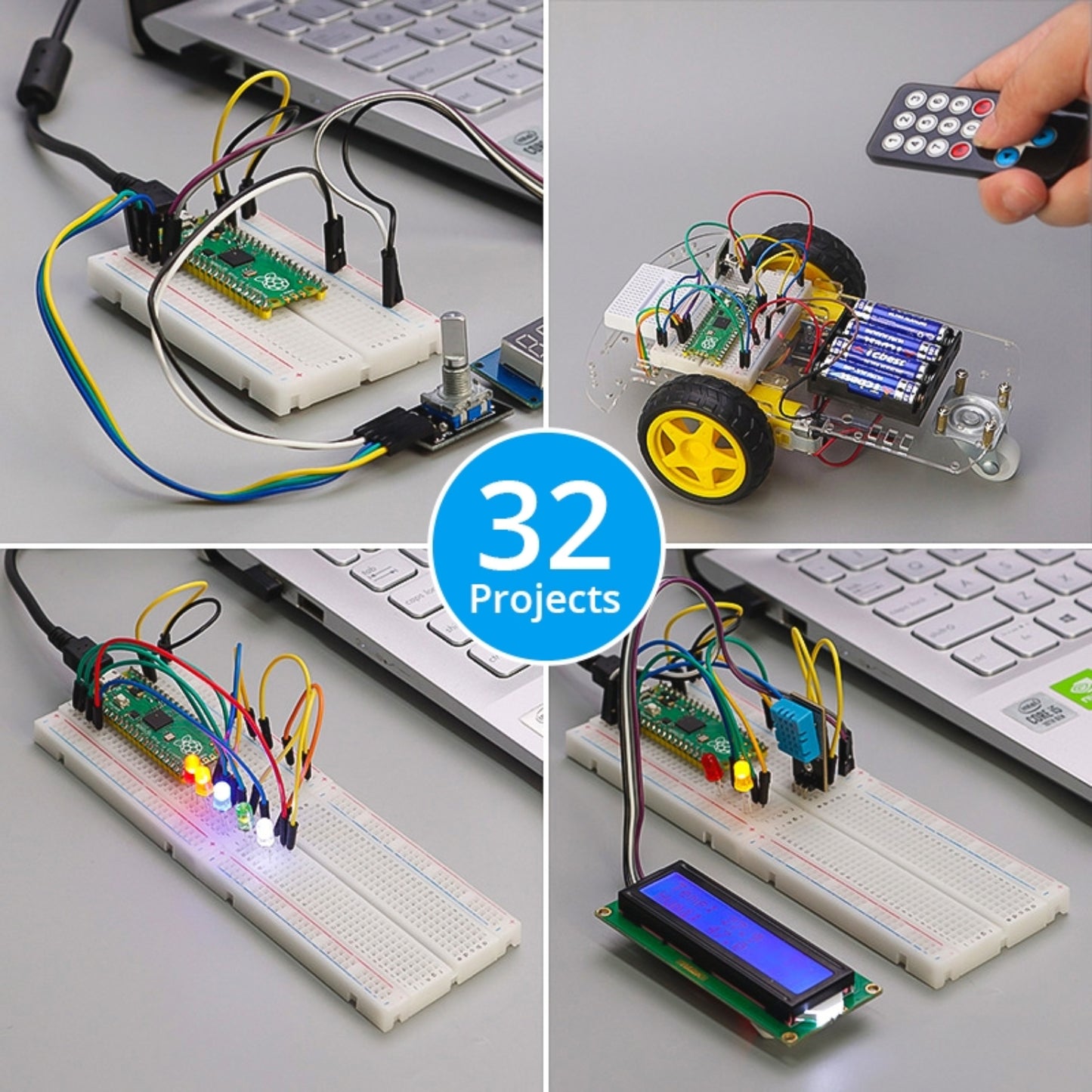

Projects Build With This Kit
- RGB ColourFull light
Through PWM pulse width modulation, the LED light is controlled to light up gradually, and then gradually turn off, to form a breathing light effect in a cycle.
- Electronic Clock
The hour and minute data of the clock are displayed through the TM1637 4-Bits digital tube, and the clock point is controlled to flash circularly to make an electronic clock.
- Colourful FLowing Light
Through the GP port of the Pico, the 5 LED lights are controlled to light up in turn, and then turn off in turn to form a Colorful flowing light.
- Billboard
The first line of LCD1602 scrolls from right to left to display the string of "Hello Pico", simulating the effect of billboard scrolling.
- Plant Doctor
Real-time detection of soil humidity. Under normal soil humidity, the green light lights up and the buzzer does not sound; when the soil humidity is too low, the red light lights up and the buzzer sounds.
- Alarm Of Fire
Simulate a fire alarm system, judge whether a fire occurs by judging whether the induction probe of the flame sensor detects the fire source, control the RGB lights to flash red and blue, and display the alarm information on the LCD1602 liquid crystal screen.

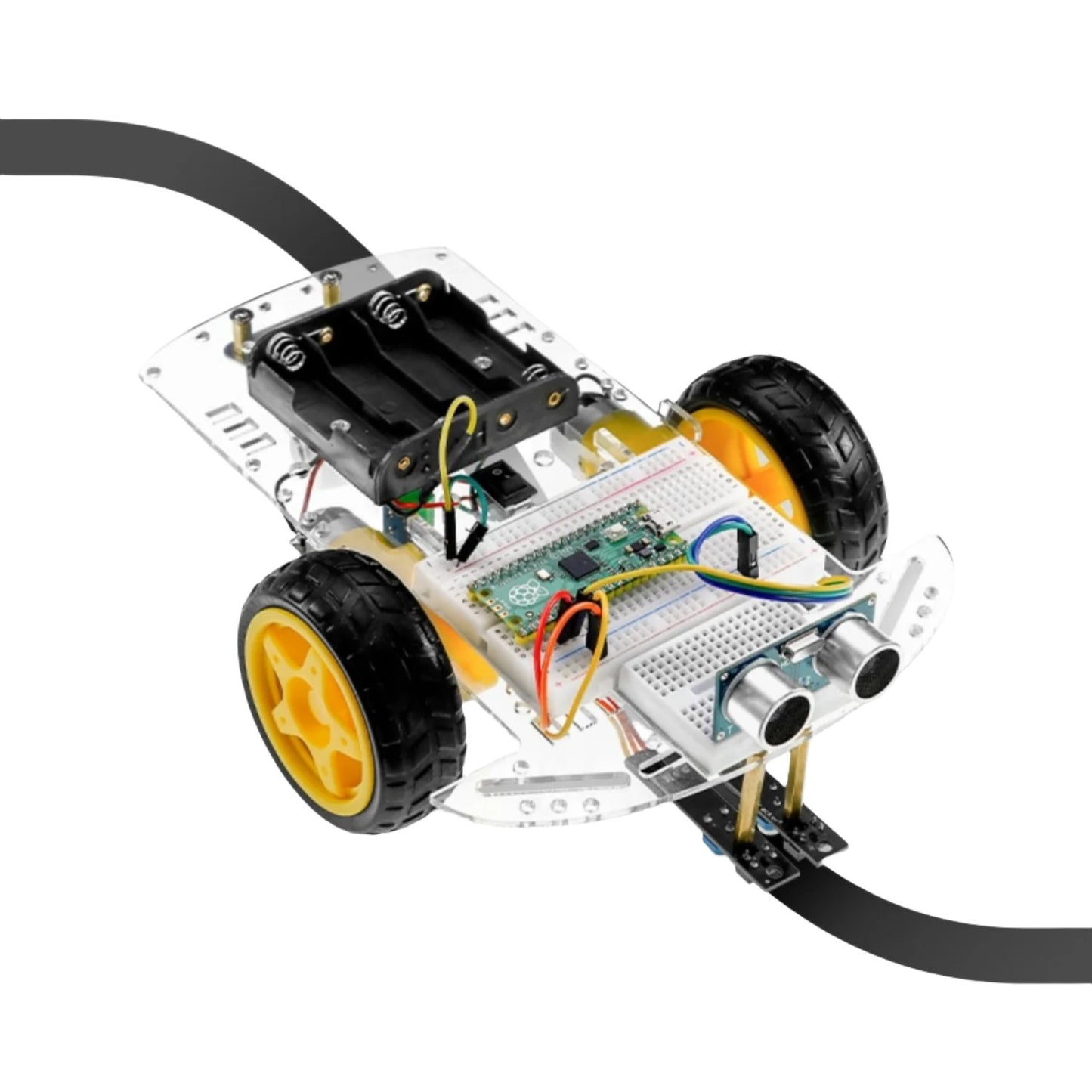

- Obstacle Avoidance Car
Real-time detection of the distance measurement value of the ultrasonic ranging sensor, when the distance value is less than the preset value, the car will be controlled to turn left to avoid obstacles, to achieve the effect of the obstacle avoidance car.
- Traffic Light
Control the red light to turn on, the red light goes off after the 4-bit digital tube counts down for 30 seconds; then the yellow light flashes 5 times with a time interval of 0.3 seconds; finally, the green light turns on for 10 seconds and then turns off, reciprocating, simulating the effect of traffic lights.
Useful Links:

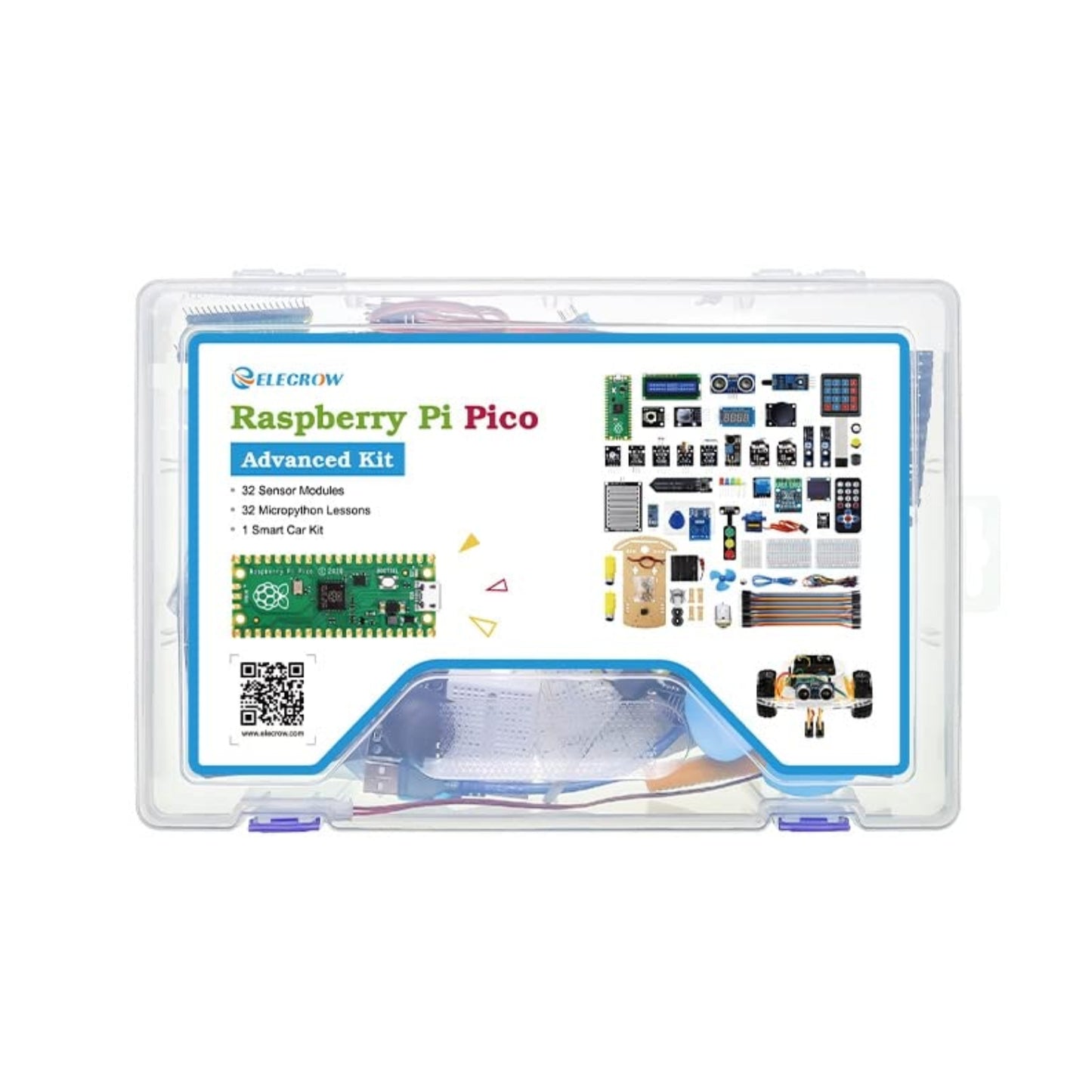

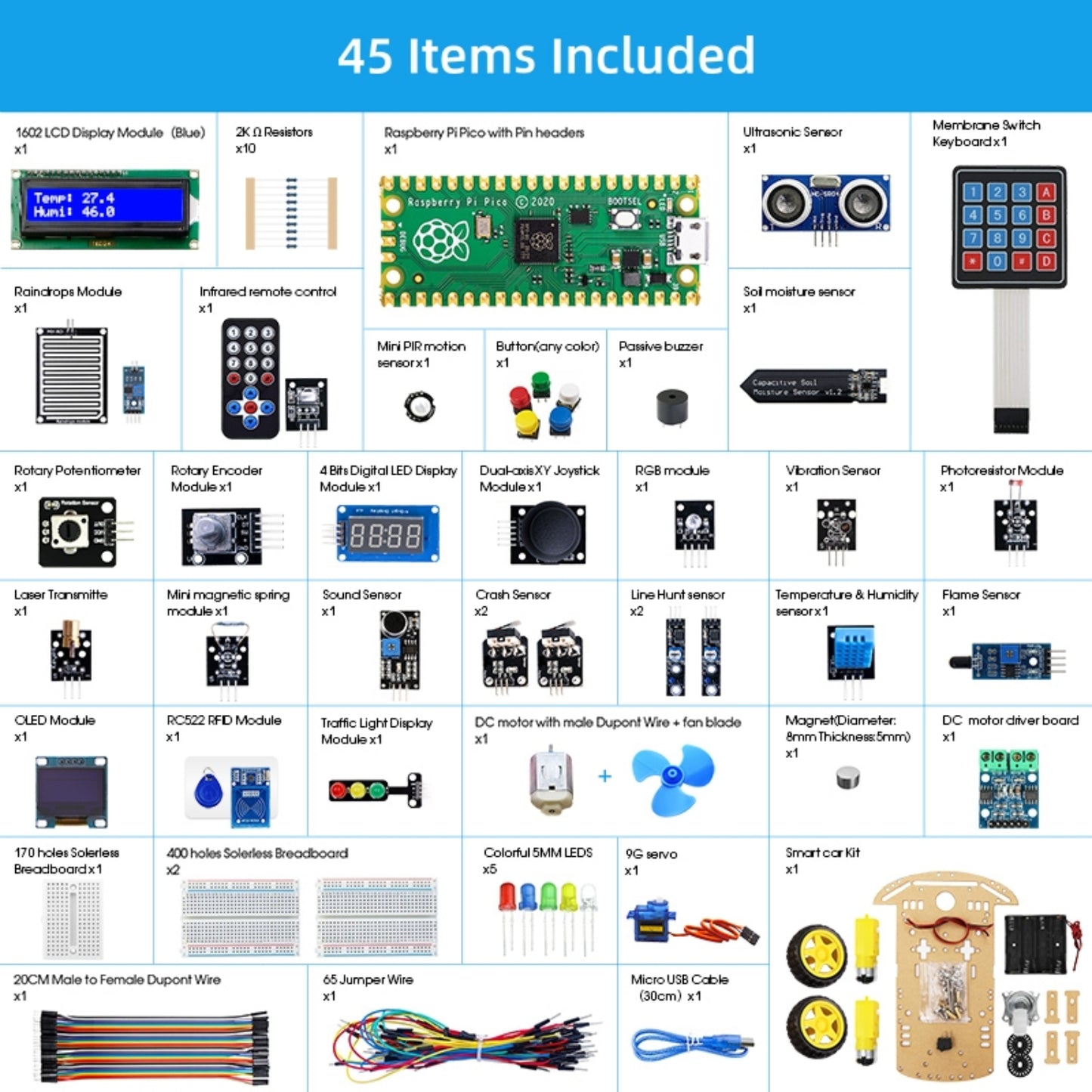

Package Included:
1 x ELECROW Raspberry Pi Pico Advanced Kit with 32 Modules Master Raspberry Pi Pico With 32 Hands-On-Projects With Comprehensive Raspberry Pi Pico Kit
