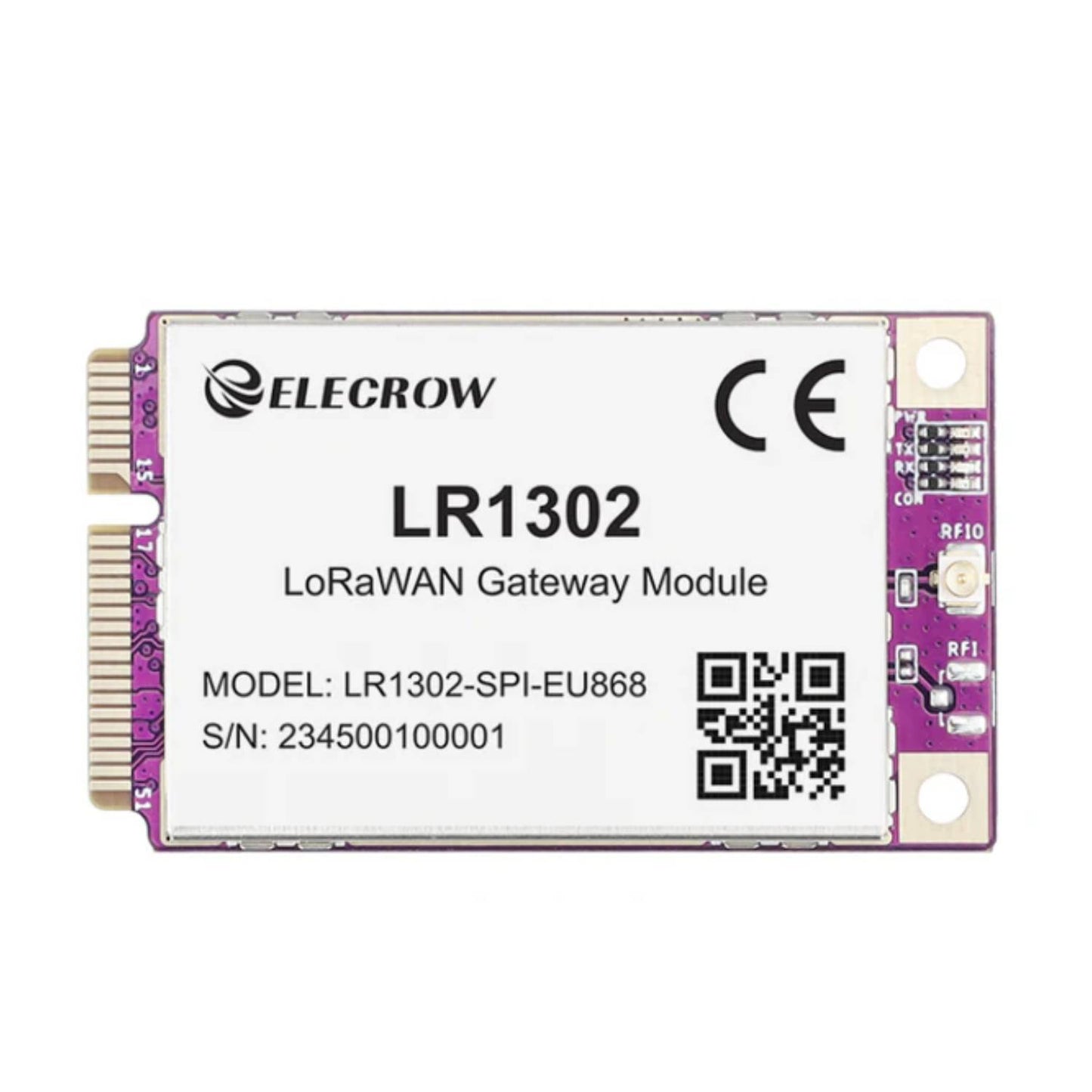

Description:
This LR1302 module is a new-generation LoRaWAN gateway module. It adopts a mini-PCIe form factor design and features low power consumption and high performance. Based on Semtech Network's SX1302 LoRaWAN baseband chip, the LR1302 gateway module provides gateway products with potential capacity for long-distance wireless transmission. Compared to the previous SX1301 and SX1308 LoRa chips, the SX1302 chip has higher sensitivity, lower power consumption, and lower operating temperature. It supports 8-channel data transmission, improves communication efficiency and capacity, and supports the connection and data transmission of more devices.

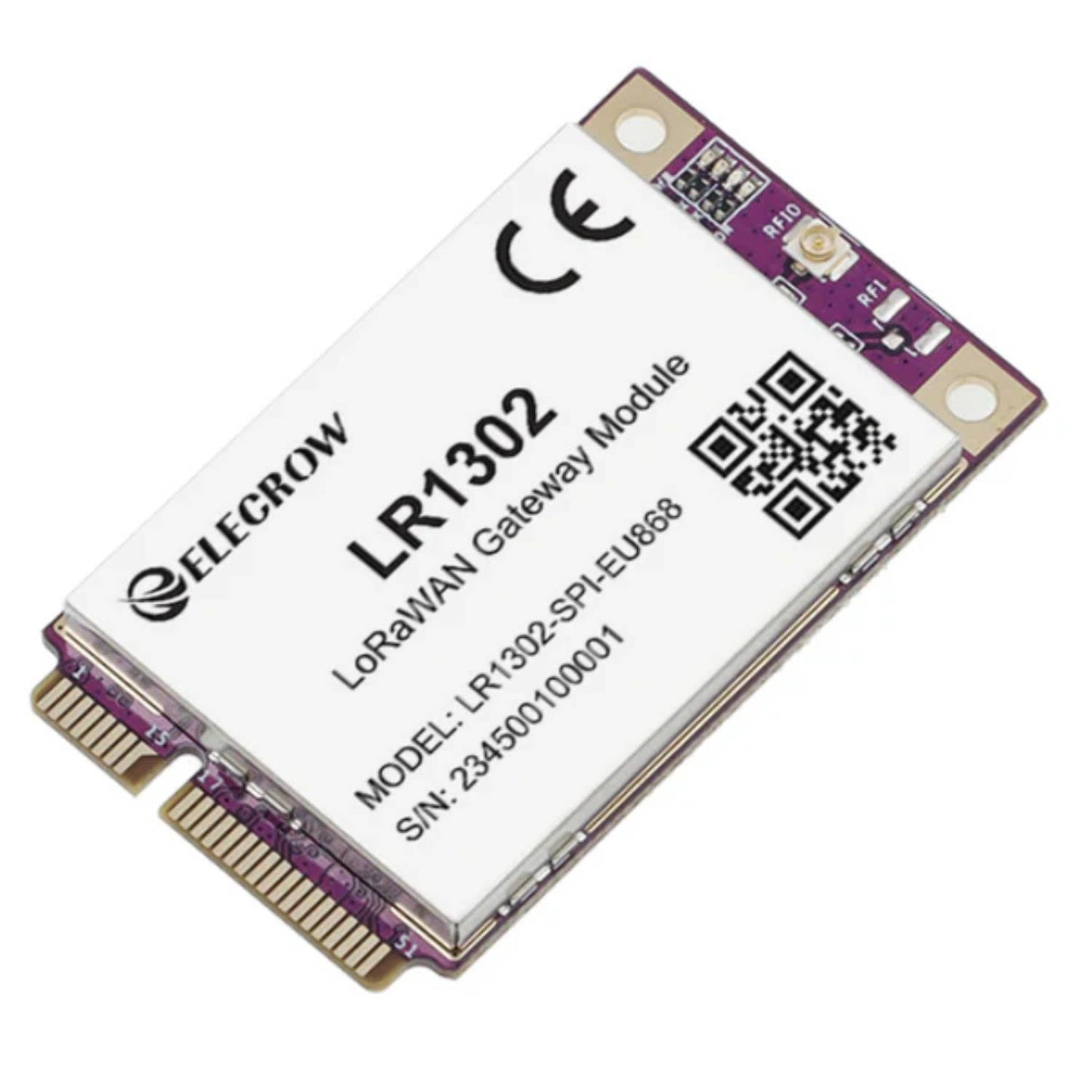

It reserves two antenna interfaces, one for transmitting and receiving LoRa signals and one U.FL (IPEX) interface for independent transmission. It also has a metal shield to protect against external interference and provide a reliable communications environment.
The LR1302 LoRaWAN gateway module is available in SPI and USB versions, covering the US915 and EU868 frequency bands, giving you a choice of LoRaWAN frequency solutions, including EU868 and US915.
Designed specifically for the IoT space, the LR1302 is suitable for a variety of IoT applications. Whether used in smart cities, agriculture, industrial automation, or other
fields, the LR1302 module can provide reliable connections and efficient data transmission.
Specifications:
|
Region |
EU868 |
US915 |
|
Frequency |
863-870MHz |
902-928MHz |
|
Chip set |
Semtech SX1302 Chip |
|
|
Sensitivity |
-125dBm @125K/SF7 |
-125dBm @125K/SF7 |
|
TX Power |
26 dBm (with 3.3V power supply) |
25 dBm (with 3.3V power supply) |
|
Bandwidth |
125/250/500 kHz | |
|
Channel |
8 channel |
|
|
LEDs |
Power: Green Config: Red TX: Green RX: Blue |
|
|

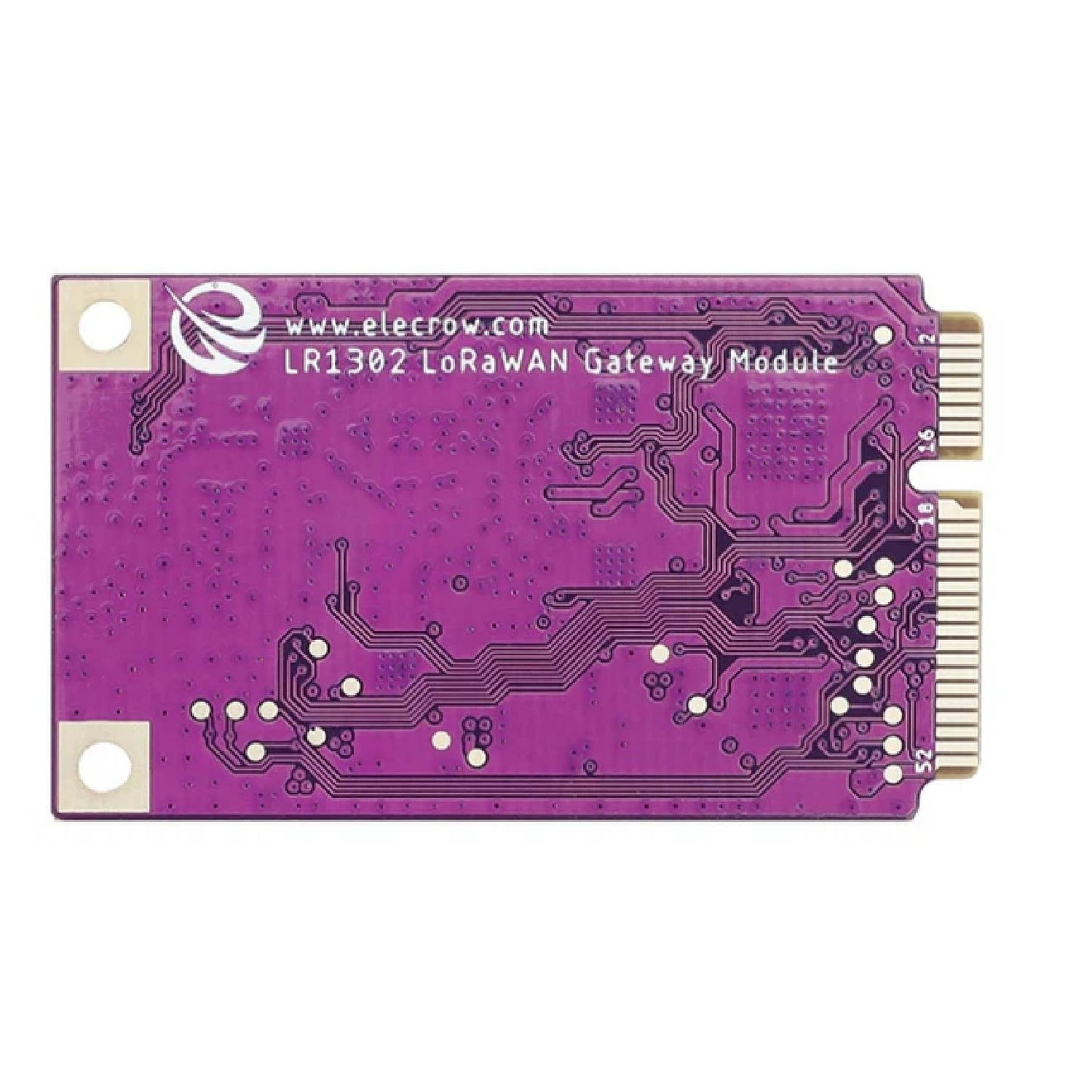

Form Factor |
Mini PCIe, 52pin Golden Finger |
|
|
Power Consumption (SPI version) |
Standby: 7.5 mA |
|
|
Power Consumption (USB version) |
Standby: 20 mA |
|
|
LBT(Listen Before Talk) |
Support |
|
|
Antenna Connector |
U.FL |
|
|
Operating Temperature |
-40°C to 85°C |
|
|
Dimensions |

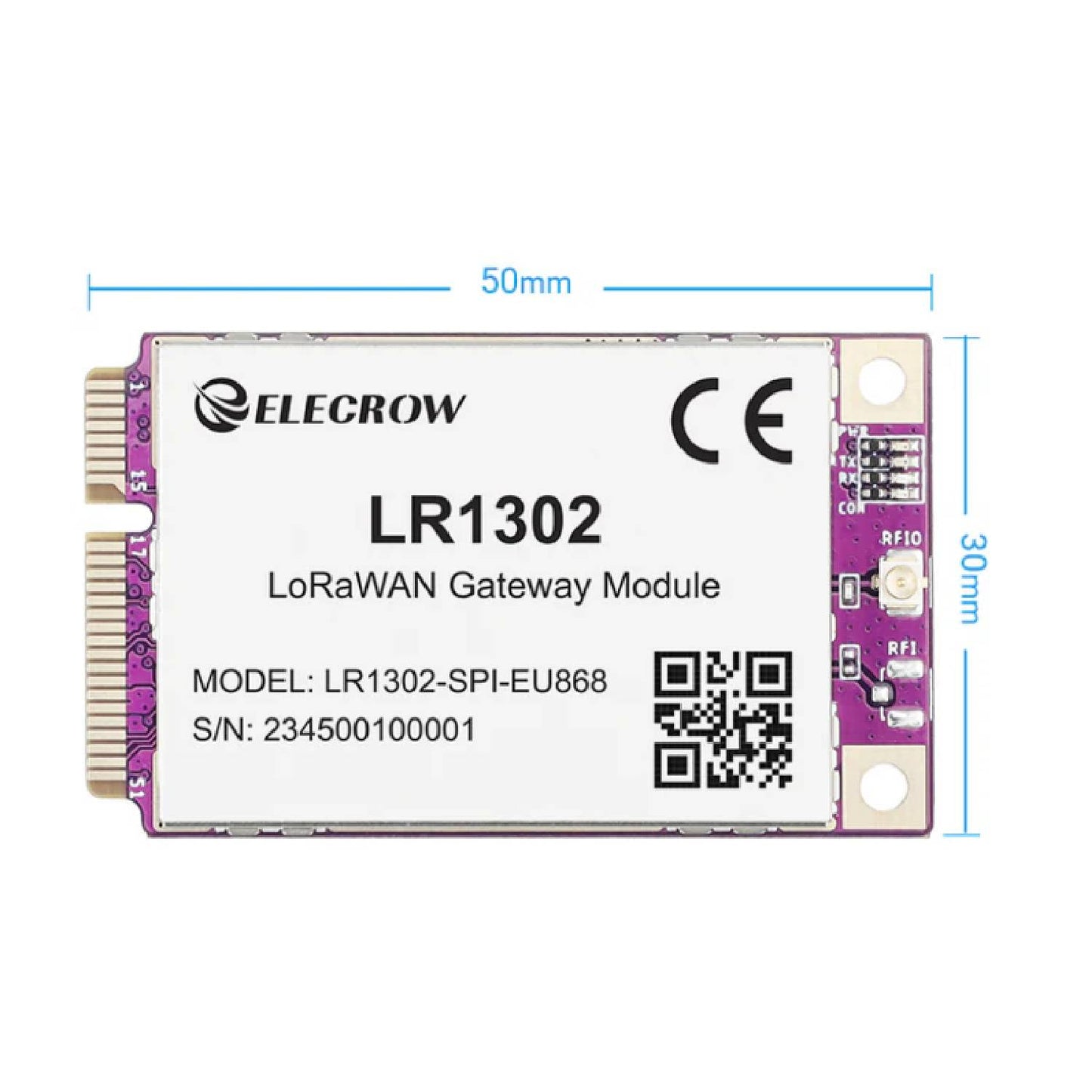

30 mm (width) × 50.95 mm (length) |
|
Features:
- Space-Efficient Design: The mini-PCIe form factor and compact design make the LR1302 gateway module ideal for space-constrained applications.
- Dual Antenna Interface: With two antenna interfaces, this module provides versatile LoRa signal transmission and independent U.FL (IPEX) connectivity.
- Wide Frequency Band Compatibility: Available in US915 and EU868 frequency bands, the LR1302 suits various LoRaWAN® frequency solutions.
- Multi-Channel Support: Featuring 8-channel data transmission, the LR1302 gateway module enhances communication efficiency and capacity.
- High-Performance Semtech SX1302 Chip: Equipped with the Semtech SX1302 chip, this module delivers exceptional low power consumption and superior performance.
Pin Dscription:
Useful Links:
Package Included:
1 x LR1302 LoRaWAN Gateway Module
