Description:

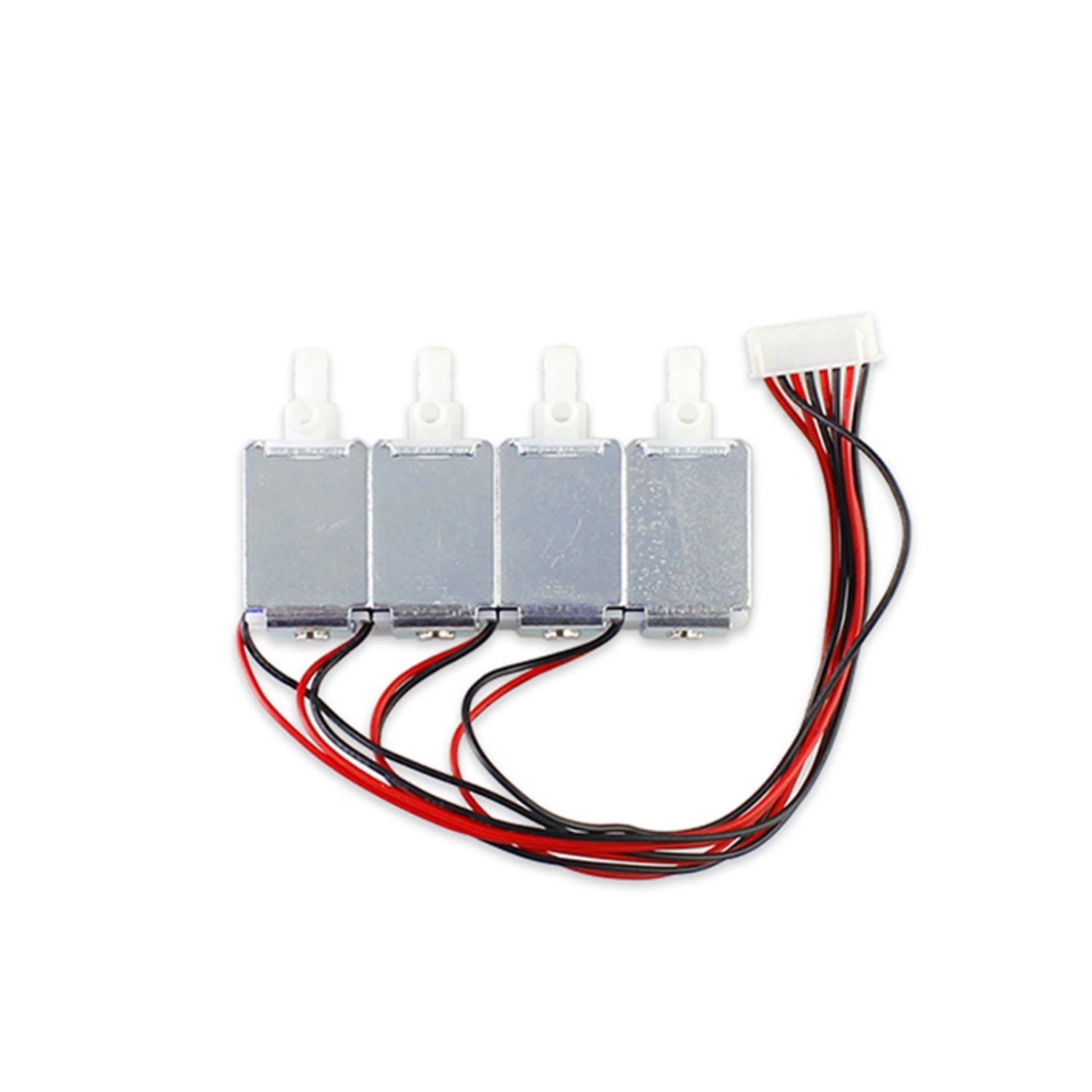

This is a DC 12V Four-Way Solenoid Valve 2.1 control four-way solenoid valve, which has an inlet and four air outlets, you can individually control the outlet of each outlet, so the outlet can be used alone and can also be used with four. It will give your project a great convenience. Outlet and inlet diameters are 8mm. The length of the solenoid valve is about 80mm, height is about 48mm, can be used in many DIY projects which can save a lot of space. Solenoid valve on both sides of a fixed hole to facilitate fixed. Each outlet has a separate wire to control. It depends on you about how to use it.
Specifications:
- Working Voltage: DC 12V
- Working Current: 0.2A
- Rated Voltage: DC 6.0V DC 12.0V
- Rated Current: ＜280mA ＜160mA
- Pressure Range: 0-450mmhg
- Fluid: Water/Air
- Power: <3w
- Operating Temperature Range: 0℃~55℃
- Service life: In a 500CC container, inflating for 10 seconds and exhausting for 5 seconds is a loop test for more than 50,000 times
Features:

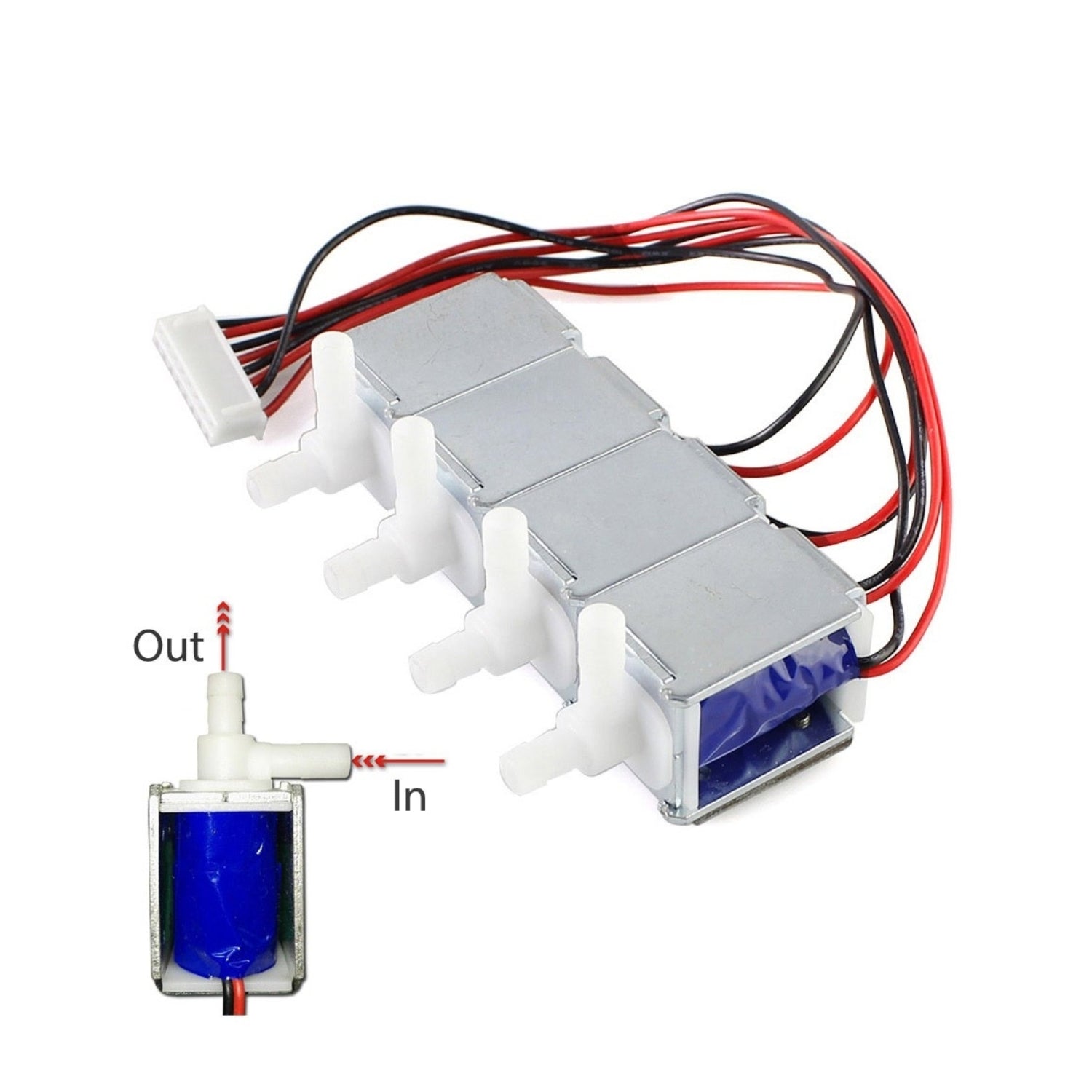

- This valve has one air inlet port and four air outlet port
- Four air outlets can be controlled independently of each
- the air inlet port and outlet port diameter is 8mm
- Each valve has a separate control line
Package Included:

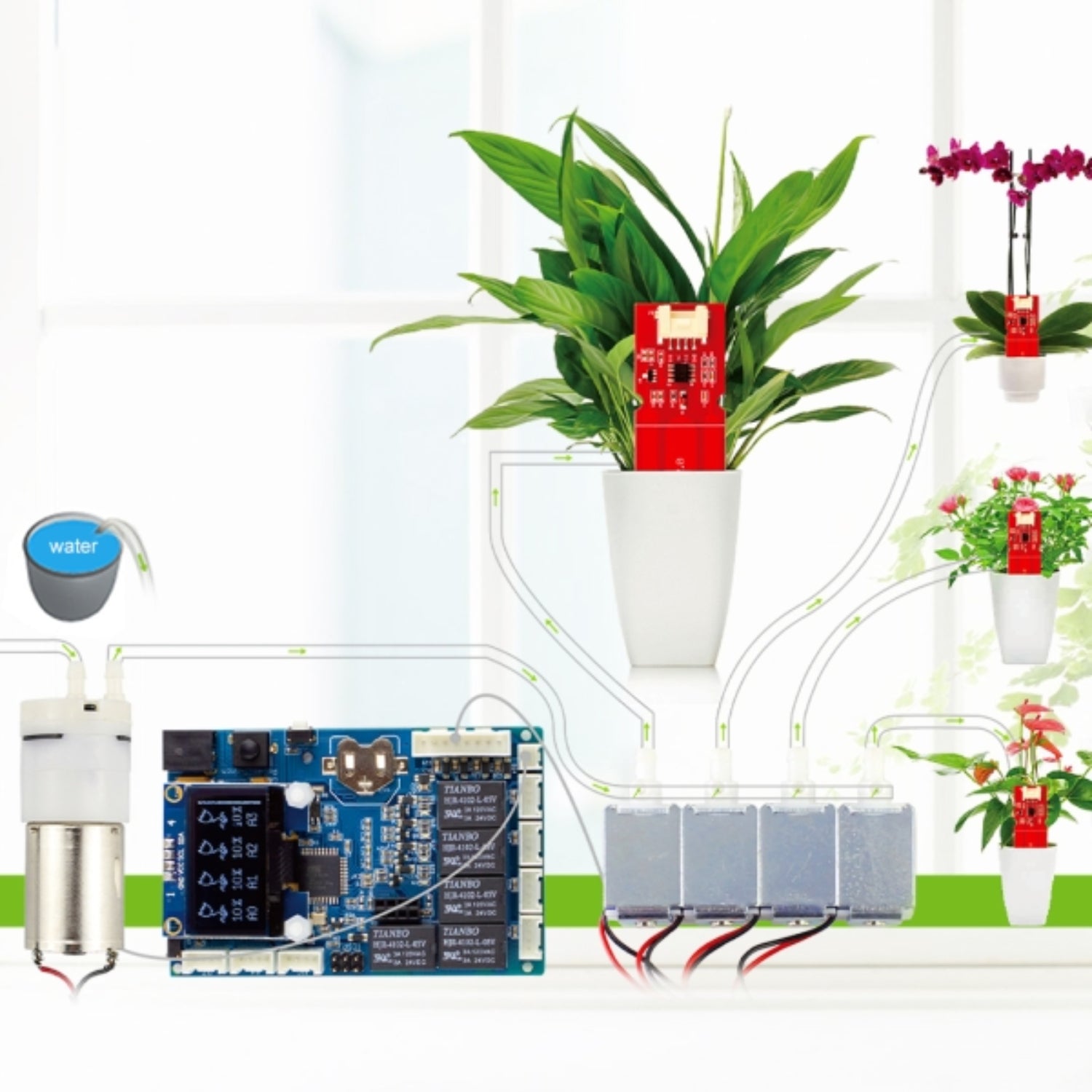

1 x ELECROW DC 12V Four-Way Solenoid Valve 2.1 Smart Watering System Is Efficient Water Distribution With 4-Way Valve It Upgrade Your Watering System
