Description:

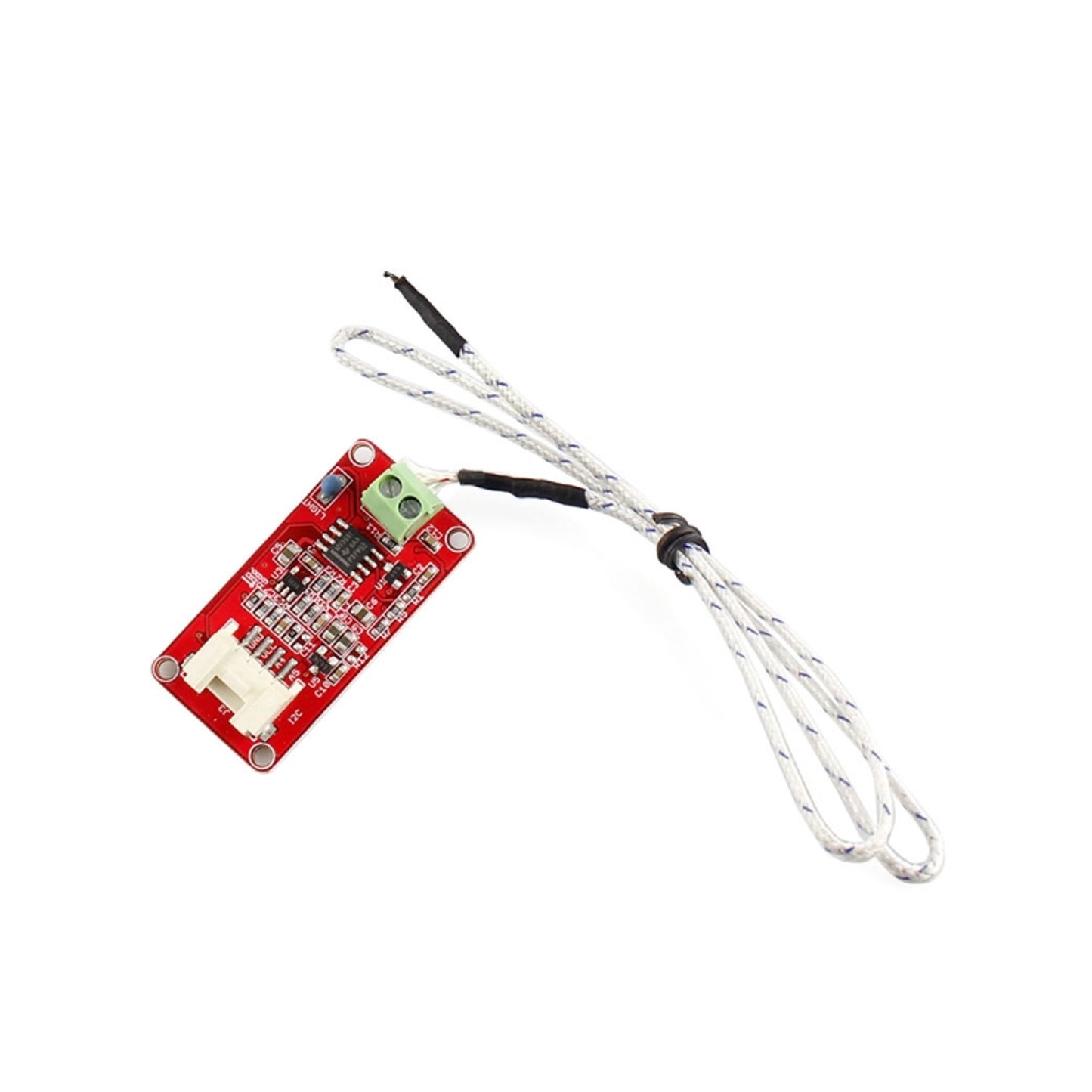

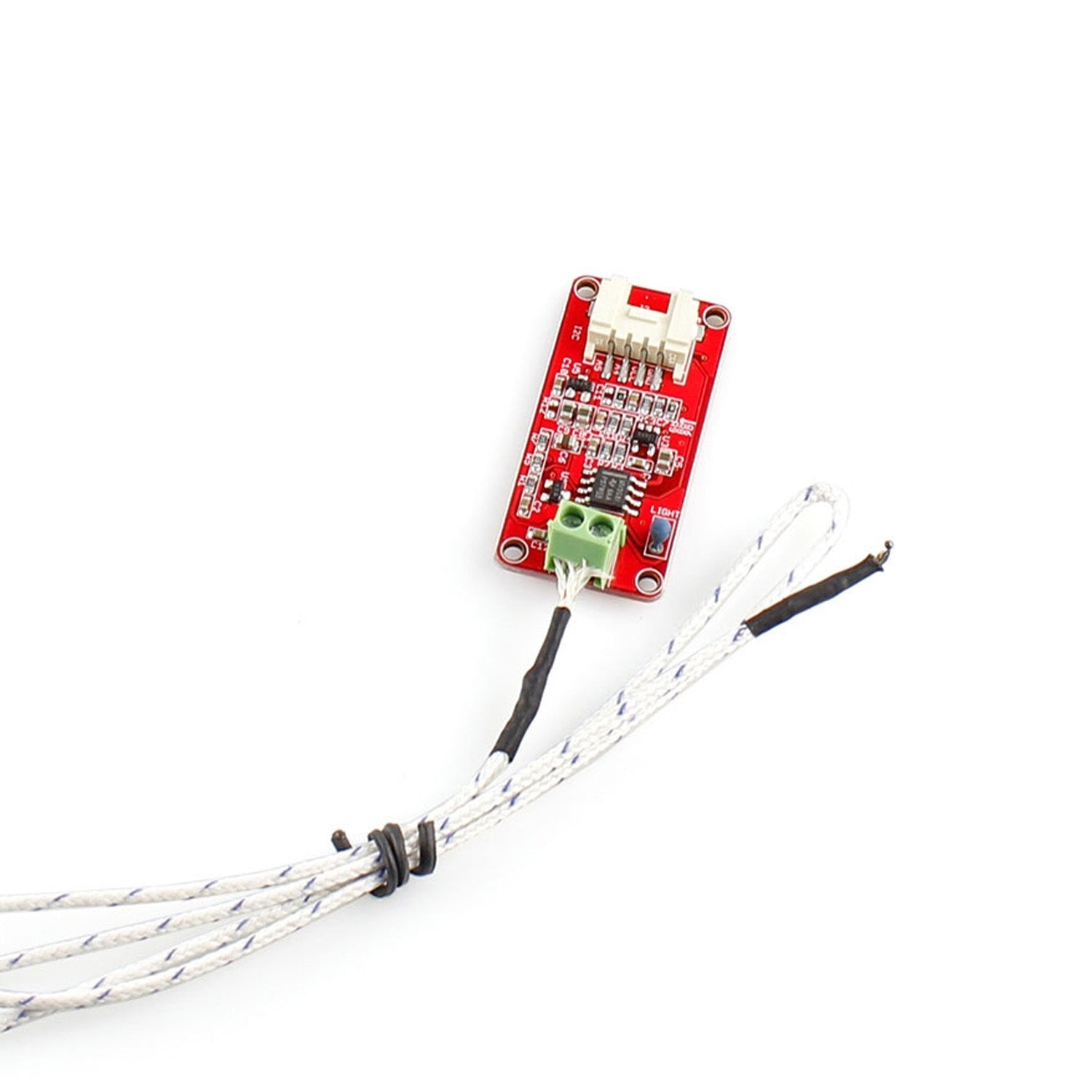

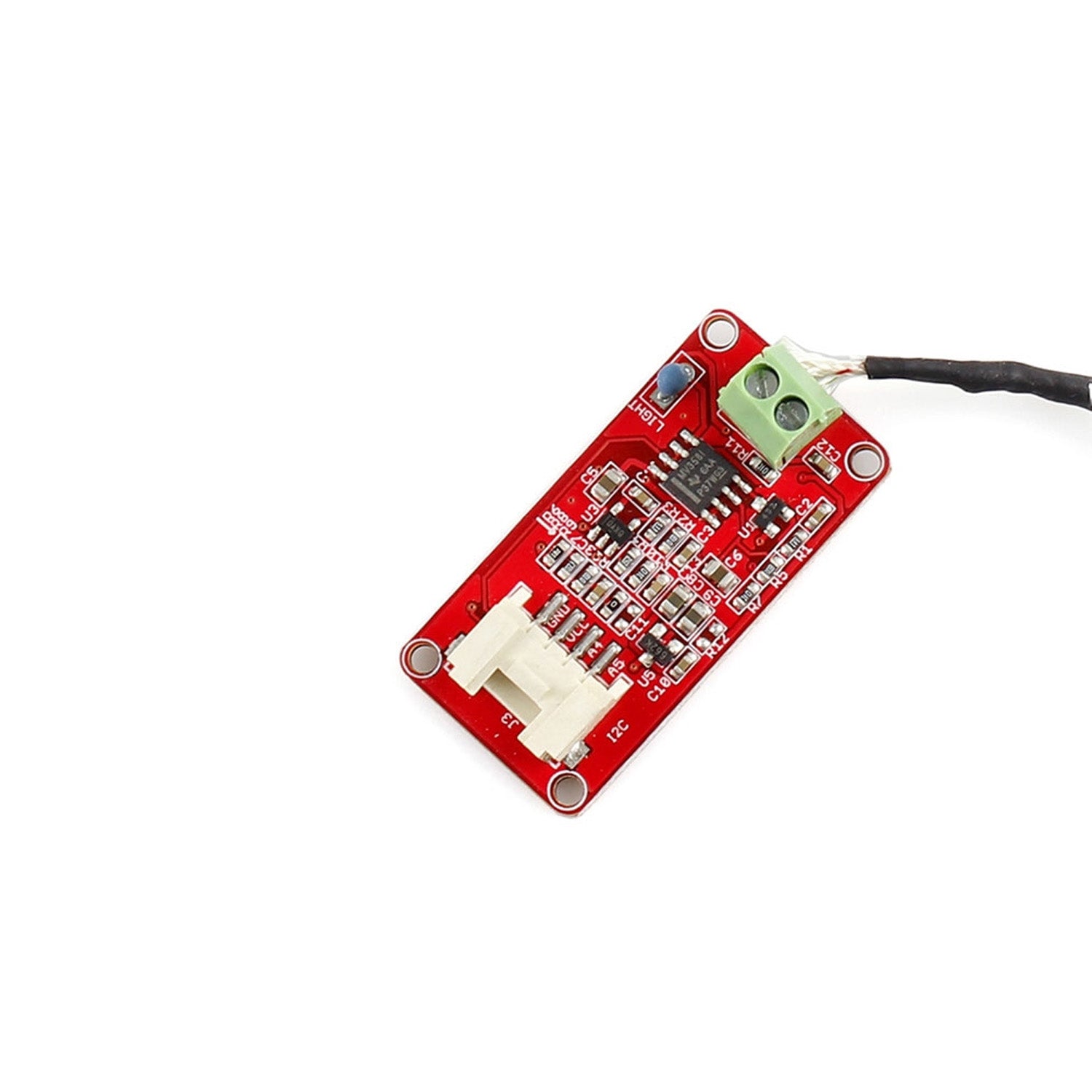

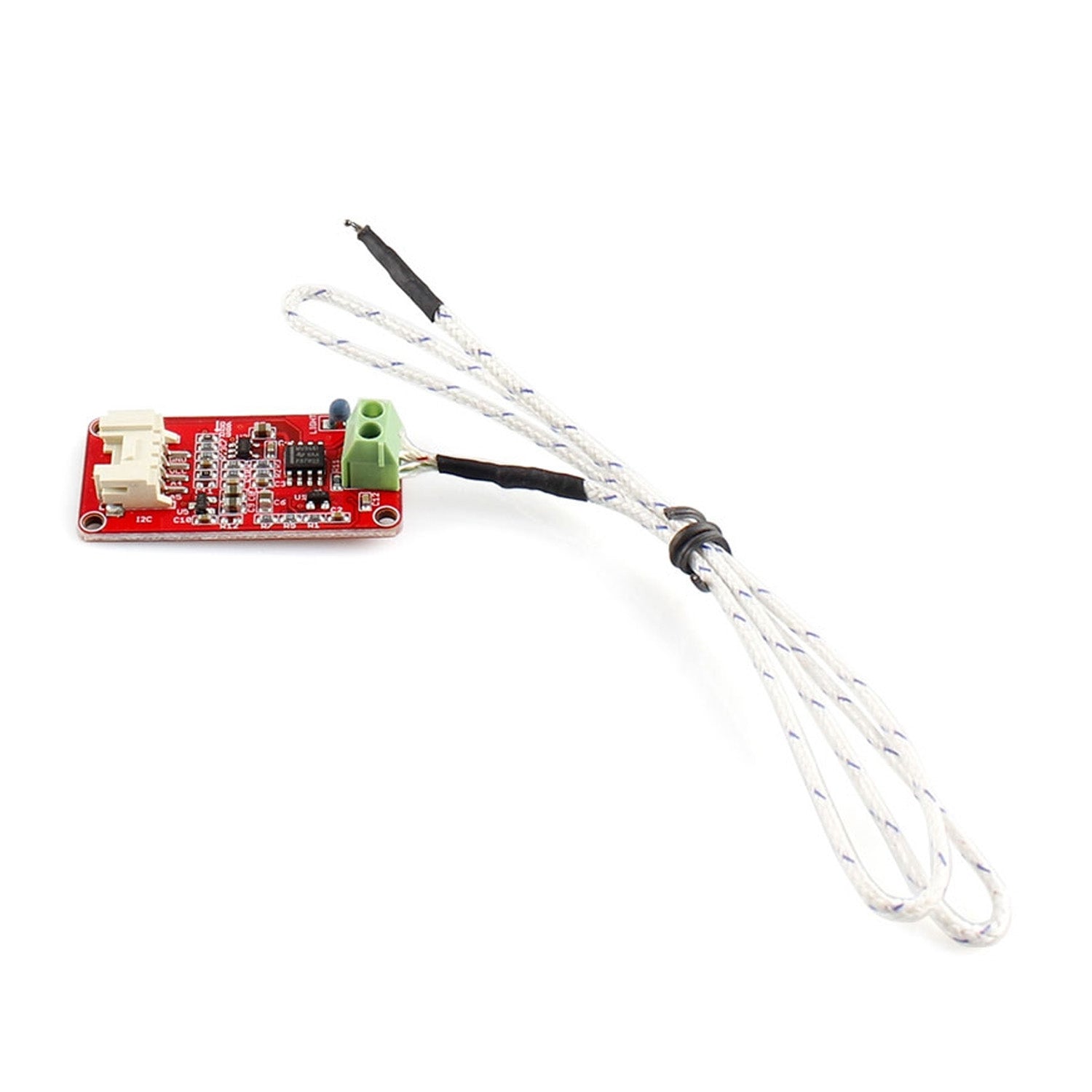

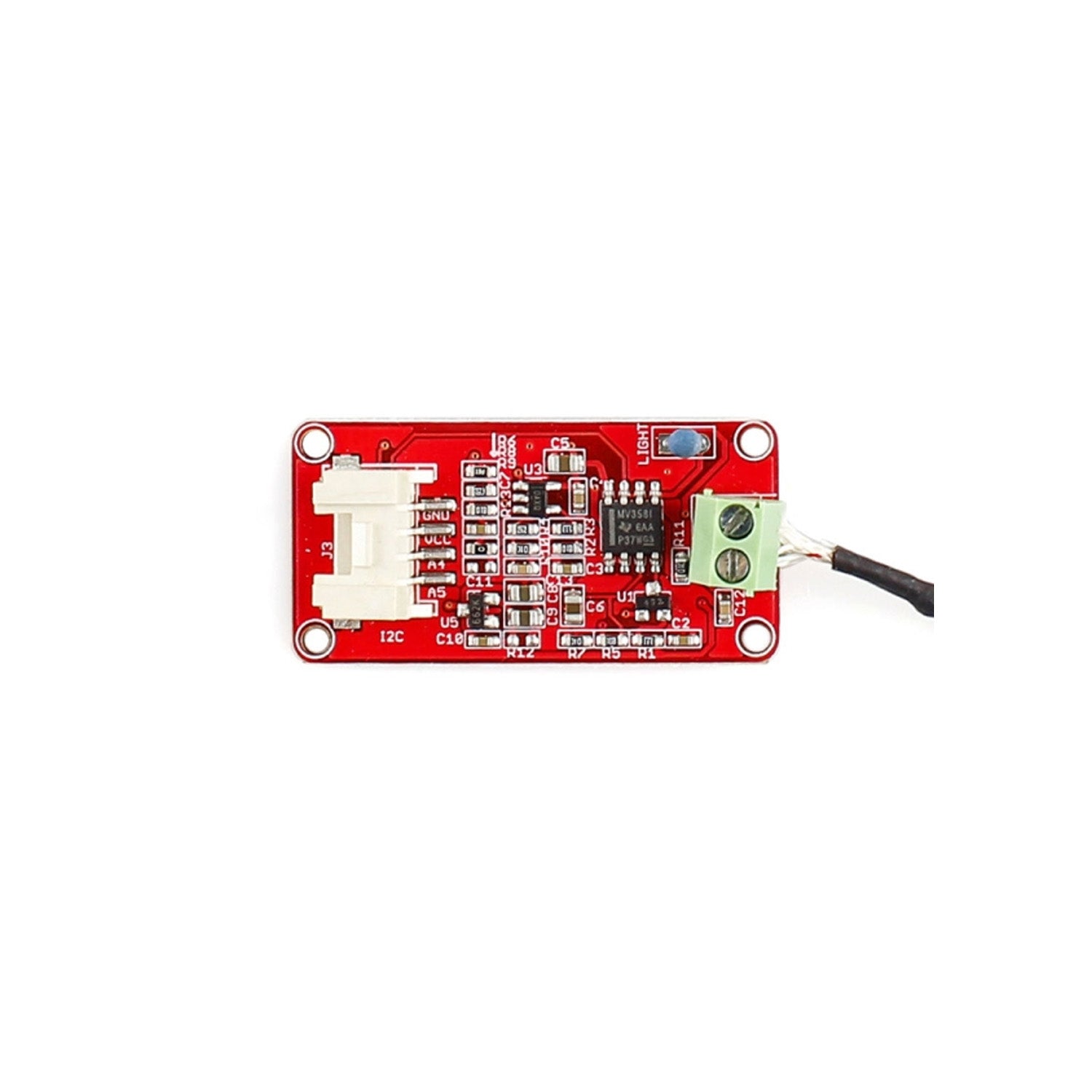

Crowtail- Thermocouple Sensor 2.0 are very sensitive, requiring a good amplifier with a cold - compensation reference. The high accuracy thermocouple Uses a K-type thermocouple Temperature detection, with a Thermistor to detect The ambient Temperature as Temperature compensation. The detectable range of this Sensor is -50-600℃, and The accuracy is ±(2.0% + 2℃)
Specifictions:
- Thermocouple temperature measurement accuracy of + / - 2.0% (+ 2 ℃)
- Temperature measurement range is (-50 ~ +600℃)
- Voltage：3.3 ~ 5V
- Max power rating at 25℃: 300mW
- Operating temperature range：-40 ~ +125 ℃
- Amplifier output voltage range (0 ~ 3.3 V) mv
- Cold junction compensation (environment temperature measurement)
Features:
- Crowtail interface
- High accuracy
- Wide measurement range
Useful Link:
Crowtail- Thermocouple Sensor 2.0
Package Included:
1 x ELECROW Crowtail- Thermocouple Sensor 2.0 High Temperature Thermocouple Sensor Accurate Temperature Measurement With Thermocouple Sensor With Digital Output
