Description:

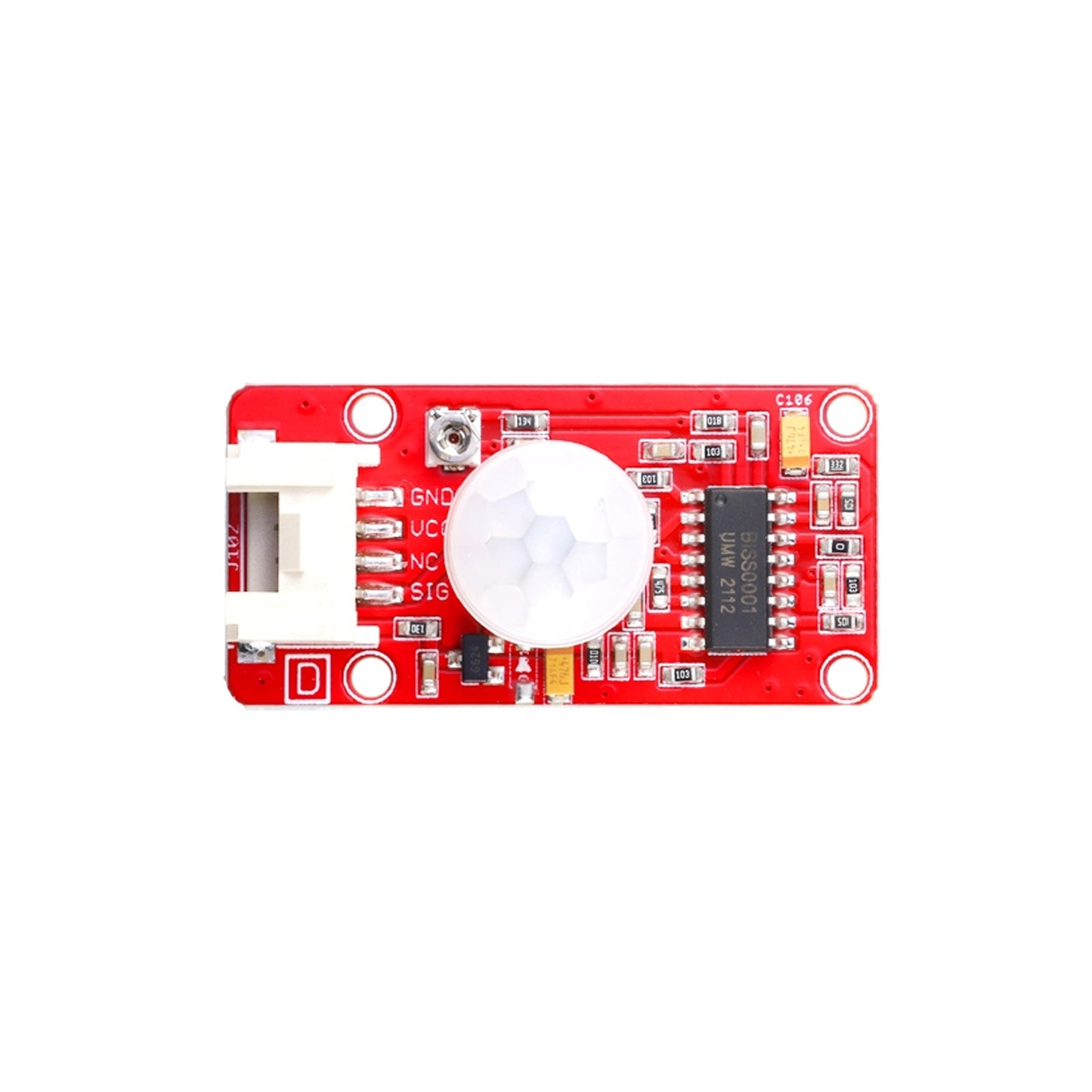

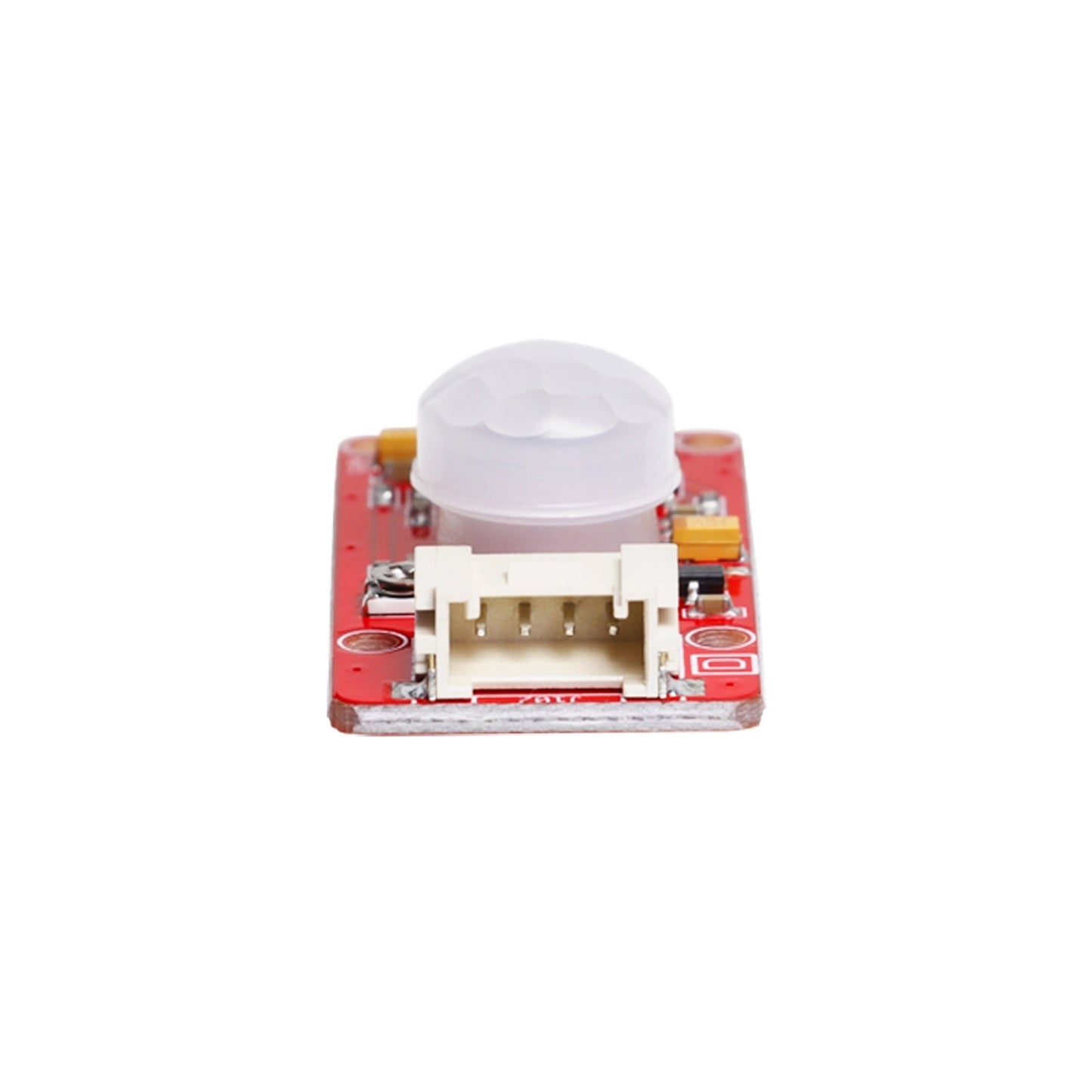

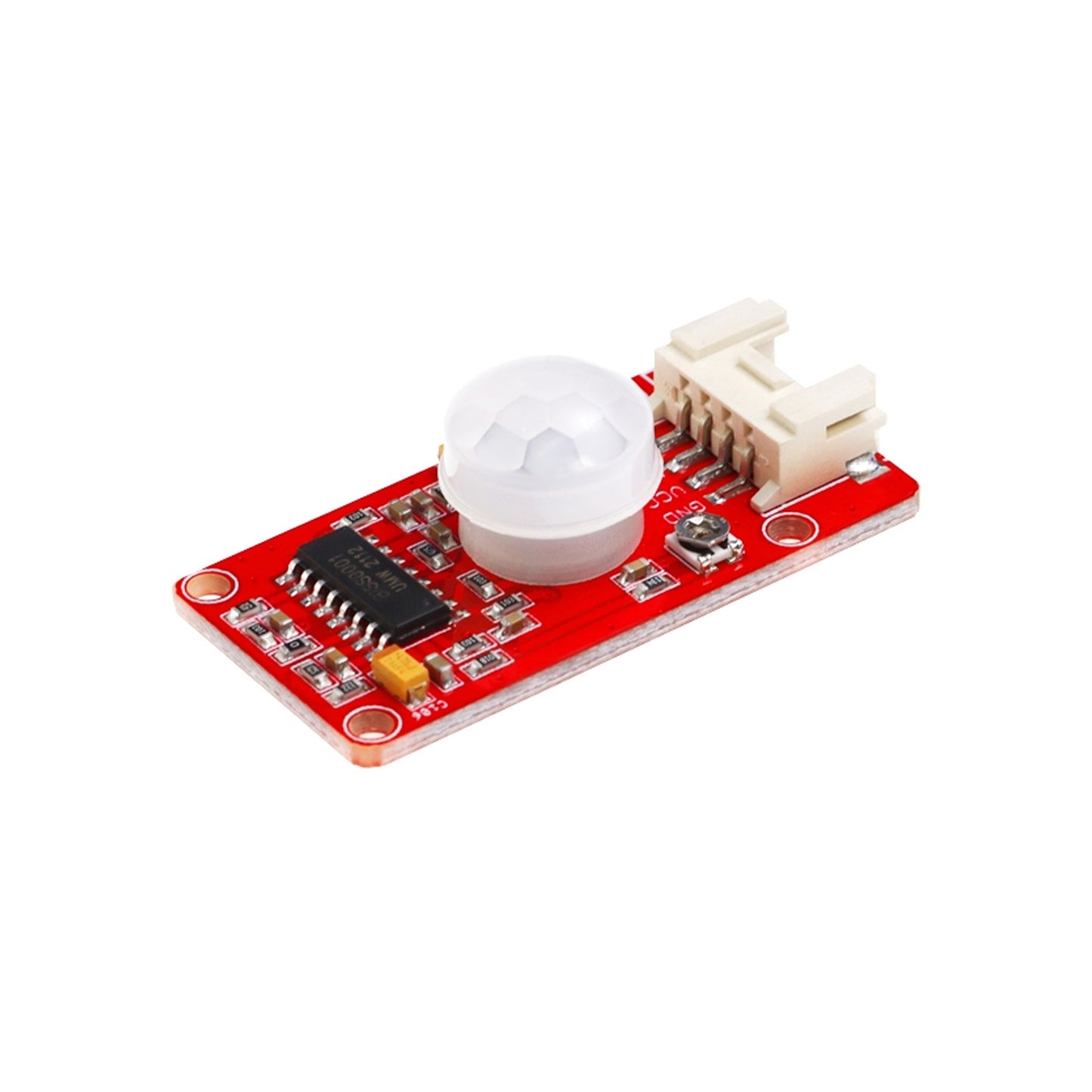

This is a simple to use PIR Sensor 2.0 with Crowtail compatible interface. Simply connect it to Crowtail base shield and program it, when anyone moves in its detecting range, the sensor outputs HIGH on its SIG pin. The detecting range can be adjusted by a potentiometer soldered on its circuit board, The max detecting range of it up to 6 meters.
Features:
- PIR motion detection Compatible interface
- Voltage Range: 3V–5V
- Dimensions(mm):40.0(L)x20.0(W)x13.0(H)
- Detecting Angle: 120 degree
- Detecting Distance: Max 6m (3m by default)
- Adjustable Detecting Distance
Applications:
- Thief-guarding System
- Switch
- Industrial automation
Useful Link:
Package Included:

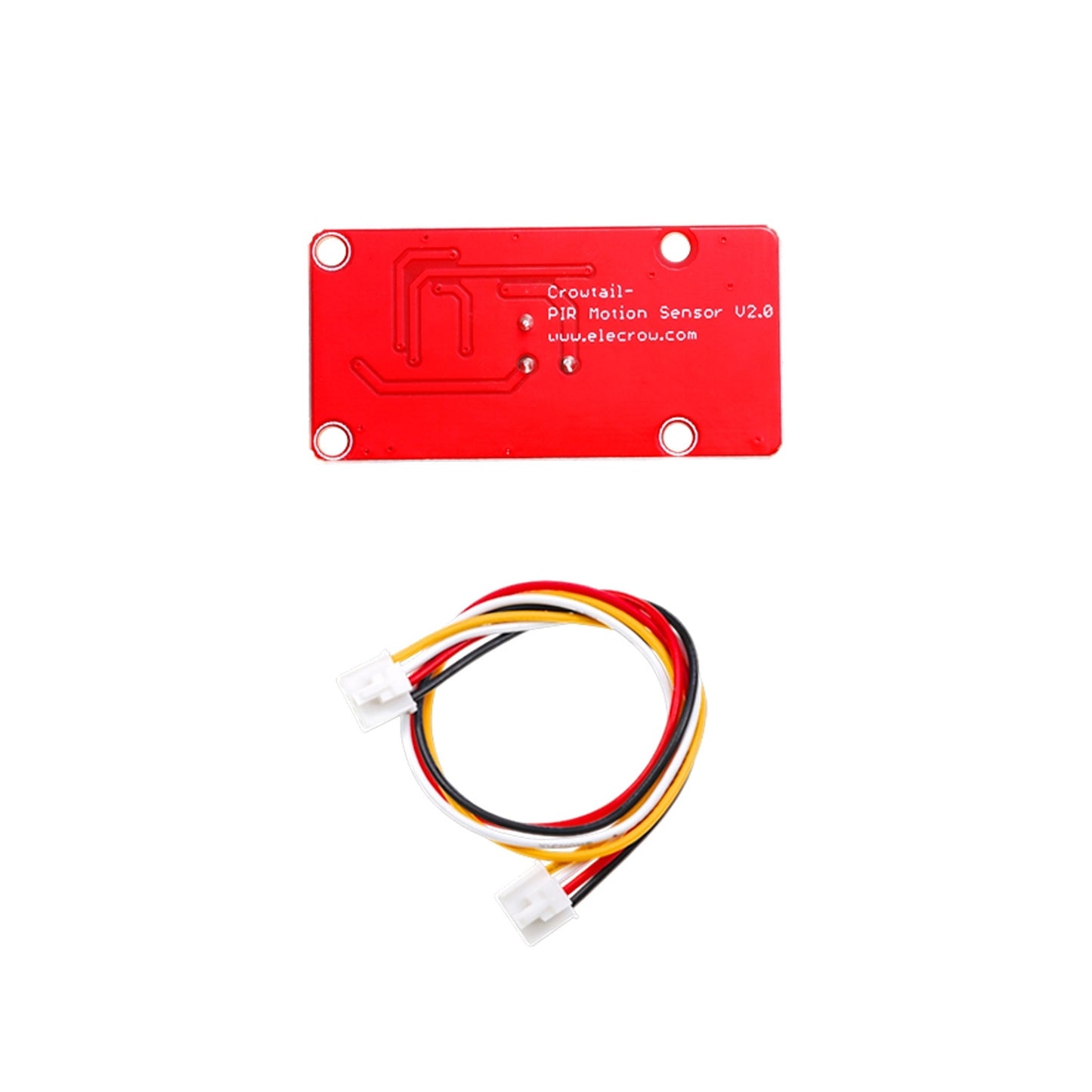

1 x ELECROW Crowtail- PIR Sensor 2.0 Crowtail Motion Sensor For Arduino Best PIR Motion Sensor For Home Automation With PIR Sensor
