Description:

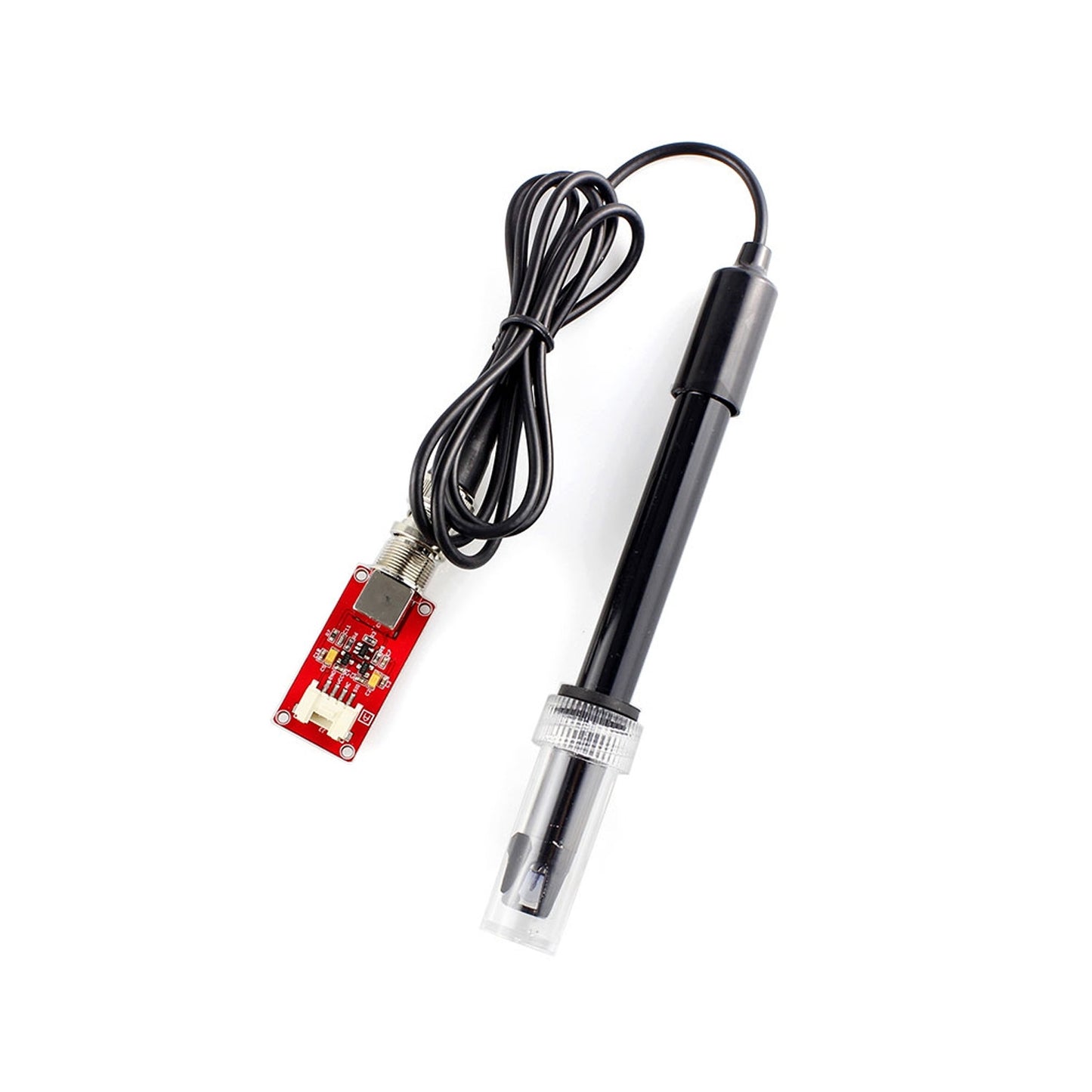

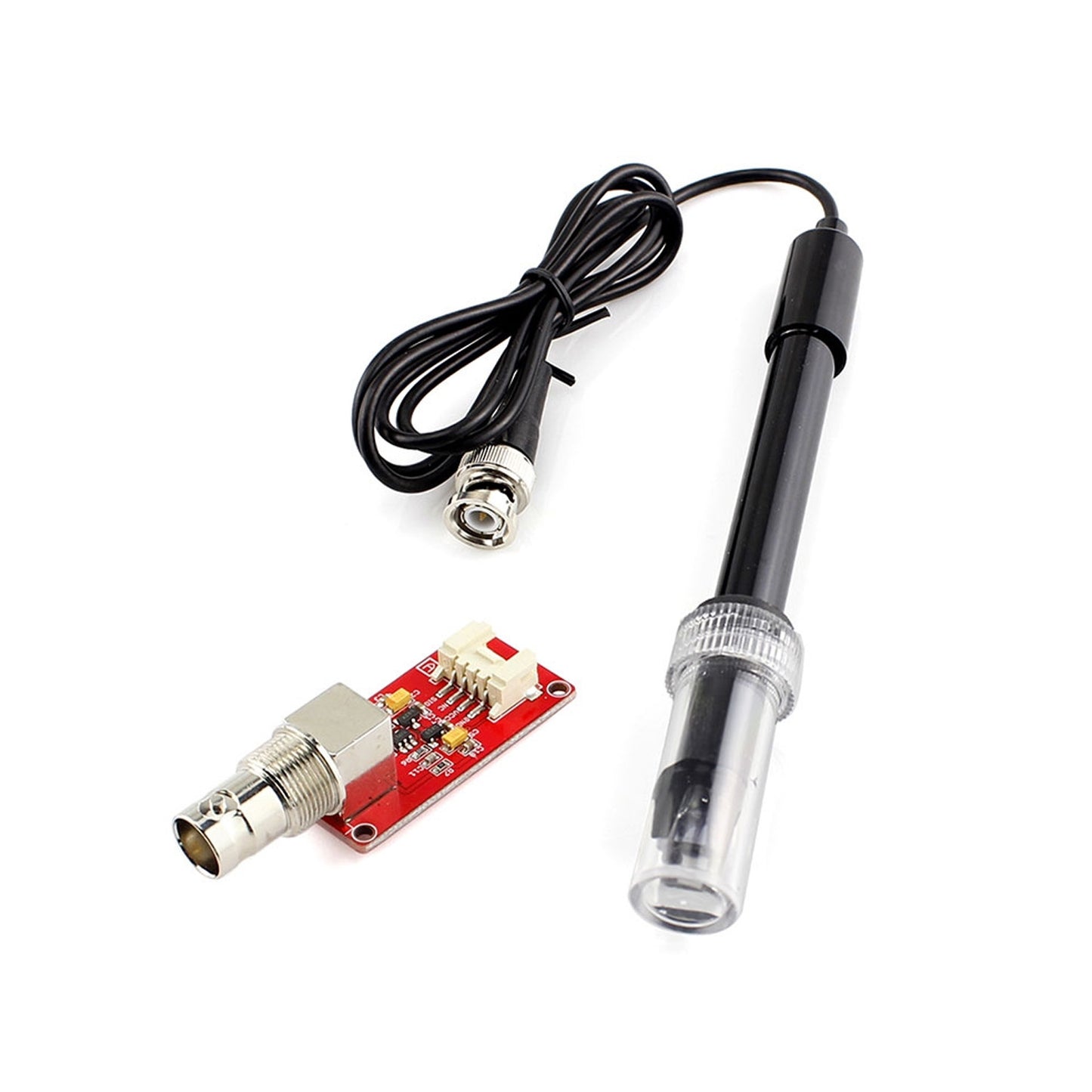

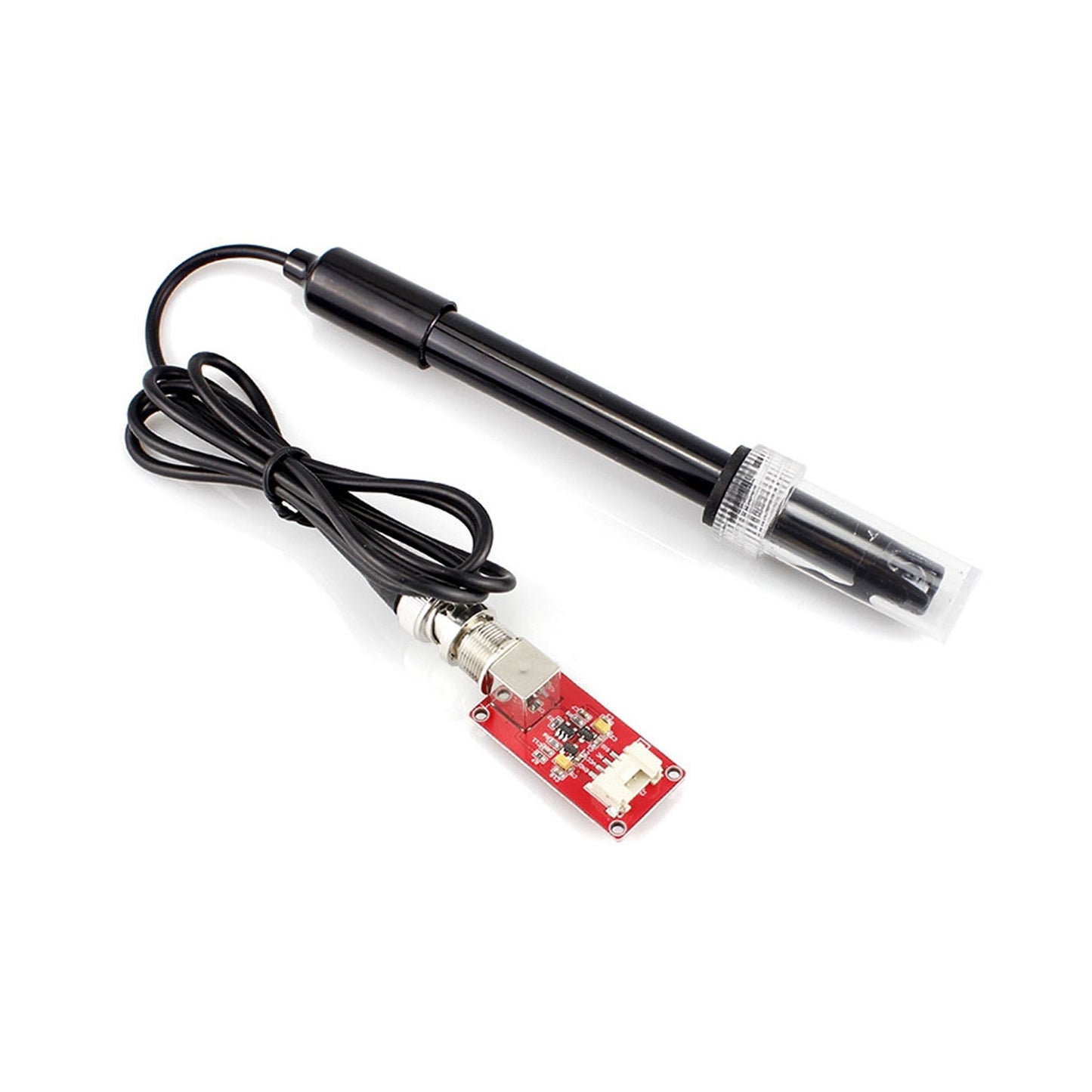

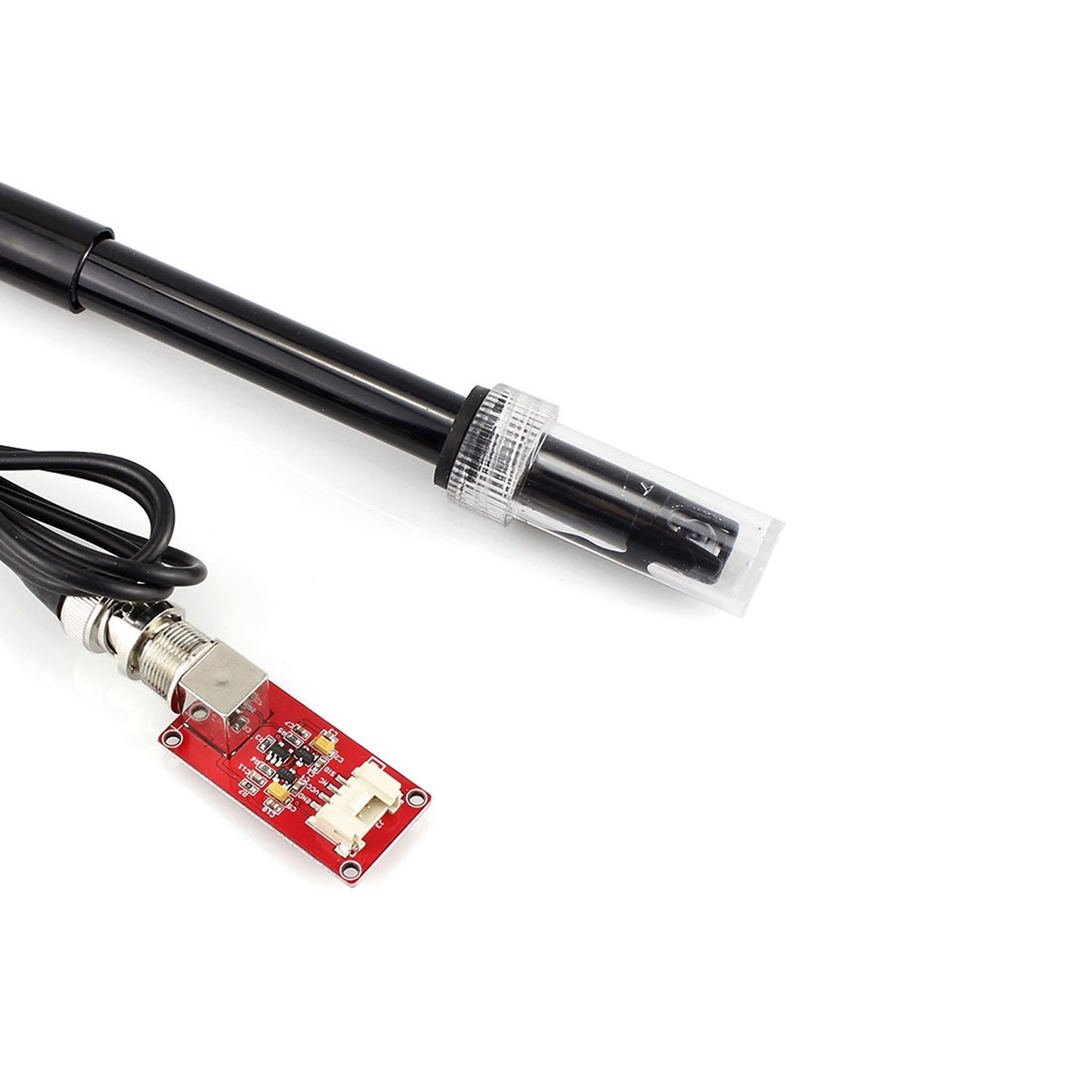

The module is a PH sensor, which can be used to test the PH value of the aqueous solution. The electrode of the Crowtail PH sensor is a composite electrode composed of a glass electrode and a reference electrode.
PH Sensor Module is widely used in environmental monitoring, chemical industry, pharmaceutical industry, dyestuff industry, universities, and research institutions in the situation of detection of the pH of an aqueous solution.
Specifications:
- Range of Measurement: 0-14 pH
- Measuring Temperature: 0-60℃
- Response Time: less than 2min
- Working Voltage: 5v
- Board Dimensions(mm):58.8(L)x20.0(W)x27.0(H)
Features:
- The plastic barrier protection of the fragile part of the electrode can’t be broken and can not be used as a string rod when measuring.
- The electrode is a full-screen type to prevent interference with the external electric field when measuring.
- Choose the analogue pin of Arduino as the LED control mode.
- The supply model is the Crowtail interface.
Useful Link:
Package Included:
1 x ELECROW Crowtail - PH Sensor Module 2.0 PH Sensor For Water Quality Monitoring Educational PH Sensor For Students DIY Projects With PH Sensor
