Description:

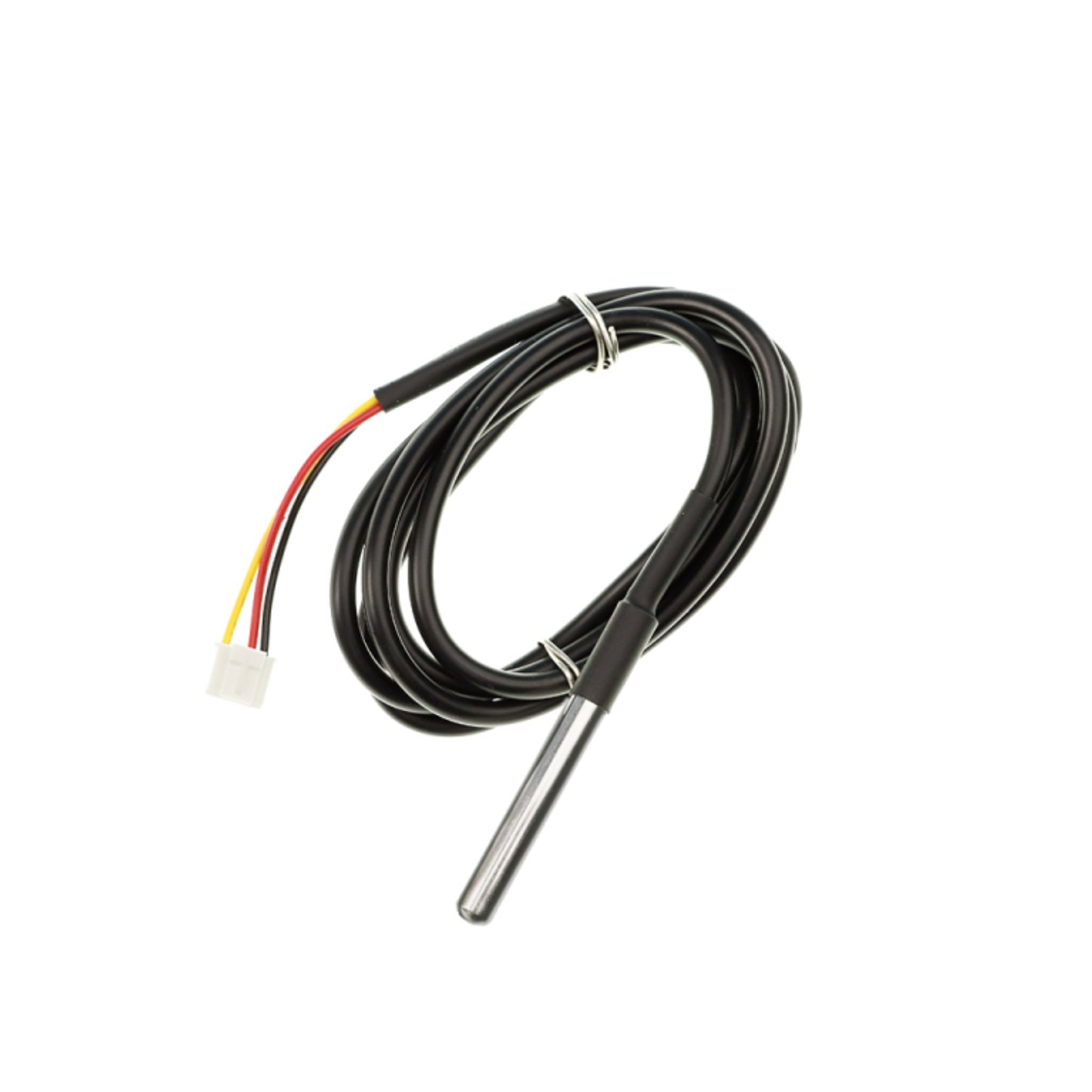

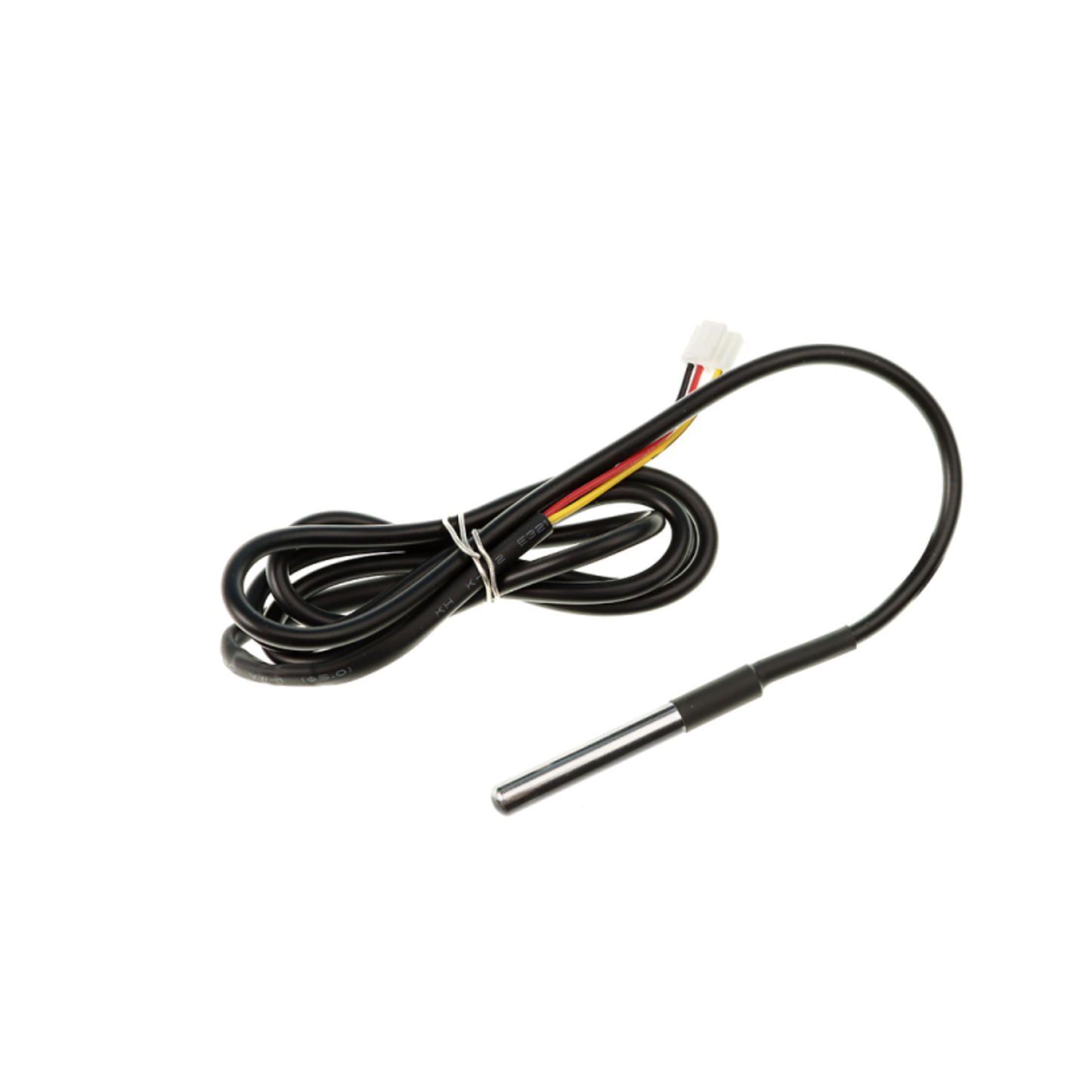

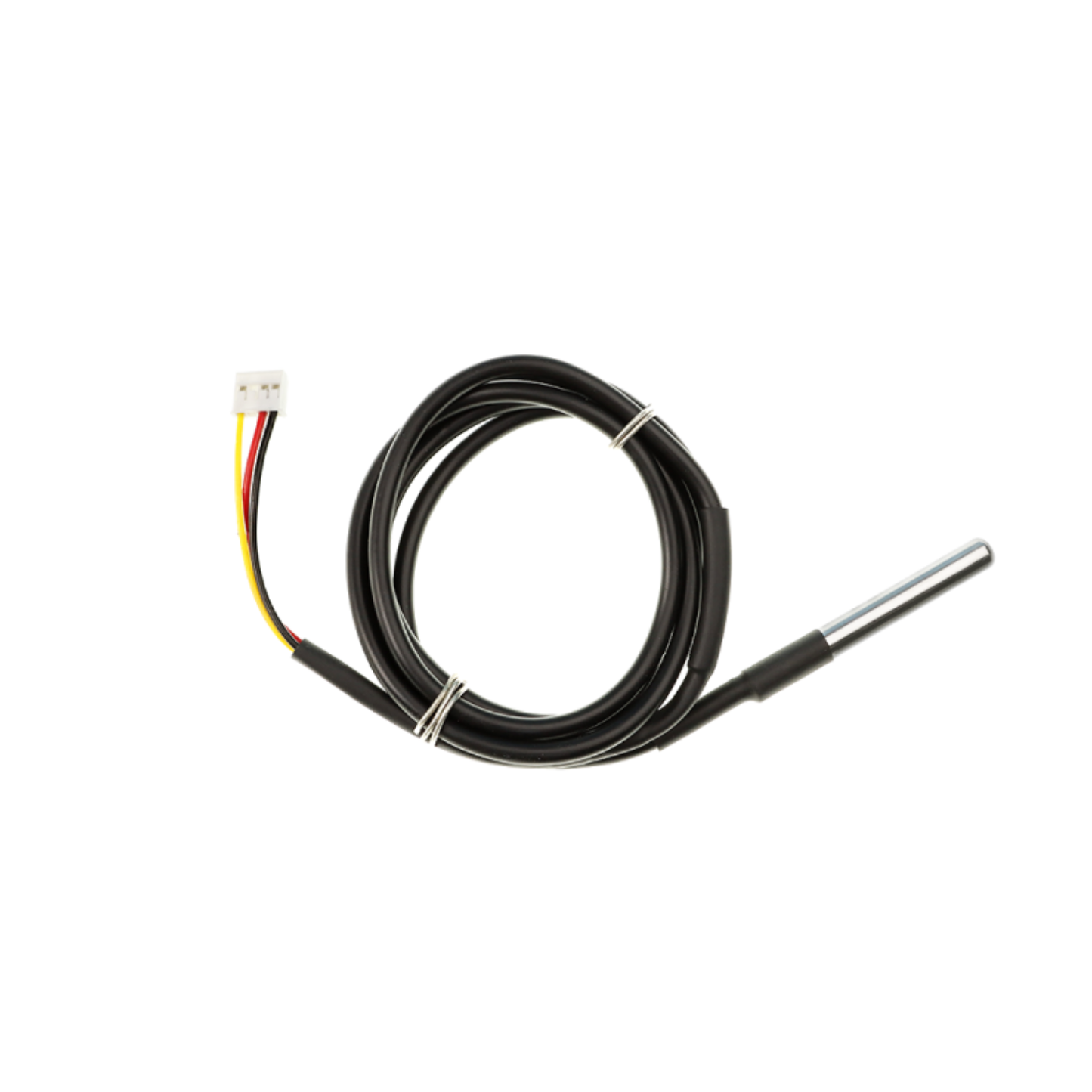

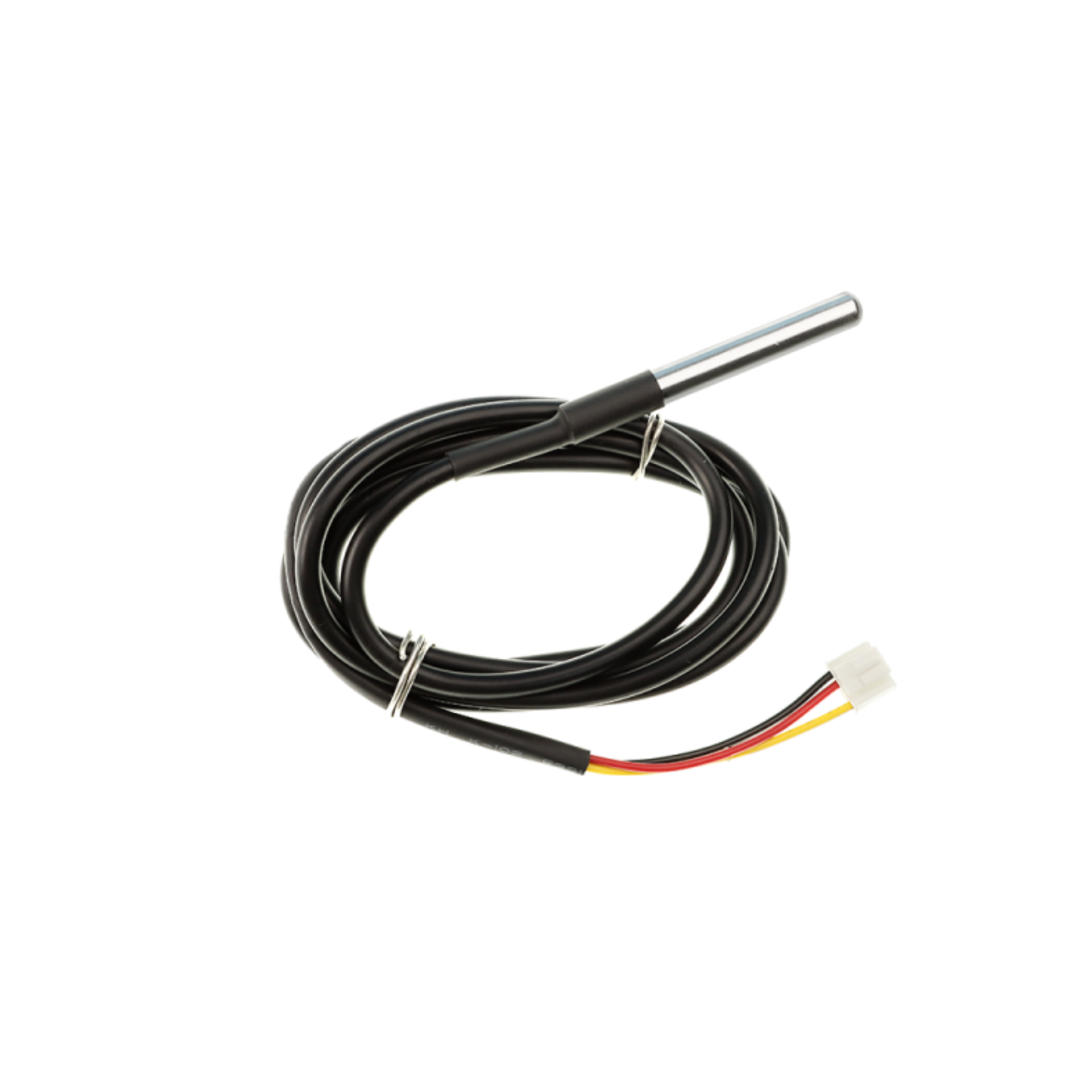

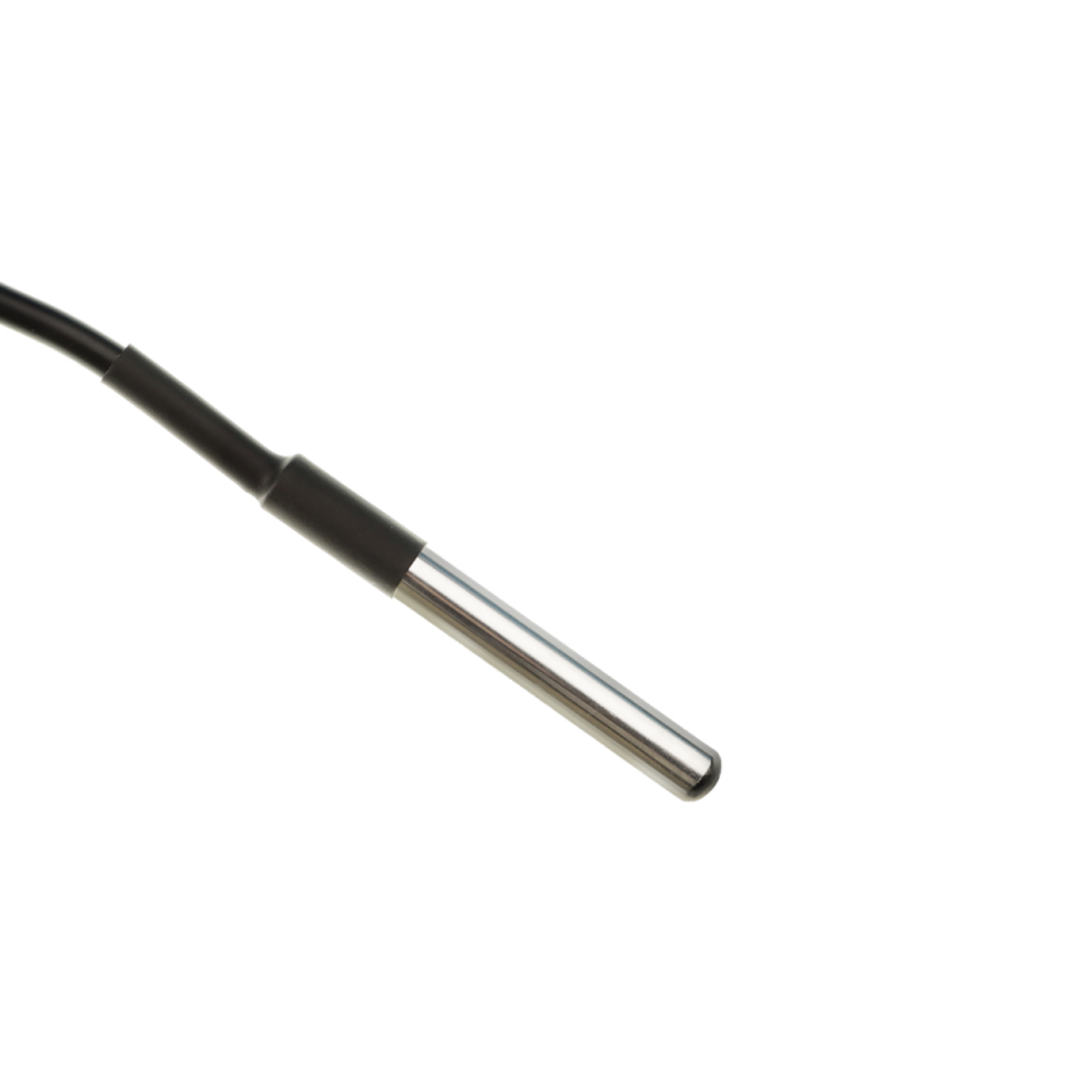

ELECROW Crowtail-One Wire Waterproof Temperature Sensor 2.0 As a new member of our “Crowtail family”, maybe we can use it easier. This is a waterproof version of the DS18B20 Temperature sensor. Handy when you need to measure something far away or in wet conditions. While the sensor is good up to 125 degrees, the cable is jacketed in PVC, so we suggest keeping it under 100 degrees. Because they are digital, you don't get any signal degradation, even over long distances!
The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-wire interface so that only one wire (and ground) needs to be connected from a central microprocessor. Usable with 3.0-5.5V systems. Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and process monitoring and control.
Specifications:
- Item Type: Sensor
- Model Type: Waterproof Temperature Probe
- Rated Voltage: 3.0(V) to 5.5
- Temp. Measuring Range (°C): -55 to +125 degrees
- Accuracy: -10 to +85 degrees
- Tube Material: Stainless steel
- Tube Diameter (mm): 30mm
- Cable length: 90cm
Features:
- 9 to 12-bit selectable resolution
- one digital PIN for communication
- Multiple sensors can share one pin
- Query time is less than 750ms
- Crowtail compatible interface
Useful Links:
Package Included:
1 x Crowtail-One Wire Waterproof Temperature Sensor 2.0
