Description:

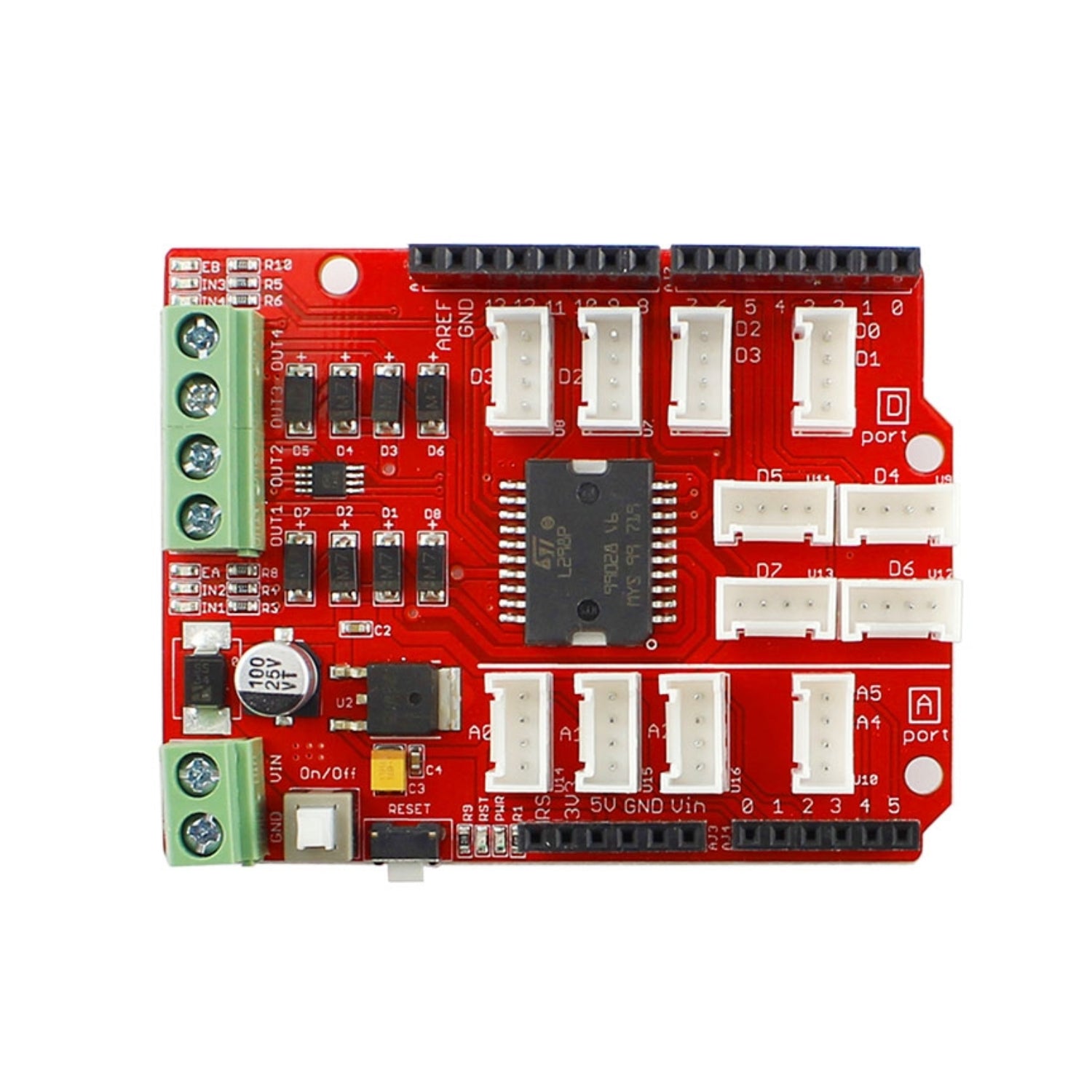

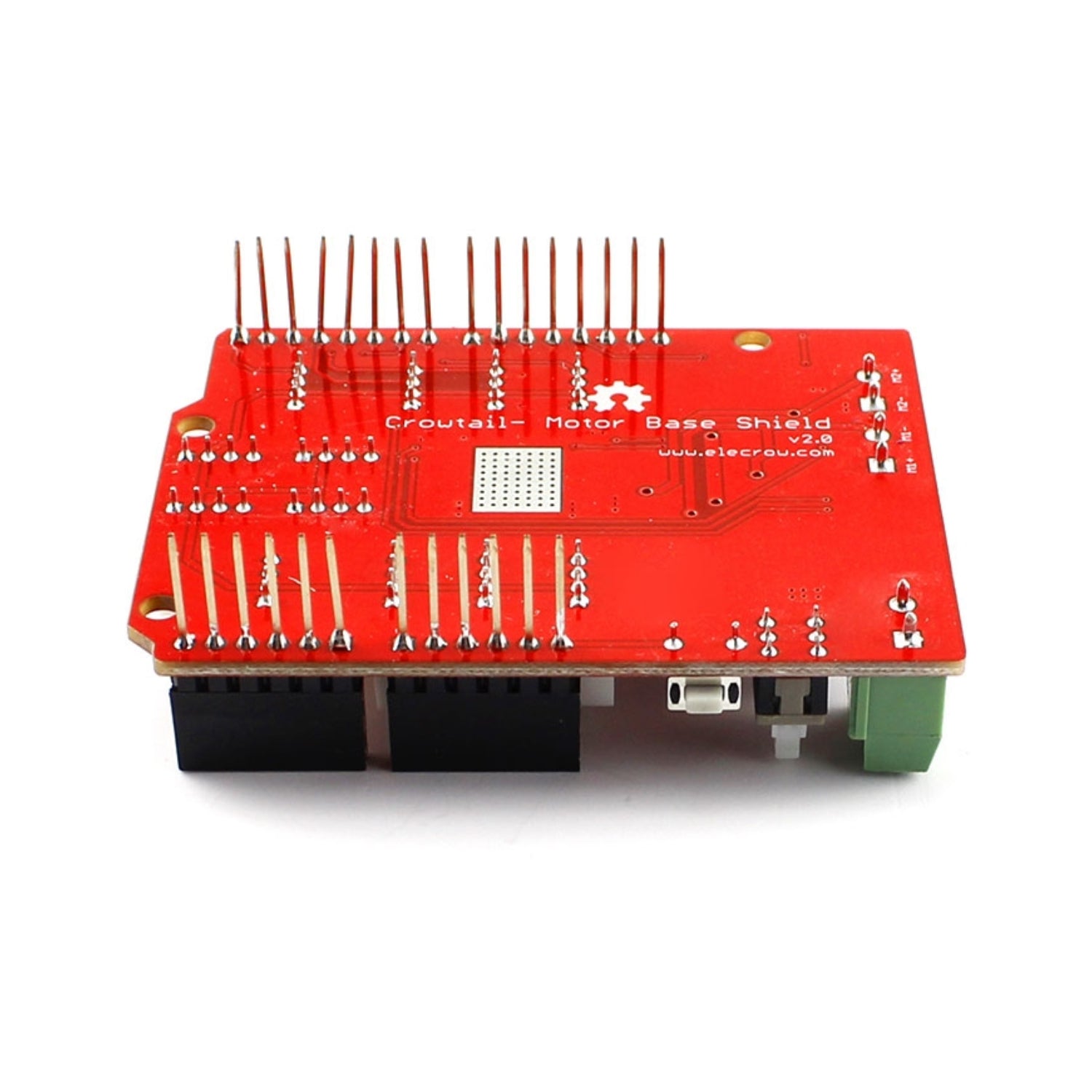

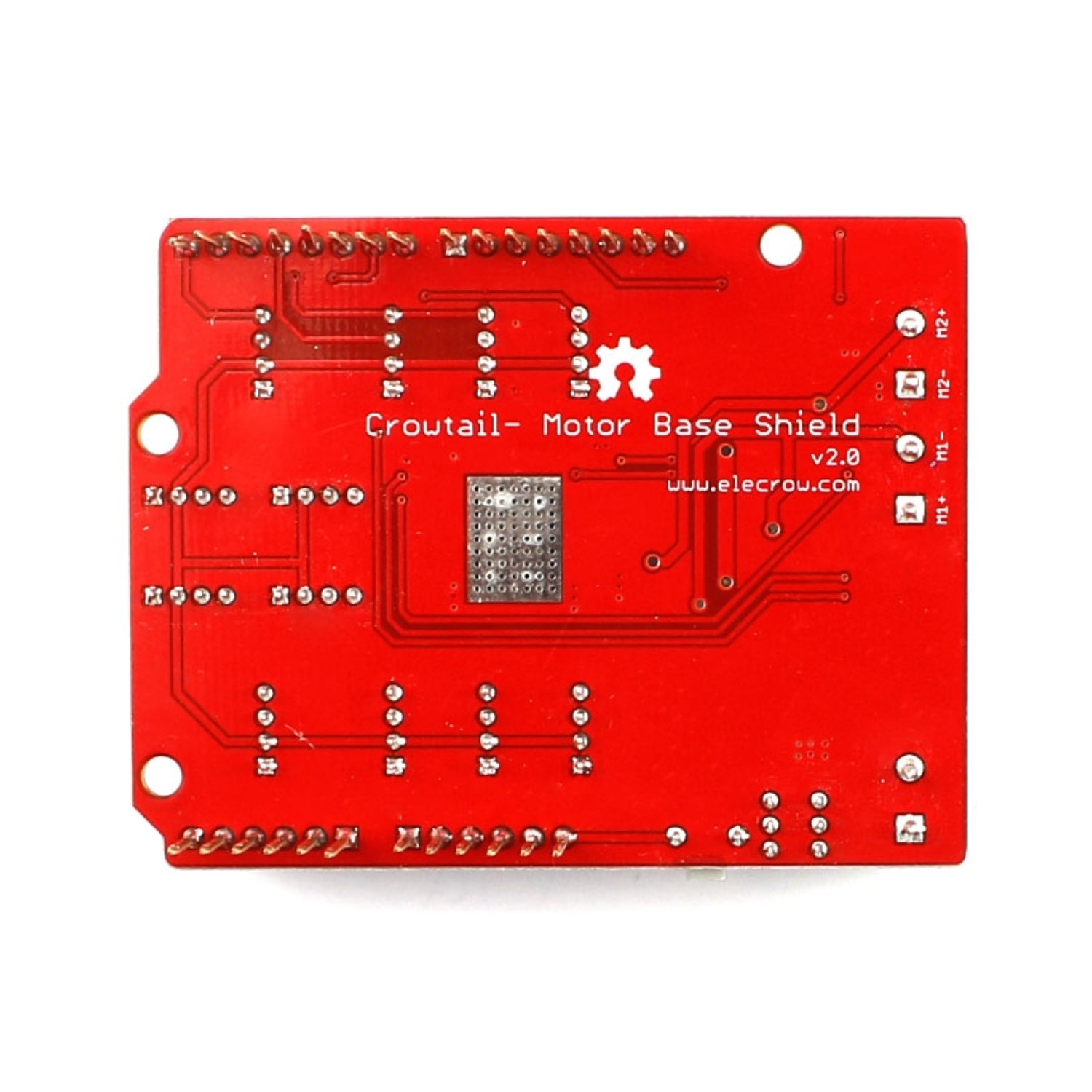

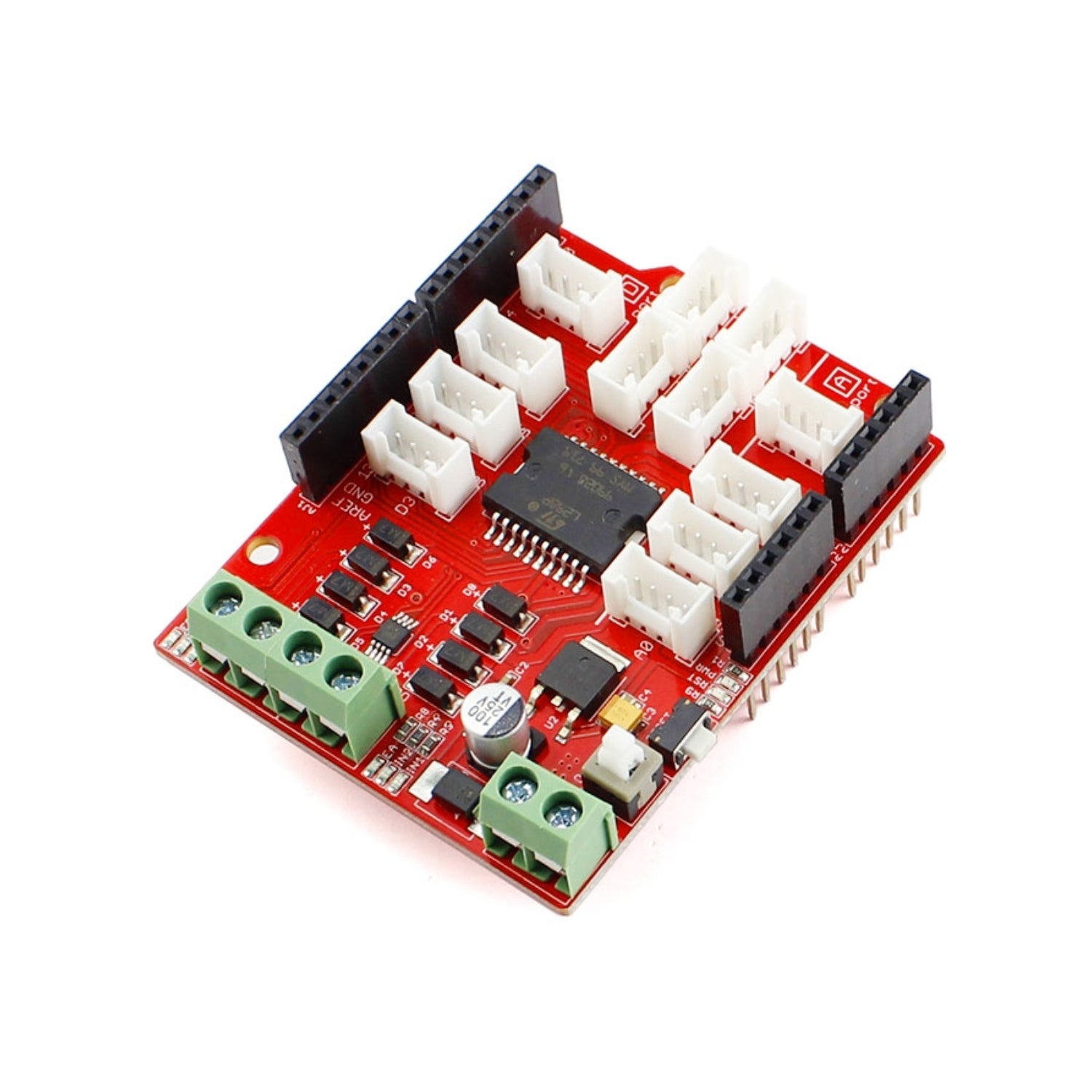

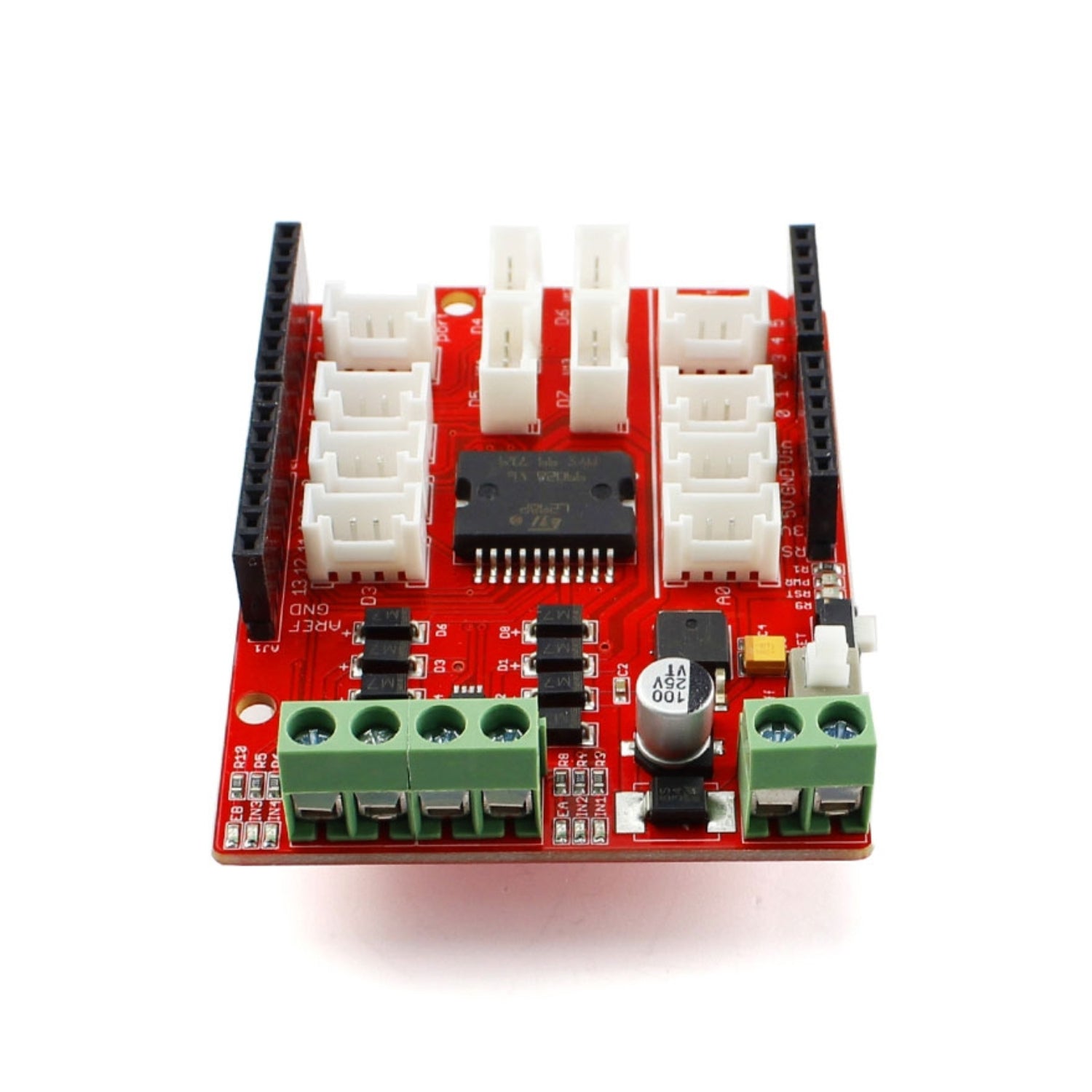

The Crowtail-Motor Base Shield 2.0 is based on the dual channel motor driver IC L298P, it integrates the Crowtail-base shield and motor stepper shield. It will bring convenience to your work with Crowduino. Stackable design is still used, The switch helps to power on/off the Motor Base Shield, which makes it more convenient to use, especially in your building debugging. To ensure the L298P works in the best status, the PCB layout meets the maximum current 2A requirements. There are 8 LEDs to indicate the Power, RST, Speed, and Directions, to help user get the detailed information on the working status.

Specifications:

• The Logic Control Voltage: 4.5~5.5V
• Max Drive Current: 2A
• Motor Supply Voltage: 6~15V
• Maximum Power Dissipation: 25W (T = 75°C)
• Operating Temperature: -25°C ~ +130°C

Usefull Link:

L298P Datasheet

Crowtail-Motor Base Shield 2.0

Package Included:

1 x ELECROW Crowtail-Motor Base Shield 2.0 Arduino Compatible Motor Driver Shield And Expandable Motor Base Shield For Arduino Projects
