Description:

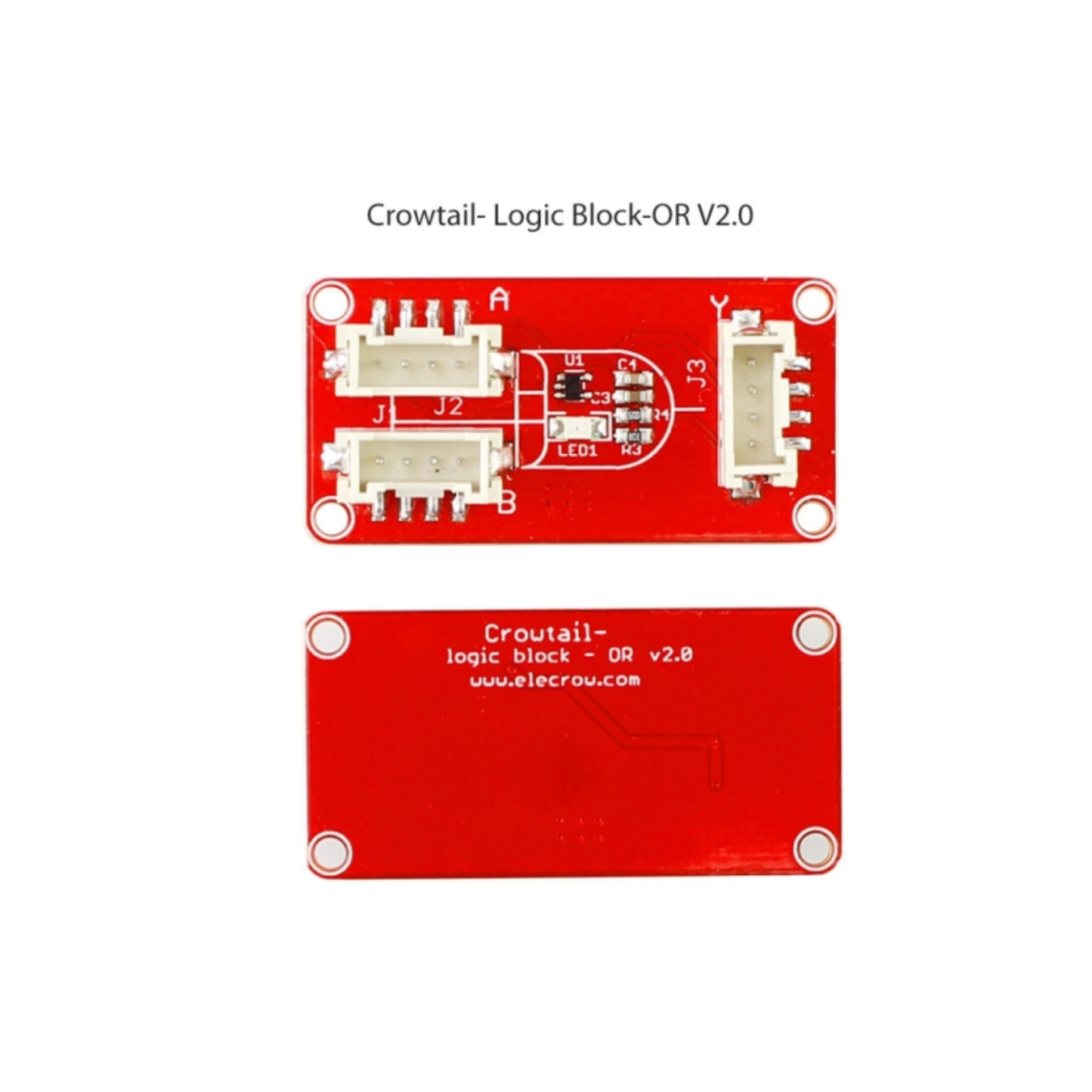

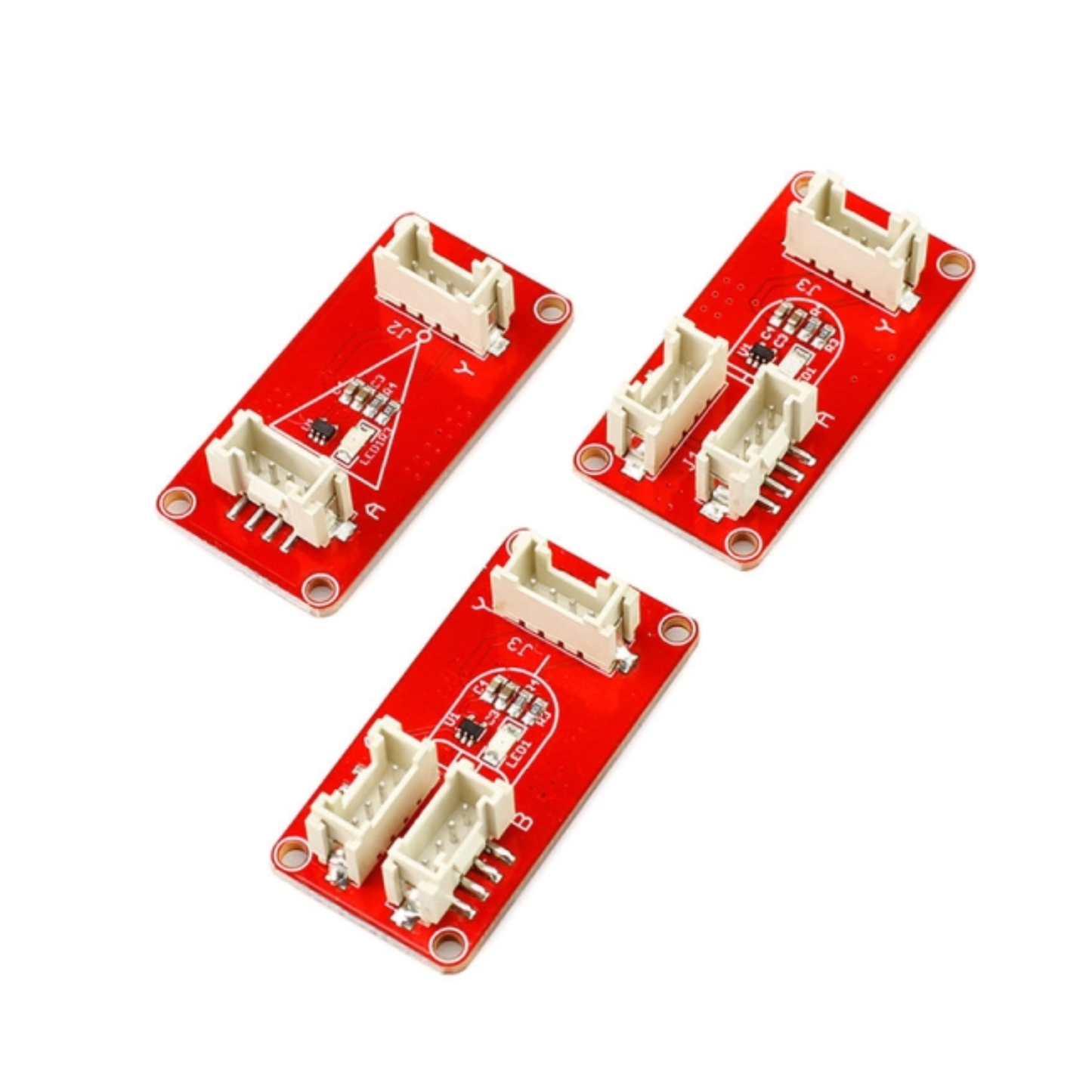

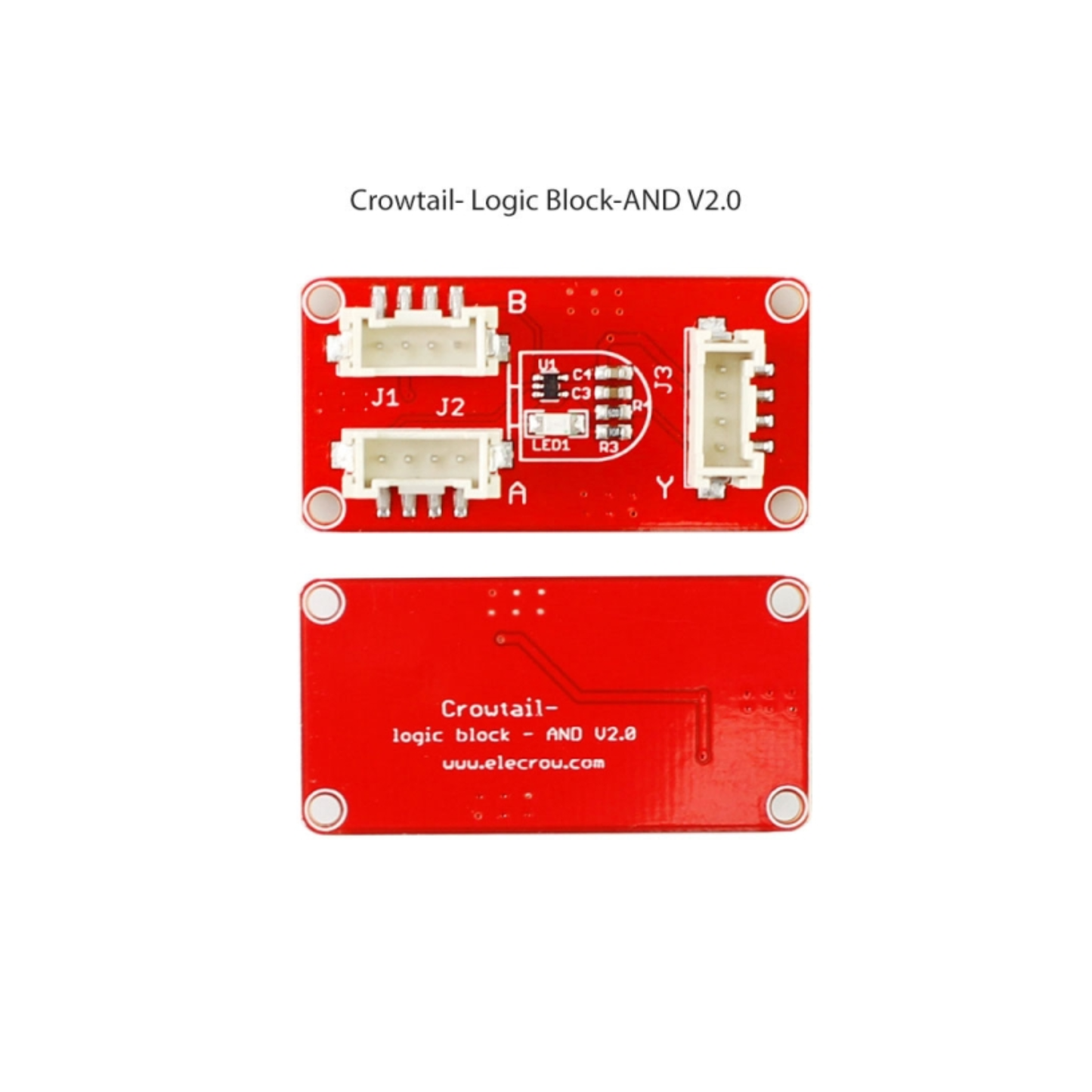

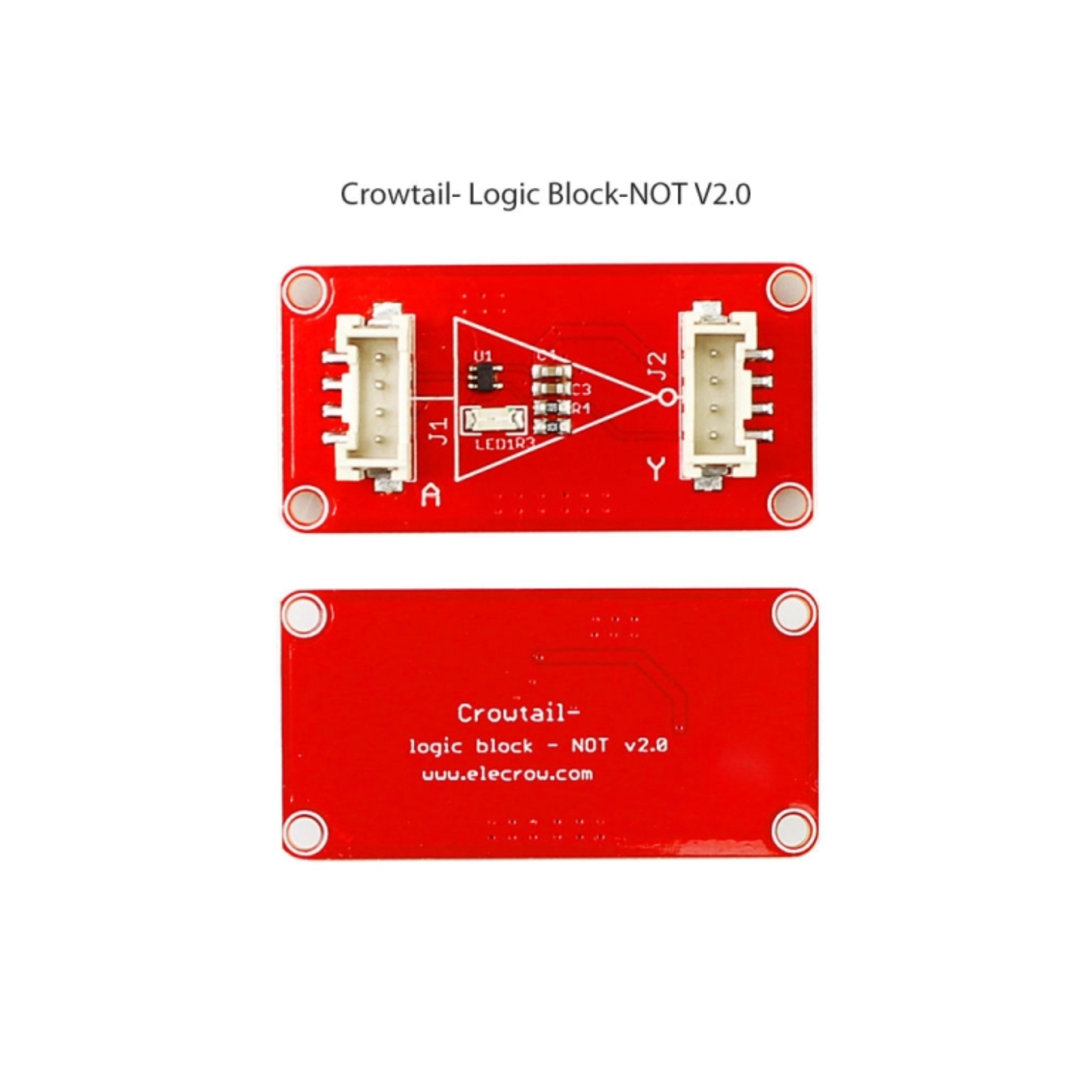

The Crowtail Logic Block allows you to play with logic gates by literally plugging one into another and watching the progression of an input to an output! Each Logic Block represents a different logic function: the NOT block is a simple inverter, where the output is the opposite of the input. The AND block will only output a 1 if both of the inputs are 1. The OR block will output a 1 if either of the inputs is 1. There are also input blocks and splitter blocks.
Specifications:
- Logic block: "AND," "OR," "NOT"
- Dimensions(mm): 40.0(L)x20.0(W)x9.8(H)
Features:
- Output Indicator
- Dual Output Port
Useful Links:
Package Included:
1 x Crowtail- Logic Block(AND/OR/NOT) 2.0
