Description:

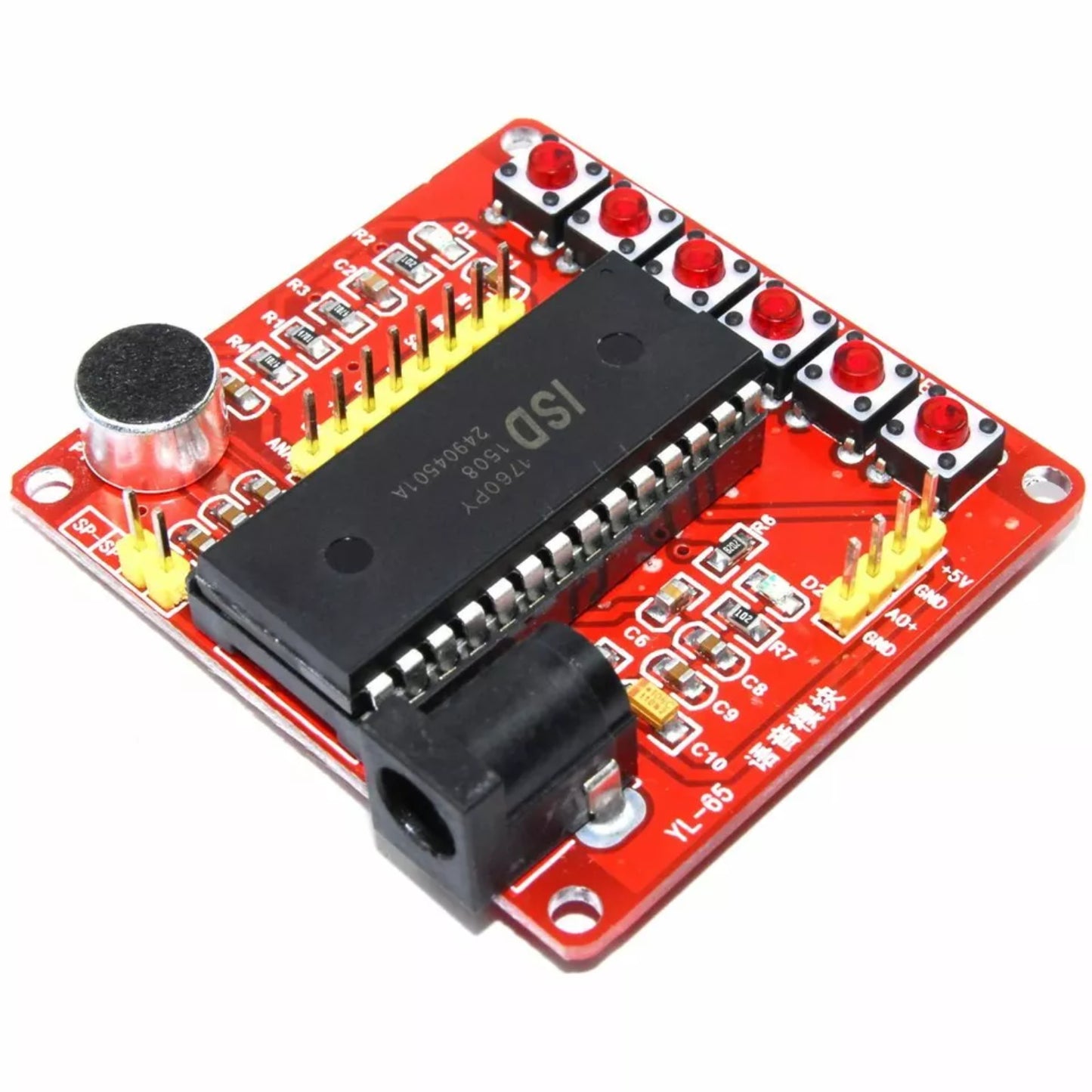

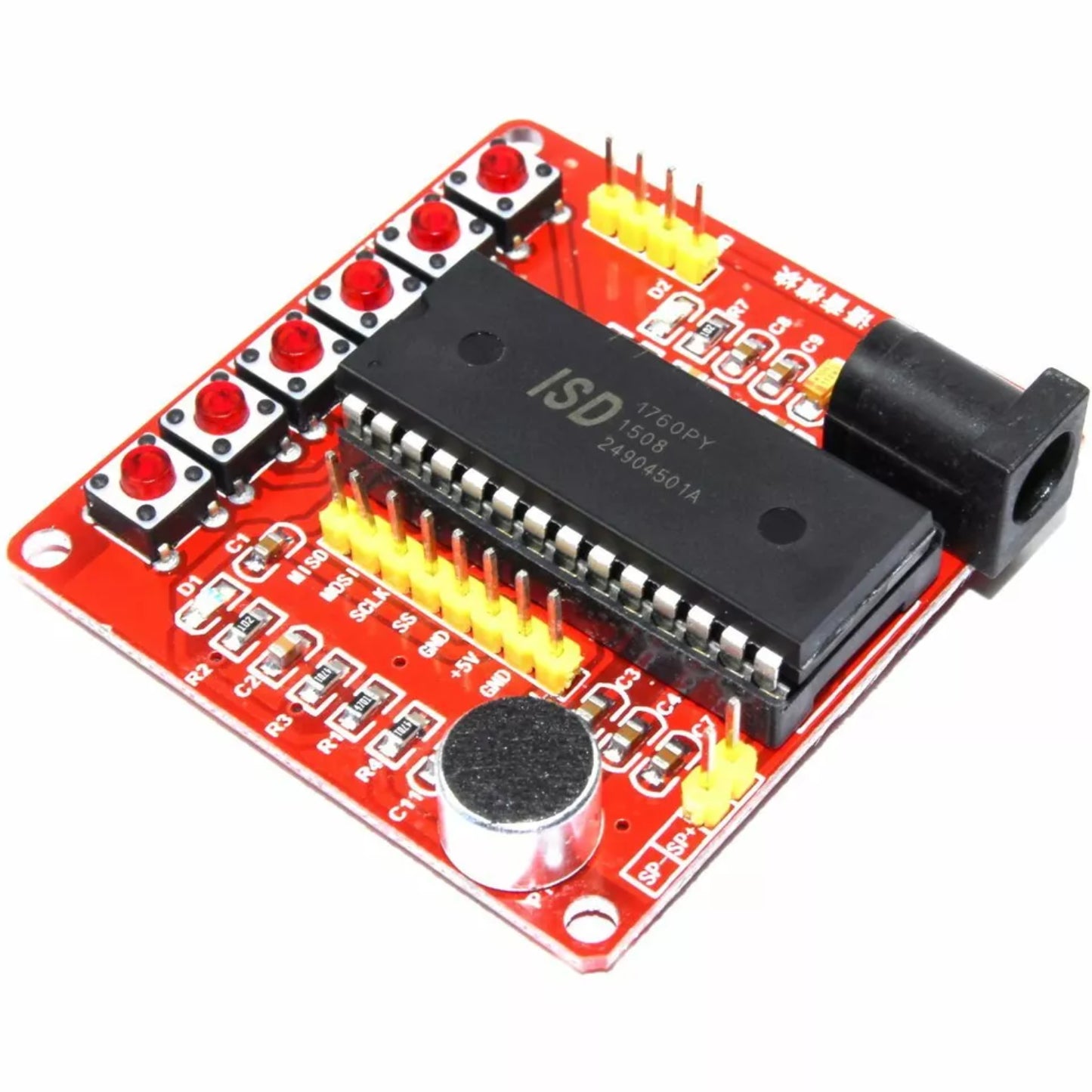

The Sound Recorder Module uses the ISD1760 Chip to record and store voice signals. ISD1700 series recording chip is a kind of high-integration, high-performance chip. This module can be multiple recording, the sampling rate can be set to 6k or 8k by the on-board resistor. There are also some inside sounds to remind the user working state of the module, such as record beginning, record stopping, record erasing, etc. The recording data is stored in the FLASH, without any compression to ensure a good quality.
Crowtail - ISD1760 Audio Recording Chip Module can easily be controlled manually or by Arduino. Audio Recording Module are some keys on the module including “REC”,” PLAY”, and” EARSE”, you can control the module with these keys. The module can be also controlled by SPI, with an Arduino, you can control the detail function such as the analogue path configuration, so you can integrate this module into your sound-related applications.
Specifications:
- Power supply: DC5V
- The recording time: 6K/75Sec, 8K/60Sec
- Frequency 6 KHz or 8 KHz
- Power LED, IC LED
- Simple operation, not need for SCM or other modules work direct
- Output all PIN For Chip control, Convenient for control.
Features:
- Captures and reproduces audio with high fidelity.
- Stores extended audio messages.
- Efficient power usage for extended battery life.
- Simple control commands for straightforward operation
- Supports various recording formats and options.
- Compatible with microcontrollers for data transfer and control.

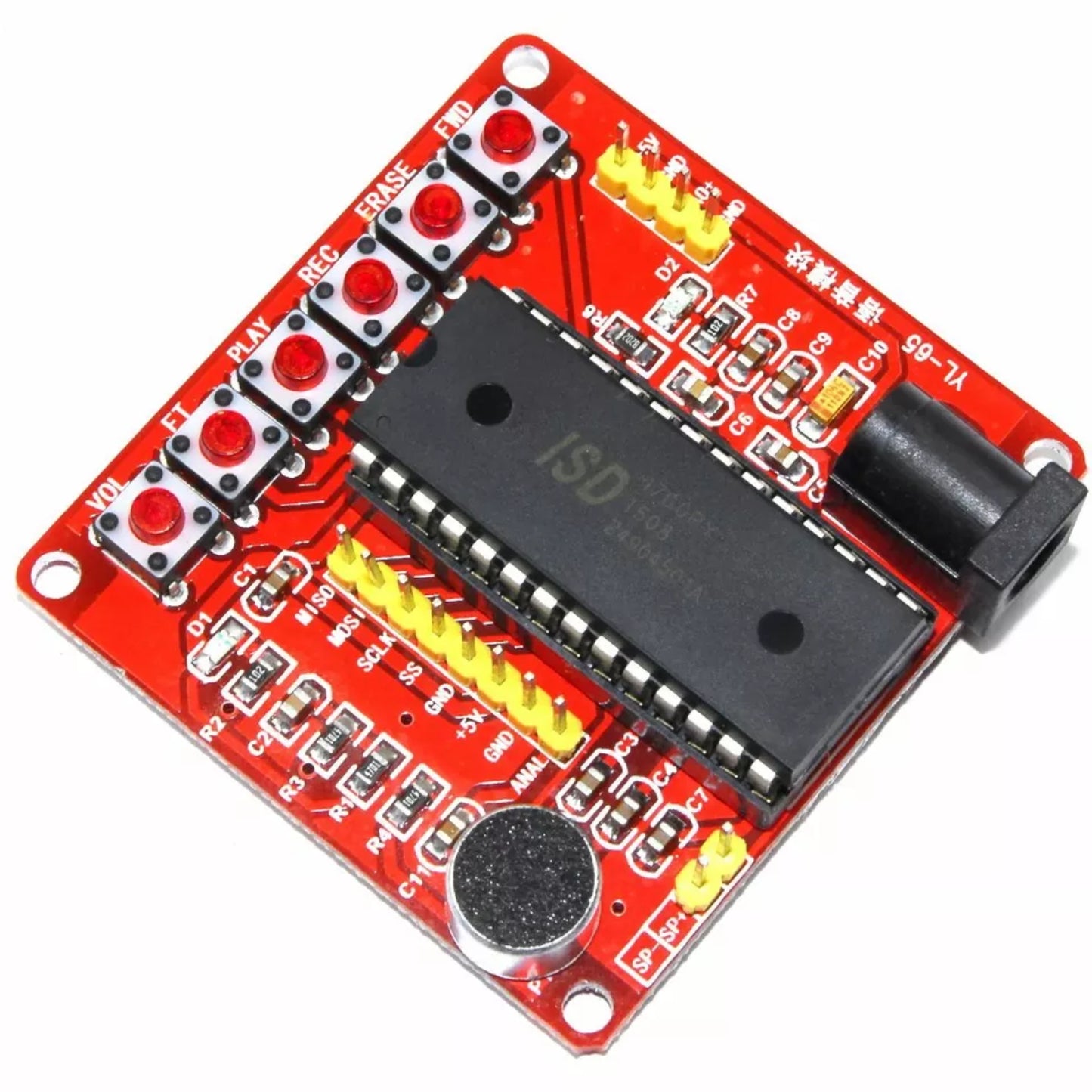

Pin Descriptions:
- Volume: Cycles volume level (on reset)
- FT: Pressing during recording will also use an AIn signal
- PLAY: Will playback the current recordings
- REC: When held will record
- ERASE: Holding for 3 seconds will erase the memory
- FWD: Tapping this will cycle through the different recordings
Package Included:
1 x ELECROW Crowtail - ISD1760 Audio Recording Module Voice Recording Module With Playback DIY Sound Recorder Programmable
