Description:

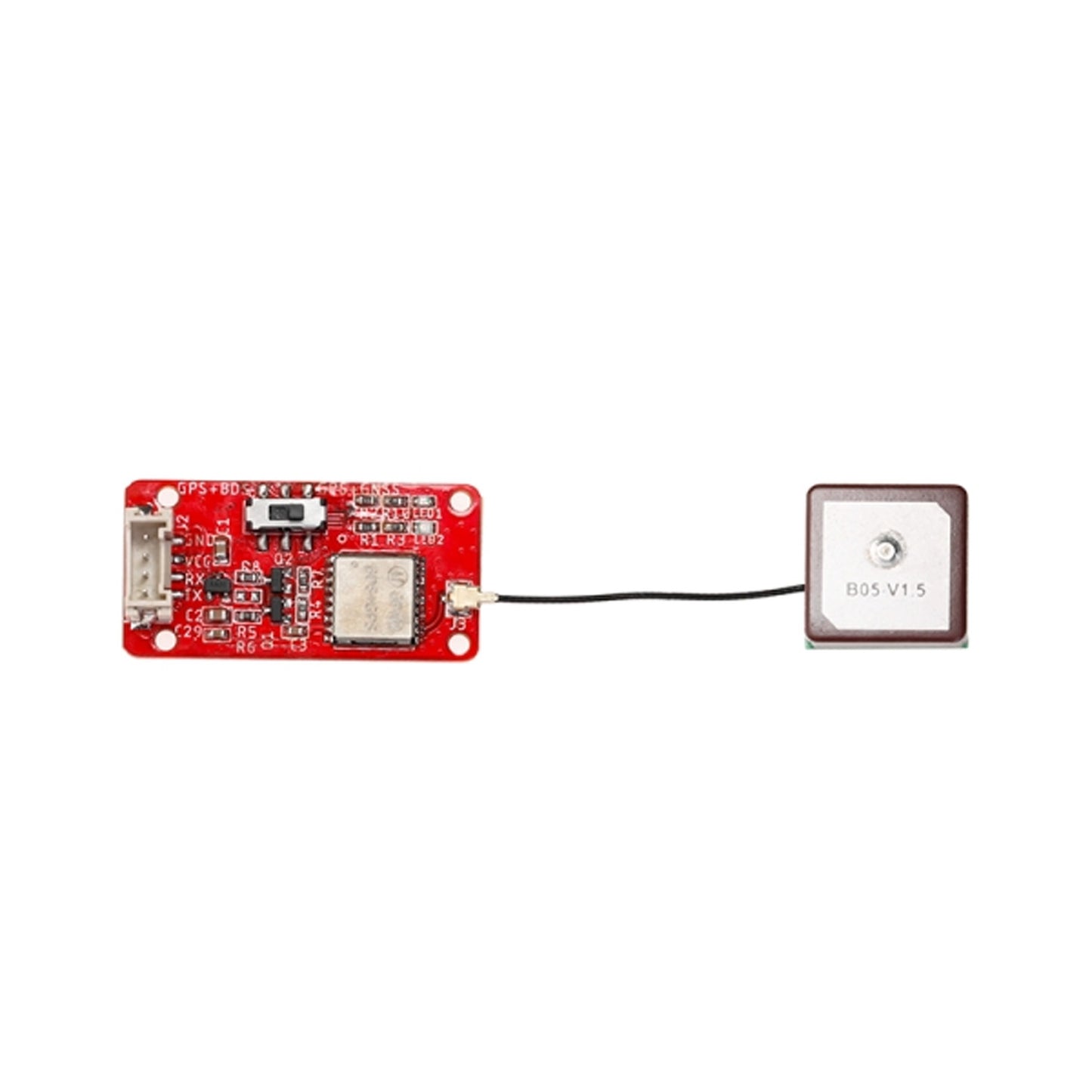

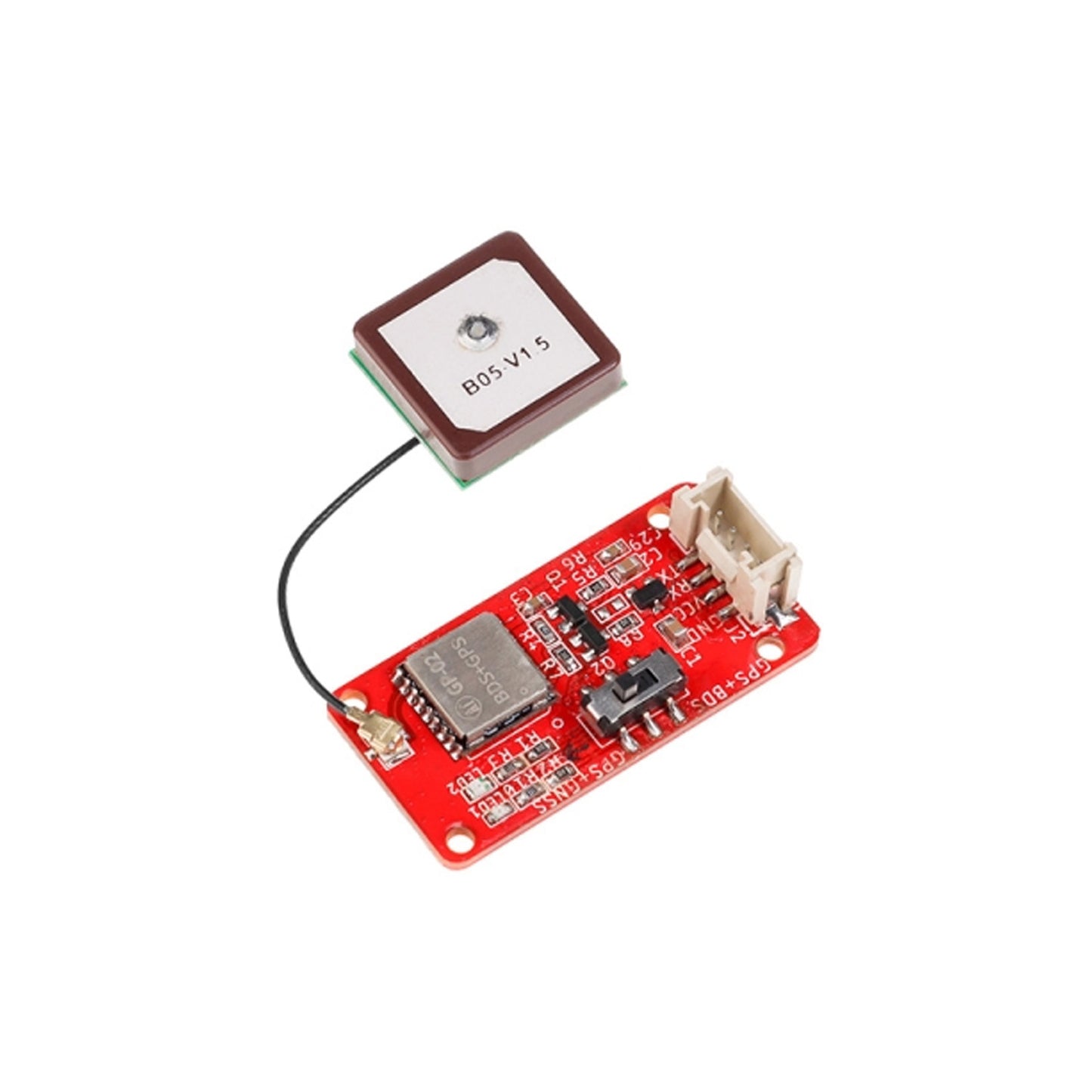

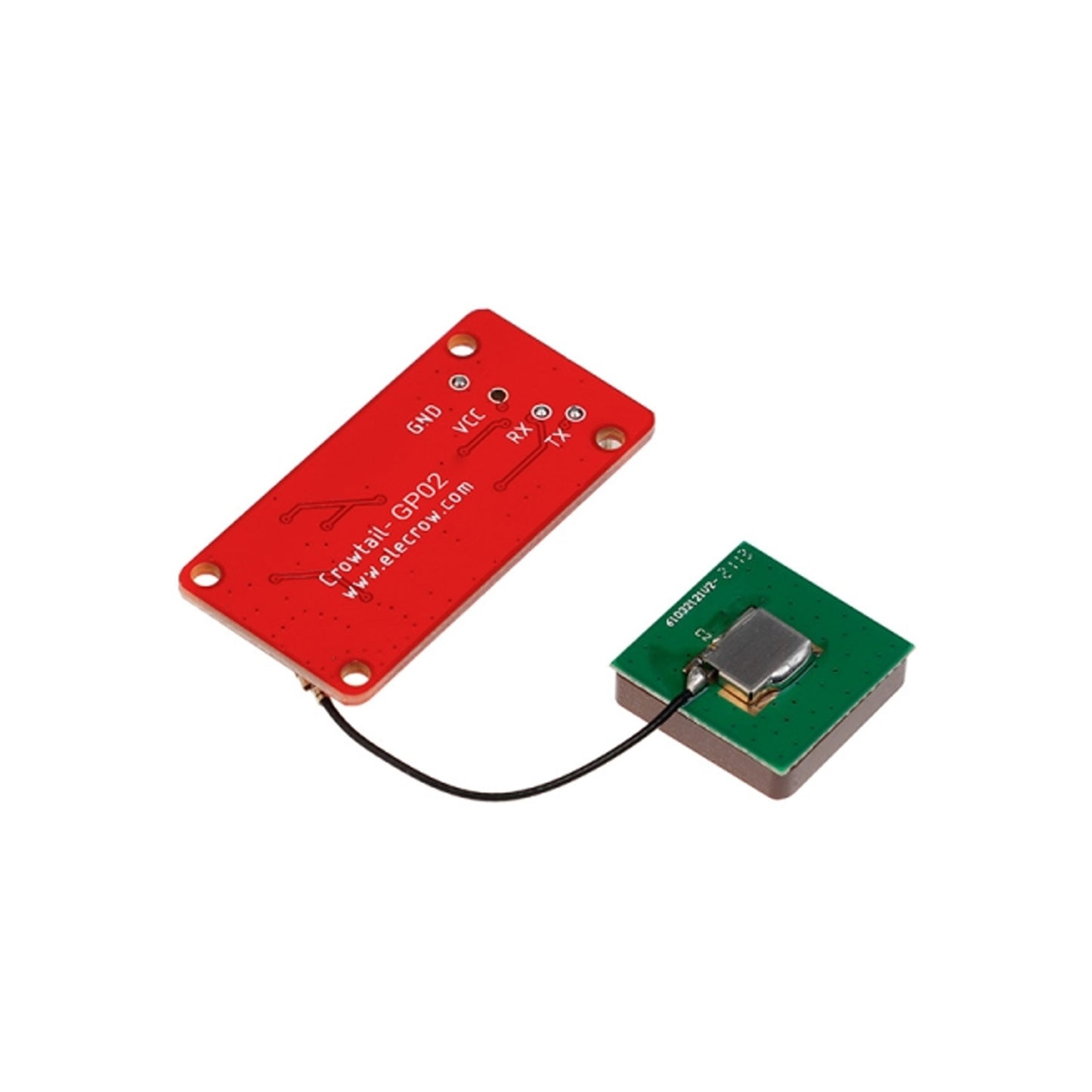

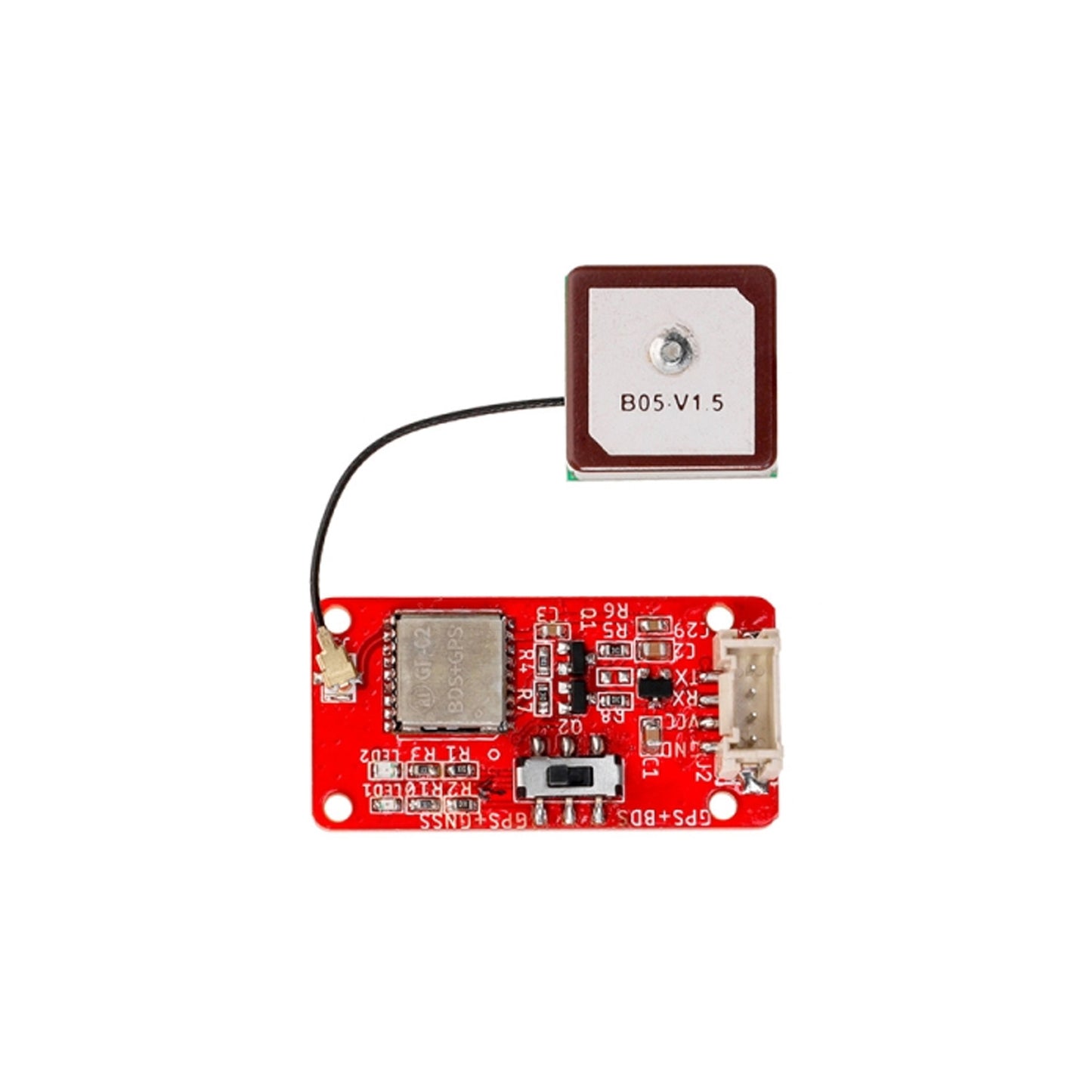

The Crowtail GP02 GNSS Module is a cost-effective and field programmable gadget. The high-performance BDS/GPS/ GLONASS multi-mode satellite navigation receiver SOC module, integrates RF front-end, digital baseband processor, 32-bit RISC CPU, power management and active antenna detection and protection functions. Its positioning accuracy is about 2m and can provide a maximum 5Hz,0.1m/s accurate and real-time positioning rate. It supports a variety of satellite navigation systems, including China's Beidou satellite navigation system BDS, the United States' GPS, and Russia's GLONASS, and can realize multi system joint positioning.
Specifications:
- Operating Voltage: DC 2.7V ~ 3.6V
- Default Baud Rate: 9600
- Interface Type: UART
- Navigation Sensitivity: -160dbm
- Cold start capture sensitivity: -148dBm
- Tracking Sensitivity: -162dBm
- Positioning Accuracy: 2m(1σ)
- BDS/GPS dual mode continuous operation power consumption: 23mA
- Size(mm): 40.0(L)x20.0(W)x9.7(H)
- Time to first start: Cold start: 32s ;Warm start: 1s; Hot start: 1s
Features:
- Field programmable
- With 32-bit RISC MCU
- Supports BDS, GPS, GLONASS
- Low power consumption
- High sensitivity and high-precision
- Can switch between GPS+BDS and GPS+GNSS modes
- Outdoor positioning
- Crowtail Indicates the compatible interface
Useful Link:
Crowtail - GPS/BDS/GNSS Module
Package Included:
1 x ELECROW Crowtail - GPS/BDS/GNSS Module High-Precision GPS Module Compact And Reliable GP02 GNSS Module For Crowtail
