Description:

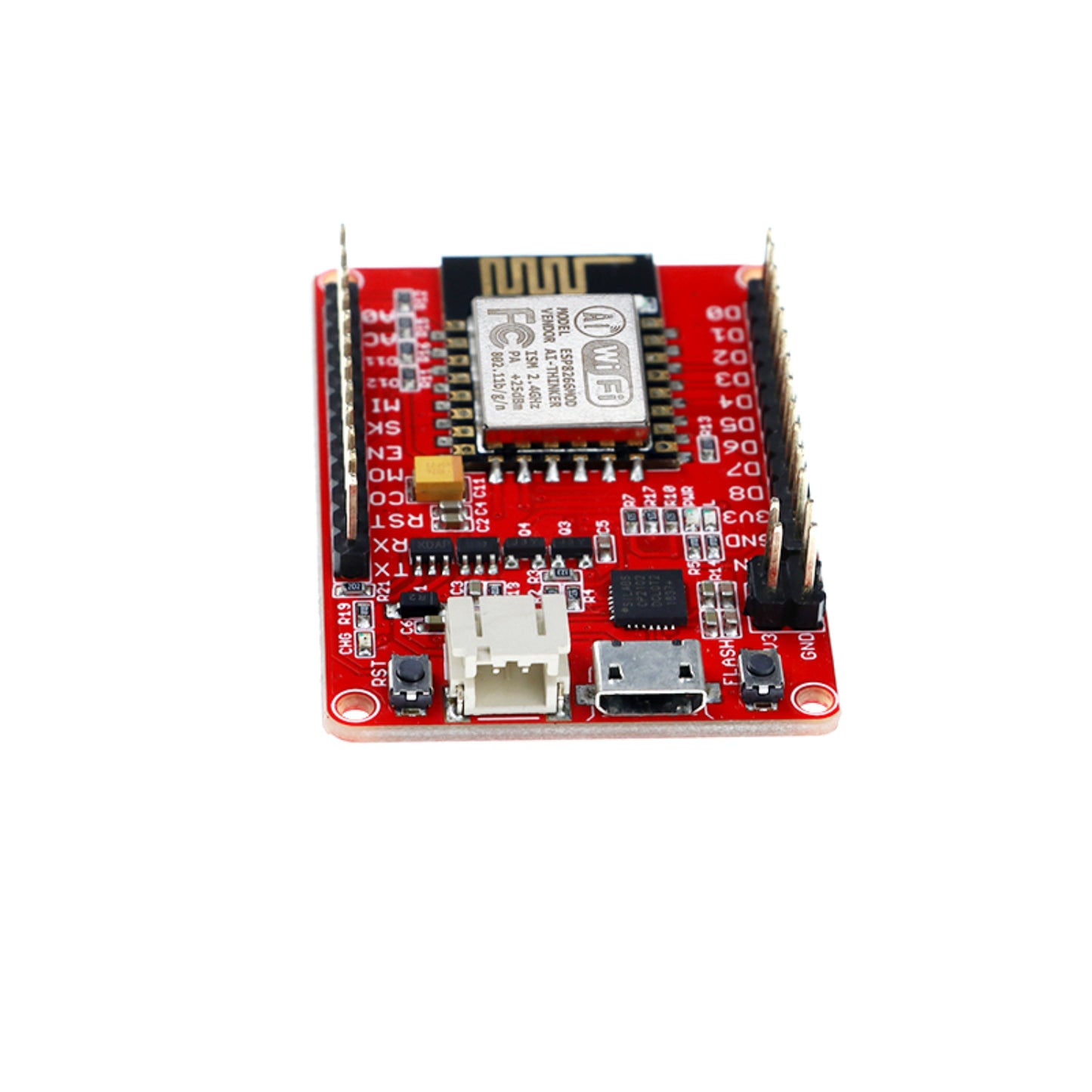

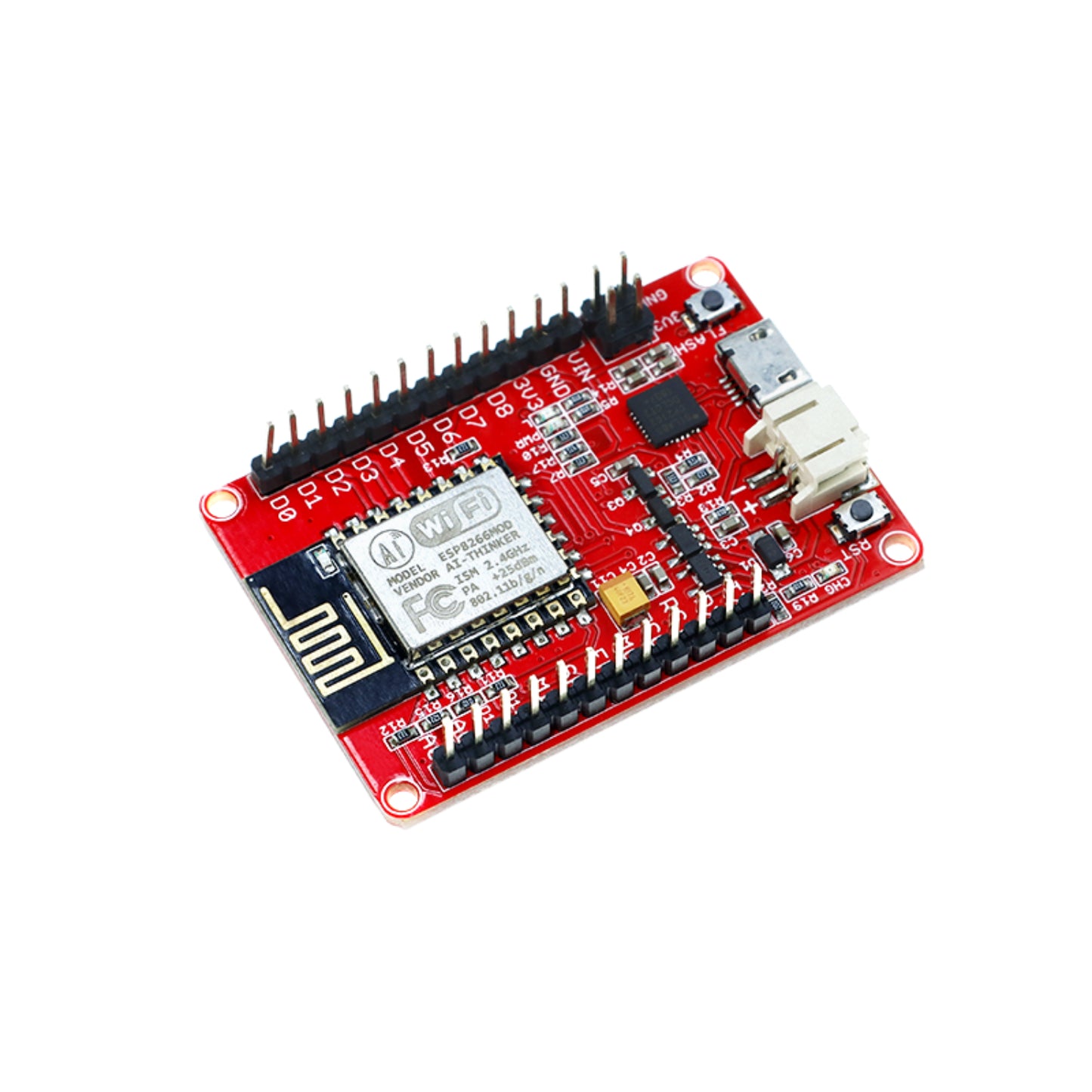

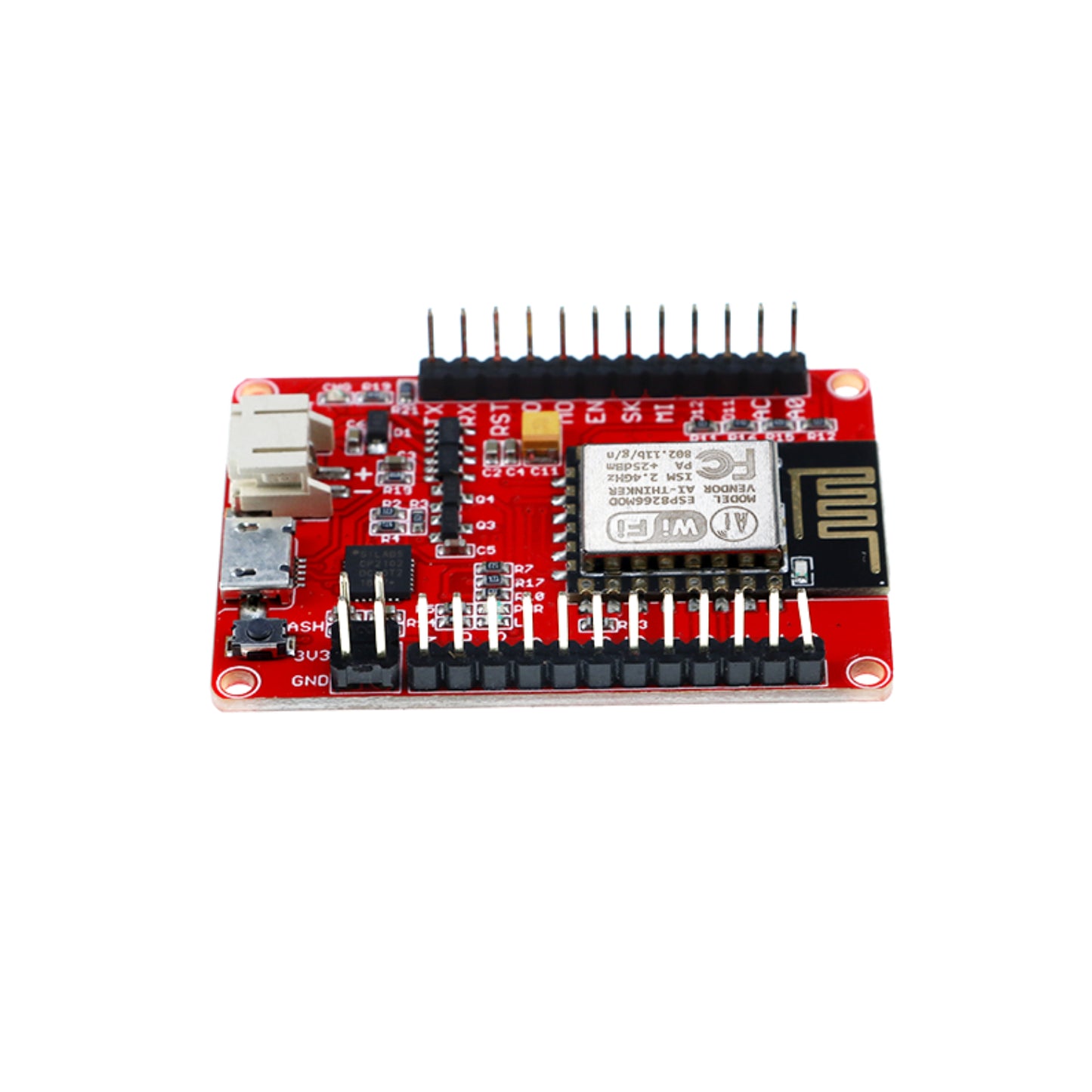

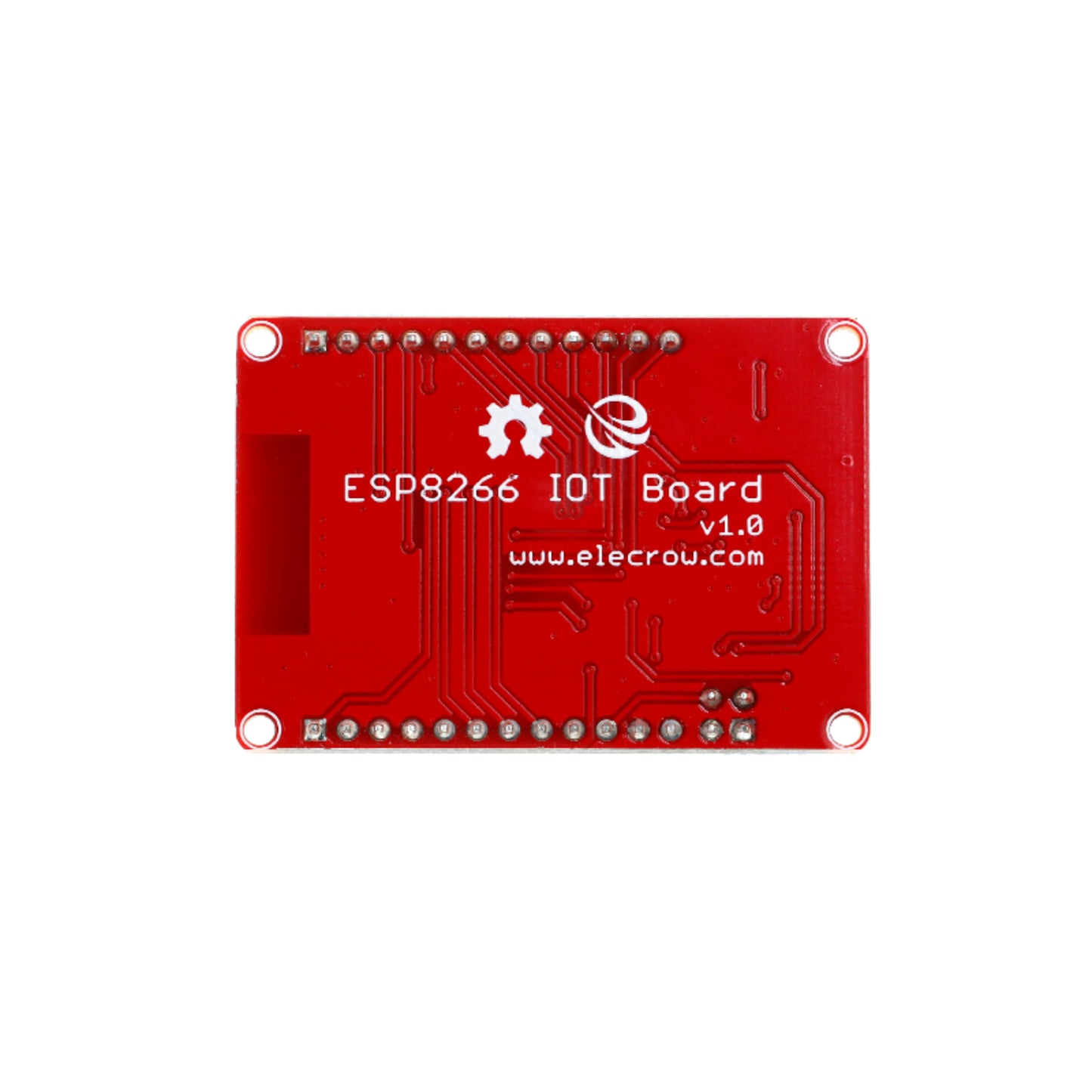

This is a Crowtail-ESP8266 IoT Board - our take on an 'all-in-one' ESP8266 WiFi development board with built-in USB and battery charging. It’s an ESP8266 WiFi module with all the extras you need, The most important part is an ESP8266 WiFi microcontroller clocked at 80 MHz and 3.3V logic.
This IoT Microcontroller Board contains a Tensilica chip core as well as a full WiFi stack. You can program the microcontroller using the Arduino IDE for an easy-to-run Internet of Things core. We wired up a USB-Serial chip that can upload code. It also has auto-reset so no noodling with pins and reset button pressings. To make it easy to use for portable projects, we added a connector for 3.7V Lithium polymer batteries and built-in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you do have a battery, you can take it on the go, and then plug in the USB to recharge.
The ESP8266 IoT Development Board will automatically switch over to USB power when it's available. Comes fully assembled and tested, with a USB interface that lets you quickly use it with the Arduino IDE or NodeMCU Lua. (It comes preprogrammed with the Lua interpreter) We also toss in some header so you can solder it in and plug it into a solderless breadboard. Lipoly battery and USB cable are not included (but we do have lots of options in the shop if you'd like!)
Specifications:
- Model: DP082666E
- CP2012 USB-Serial converter onboard with 921600 max baud rate for uploading.
- 9 x GPIO pins - can also be used as I2C and SPI
- Power/enable pin
- 4 mounting holes
- Reset button
Features:
- lightweight
- 3.3V regulator with 500mA peak current output
- Auto-reset support for getting into bootload mode before firmware upload
- ESP8266 @ 80MHz with 3.3V logic/power
- Built-in WiFi 802.11 b/g/n
- CP2012 USB-Serial converter onboard with 921600 max baud rate for uploading
- Analog inputs 1.0V max
- Built-in 100mA LiPoly charger with charging status indicator LED, can also cut a trace to disable the charger
- Pin #0 red LED for general purpose blinking. Pin #2 blue LED for boot loading debug general purpose blinking

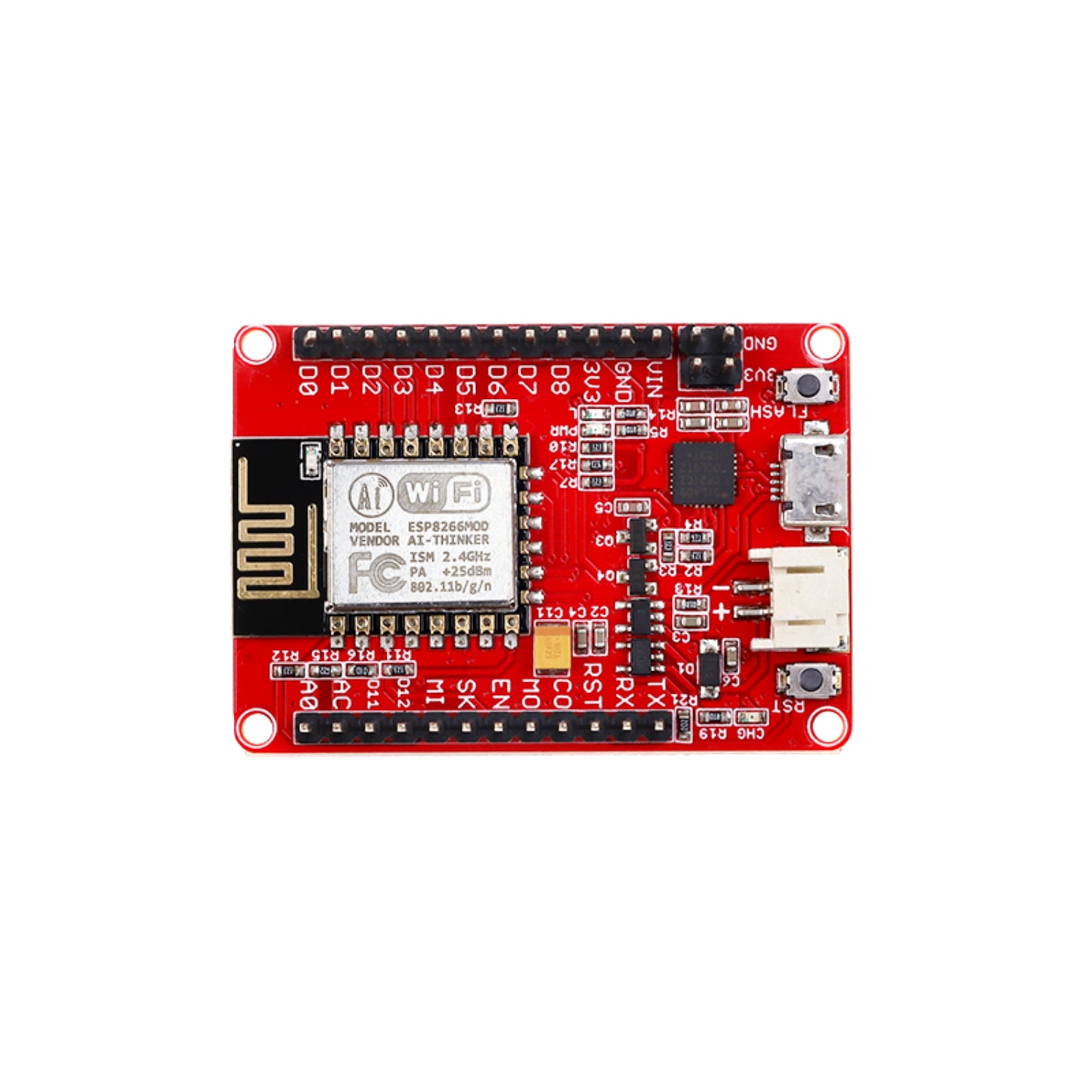

Pin Description:
- Micro USB port- it use for uploading the program and updating firmware, you can also charge the battery
- Battery interface- you can power this board with a lipo battery by this port
- Reset button- to have a reset
- Flash button- is used to update the firmware
Useful Links:
Crowtail-ESP8266 IoT Board User Manual
Package Included:
1 x ELECROW Crowtail - ESP8266 IoT Board Arduino Compatible All-In-One ESP8266 WiFi Development Board USB, Battery Charging
