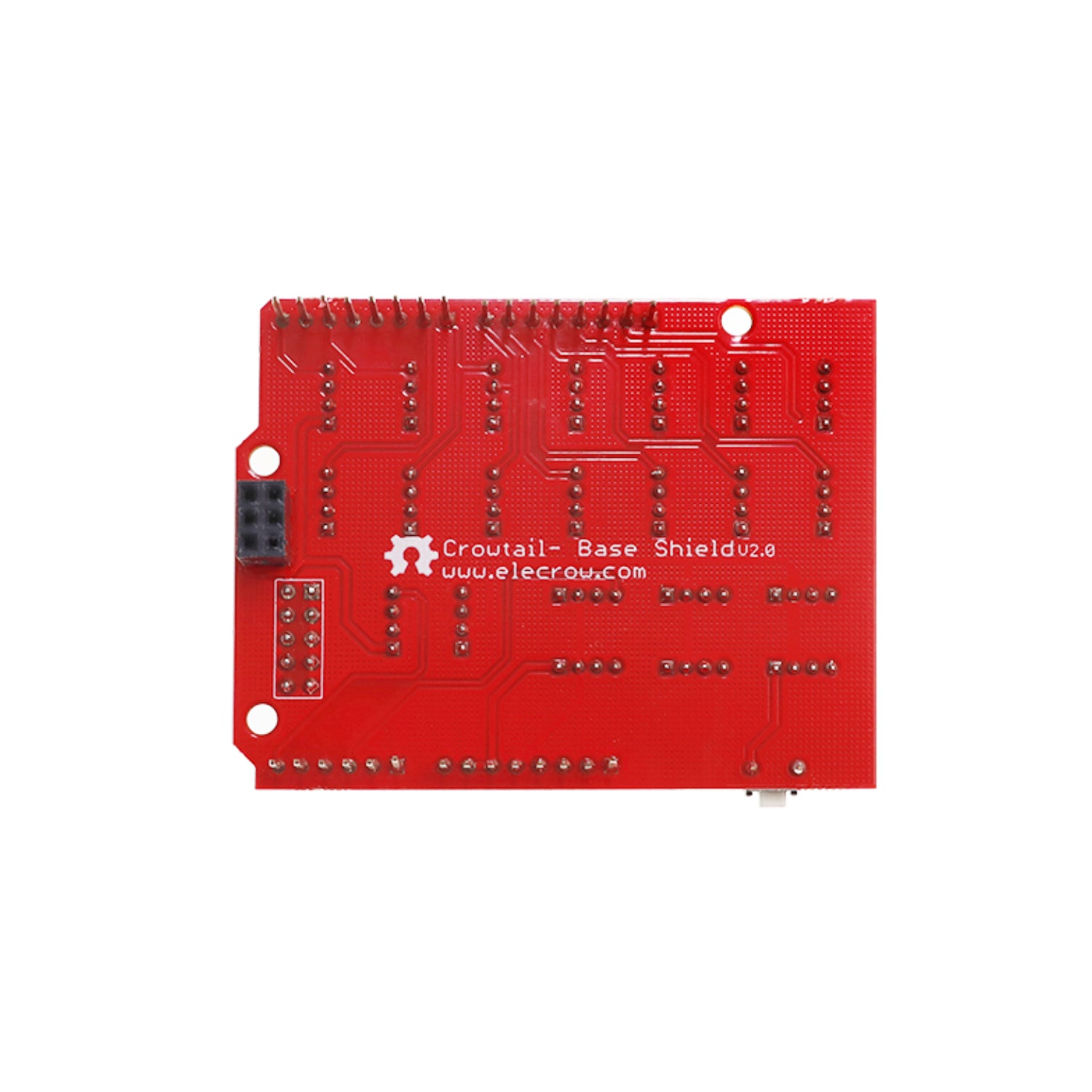

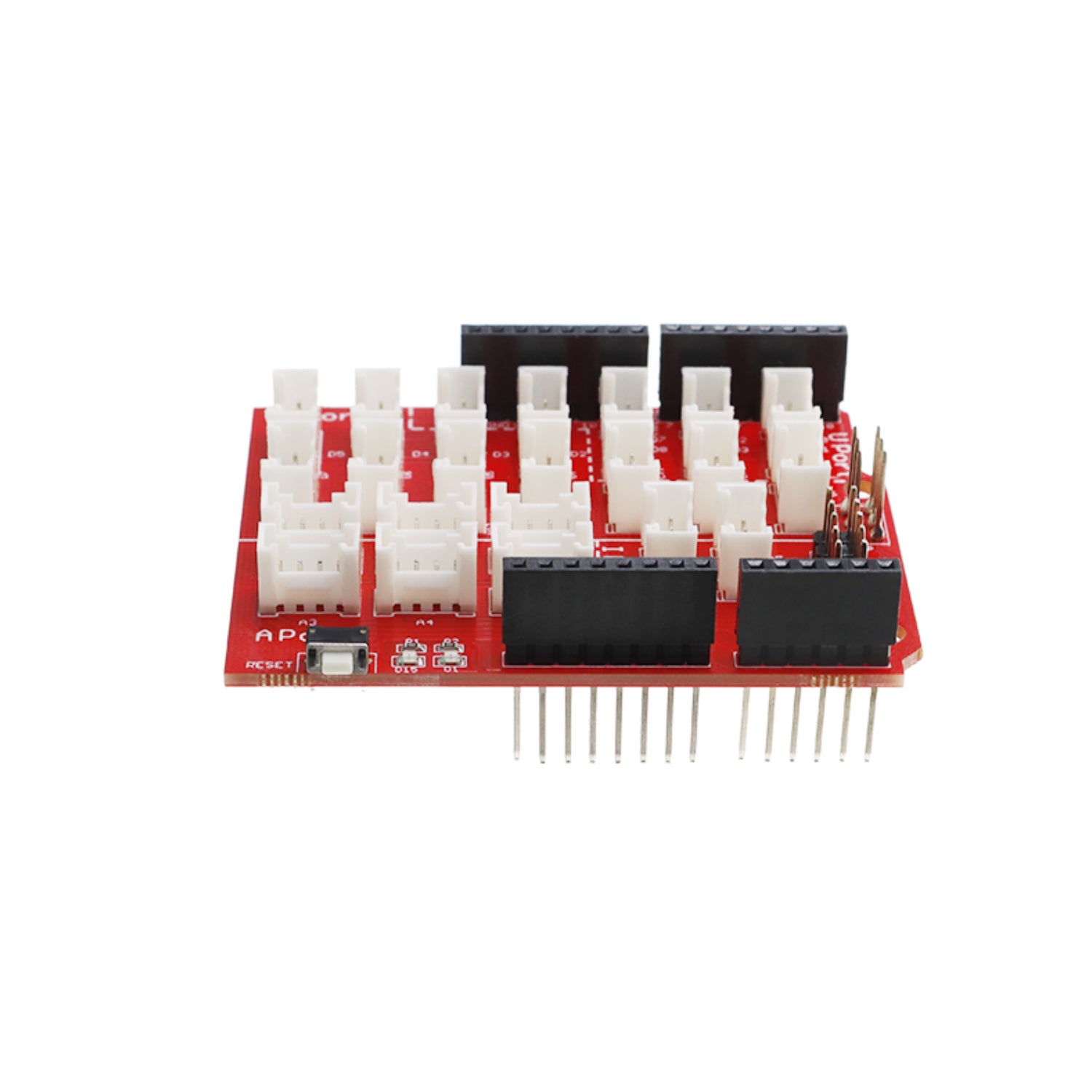

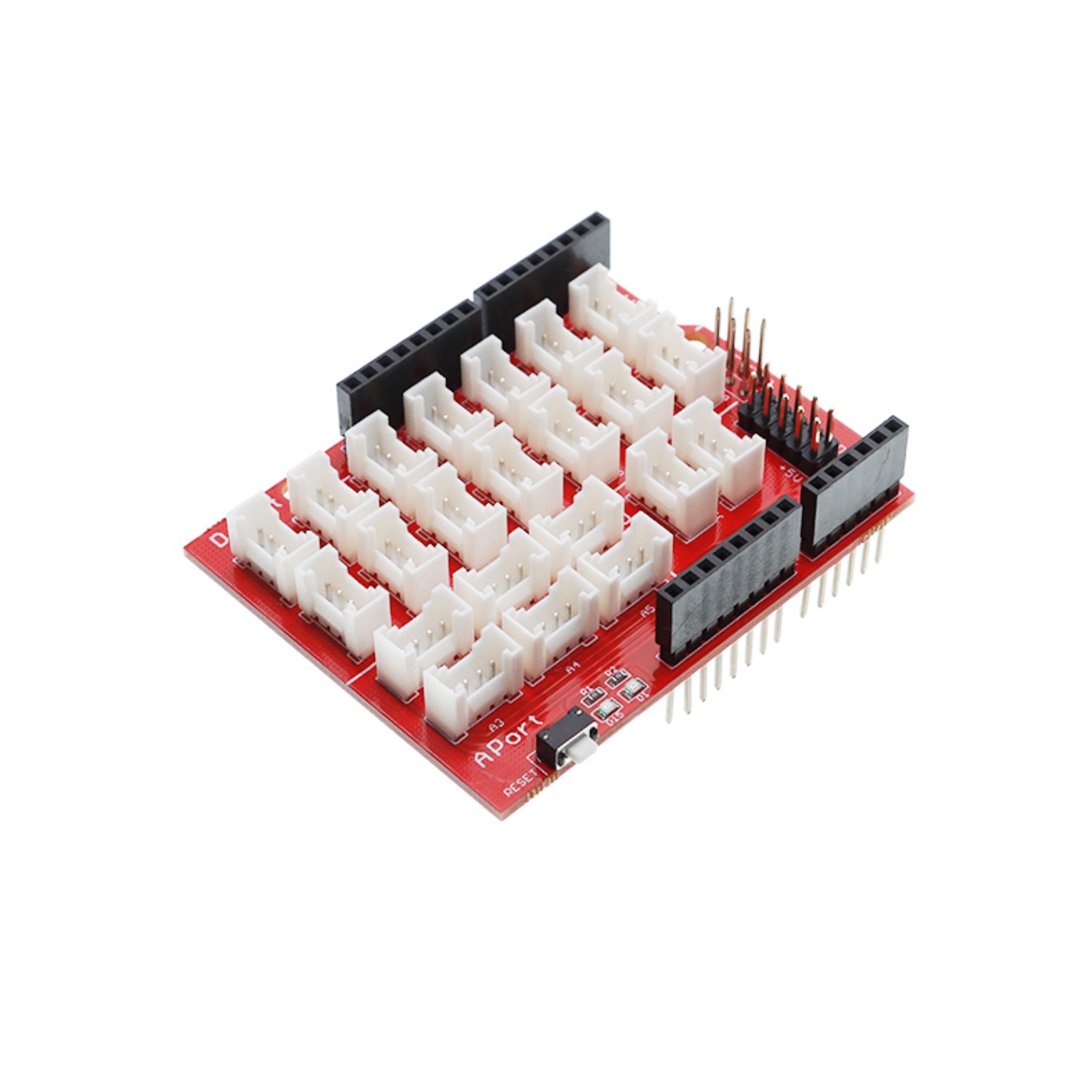

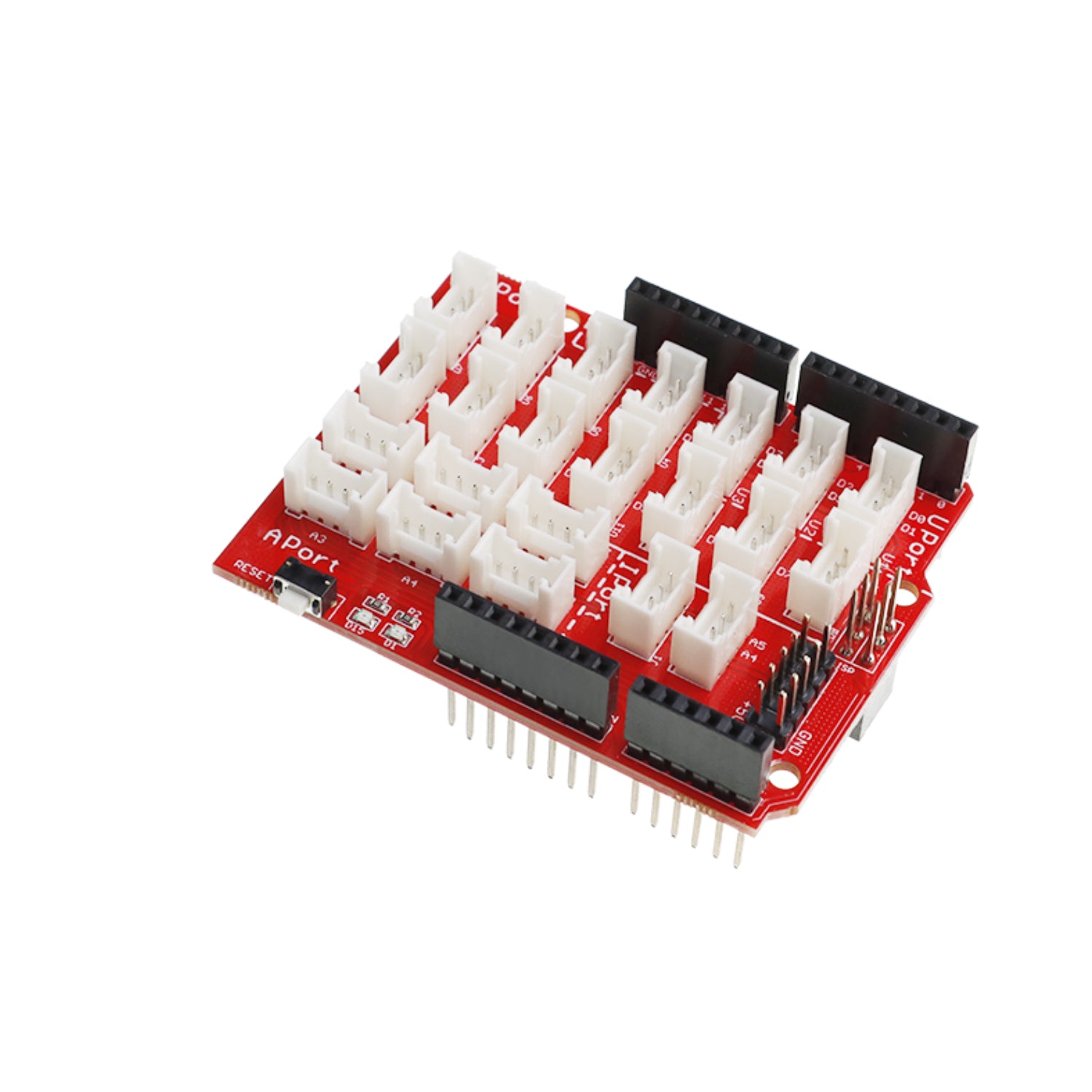

Description:
The Crowtail - Base Shield Arduino 2.0 plugs into Arduino and is the foundation of the Crowtail system. Crowtail Arduino 2.0 Shield ALL I/O ports of the Arduino are exposed and adapted into Crowtail connectors which include digital I/O, analog I/O, and specialized ports(I2C, UART).
Specifications:
- Model: CT0001BS
- Working Voltage: 3.3~5 VDC
- Dimensions(mm): 69.5(L)x55.2(W)x23.5(H)
Features:
- RoHS Compatible
- Arduino UNO and Duemilanove compatible
- Compatible with all Crowtail modules
- 11 Digital connectors (D2-D12)
- 6 Analog connectors (A0-A5)
- 2 I2C sockets
- NO SPI socket
- UART/D0-D1 connector
- ISP/ICSP header
- Green Power indicator LED
- Right angle reset button with red LED reset indicator
- Stacking connectors
- Simplified screen printing.
Interface Function:

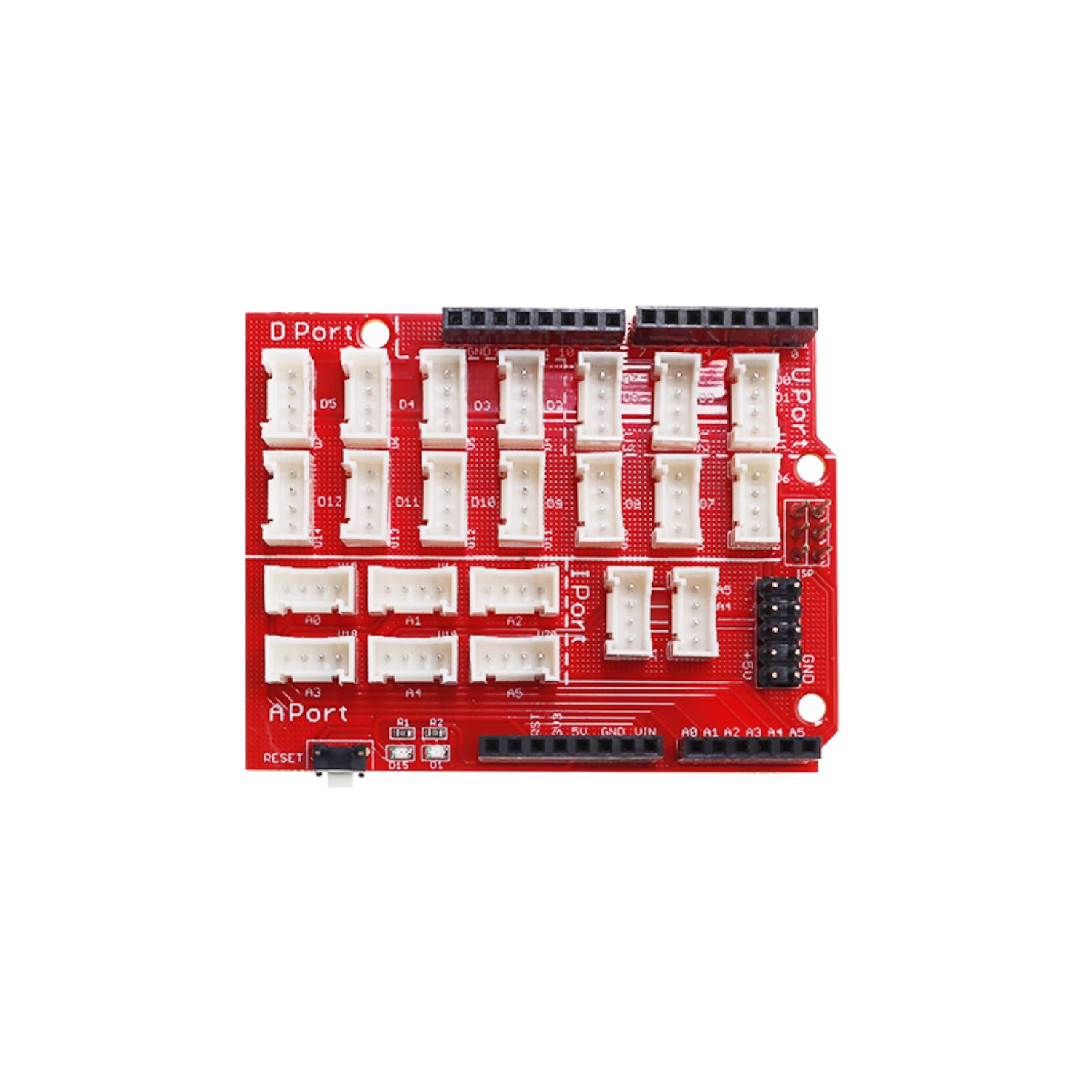

The purpose of the base shield is to allow easy connection of any microprocessor input and output pins to the Crowtail units. For a more detailed examination of the Base Board, please refer to the following diagram:
D port:Digital I/O port.
A port: Analog I/O port.
U port: UART port.
I port: IIC port.
This is a peculiar interface logo of all the Crowtail products. It may you easy to differentiate which module is connected to the digital port or another port.
Useful Links:
Crowtail - Base Shield Arduino 2.0 Manual
Package Included:
1 x ELECROW Crowtail - Base Shield for Arduino 2.0 Compatible Expand Your Arduino With Crowtail Base Shield
