Description:

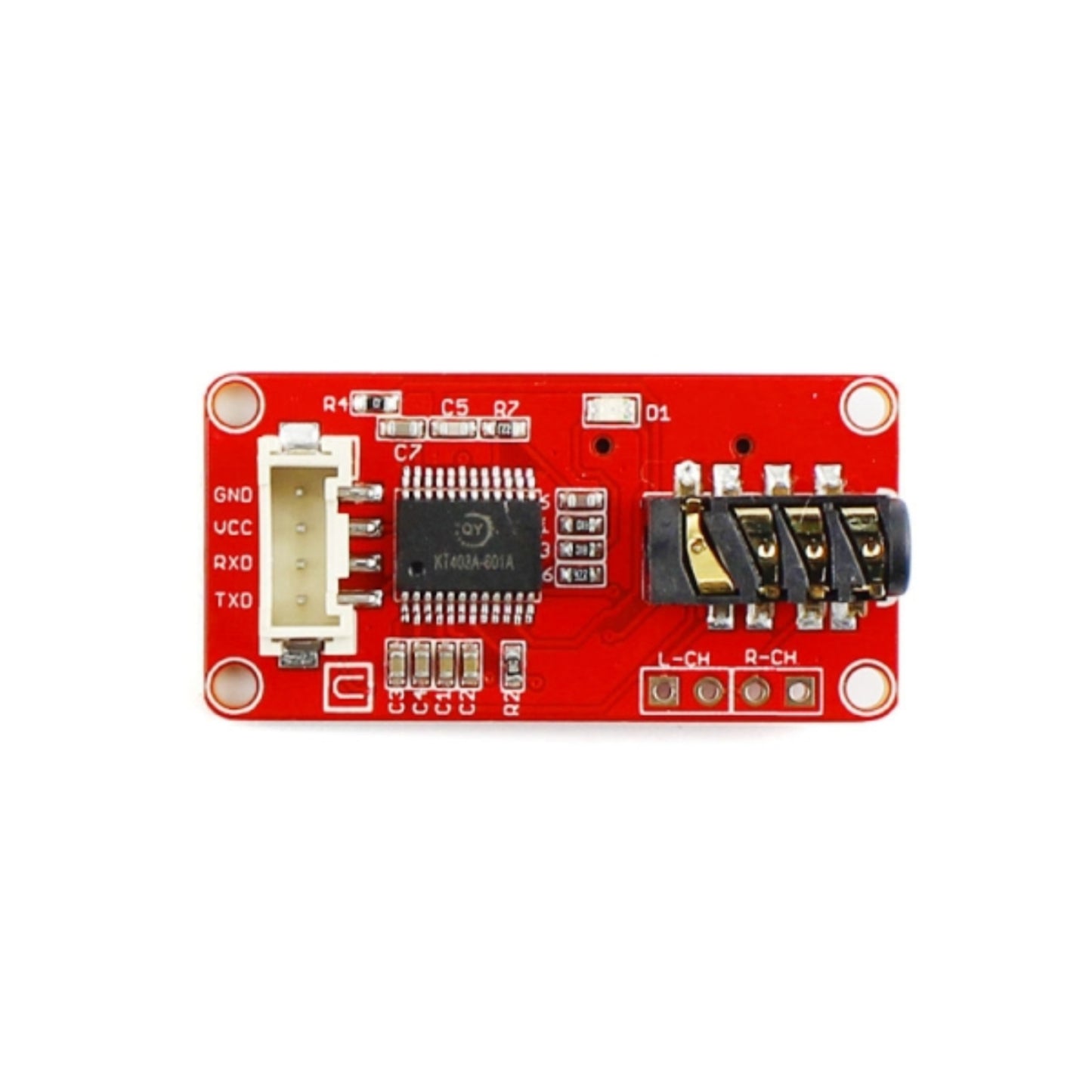

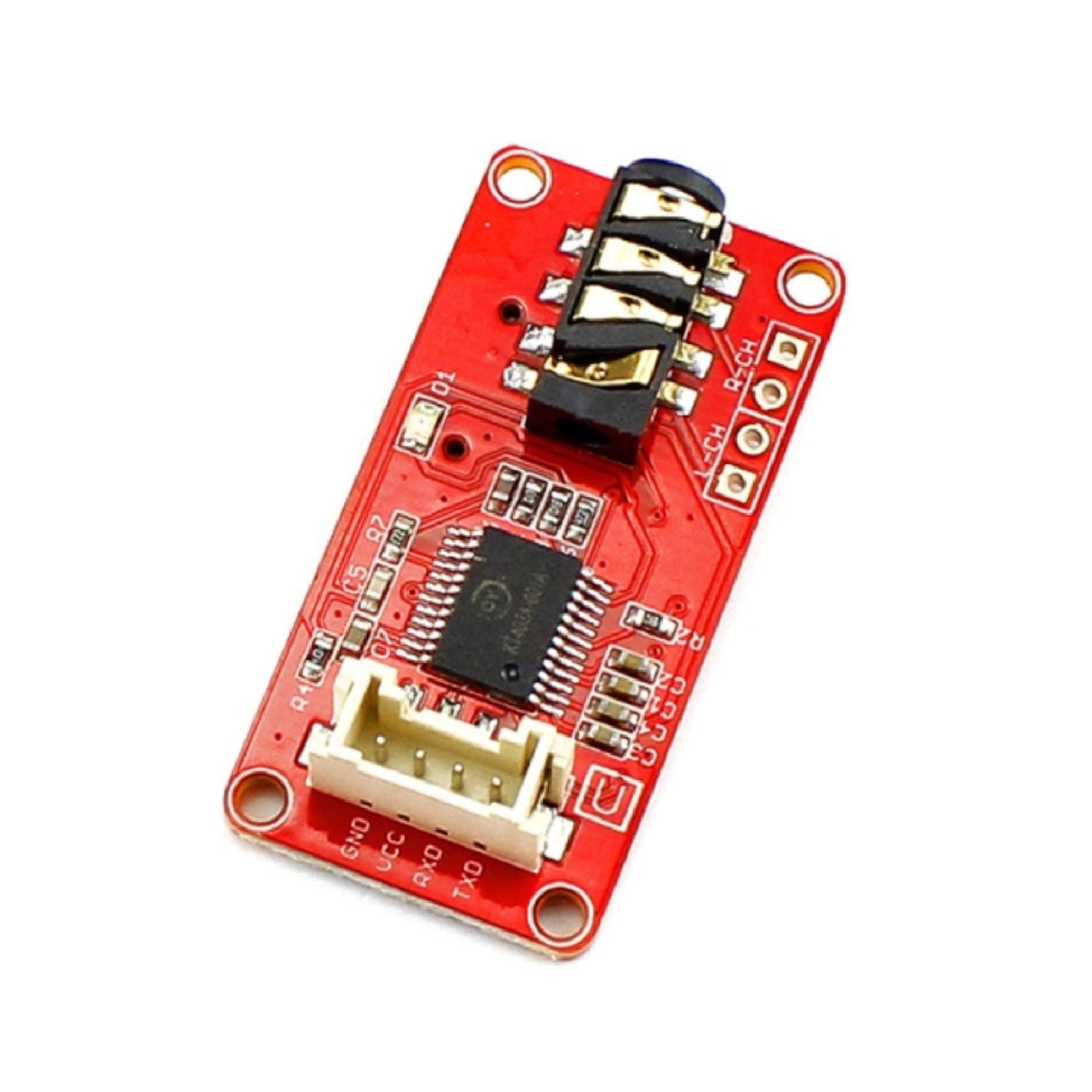

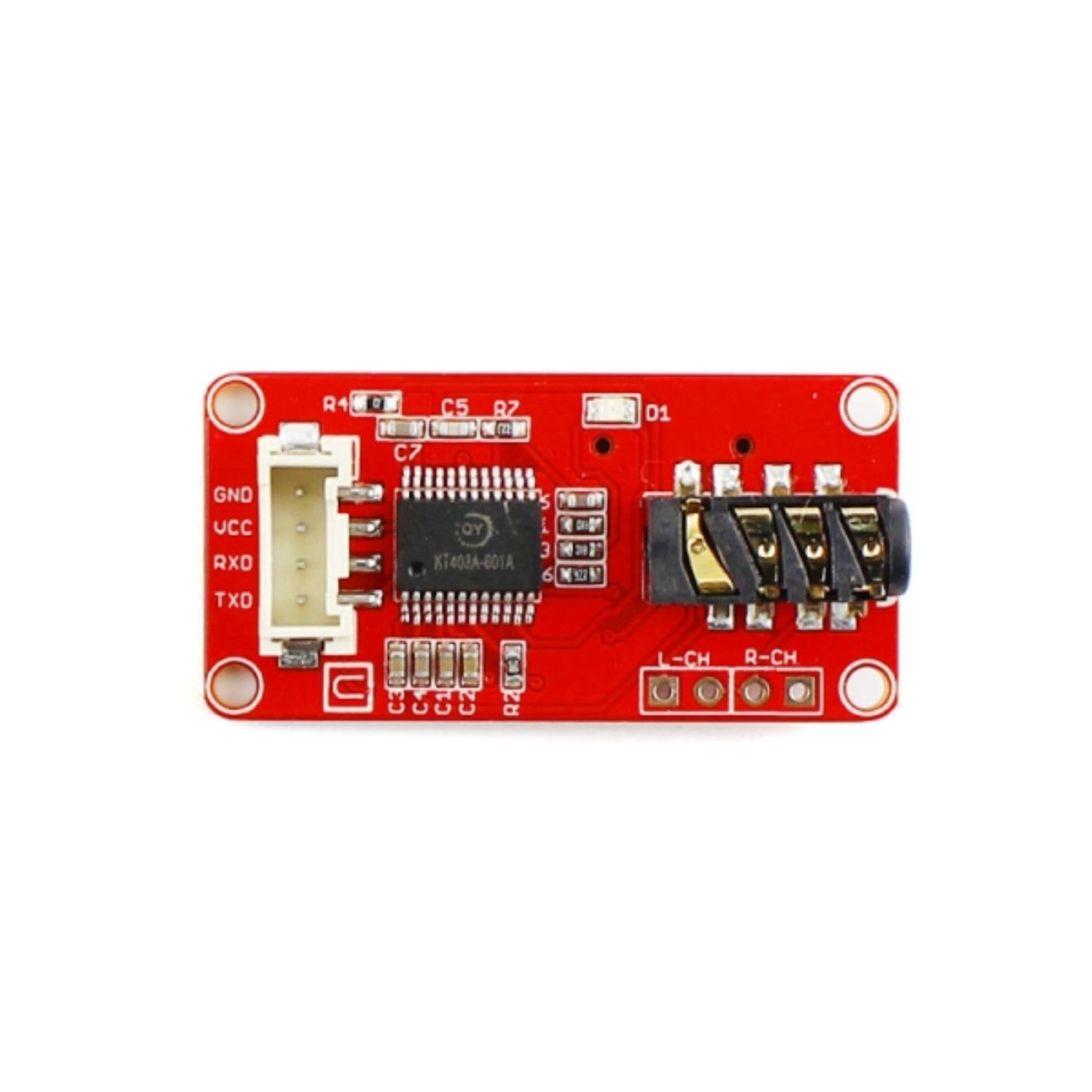

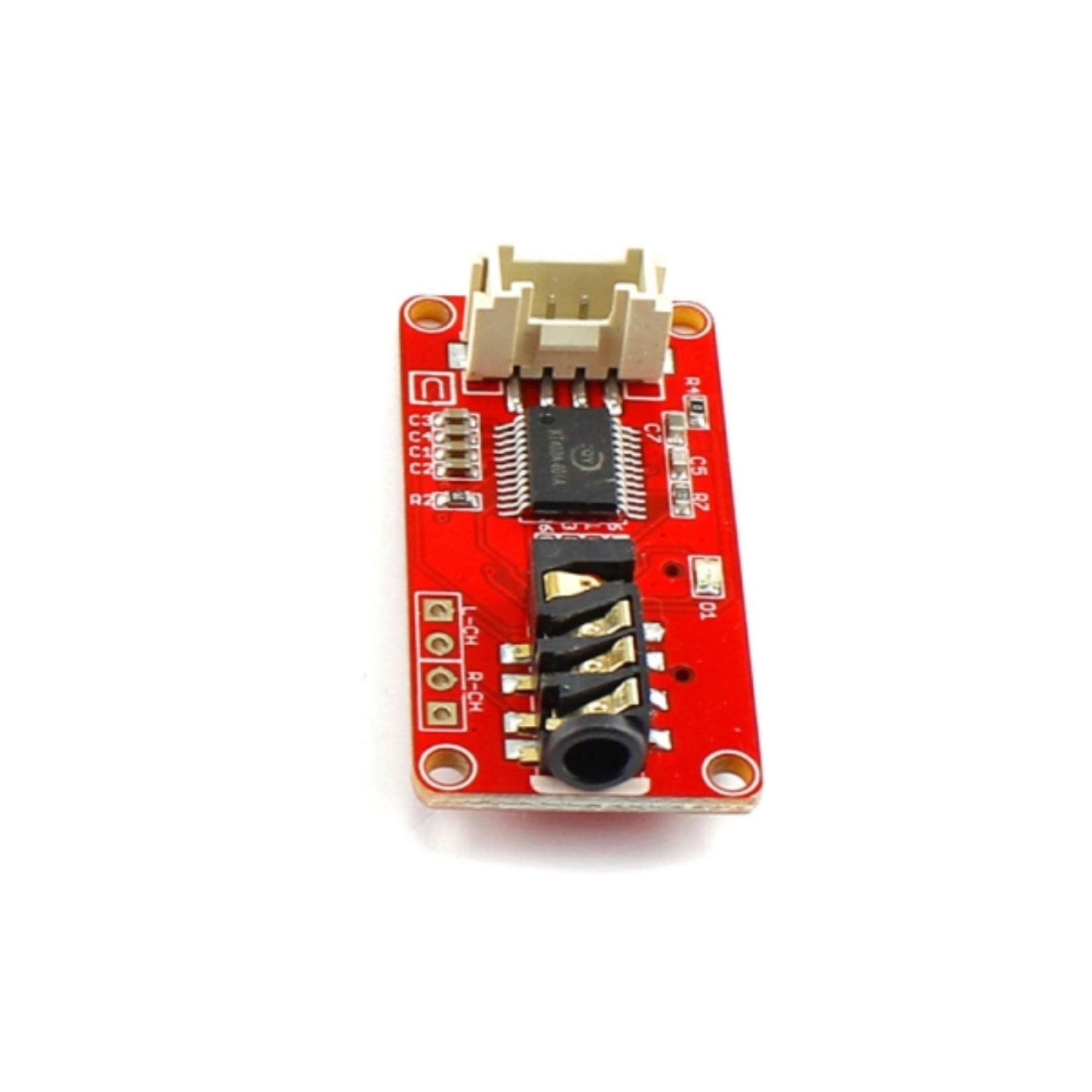

ELECROW Crowtail-2.0 MP3 Player is a small and compact audio module. It supports operations including shuffling and plays in an order of various audio files such as WAV and WMV ones. With serial communication, you can use all predefined commands or even combinations of them to play the music. The MP3 Player Expansion Board module also supports general file systems like FAT16 and FAT32. It gets a Crowtail UART interface, a 3.5mm audio jack, and a micro-SD slot. With this module, you can get some “voices” for silent applications.
Specifications:
- Input: 5V
- Operating Current (No single output state): Less than 15ma
- Operating Current: Less than 40ma
- Chip: KT403A
- Chip LDO output voltage: 3.3V
- Chip output current: 100mÀ (at Max.)
- File formats supported: MP3, WAV, WHA
- SD Card Type: 32GB
- Media Type: SD Card
- Sampled rate: 8/11. 025/12/16/22. 05/24/32/44. 1/48 (KHz)
Features:
- Crowtail interface
- MP3, WMV and WAV audio format and FAT16, FAT32 files system supported
- General operations on audio files
- 24-bit DAC output, 90 dB (at Max.) dynamic output range, the signal-noise ratio at 85 dB

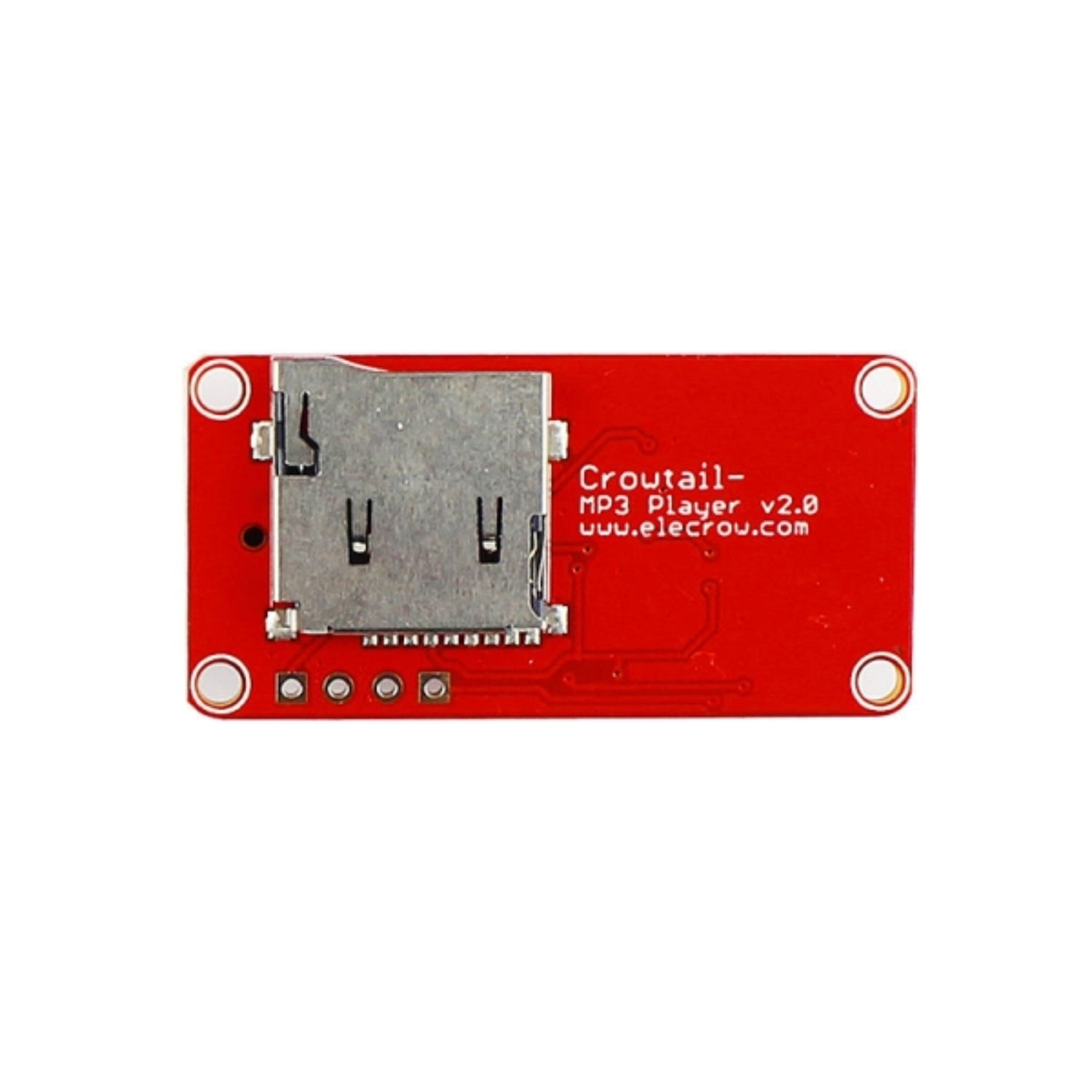

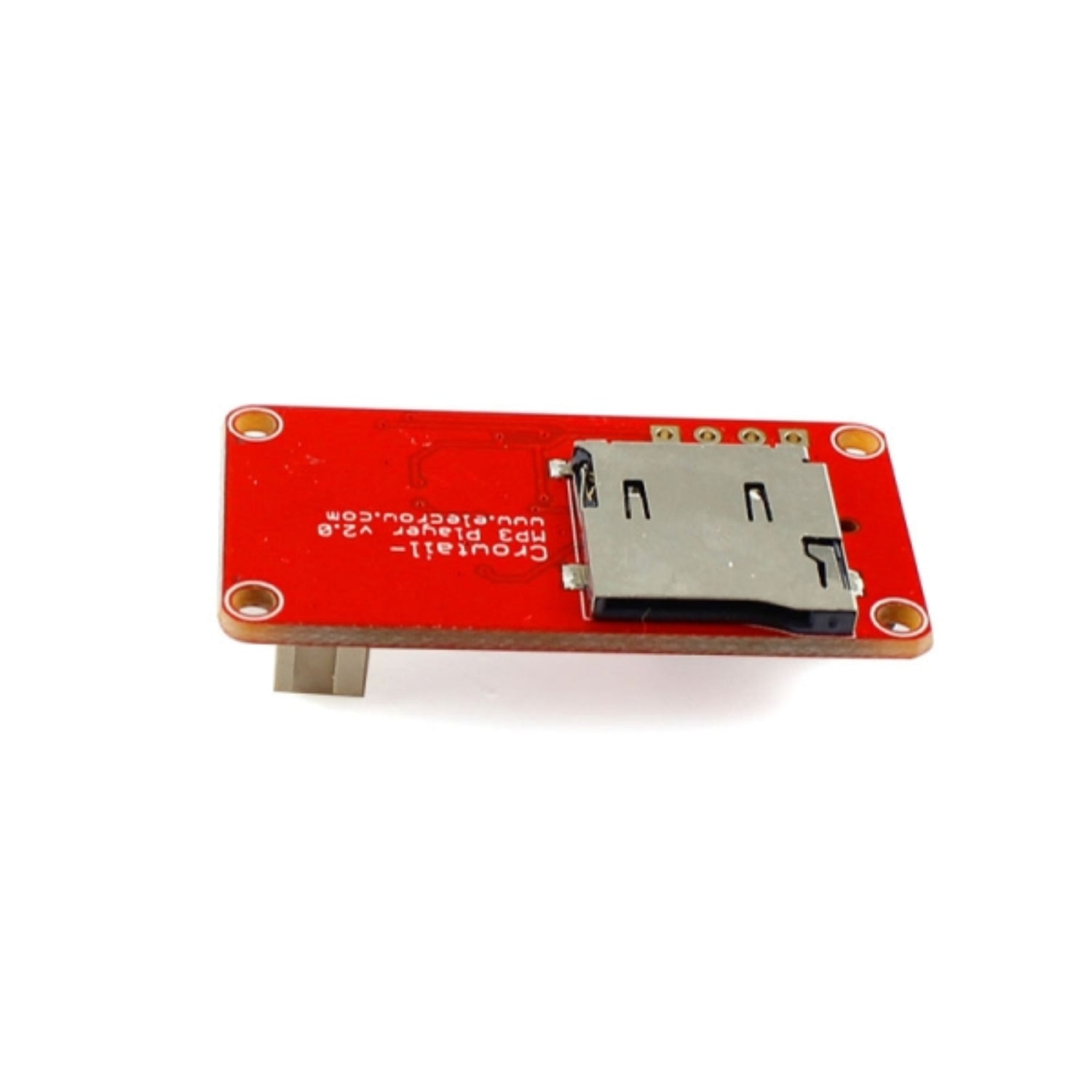

- On-board micro-SD slot and 3.5 mm audio jack
- Embed 10 levels of equalization in total.
Useful Link:
Package Included:
1 x ELECROW Crowtail - 2.0 MP3 Player Enhanced Audio Experience MP3/WAV/WMV, 24-Bit DAC, FAT16/32
