Elecrow CrowPanel 1.46" ESP32-S3 HMI Rotary Display 360x360 IPS Round Touch Knob Screen WiFi Bluetooth For Arduino LVGL IoT - RS10022

Description:

The Rotary screen is an intelligent interactive device, which usually consists of a circular knob and a display. The knob can be rotated to control various functions, while the display is used to display relevant information.

This CrowPanel 1.46-inch rotary screen is a high-performance, multi-functional intelligent interactive display module. It utilises the ESP32-S3 dual-core main control chip with a clock speed of up to 240 MHz, equipped with 8 MB of PSRAM and 16 MB of Flash, delivering powerful performance.

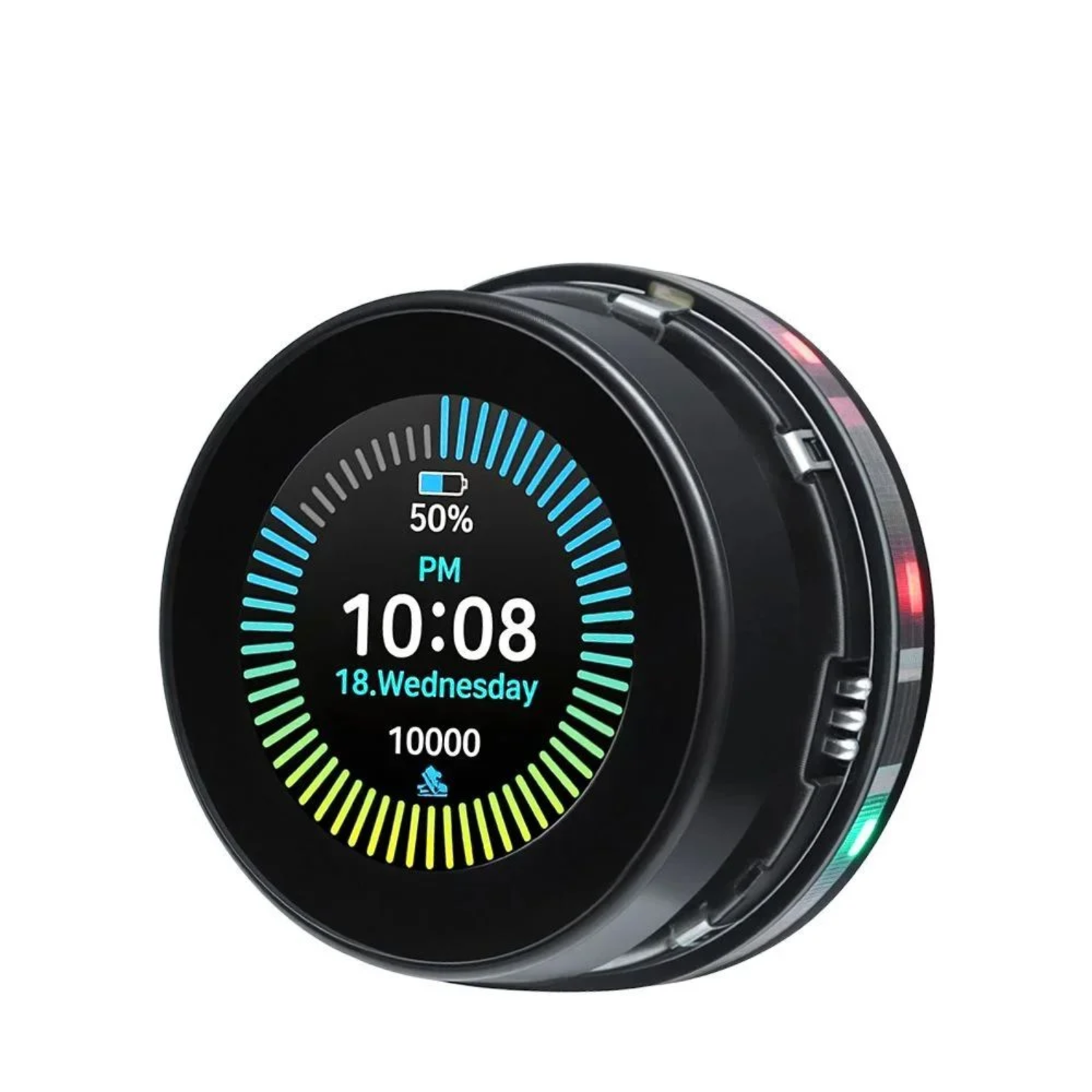

It features a 1.46-inch circular IPS high-definition screen with a resolution of 360×360, providing a crisp and clear display. It supports both capacitive touch and rotary knob interaction. The knob allows for clockwise and counter-clockwise rotation and pressing, offering a smooth tactile experience suitable for various scenarios such as smart home control panels, portable devices, and industrial control terminals.

It supports 2.4GHz Wi-Fi and Bluetooth 5.0 (BLE), enabling stable data exchange and remote control, easily connecting to the IoT ecosystem. It also features multiple onboard expansion interfaces (UART / I2C / FPC) for programming and function expansion and includes ambient lighting to enhance the interactive experience and visual appeal.

The screen is compatible with the Arduino IDE and LVGL graphics library, allowing users to freely design UI interfaces and quickly realise personalised interactive projects.

Whether you are an IoT developer, smart home enthusiast, maker, or engineer, this 1.46” rotary screen provides a high-performance, easy-to-develop, and scalable smart interaction platform, helping your ideas come to fruition quickly.

Specifications:

• Processor: Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
• System Memory: 512KB SRAM, 8M PSRAM
• Storage: 16M Flash
• Operating Temperature: -20~65°C
• Touch Type: Capacitive Touch
• Resolution: 360*360
• Screen Type: IPS
• Size: 1.46 inch
• WiFi: Support 802.11a/b/g/n, 2.4 GHz
• Bluetooth: Bluetooth Low Energy and Bluetooth 5.0
• UART Interface: ZX-MX 1.25-4P
• I2C Interface: ZX-MX 1.25-4P
• LED Light: Power indicator, LED ambient light
• FPC Connector: 12P, power supply burning port, pitch: 0.5 mm.
• Button: RESET button, BOOT button, confirmation button (knob press switch)
• Power Input: 5V/1A
• Storage Temperature: -40~80°C
• Operation Power Module: DC5V , Main Chip: 3.3V

Features:

• Dual Interaction: Knob + Touch Control. Supports clockwise/anticlockwise rotation and press-to-confirm knob operation, paired with a sensitive capacitive touchscreen for easy adjustment of volume, brightness, and other parameters.
• High-Definition Display: IPS screen with 360x360 high-definition resolution, supporting capacitive touch.
• Powerful ESP32-S3 Core: Equipped with an ESP32-S3 chip, featuring 8MB PSRAM and 16MB flash memory, with a maximum clock frequency of 240MHz.
• Wireless Communication: Supports 2.4G WiFi and BLE low-energy Bluetooth for easy connection to smart home networks.
• Rich Expansion: Features a 5V charging port for power supply and programming; provides UART, I2C, and FPC expansion interfaces.
• Low-Power Design: Supports low-power mode, suitable for smart home appliances and portable devices.
• Ambient Lighting Design: Adds a cool touch to the device and enhances the user experience.
• Multi-Language Development: Supports Arduino IDE and LVGL library.
• Application Scenarios: Suitable for various scenarios including smart homes, industrial control, and portable devices.

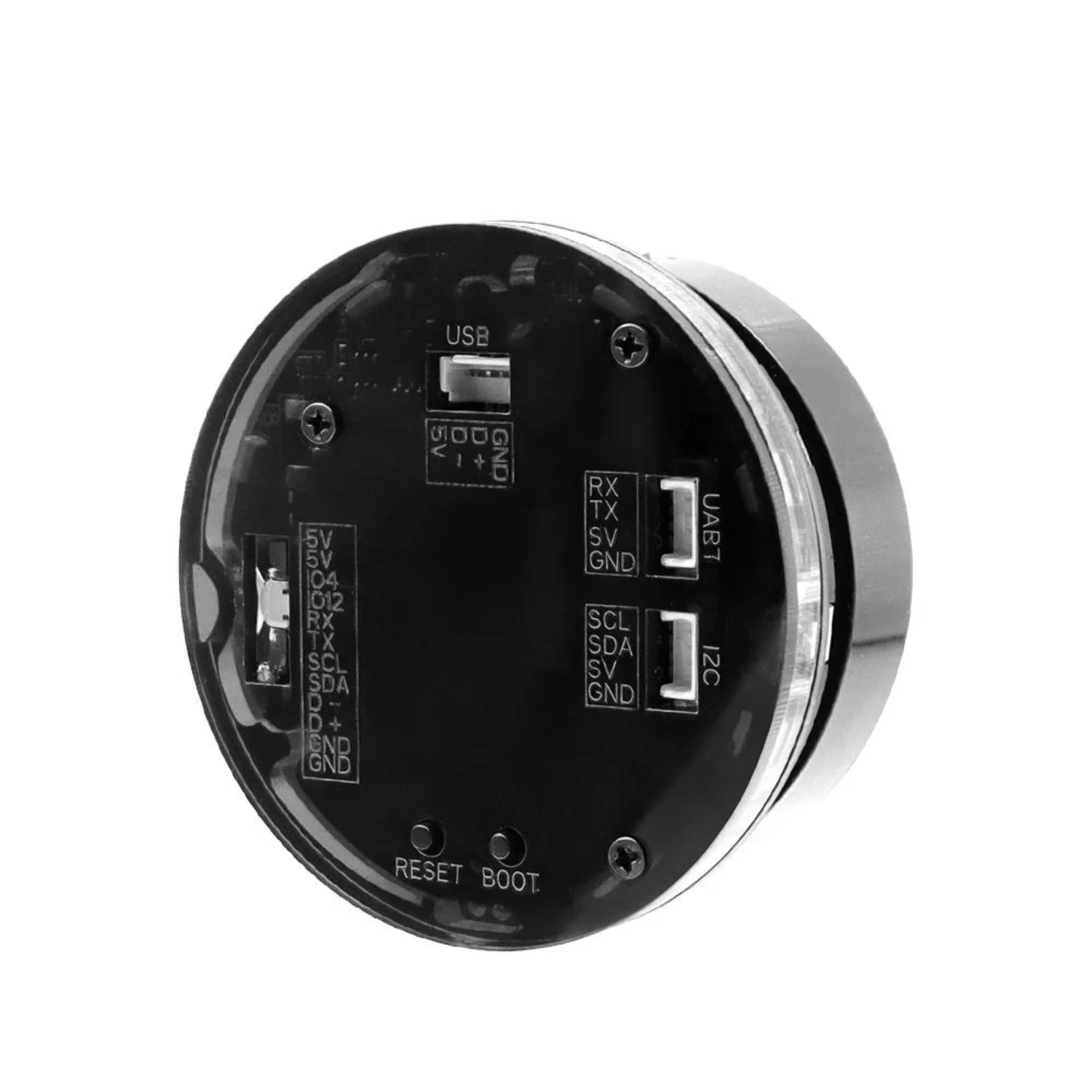

Product Interface:

Documents:

• Wiki
• User Manual
• CE Report
• FCC Report
• RoHs Report
• ESP32-S3 Datasheet

Package Included:

• 1x ESP32 Display – 1.46-inch Rotary Display
• 1x 50 cm MS1.25 to USB Cable
• 1X 4-pin Dupont Cable
