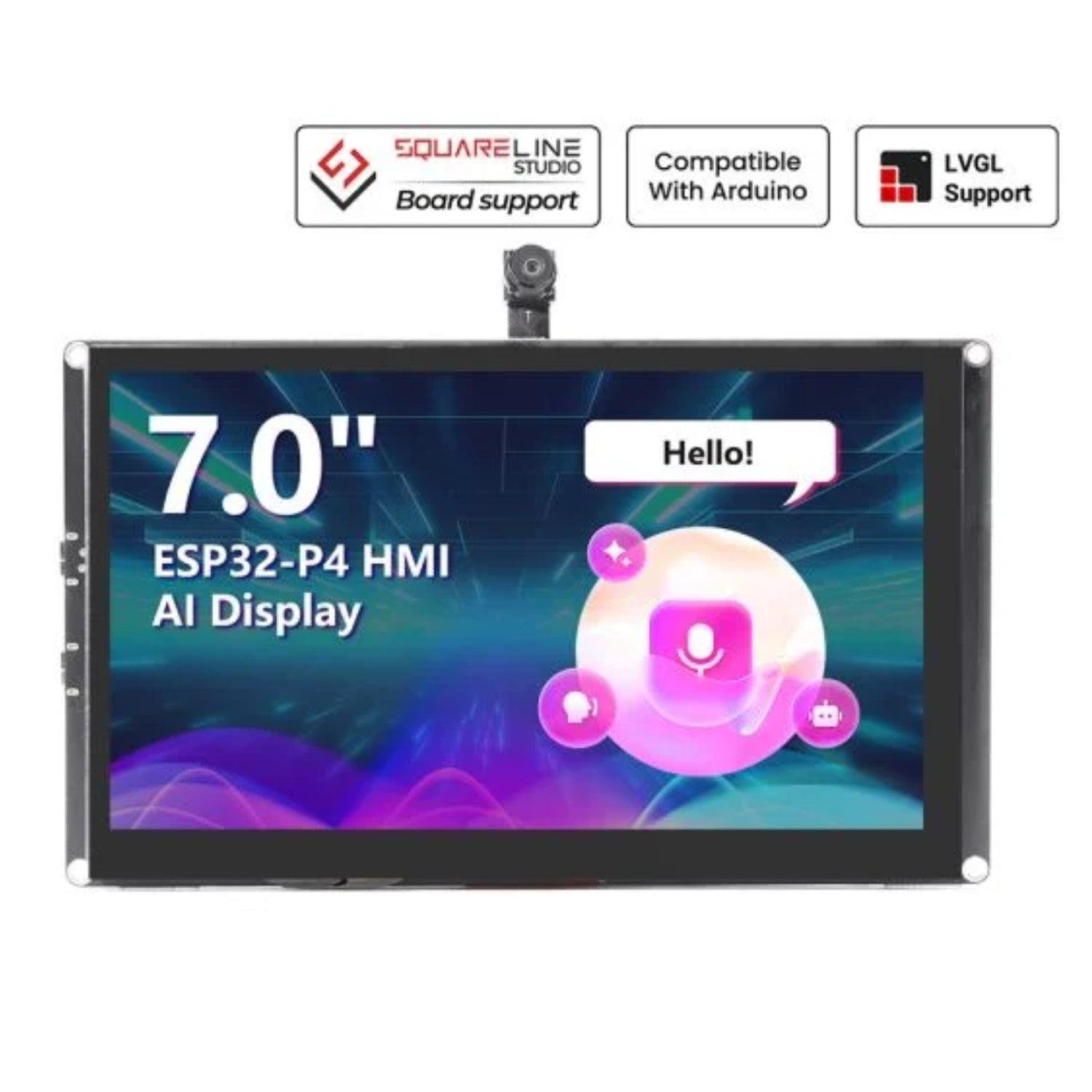

Elecrow CrowPanel Advanced 7" HMI AI Display High-Resolution 1024x600 IPS Capacitive Touch Screen With ESP32-P4 Microcontroller, WiFi 6 Compatible For IoT with Arduino/LVGL
Elecrow CrowPanel Advanced 7" HMI AI Display High-Resolution 1024x600 IPS Capacitive Touch Screen With ESP32-P4 Microcontroller, WiFi 6 Compatible For IoT with Arduino/LVGL
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

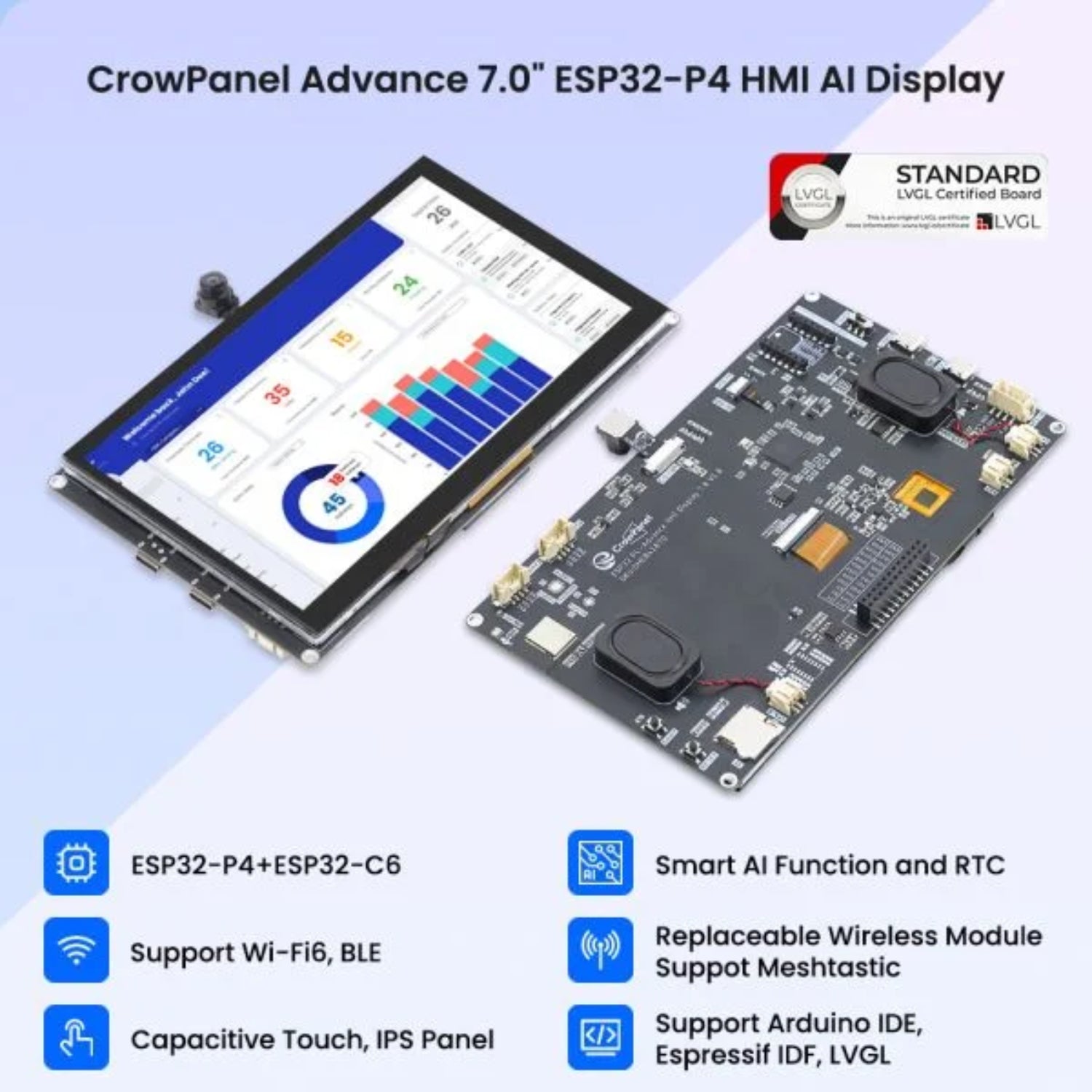

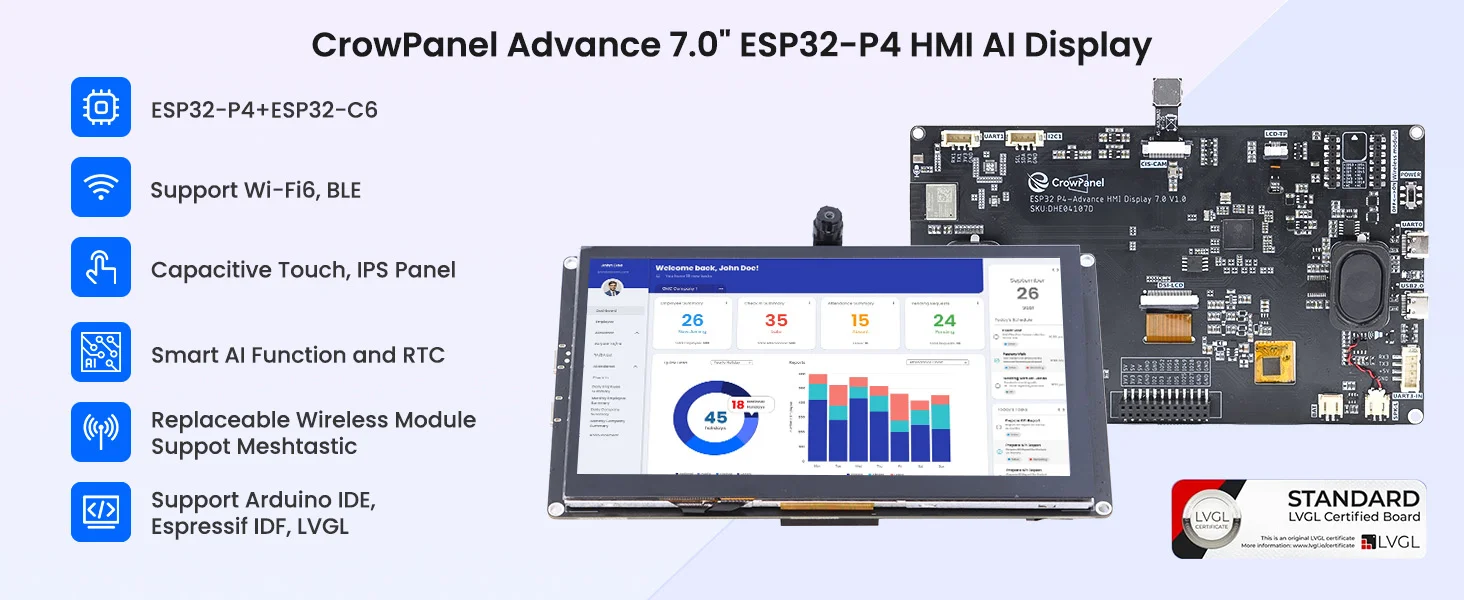

The CrowPanel Advance ESP32-P4 HMI series is a high-performance AI-powered intelligent interactive terminal designed for demanding applications. Its innovative dual-chip architecture combines powerful computing, rich multimedia features, and ultimate expansion flexibility, making it the ideal core for driving the next generation of smart devices.

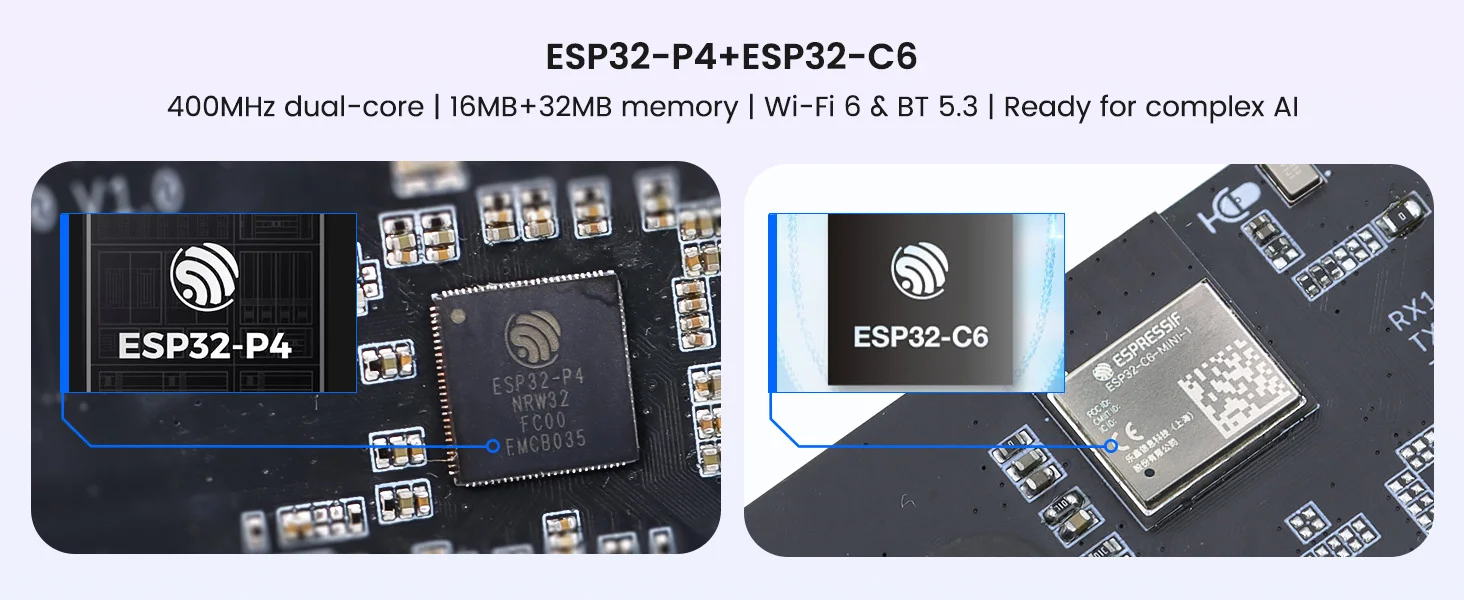

This 7-inch display is powered by the RISC-V-based ESP32-P4 SoC, featuring both high-performance and low-power cores, operating at frequencies up to 400MHz. Combined with the generous storage capacity of 16MB Flash and 32MB PSRAM, it provides ample power for complex graphical interfaces and real-time AI tasks.
The onboard ESP32-C6-MINI-1 module supports 2.4GHz Wi-Fi 6 and Bluetooth 5.3, ensuring stable and reliable connectivity with excellent power consumption.

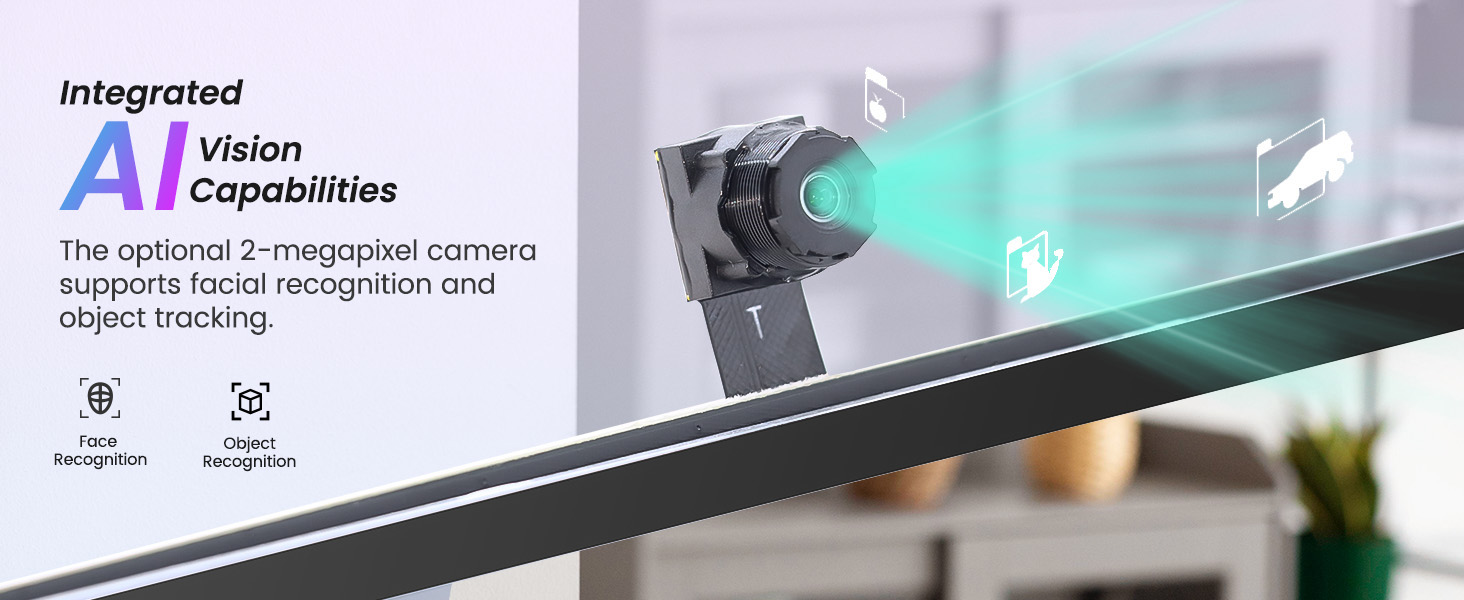

The 7-inch IPS touchscreen integrates capacitive touch technology, providing an intuitive user experience. The integrated 2-megapixel MIPI-CSI camera (optional) not only supports high-definition image capture but also efficiently runs edge AI applications such as real-time facial recognition and dynamic object tracking.

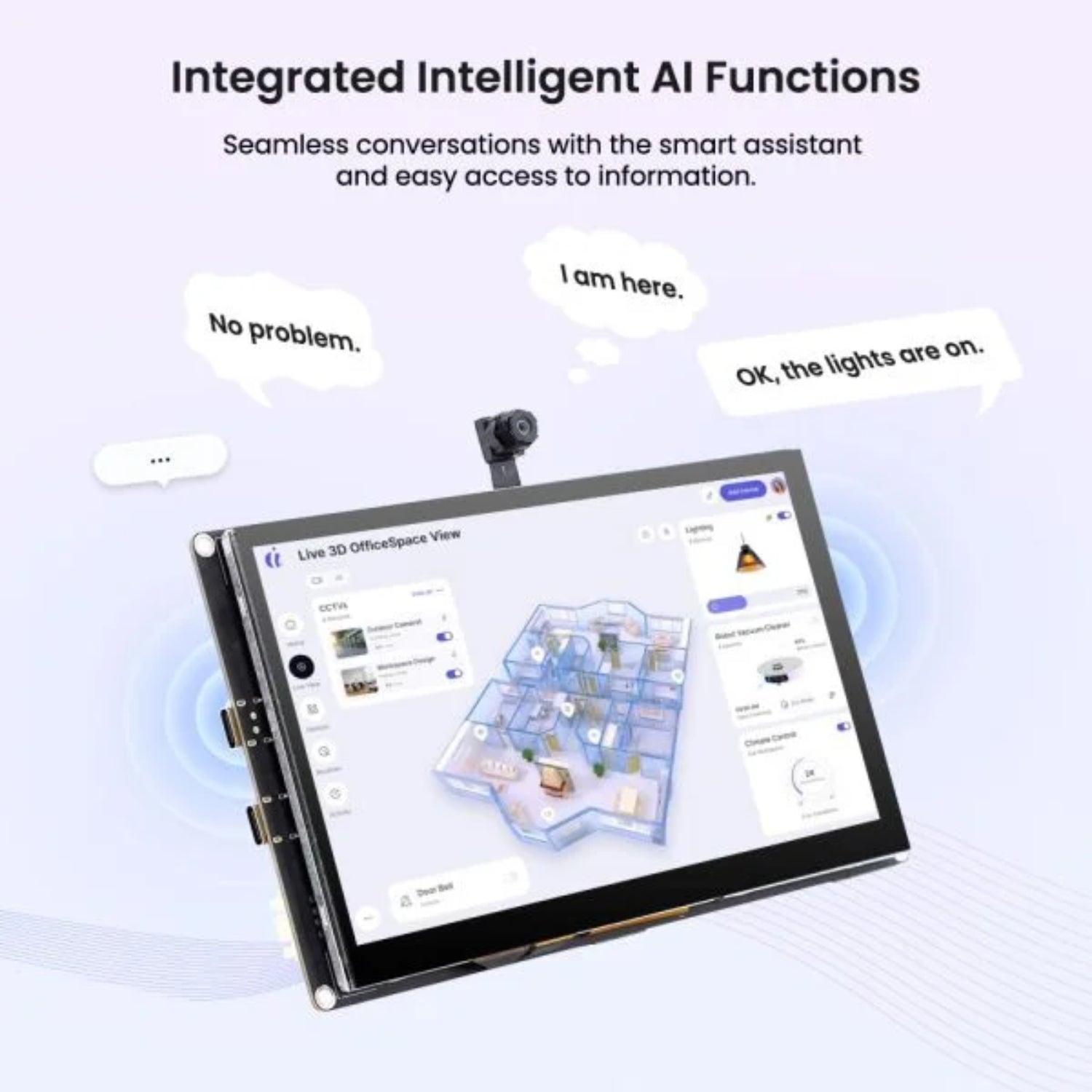

The onboard NS4168 audio codec and single-microphone array provide high-fidelity playback and accurate far-field voice recognition. Equipped with dual-channel speakers, it lays a solid foundation for voice interaction and is suitable for scenarios such as voice assistants and smart home control.
The 7-inch screen also offers ultimate expandability. Equipped with dual USB-C ports (UART adapter/USB 2.0 OTG), 40-pin GPIO, multiple Crowtail ports (supporting I2C/UART protocols), and interchangeable wireless module slots (supporting Thread, Zigbee, etc.), it easily adapts to various sensors and communication protocols.
Specifications:
|
CPU/SoC |
ESP32-P4 RISC-V 32-bit dual-core processor for HP systems, running at up to 400 MHz; RISC-V 32-bit single-core processor for LP systems, running at up to 40 MHz |
|
System Memory |
|
|
Memory |
|
|
Development Language |
MicroPython, Rust, Lua |
|
Development Environment |
ESP-IDF、Arduino IDE、LVGL |
|
Screen |
|
|
Size |
7.0 inch |
|
Resolution |
1024*600 |
|
Display Panel |
IPS Panel |
|
Touch Panel |
Capacitive Touch, Single/5-point Touch |
|
Viewing Angle |
178° |
|
Brightness |
400 cd/m²(Typ.) |
|
Color Depth |
16.7M (8-bit) |
|
Wireless Communication - Onboard Antenna |
|
|
WiFi |
Support 2.4GHz(Wi-Fi6), 802.11a/b/g/n |
|
Bluetooth |
Support Bluetooth 5.3 and BLE |
|
Other |
Zigbee, LoRa, nRF2401, Matter, Thread (Optional) |
|
Interface/Function |
|
|
Interface |
USB2.0, UART, I2C, GPIO female headers, SD card holder, battery socket, speaker jack, camera header, module female headers, etc. |
|
Function |
Audio amplifier, battery charge management, USB to UART, dual microphones, dual speakers etc. |
|
Button/LED Indicator |
|
|
Reset Button |
Yes, press to reset the device |
|
Boot Button |
Yes, press and hold the power button to burn the program |
|
Power Button |
Switch On/Off |
|
PWR |
Device power on/off indication |
|
CHG |
Lithium battery charging status, Low battery state |
|
Other |
|
|
Installation method |
All around mounting holes(M3 3.2mm), embedded, shell assembly |
|
Operating temperature |
-20~70 °C |
|
Storage temperature |
-30~80 °C |
|
Power Input |
5V/2A, USB or UART terminal |
|
Active Area |
155mm*87mm |
|
Dimensions |
180*105mm |
Features:
✅ Powerful dual-core architecture, enhanced performance
- Equipped with the RISC-V architecture ESP32-P4 dual-core processor (400MHz high-performance core + low-power core), equipped with 16MB Flash and 32MB PSRAM, it easily handles complex graphical interfaces and real-time AI calculations.
- An independent ESP32-C6-MINI-1 wireless module supports Wi-Fi 6 and Bluetooth 5.3, balancing stable connectivity with low power consumption.
✅ AI acceleration, fully upgraded performance
- Significantly improved computing power compared to previous generations, suitable for high-load tasks such as real-time data analysis, and suitable for high-performance applications such as smart home appliances and industrial control.
- Supports dual-channel speaker output, making it suitable for scenarios such as voice assistants and smart home control.
✅ High-definition IPS touchscreen for smooth and natural interaction
- Available in multiple sizes: 5.0/7.0/9.0/10.1 inches, IPS TFT screens support capacitive touch, wide viewing angles, and smoother interaction.
✅ Integrated intelligent vision, empowering AI applications
- An integrated 2-megapixel MIPI-CSI camera smoothly runs AI vision algorithms like facial recognition and object tracking.
✅ Rich and comprehensive interfaces for flexible expansion
- Dual USB-C (supporting UART debugging and USB 2.0 OTG), 40-pin GPIO, and Crowtail (I2C/UART) interfaces facilitate connection to various peripherals and sensors.

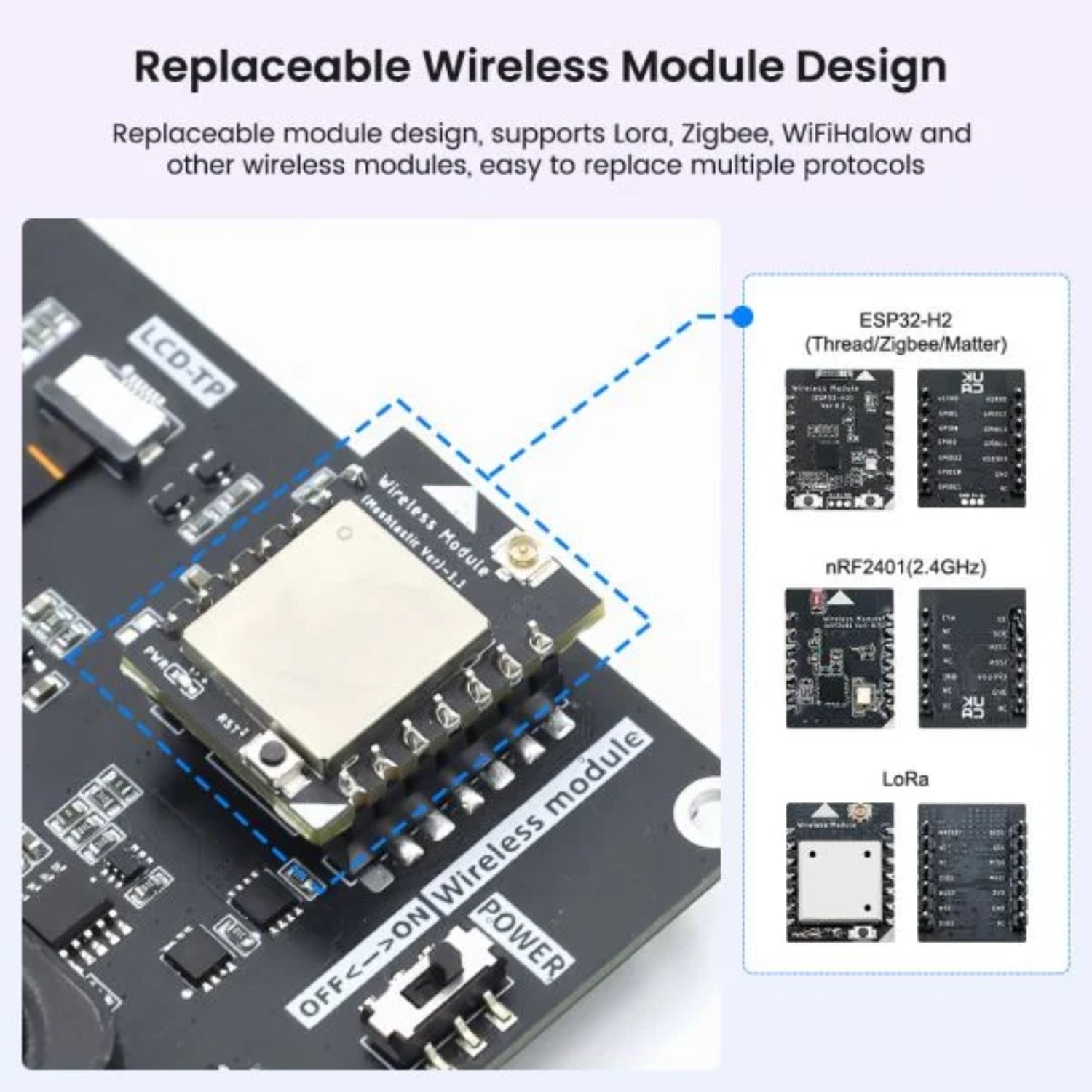

- A replaceable wireless module slot supports multiple communication protocols, including Wi-Fi 6, Thread, Zigbee, allowing a single board to accommodate diverse IoT scenarios.
Chip Performance:
- Chip Model：nRF24L01+
- Worldwide 2.4GHz ISM band operation
- 250kbps, 1Mbps and 2Mbps on air data rates
- Ultra-low power operation
- 11.3mA TX at 0dBm output power
- 13.5mA RX at 2Mbps air data rate
- 900nA in power down
- On-chip voltage regulator
- 1.9 to 3.6V supply range
Useful Links:

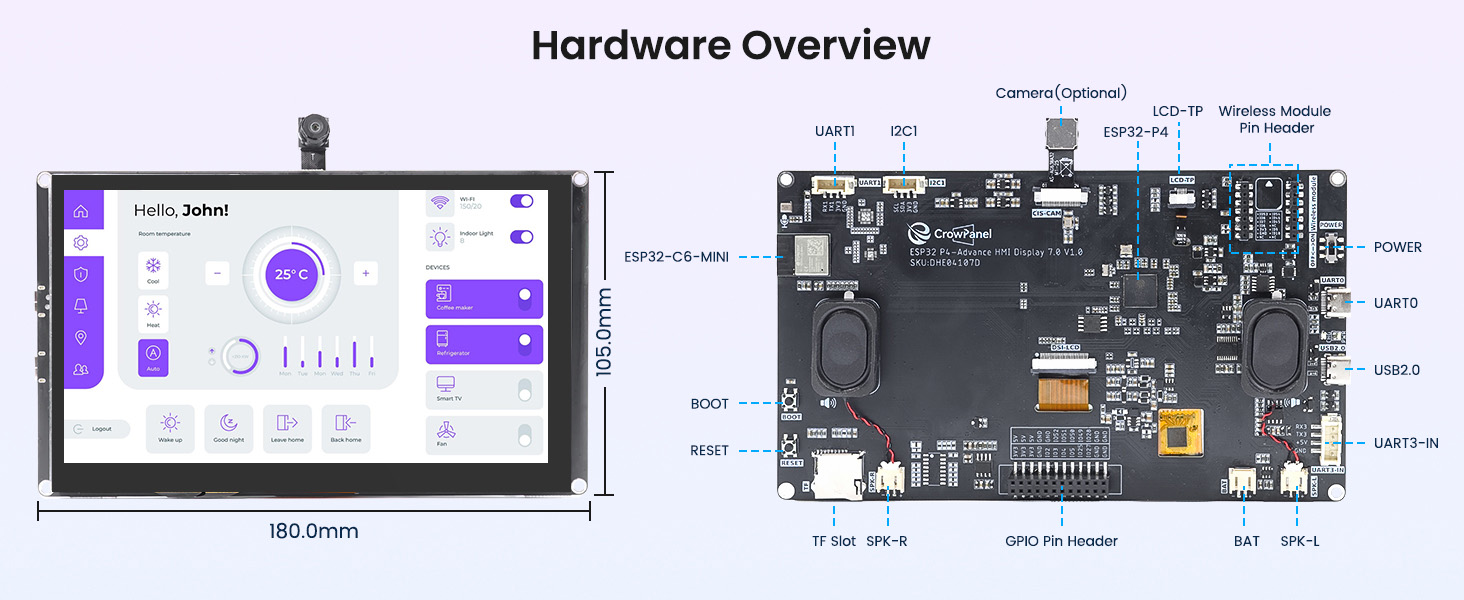

Product Interface:

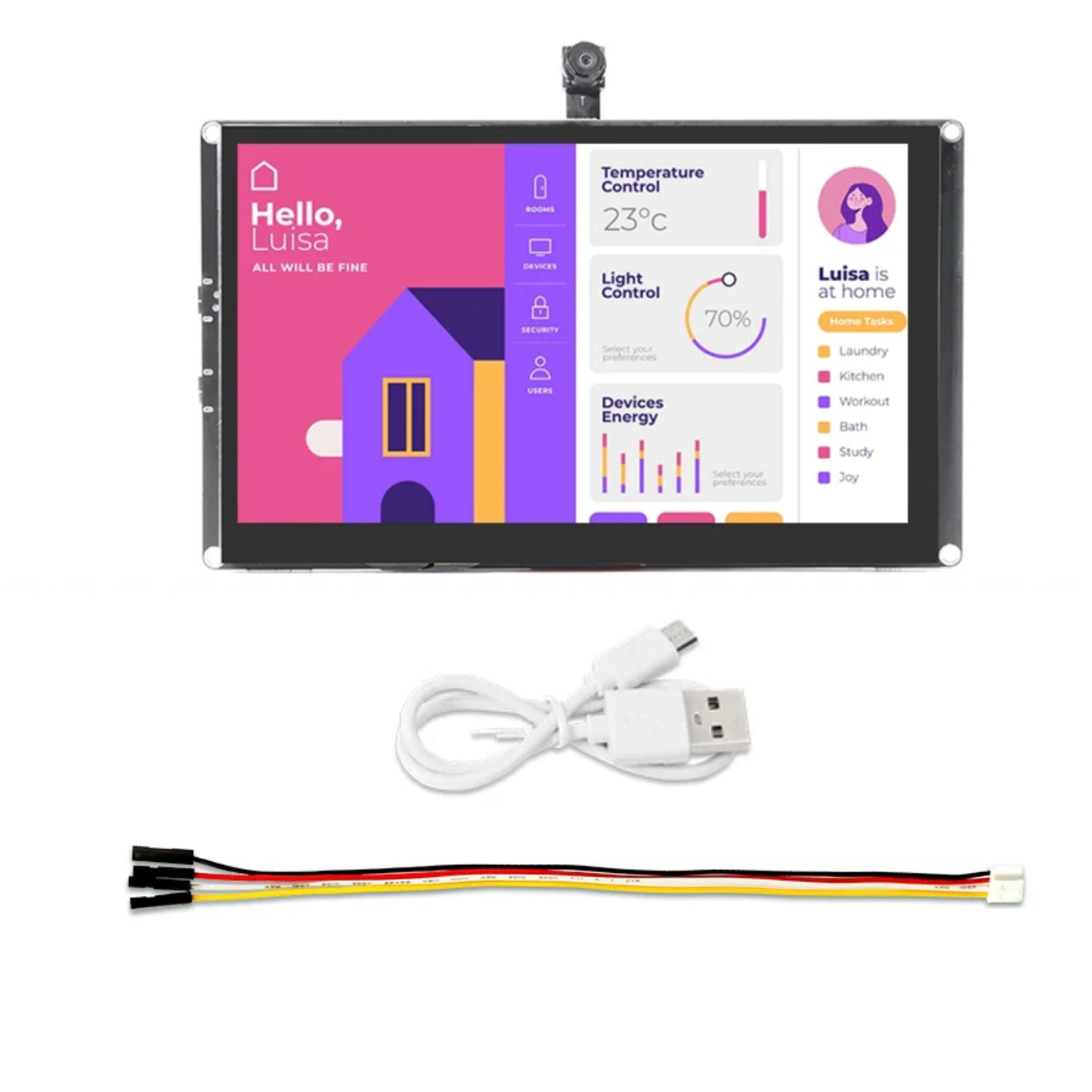

Package Included:
- 1x CrowPanel Advance ESP32-P4 Display-7.0 inch
- 1x USB-A to Type-C Cable
- 1x Crowtail/Grove 4pin DuPont cable
